VIDEO INTERCOM SET KTP01 F) DAHU

This product is not available

Availability:: expected delivery
Brand:: Dahua
Product code:: KTP01(F) / 5902887060625

Specification

Access from a mobile phone::	Port: 37777 or cloud access (P2P) Android: Free DMSS iOS app (iPhone): Free DMSS app
Case::	Aluminium
Colour::	silver
Compatibility::	DAHUA
Image compression method::	H.264
Mechanical resistance class::	IK07
Objective::	1.95 mm
Operating temperature::	-30 °C ... 60 °C
Power consumption::	≤ 12 W
Power::	PoE (802.3af), 12 V DC, 2-Wire IP interface
Sealing::	IP65 - after additional sealing of the housing connection with the mounting surface, e.g. silicone
Selected features::	Support Micro SD cards up to 64GB (local recording possible), Doorbell button, LEDs, Condition monitoring of individual doors, Two-way communication, Built-in microphone, Built-in speakers, Tamper detection - ground detachment
Transducer::	2 Mpx CMOS
Utp category::	UTP cat. 5e
Viewing angle::	160 °

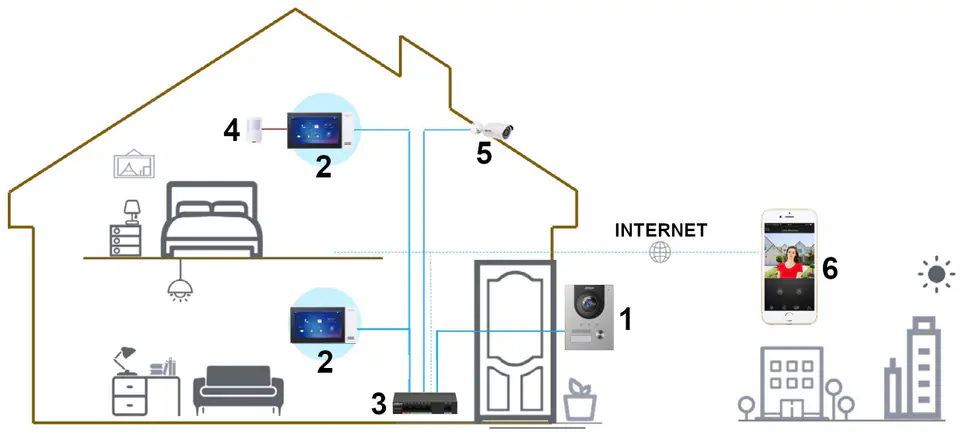

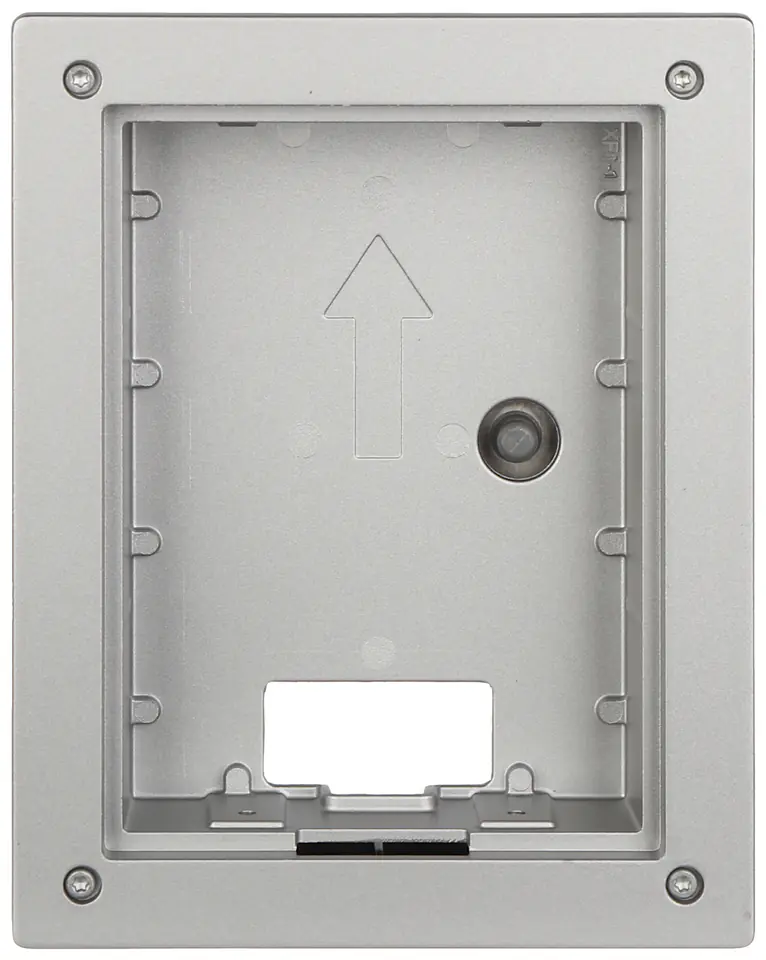

IP video intercom set with a 7-inch touch monitor, the possibility of alarm integration and operation of 2 inputs, as well as a remote intercom from the mobile applicationIt can also act as a simplified alarm control panel, or a notification module by operating 6 alarm inputsThe video recorder is mounted in a flush-mounted housing

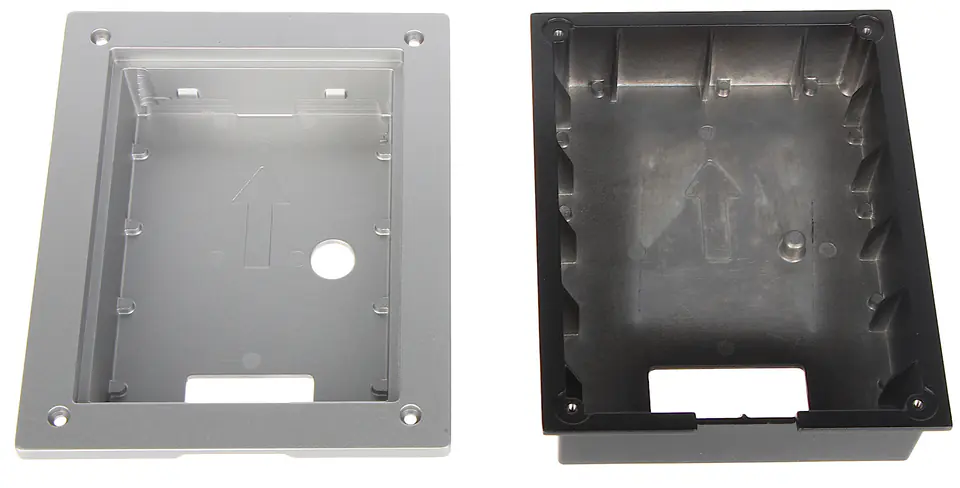

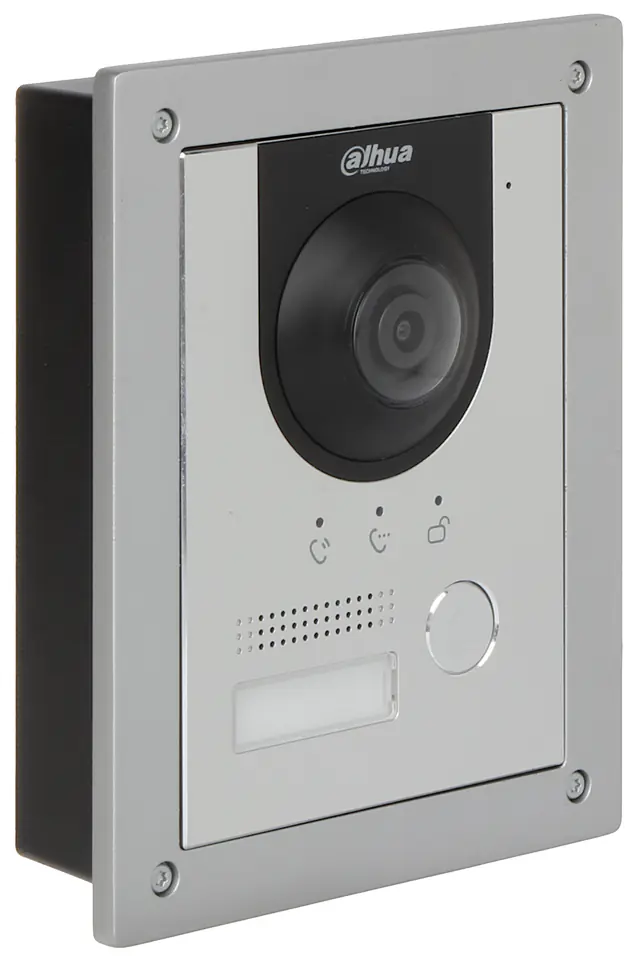

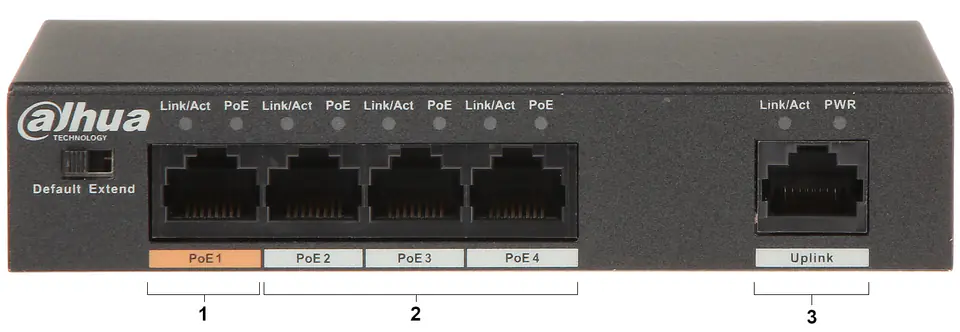

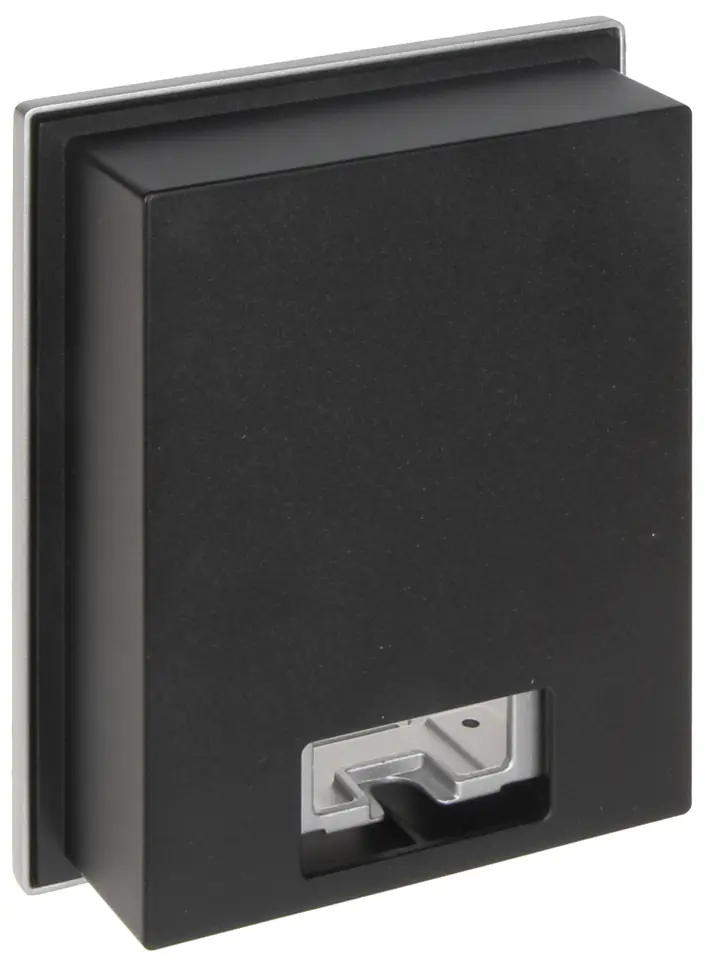

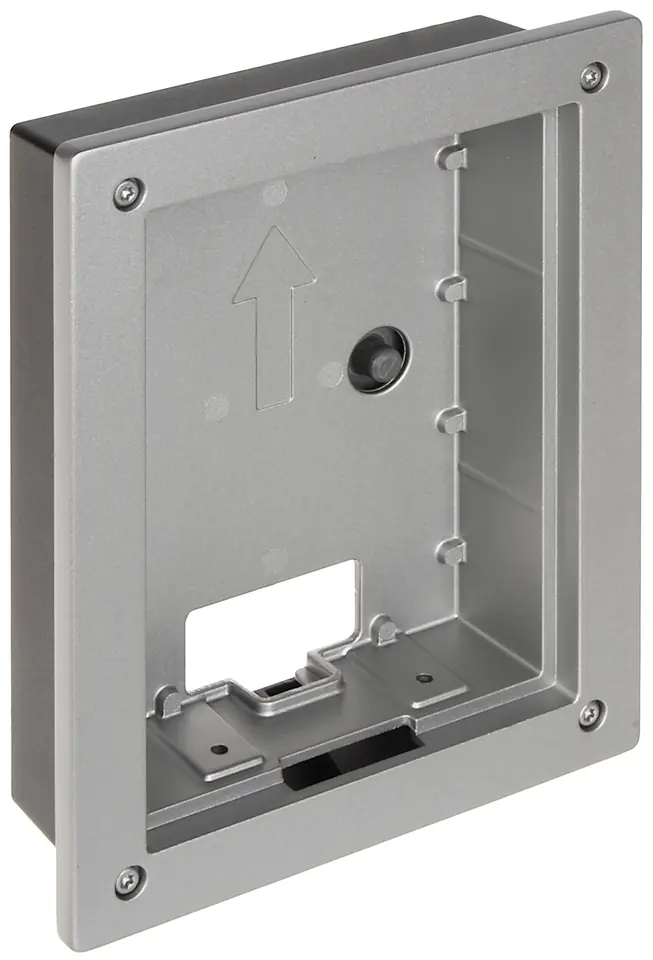

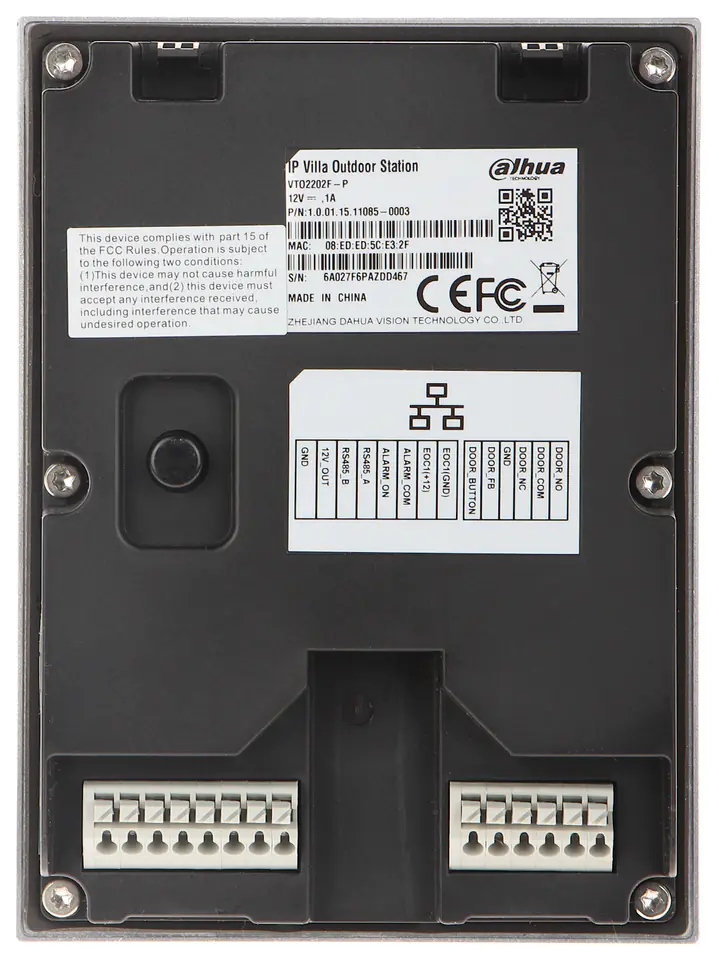

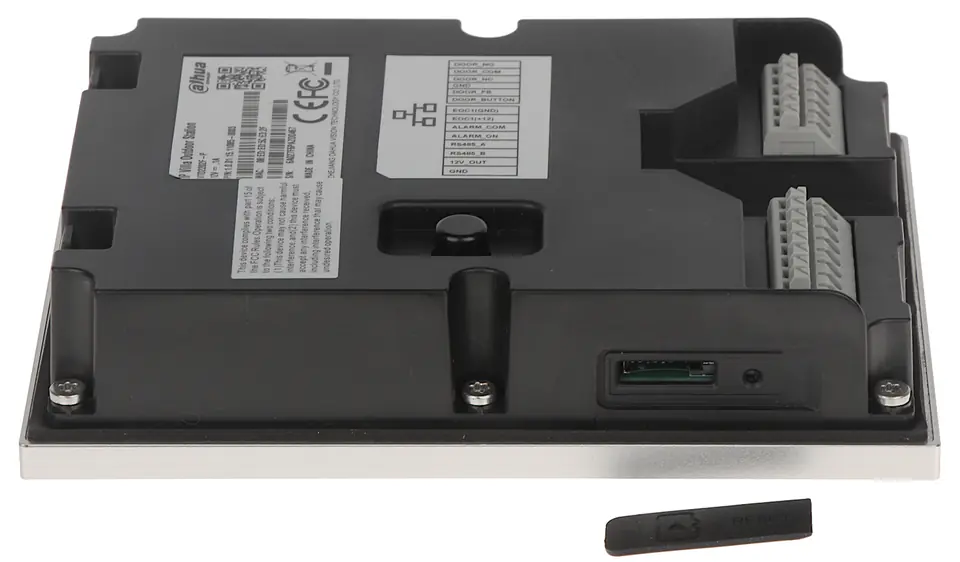

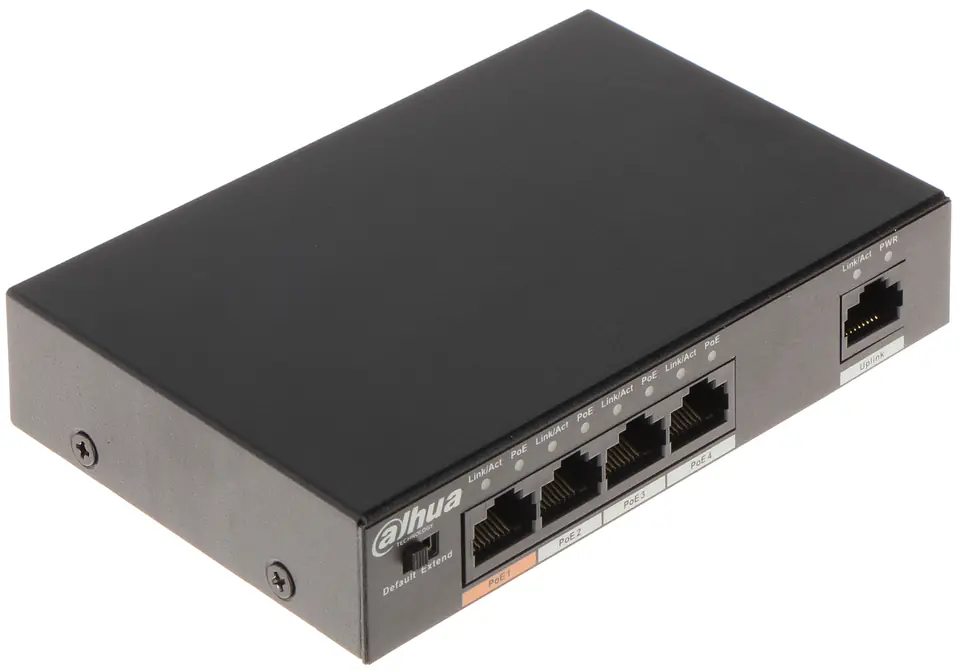

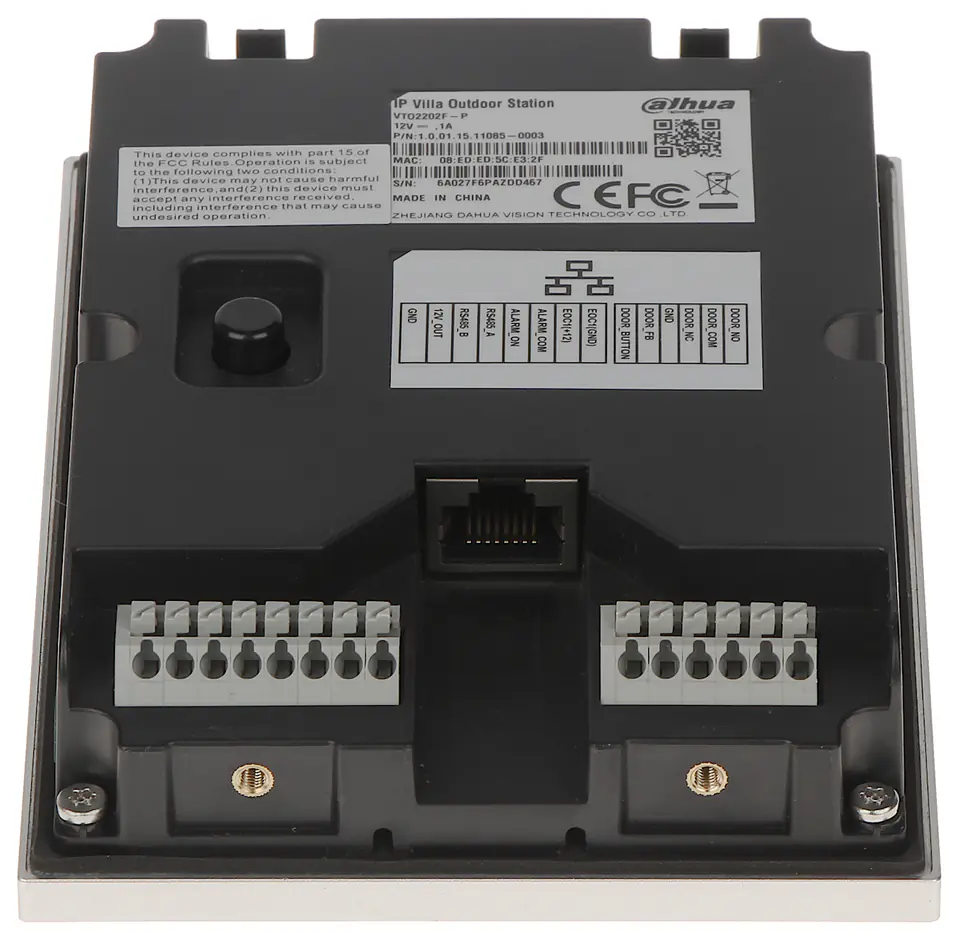

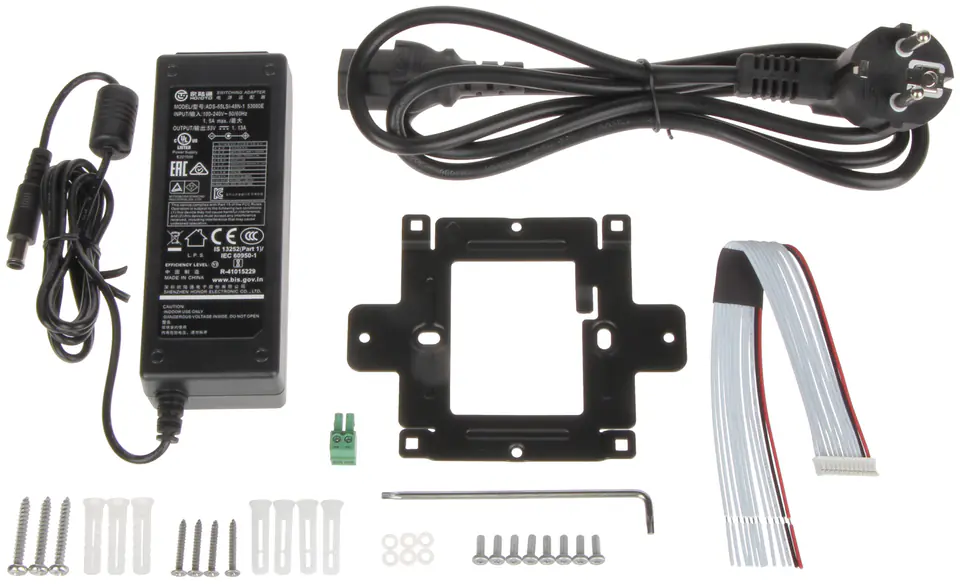

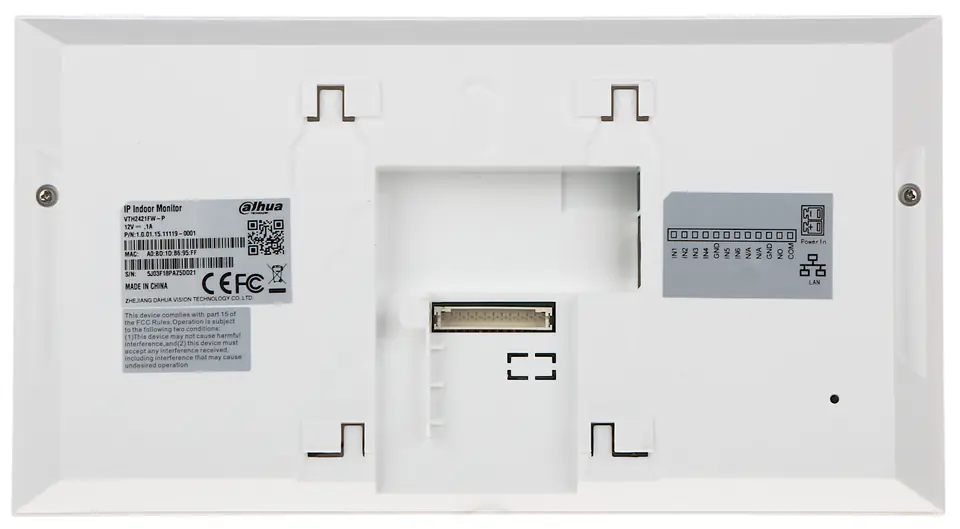

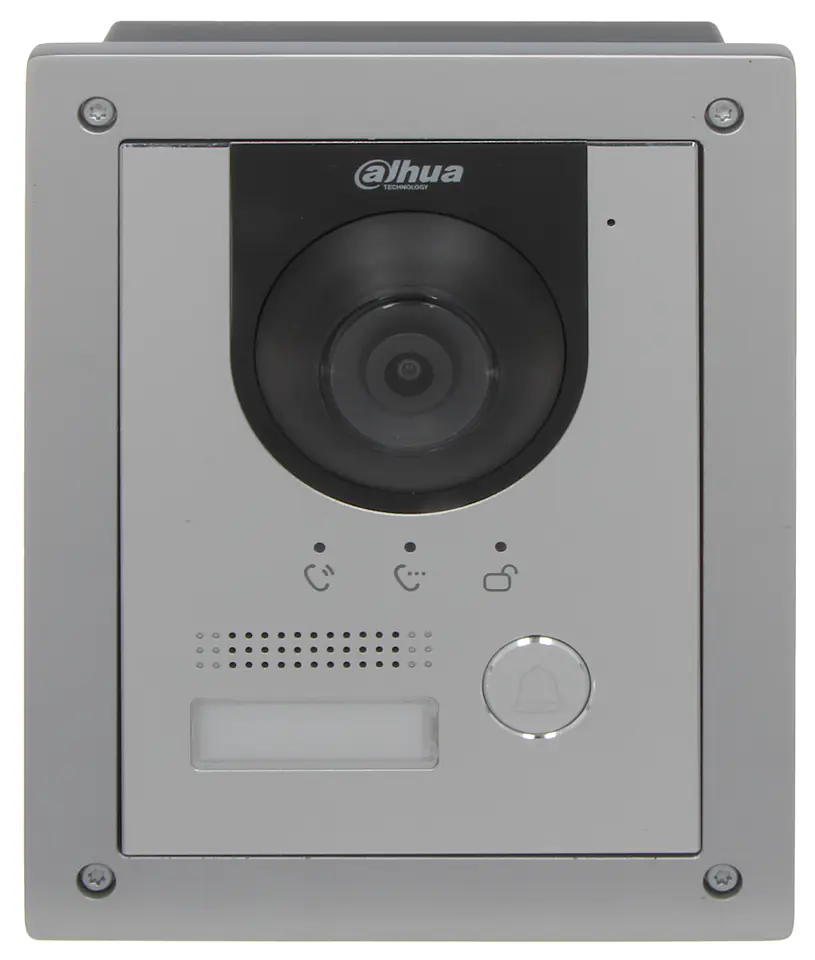

The set includes: VTH2421FW-P internal panel, VTO2202F-P video intercom, PFS3005-4ET-60 PoE switch and VTM114 flush-mounted housing

REMARK! The device does not work with the analog Dahua system

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
