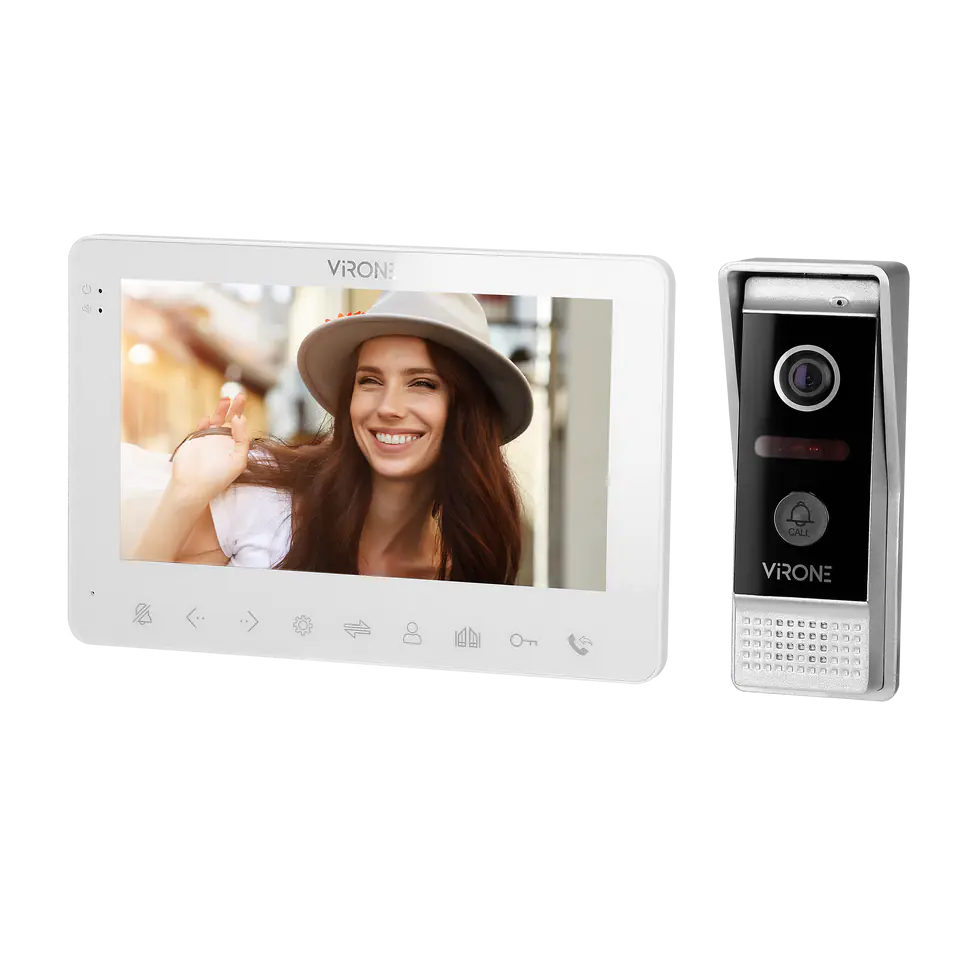

The modern VIFAR door communication video set consists of a 7" color LCD monitor in a white housing and an external cassette with a camera and an input button. Communication between the internal and external panel does not require a handset. Additional illumination of the external cassette with IR LEDs enables good night vision. The set is equipped with a Slot for a Micro SD card, which allows you to view, record and save video / photo files from the camera, so we can check who visited us even while away from home. In addition, thanks to Wi-Fi communication and a simple application for a smartphone or tablet with Android or iOS, it is possible to control the set from a distance. The monitor, which is part of the set, has the function of intercom, gate control and opening the electric strike. Expandable with additional elements from the series - up to 6 monitors, 2 cameras and 2 external cassettes.
Video intercom, headphoneless, color, LCD 7", OSD menu, WI-FI + APP for phone, gate control, white, VIFAR
This product is not available
- Availability:
- expected delivery
- Brand:
- Orno
- Product code:
- VDP-63 / 5908254812224
Share this product:
Specification
| Built-in loudspeaker: | Yes |
|---|---|
| Built-in microphone: | Yes |
| Camera resolution (numeric): | 960P |
| Canopy: | Yes |
| Cipher: | No |
| Compatible wall mount: | 1 |
| Depth: | 24 mm |
| Display: | TFT-LCD |
| Display included: | Yes |
| Display resolution: | 1024 x 600 pixels |
| Height: | 126.9 mm |
| Housing material: | Aluminium alloy |
| Image sensor size: | 1/3" |
| Input voltage: | 12 - 15 V |
| Instruction sheet: | Y |
| International protection (ip) code: | IP44 |
| Lens viewing angle, vertical: | 57° |
| Motion sensor: | Yes |
| Mounting: | Surface mounting |
| Night-light: | Yes |
| Number of connecting cables: | 4 |
| Number of melodies: | 10 |
| Number of outputs: | 2 outputs |
| Operating current (door opener): | 1 A |
| Outdoor unit depth: | 4 cm |
| Outdoor unit height: | 12.8 cm |
| Outdoor unit included: | Yes |
| Outdoor unit width: | 4.8 cm |
| Power source: | DC |
| Power supply included: | Yes |
| Product colour: | White |
| Rfid proximity key reader: | No |
| Screen size (max): | 7'' |
| Sensor type: | CMOS |
| Smartphone/tablet remote support: | Yes |
| Supported cameras: | AHD |
| Temperature range (zone 1): | 0 - 50 °C |
| Temperature range (zone 2): | -40 - 50 °C |
| Touchscreen: | No |
| Viewing angle, horizontal: | 100° |
| Wi-fi: | Yes |
| Width: | 189.9 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
