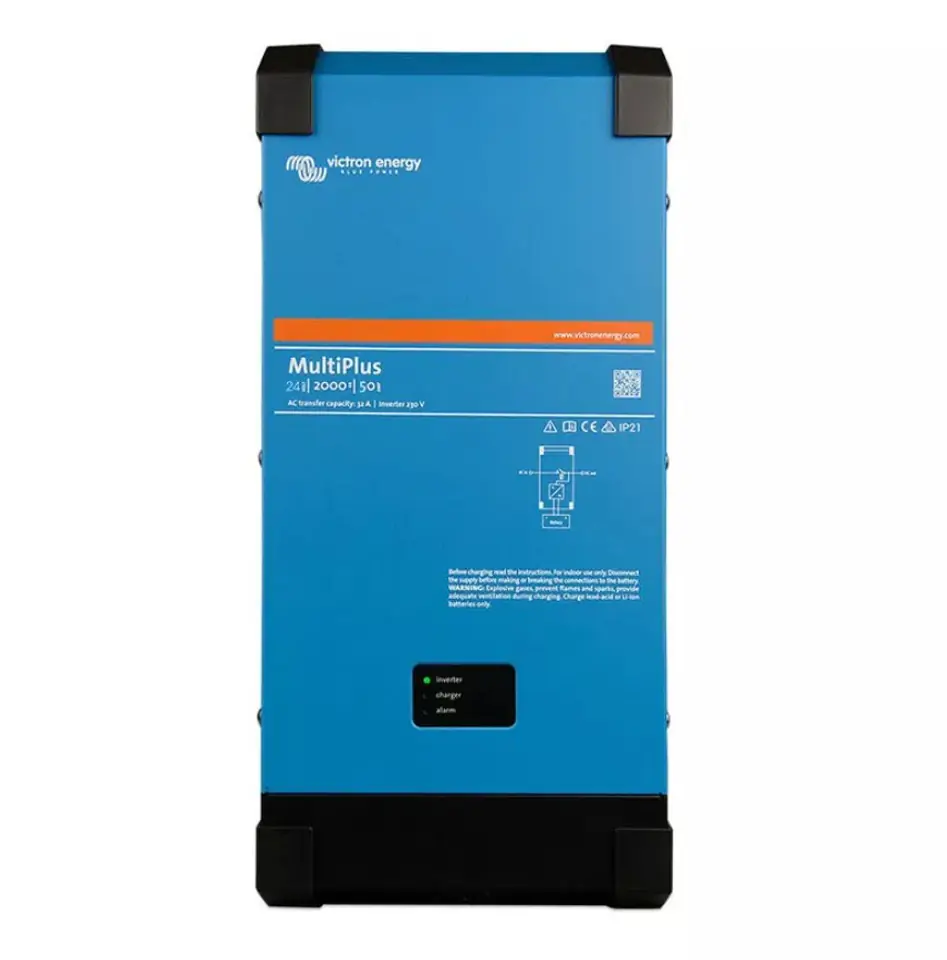

Victron Energy MultiPlus Slim 24/2000/50-3 Inverter
This product is not available
- Availability:
- expected delivery
- Brand:
- Victron Energy
- Product code:
- PMP242200000 / 8719076052173
Share this product:
Specification
| Ac input voltage: | 187 - 265 V |
|---|---|
| Apparent power: | 2000 VA |
| Brand compatibility: | Victron Energy |
| Built-in display: | No |
| Charging the current battery: | 50 A |
| Charging voltage (absorption): | 28,8 V |
| Charging voltage (liquid): | 27,6 V |
| Dc input voltage: | 24 V |
| Depth: | 147 mm |
| Dip switch: | Yes |
| Efficiency: | 94% |
| Frequency: | 50 Hz |
| Frequency range: | 45 - 65 Hz |
| Height: | 506 mm |
| Input voltage: | 19 - 33 V |
| International protection (ip) code: | IP22 |
| Material: | Steel |
| Mounting type: | M8 |
| Number of ve.bus ports: | 1 |
| Ongoing charging of the starter battery: | 1 A |
| Operating relative humidity (h-h): | 0 - 95% |
| Operating temperature (t-t): | -40 - 65 °C |
| Output power at 25°c: | 1600 W |
| Output power at 40°c: | 1400 W |
| Output power at 65°c: | 1000 W |
| Output voltage: | 230 V |
| Peak power: | 3500 W |
| Power at zero load: | 9 W |
| Power current type: | DC/AC |
| Power protection features: | Over voltage, Over power, Under voltage, Overheating, Overvoltage protection |
| Power supply type: | Indoor/outdoor |
| Product colour: | Blue |
| Purpose: | Solar panel |
| Quantity per pack: | 1 pc(s) |
| Three-phase and parallel operation: | Yes |
| Weight: | 15.5 kg |
| Width: | 236 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
