| Access from a mobile phone:: | Port: 80 or cloud access (P2P) Android: Free Hik-Connect iOS app: Free Hik-Connect app |
|---|---|
| Alarm inputs / outputs:: | 1 / 1 |
| Audio:: | External Microphone Input Audio Output Support Bidirectional Audio |
| Case:: | Compact, Metal |
| Colour:: | white |
| Compression:: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Default administrator login / password:: | admin / -Administrator password should be set at first startup |
| Default ip address:: | 192.168.1.64 |

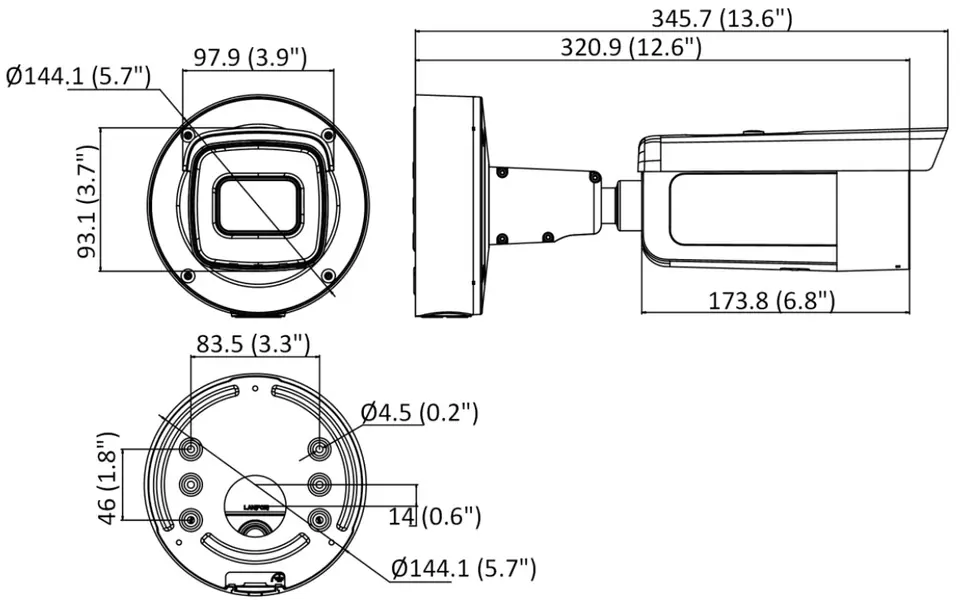

| Dimensions:: | Ø 144 x 346 mm |
| Ir illuminator range:: | 60 m |
| Main stream transmission speed:: | 25 fps - 4 Mpx |
| Manufacturer / brand:: | Hikvision |
| Matrix size:: | 4 Mpx |
| Max. number of on-line users:: | 6 |

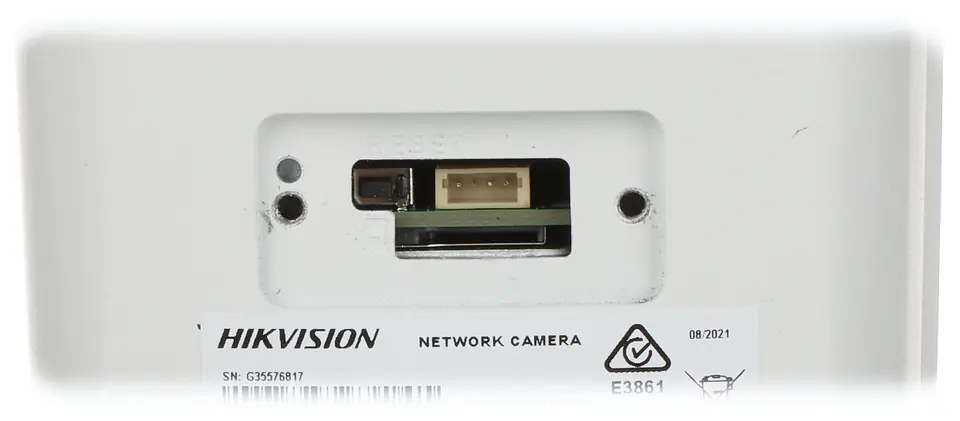

| Memory card slot:: | Supports Micro SD cards up to 256GB (local write possible) |
| Network interface:: | 10/100 Base-T (RJ-45) |
| Network protocols:: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, IEEE 802.1x, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP |
| Objective:: | 2.8 ... 12 mm - Motozoom |
| Onvif port:: | 80 |
| Onvif:: | 18.12 |
| Operating temperature :: | -30 °C ... 60 °C |
| Port of access via mobile application:: | 8000 |
| Ports for access via the pc application:: | Port: 8000 or Cloud Access (P2P) - iVMS-4200 Application |
| Power consumption:: | ≤ 15 W @ PoE (802.3at)≤ 13 W @ 12 V DC |
| Power:: | PoE (802.3at), 12 V DC / 1.08 A |
| Resolution:: | 2688 x 1520 - 4 Mpx ,1920 x 1080 - 1080p1280 x 720 - 720p |
| Rtsp url:: | Main stream : rtsp://user:password o@192.168.1.64:554/Streaming/Channels/101/ Substream: rtsp://user:password o@192.168.1.64:554/Streaming/Channels/102/ |
| Sap code:: | 311315192 |
| Scales:: | 1.75 kg |
| Sealing:: | IP66 |
| Selected features:: | WDR - 120 dB - Wide dynamic range of lighting 3D-DNR - Digital noise reduction in the EXIR image - technology of highly effective infrared LEDs that evenly illuminate the entire scene, both the central point and the corners of THE ANR - recording the image on the card in the absence of communication with the recorder (network failure) and subsequent ROI synchronization - improving the quality of selected fragments of the BLC image - compensation of back light (background) HLC - Compensation of strong (point) light Mode Day/Night ICR - Mechanical IR Filter Automatic White Balance AGC - Automatic Image Gain Adjustment Mirror - Image Mirror Configurable Privacy Zones Configurable: Brightness, Contrast, Saturation Sharpness - Sharpen image contours Filter false alarms based on person and vehicle recognition Intelligent Image Analysis: Intrusion, Line Crossing, Area Entry/Exit Detection, Scene Change, Advanced face capture features |
| Standard:: | TCP/IP |
| Supported languages:: | Polish, Bulgarian, Croatian, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Hungarian, Italian, Latvian, Lithuanian, Norwegian, Portuguese, Romanian, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Turkish, Ukrainian, Vietnamese |
| Transducer:: | 1/3" Progressive Scan CMOS |
| Vandal proof:: | IK10 |
| Viewing angle:: | 108 ° ... 30° (manufacturer data) 102° ... 31° (our tests) |
| Warranty:: | 3 years |
| Web access ports:: | 80 |
| Web server:: | Built-in, NVR compliant |
IP camera with efficient H.264 / H.265 image compression algorithm for clearer and smoother image transmission at a maximum resolution of 4 MPxTherefore, it is ideal for surveillance systems where identification of people or vehicles is required
The ability to power PoE, in accordance with the 802.3at standard, makes the device even more versatile and easier to install
Powered by Darkfighter - the camera has very good sensitivity, dedicated to low light conditions
AcuSense Series Camera
