| Access from a mobile phone:: | Port: 8000 or cloud access (P2P) Android: Free Hik-Connect iOS app: Free Hik-Connect app |
|---|---|
| Case:: | Dome, Metal + Plastic |
| Colour:: | white |
| Default administrator login / password:: | admin / -Administrator password should be set at first startup |
| Default ip address:: | 192.168.1.64 |

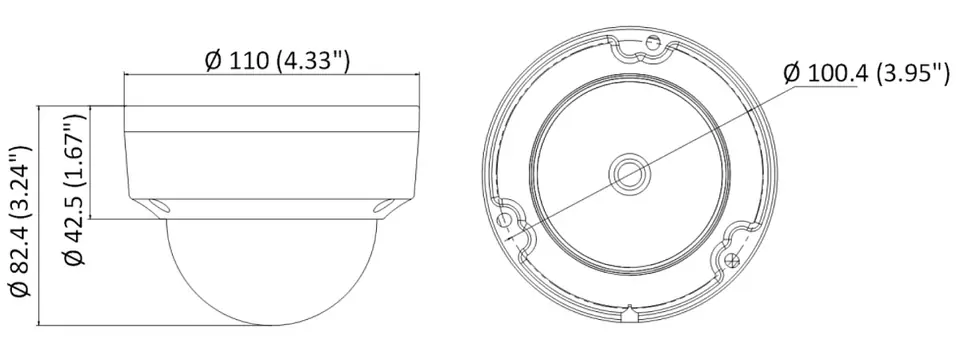

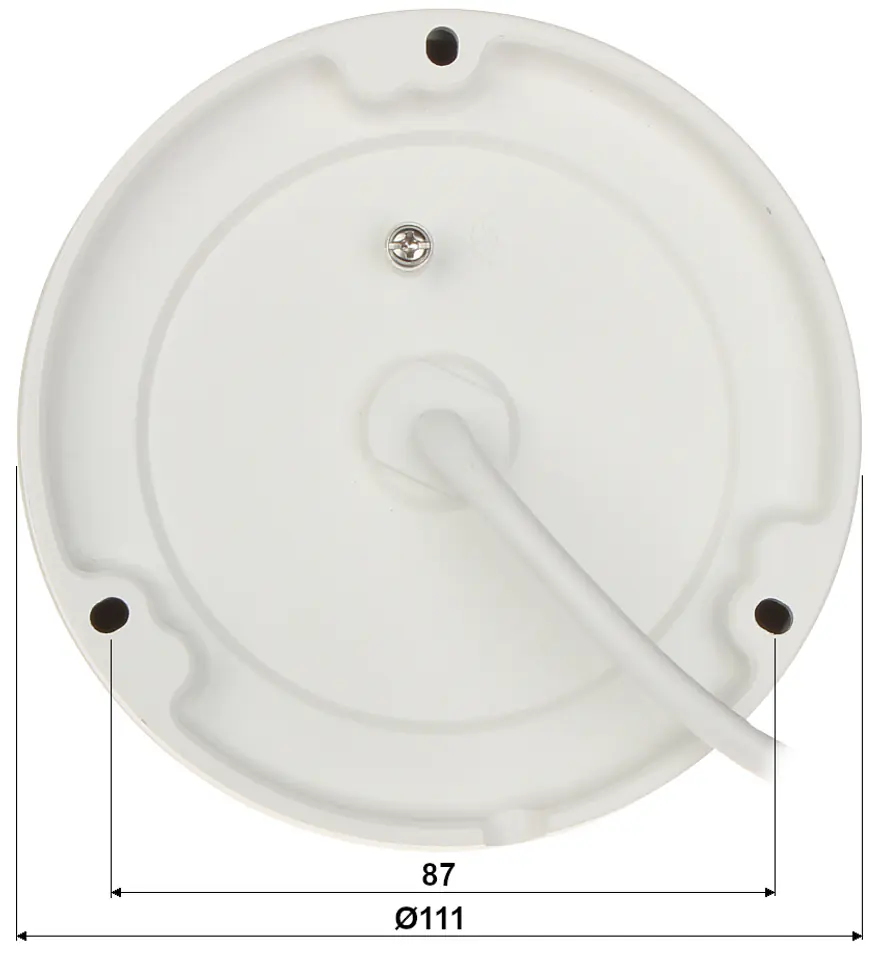

| Dimensions:: | Ø 111 x 85 mm |
| Image compression method:: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Ir illuminator range:: | 30 m |
| Main stream transmission speed:: | 20 fps @ 5 Mpx25 fps @ 4 Mpx |
| Manufacturer / brand:: | Hikvision |
| Matrix size:: | 5 Mpx |
| Max. number of on-line users:: | 6 |
| Network interface:: | 10/100 Base-T (RJ-45) |
| Network protocols:: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, IGMP, IEEE 802.1x, QoS, IPv4/IPv6, Bonjour, UDP, SSL/TLS |
| Objective:: | 2.8 mm |
| Onvif port:: | 80 |
| Onvif:: | 18.12 |
| Operating temperature :: | -30 °C ... 60 °C |
| Port of access via mobile application:: | 8000 |
| Ports for access via the pc application:: | Port: 8000 or Cloud Access (P2P) - iVMS-4200 Application |
| Power consumption:: | ≤ 5W @ 12V DC ≤ 6.5W @PoE (802.3af) |
| Power:: | PoE (802.3af), 12 V DC / 420 mA |
| Resolution:: | 2560 x 1920 - 5 Mpx ,2560 x 1440 - 4 Mpx ,1920 x 1080 - 1080p1280 x 720 - 720p |
| Rtsp url:: | Main stream : rtsp://user:password o@192.168.1.64:554/Streaming/Channels/101/ - with authorization Substream: rtsp://user:password o@192.168.1.64:554/Streaming/Channels/102/ - with authorization |
| Sap code:: | 311317382 |
| Scales:: | 0.37 kg |
| Sealing:: | IP67 |
| Selected features:: | WDR - 120 dB - Wide Dynamic Range 3D-DNR - Digital Noise Reduction ROI - Improving the Quality of Selected Image FragmentsAnti-Flicker - Technology to Eliminate Eye-Straining BLC Flickering - Back light (Background) Compensation Changeability Resolution, Quality and Bandwidth Customizable Privacy Zones Motion Detection Mirror - Sharpness Image Mirror - Sharpness Image Contour Sharpness |
| Standard:: | TCP/IP |
| Supported languages:: | English, Ukrainian |
| Transducer:: | 1/2.7" Progressive Scan CMOS |
| Vandal proof:: | IK10 |
| Viewing angle:: | 98° (manufacturer data) 92° (our tests) |
| Warranty:: | 3 years |
| Web access ports:: | 80 |
| Web server:: | Built-in |
IP camera with efficient H.264 / H.265 image compression algorithm for clearer and smoother image transmission at a maximum resolution of 5 MPx
The ability to power PoE, in accordance with the 802.3af standard, makes the device even more versatile and easier to install
