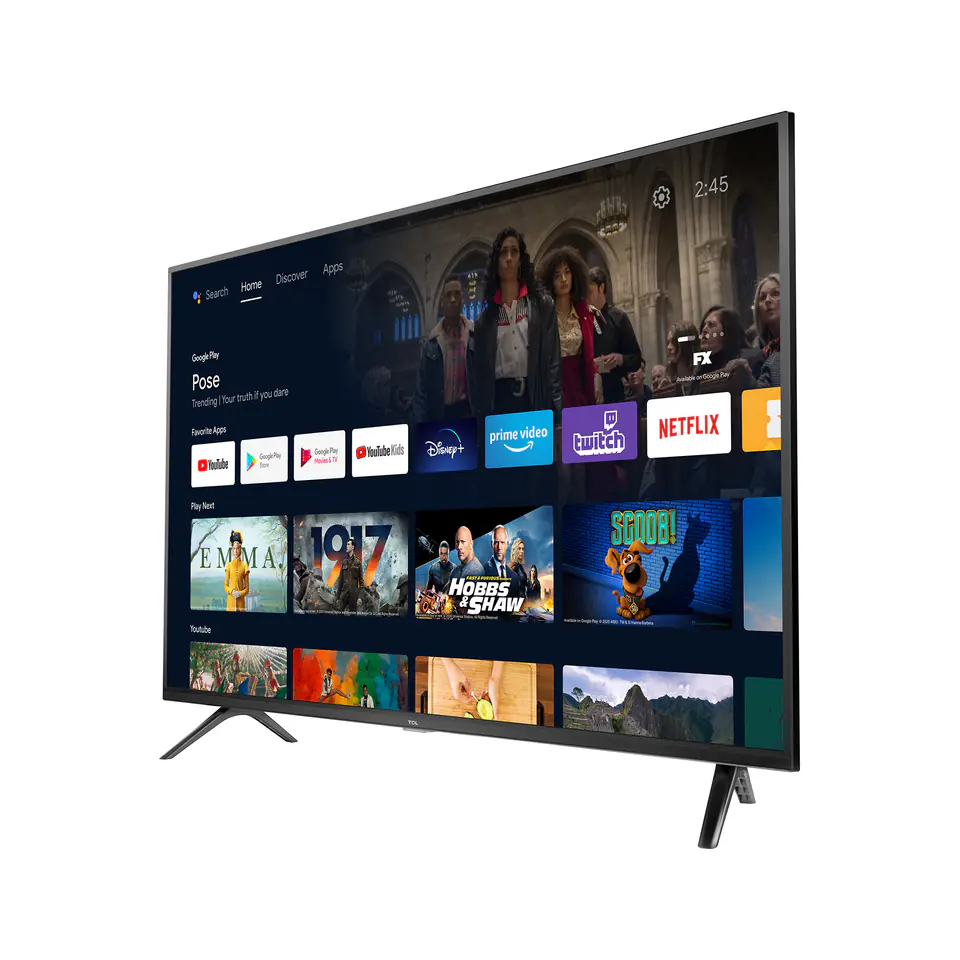

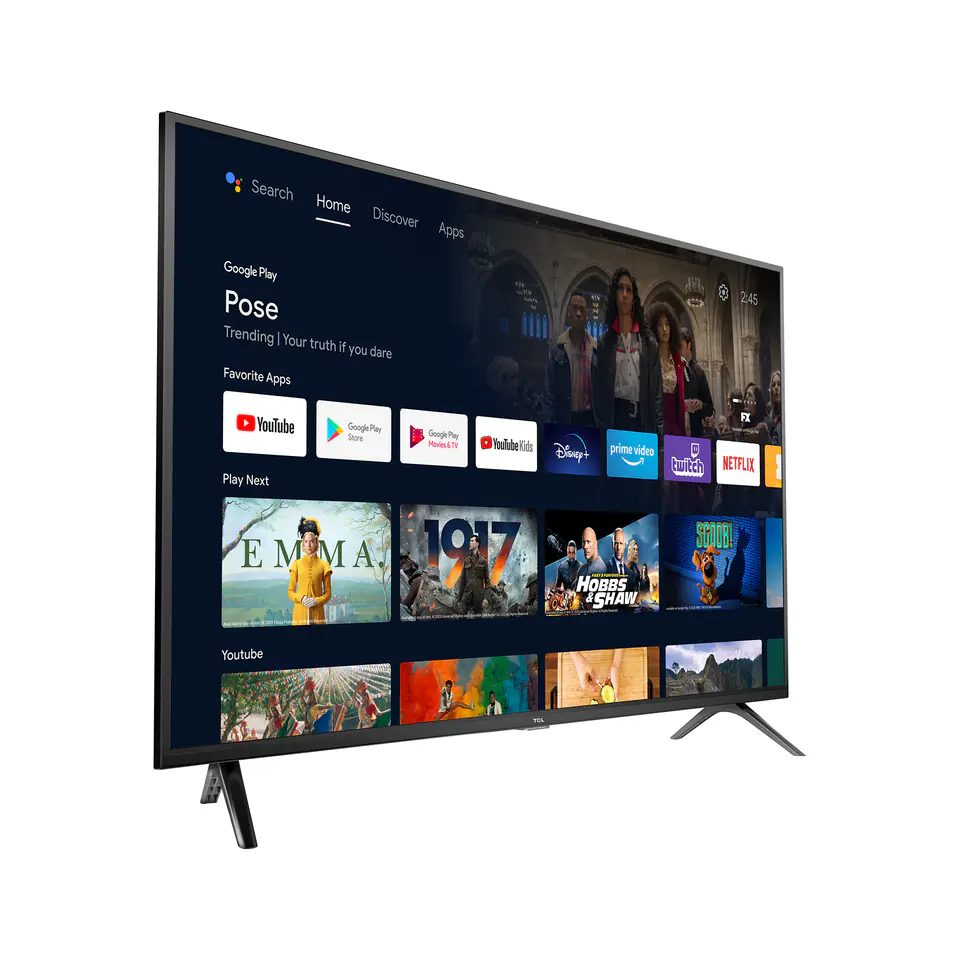

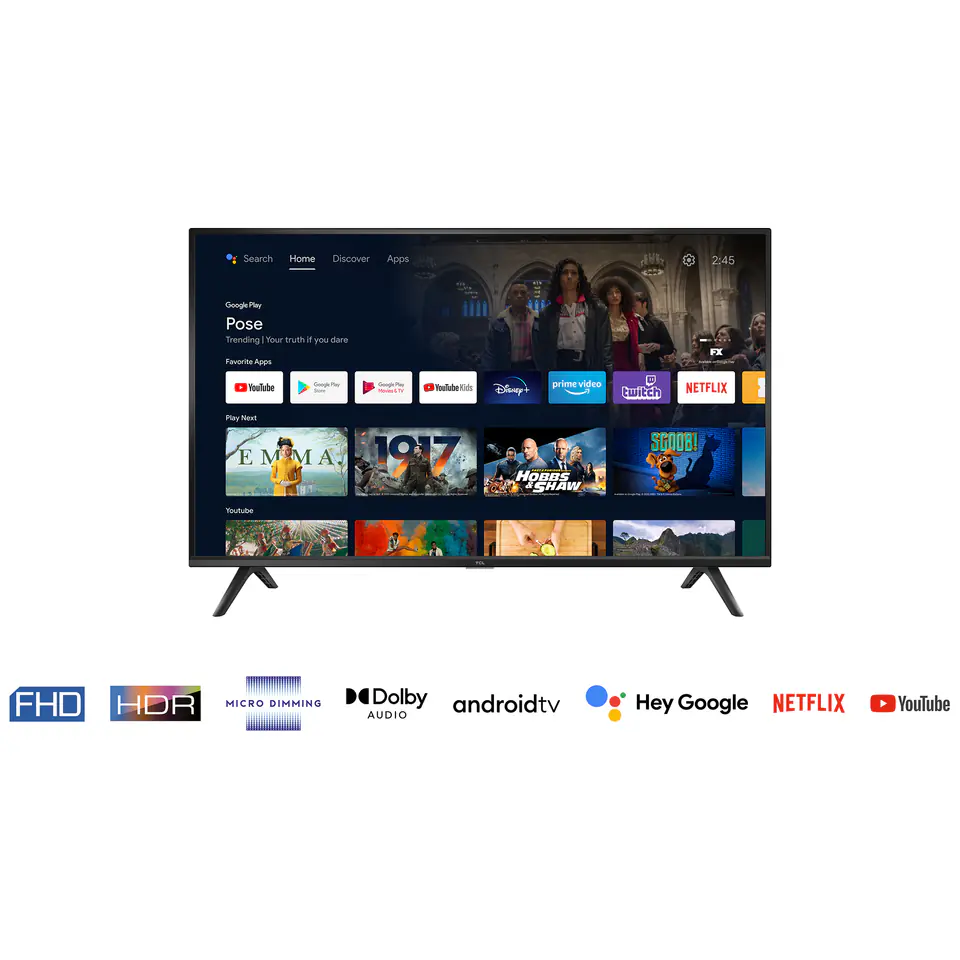

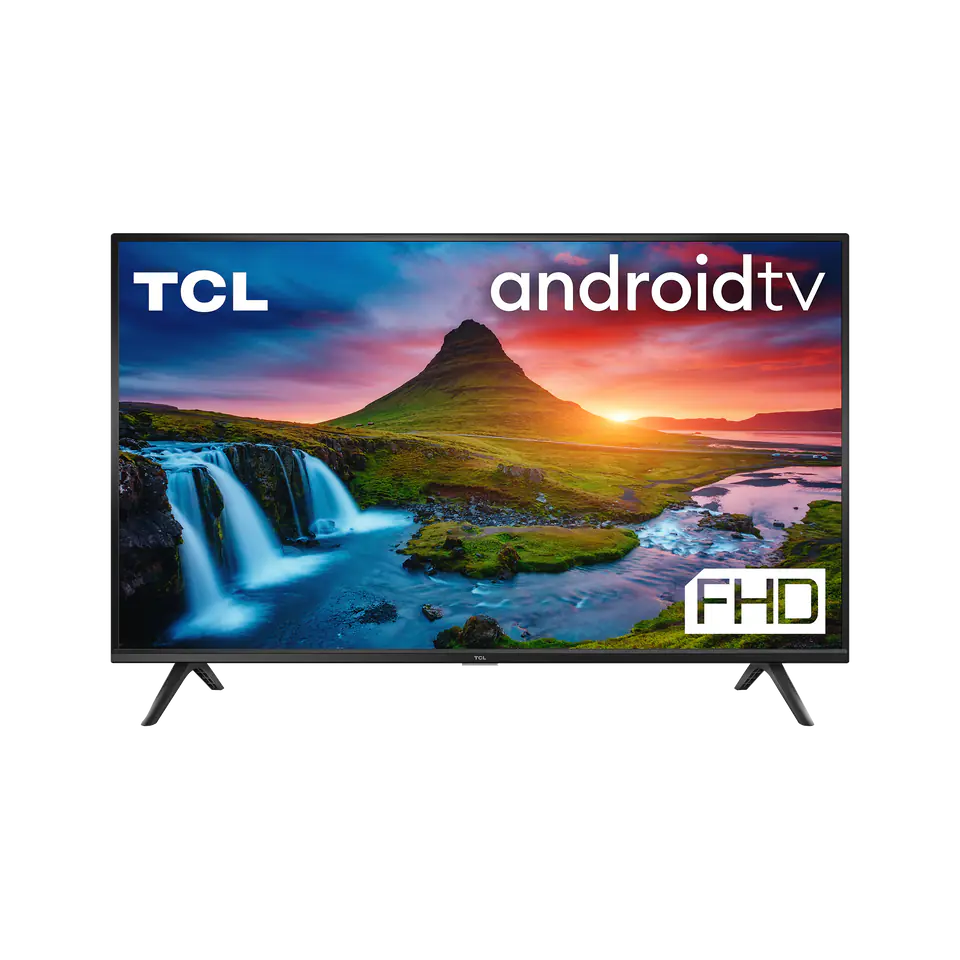

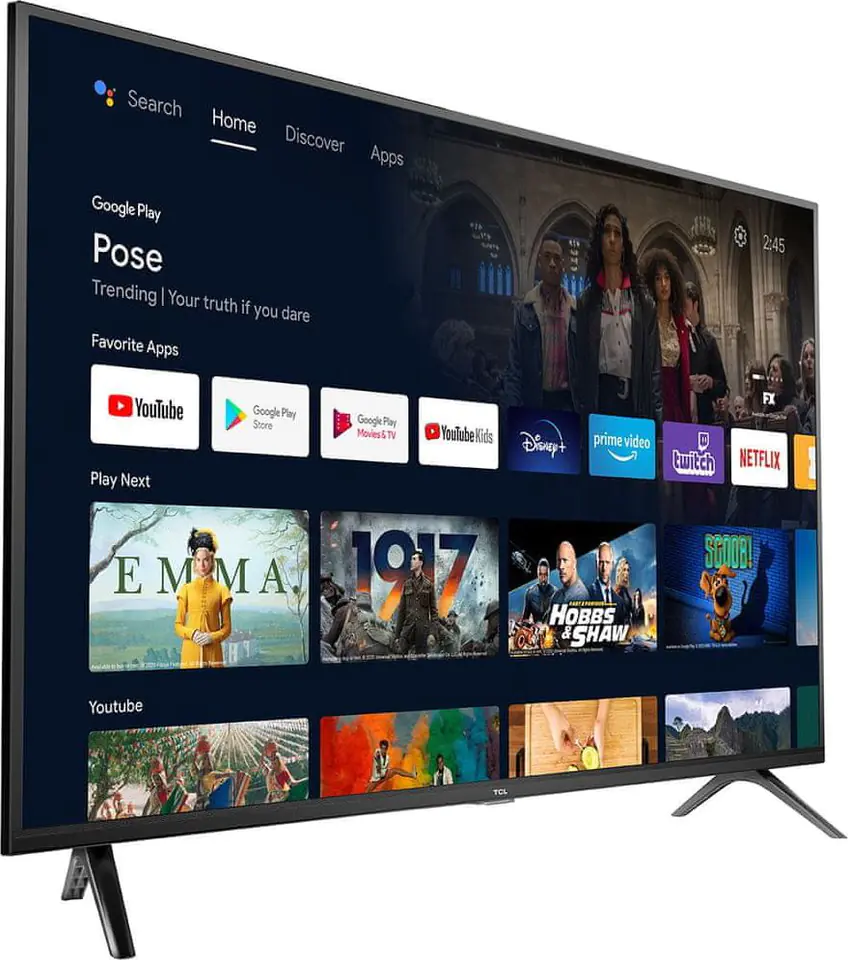

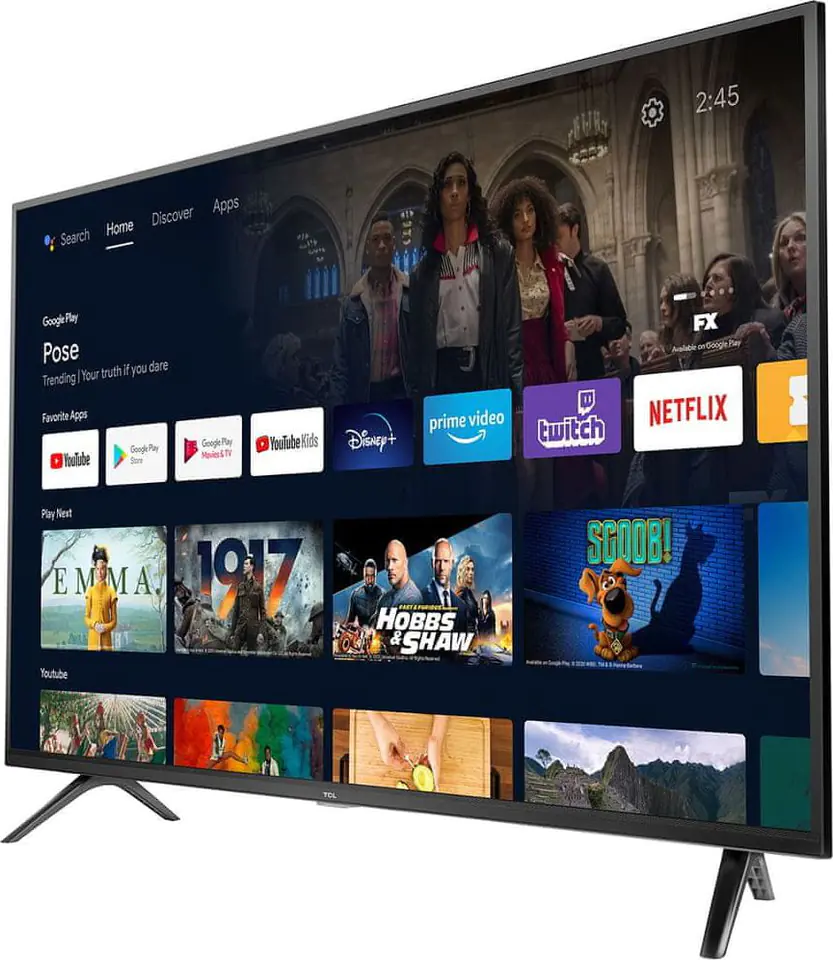

TCL 40" FHD AndroidTV DVB-T2/C/S2 H.265 HEVC TV

- - - - - - - - - - - - - - - - - - - - - - - - - -
SCREEN
- - - - - - - - - - - - - - - - - - - - - - - - - -

Display size: 40" (101.6 cm)
Visible screen size: 39.5" diagonal (100 cm)
Resolution-panel: FHD
HDR Formats: HDR10 - Netflix, USB 1080p, HDMI 1080p
PPI (picture performance index): 400
Resolution 1920x1080
Dynamic Contrast: Mega
Image Processing: IPQ 2.0 Engine
Conversation: Yes
Upscaling to UHD: Yes
Color Management: 10P &2P calibration
Digital Noise Reduction: Yes
Movie Mode: Yes

- - - - - - - - - - - - - - - - - - - - - - - - - -
AUDIO
- - - - - - - - - - - - - - - - - - - - - - - - - -

Sound power: 2x8 W
Sound power - music: 2x16 W
Dolby: Dolby Digital Plus
Sound Processing: Dolby Audio
Stabilizer: presets
Speaker Type: Downward facing
Speakers: Full Range
Auto volume control: Yes

- - - - - - - - - - - - - - - - - - - - - - - - - -
SMART
- - - - - - - - - - - - - - - - - - - - - - - - - -

Processor: Quad Core
SmartTV 2.0: Android TV (29 languages)
Android OS: Android R (11.0)
Apps: Google Play Store
Social Media: Yes
Browser: Yes
JbbTV: 2.0.2
Internal Memory: 2.8GB / 2.1GB

- - - - - - - - - - - - - - - - - - - - - - - - - -
FACILITIES
- - - - - - - - - - - - - - - - - - - - - - - - - -

Smartphone/ Tablet - Remote Control: Yes
USB Multimedia: Yes
Subtitles: Yes
Clock & Sleep Timer: Yes
Game Mode: Yes
Sport Mode: Yes
Multipicture: PAT
Hotel mode: Yes with OTT purge (v284)
Languages: 29
HDMI CEC (T-Link): Full
HDMI quick switch: Yes

- - - - - - - - - - - - - - - - - - - - - - - - - -
CONNECTIVITY
- - - - - - - - - - - - - - - - - - - - - - - - - -

Bluetooth: A2DP, HID
DLNA 1.5: Yes
WiFi Display: Chromecast & T-cast
USB HID Support: Yes

- - - - - - - - - - - - - - - - - - - - - - - - - -
CONTROL
- - - - - - - - - - - - - - - - - - - - - - - - - -

Batteries: Yes

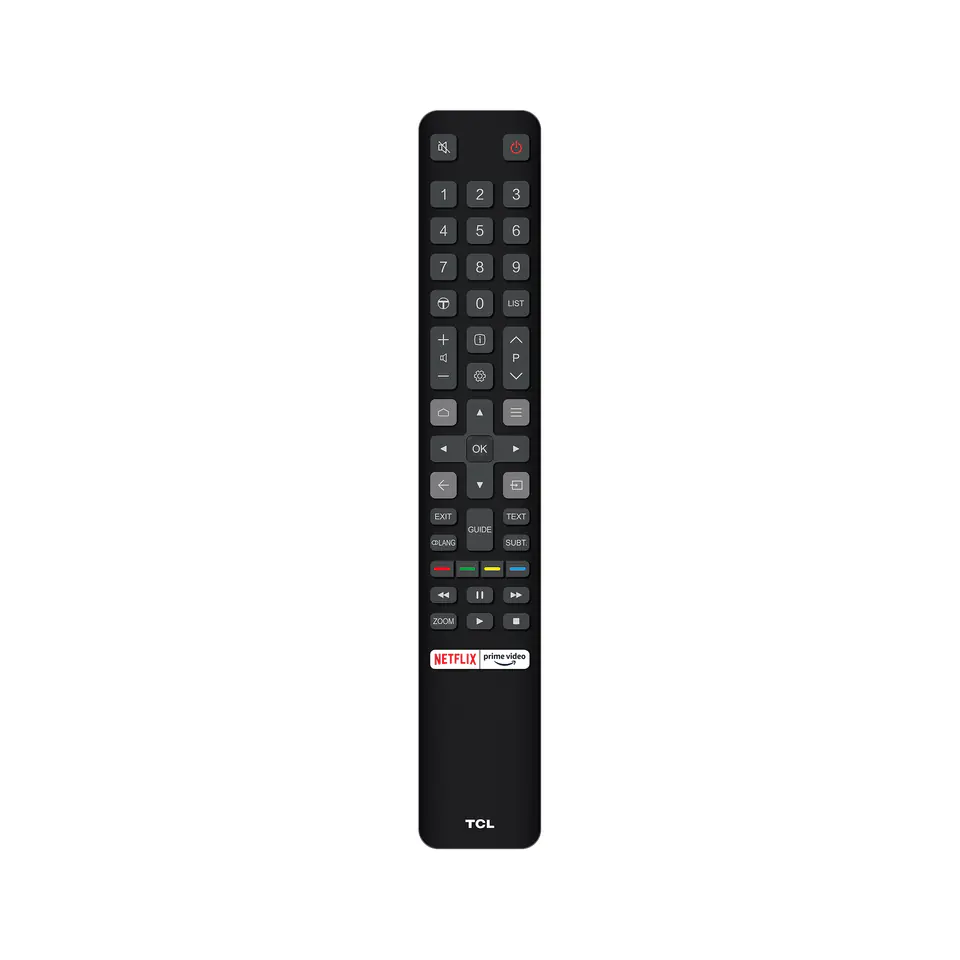

Remote Control: RC802NU1

- - - - - - - - - - - - - - - - - - - - - - - - - -
TUNER
- - - - - - - - - - - - - - - - - - - - - - - - - -

DTV Tuner: DVB-T2/C/S2
Video decoding: H.265 FHD, H.264, MPEG-2
Analog Tuner: Yes
Analog system: PAL/SECAM/NTSC (AV) BG/DK/I/LL'
CI+: Yes (1.3)
EPG (DVB EIT/SI): up to 8 days
Channel Search: Yes
Teletext: Yes

- - - - - - - - - - - - - - - - - - - - - - - - - -
CONNECTIVITY
- - - - - - - - - - - - - - - - - - - - - - - - - -

HDMI: 2 x 1.4
HDCP: 2.3 1.4
USB: 1 x 2.0
YPbPr: CVBS optional
Ethernet (LAN RJ-45): Yes
WiFi: Built-in b/g/n 2.4 Ghz MIMO
Digital Audio Out: Optical
Headphones: Yes
Antenna jack input (terrestrial/cable): 1
Antenna jack input (satellite): 1
Satellite - DiseqC / SCD compliant: Yes v.1.0 / No
CI: 1
HDMI eARC/ARC: ARC HDMI1
HDMI maximum resolution: 1080P/60Hz
Power cable 1.5 m

- - - - - - - - - - - - - - - - - - - - - - - - - -
PROJECT
- - - - - - - - - - - - - - - - - - - - - - - - - -

Color: Black
Base dimensions: 100 x 100 mm
Base type: legs in Y arrangement
VESA standard: 100 x 100

- - - - - - - - - - - - - - - - - - - - - - - - - -
POWER
- - - - - - - - - - - - - - - - - - - - - - - - - -

EEI 2021 class SDR (X1): F
Annual SDR Power Consumption (EEI 2021) (X1): 45 W
EEI 2021 class HDR (X1): G
Annual HDR Power Consumption (EEI 2021) (X1): 62 W
Automatic switch: Yes
Power supply: 220-240 V, ~50 Hz
Power Consumption (Standby): 0.50W
Power Consumption (Network Standby): 2.00W
Peak luminance ratio: 70%
Power consumption (maximum): 75 W
Mercury content: 0.0 mg
Presence of lead: Yes

- - - - - - - - - - - - - - - - - - - - - - - - - -
DIMENSIONS / WEIGHT
- - - - - - - - - - - - - - - - - - - - - - - - - -

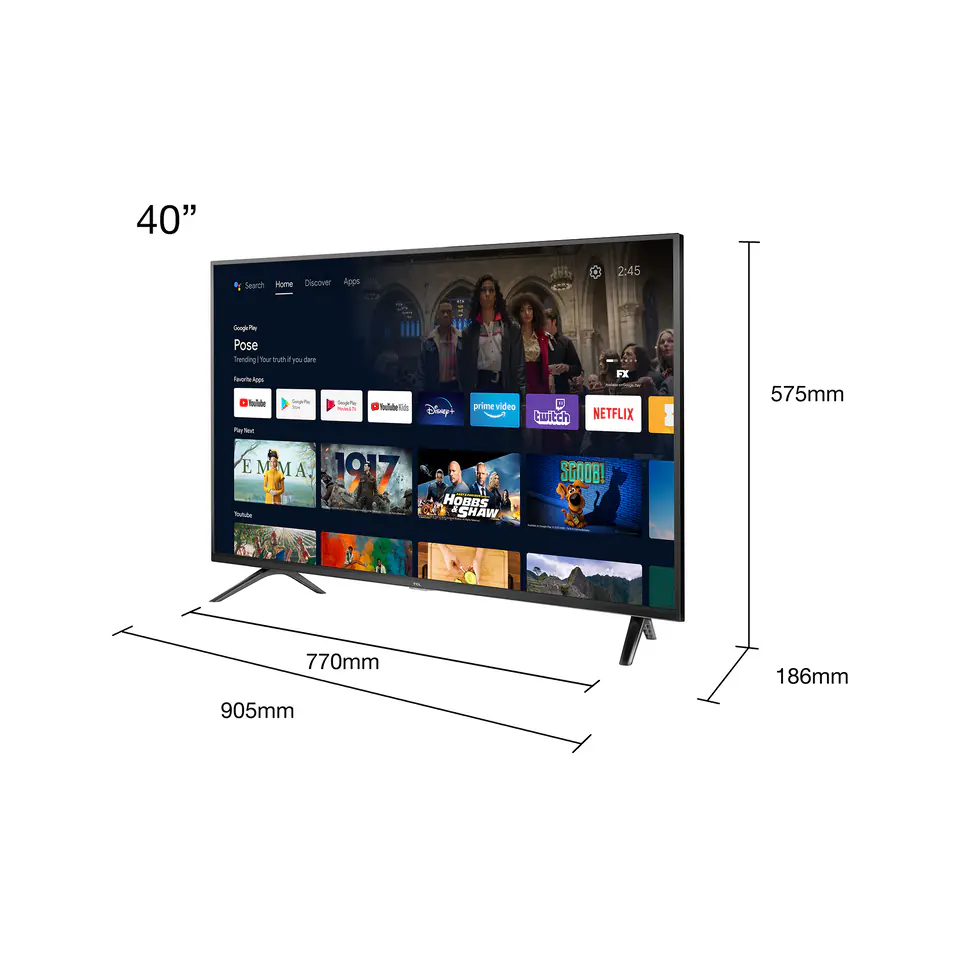

Dimensions: 905 x 575 x 186 mm
Base width: 770 x 186 mm
Size without stand 905 x 524 x 11-40-75 mm
Package size: 1046 x 640 x 130 mm
Weight of the product without and in the package: 6.40 / 8.70 kg
Weight without stand: 6.40 kg
User Manual: 29 languages
