Manufacturer number: MSW 10060309

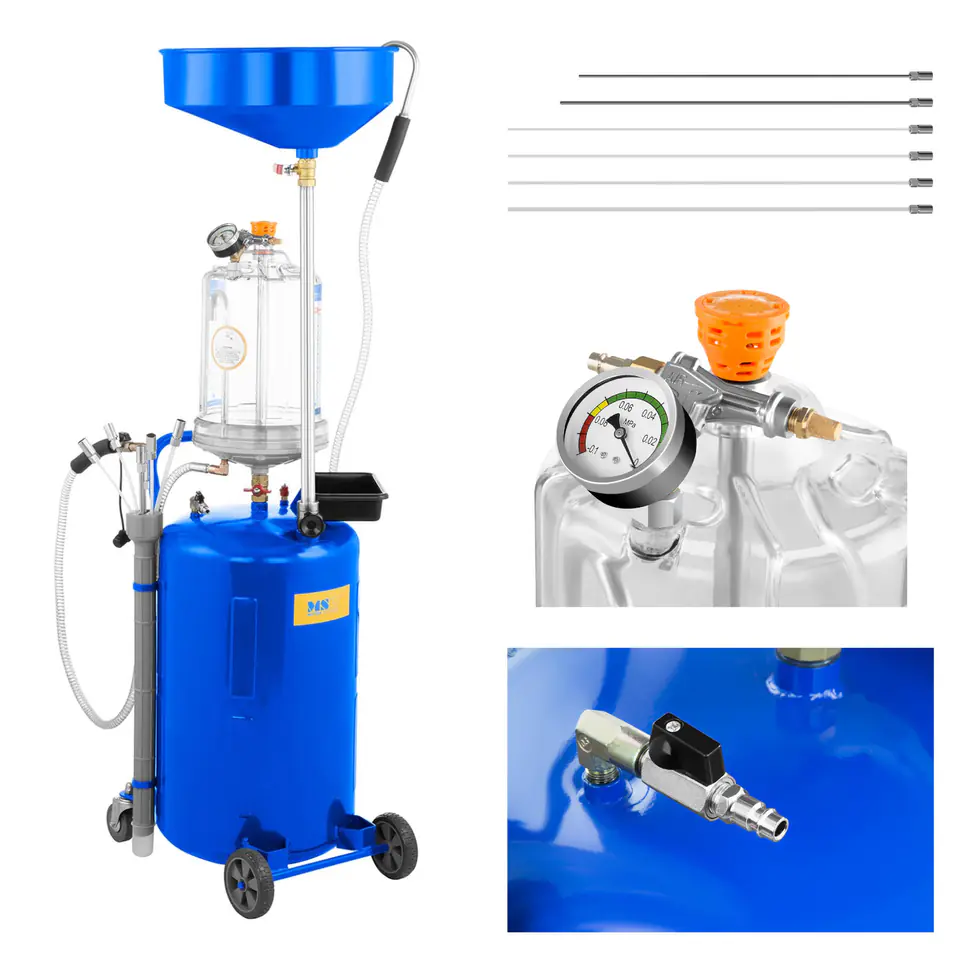

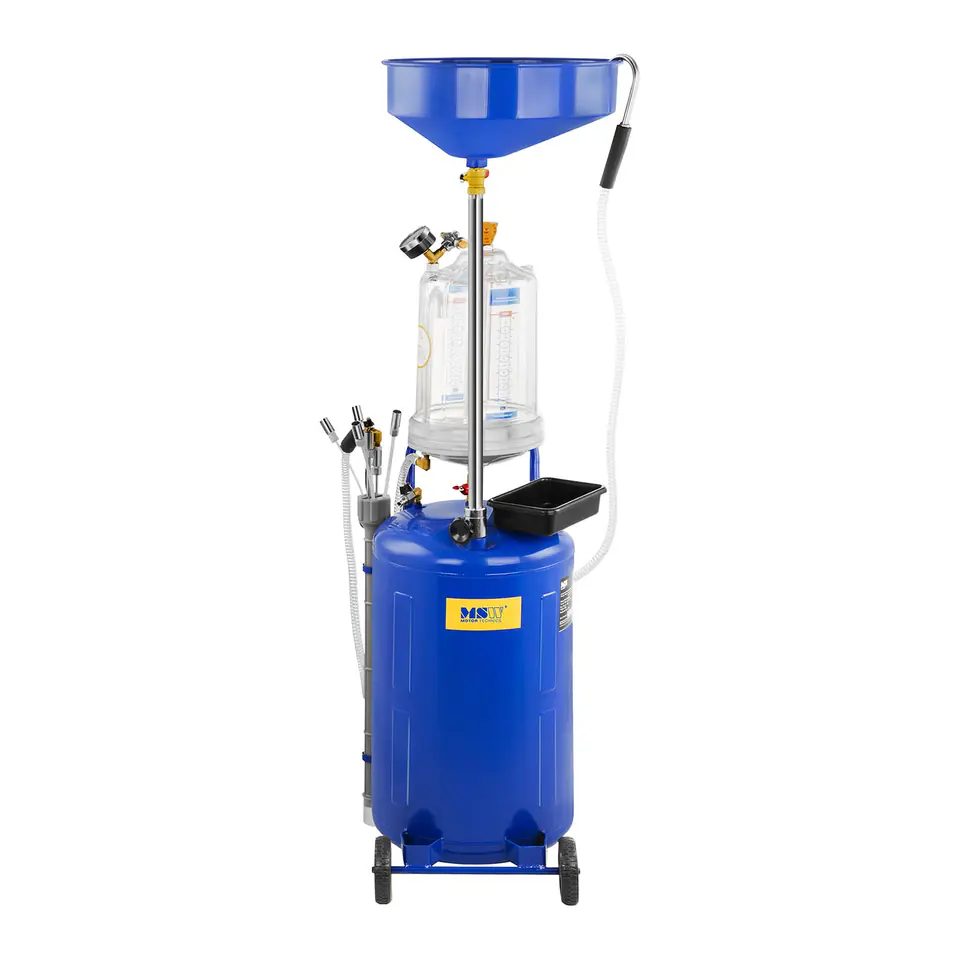

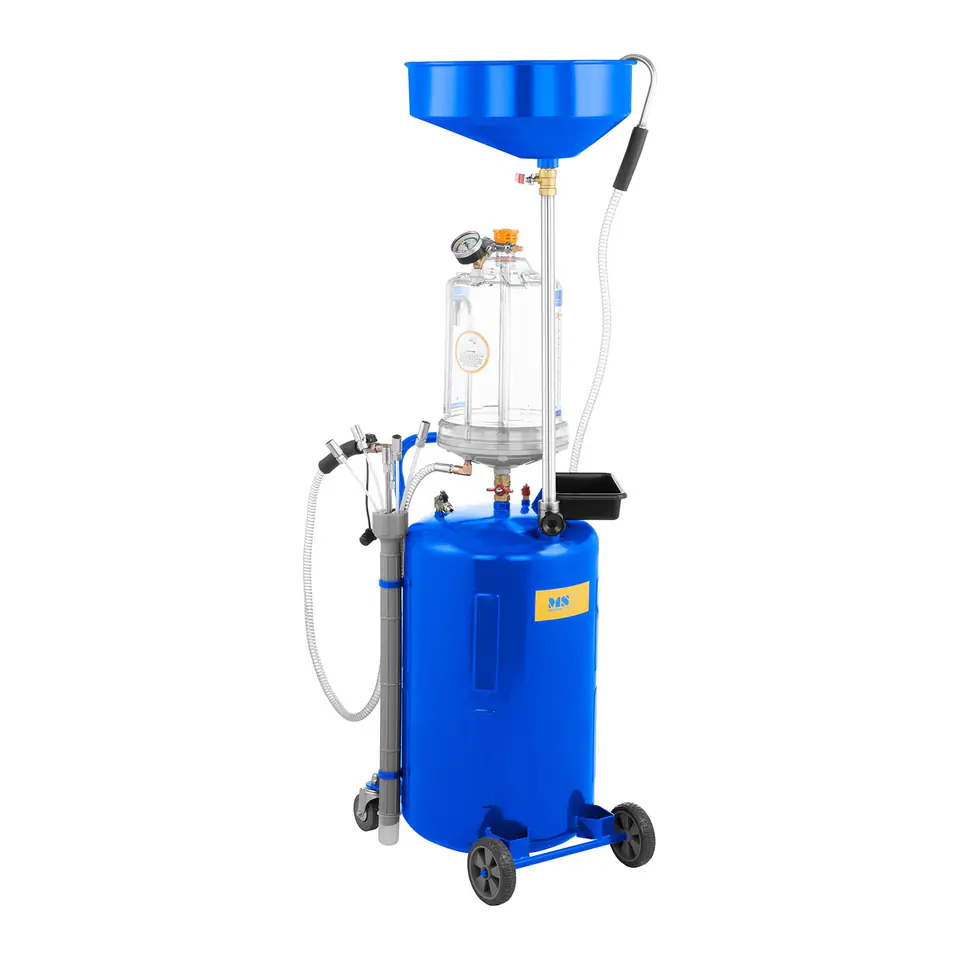

A professional MSW binder-suction machine for engine oil, thanks to an efficient pump (maximum pressure - 9 bar), will allow for quick drainage of the operating fluid. It is suctioned into two tanks at the same time (main - 75 l, control - 10 l), which guarantees efficient operation. Simply place the probe in place of the oil measuring bayonet and you can start working.

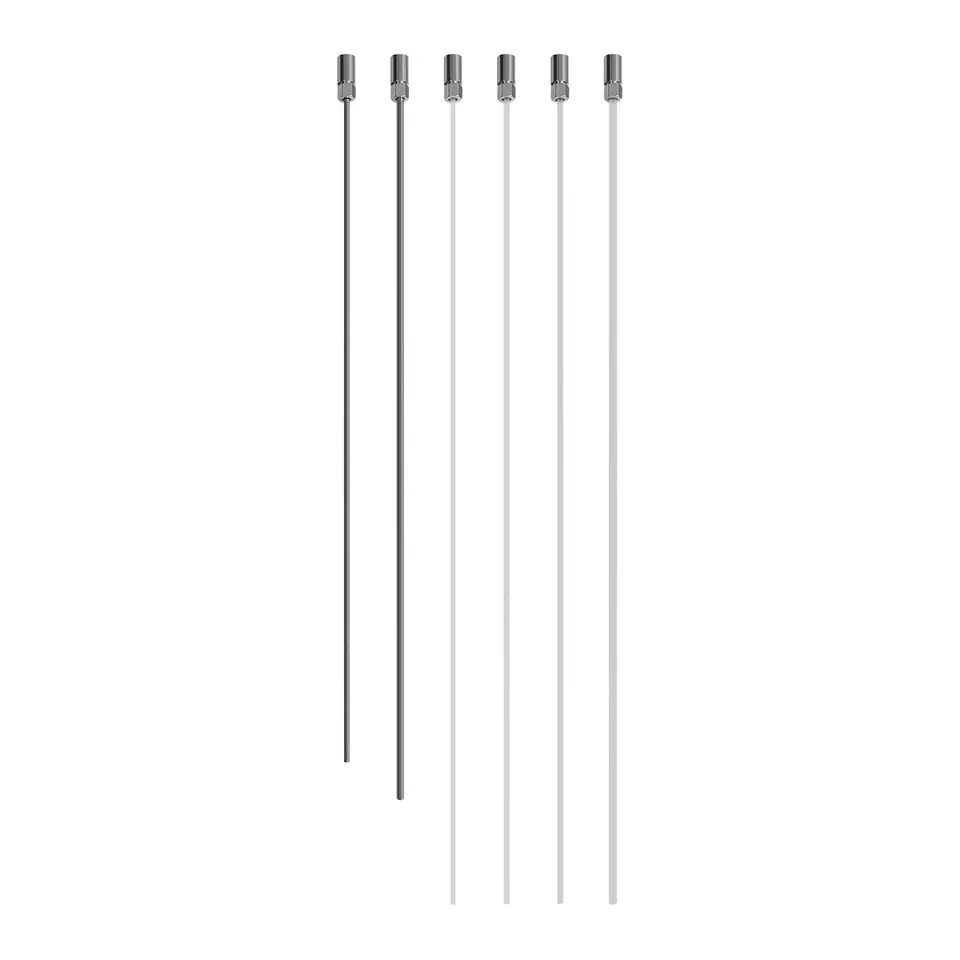

The device is adapted to drain both cold and hot oil. This saves valuable time. In order to fit the pump tip to the car, 4 nylon and 2 metal probes of different diameters are included in the set. For gravitational pouring of oil, a special bowl with a diameter of 40 cm is used with a filter mounted to separate impurities from the liquid.

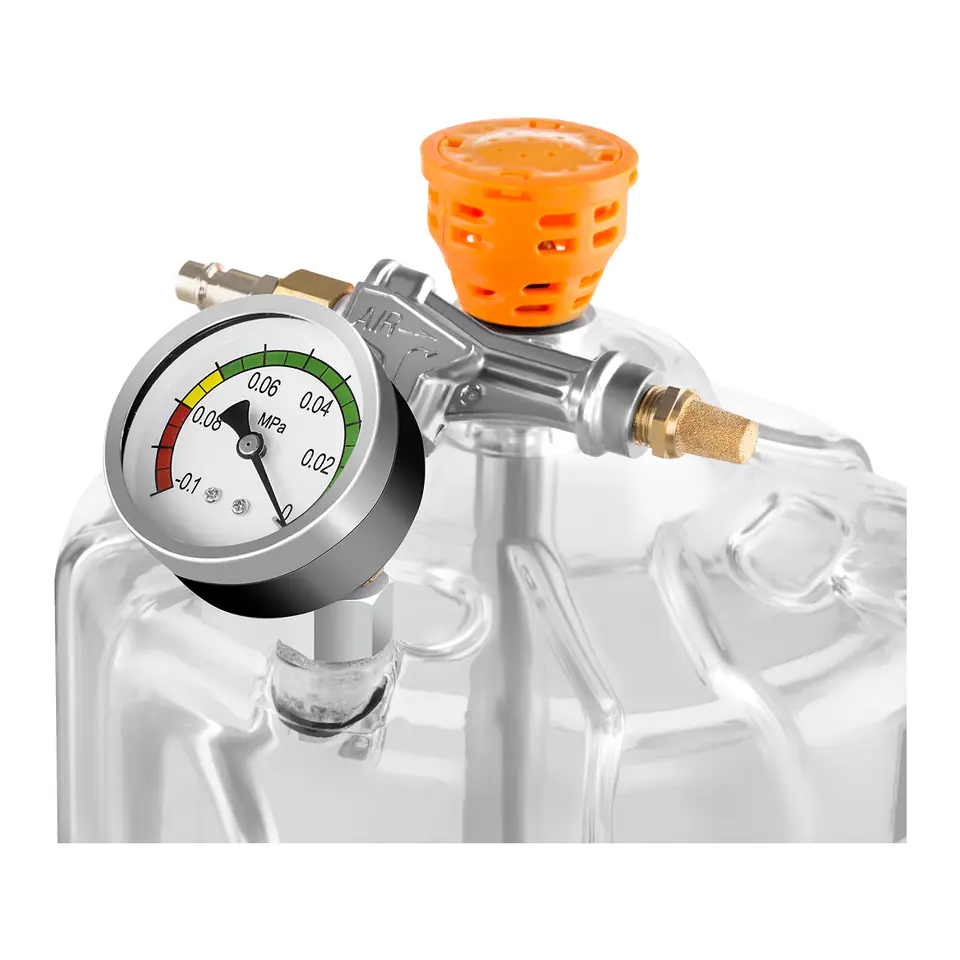

A special transparent tank with a capacity of 10 l will allow you to check the quality of the liquid. An analogous pressure gauge and a clear indicator will also help in this. The pressure regulator and the air exhaust valve are responsible for the safe use of the device. The robust construction of the weave is due to the high quality of powder-coated steel resistant to damage and weather conditions.

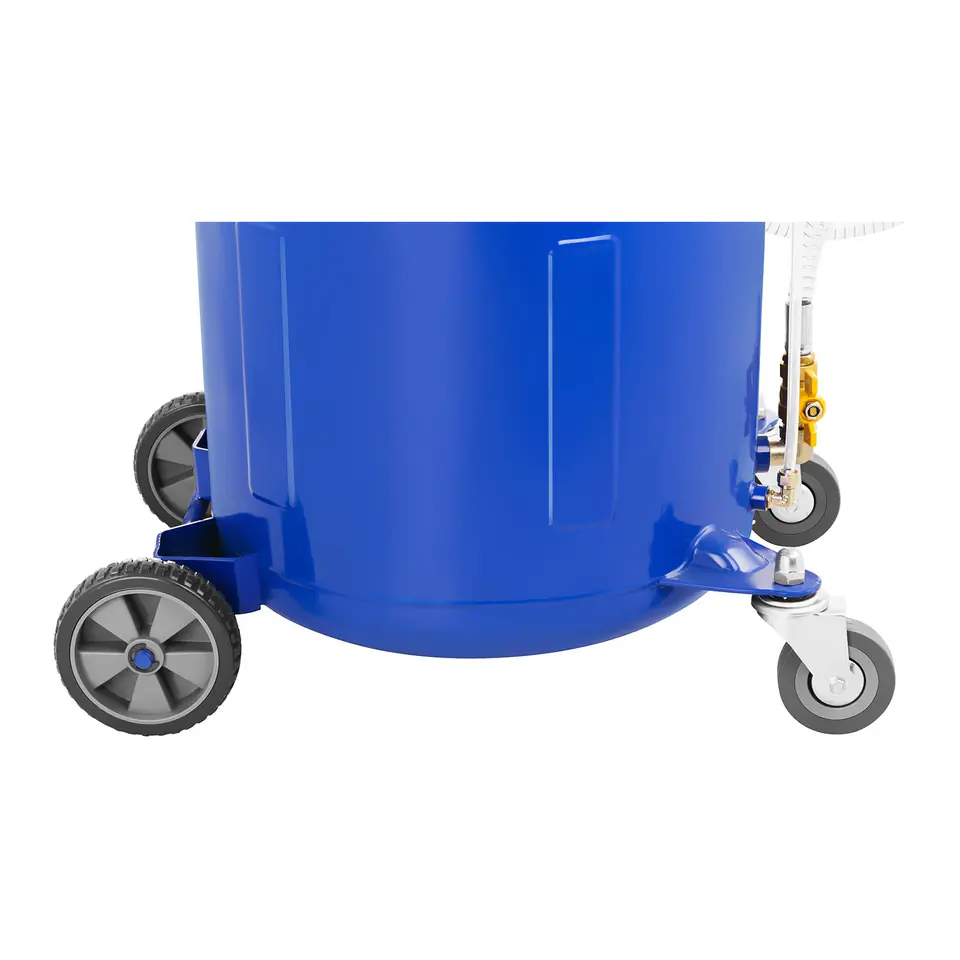

Four PVC wheels, of which the front two are swivel, allow you to conveniently transport the device as needed.
Product features:
- - Efficiency - maximum pressure of 9 bar allows fast work,
- - Versatility - adapted to drain cold and hot oil,
- - Mobility - four PVC wheels, two of which make it easy to transport the device,
- - Usability - the large capacity of two tanks allows for continuous operation,
- - Strength - made of powder coated steel.
- - Model - MSW-OBG80D
- - Catalogue number - 10060309
- - Material - Powder coated steel
- - Main tank capacity - 75 l
- - Measuring tank capacity - 10 l
- - Diameter of collecting bowl - 400 mm
- - Maximum working pressure - 9 bar
- - Air consumption - 150 l/min
- - Suction vacuum - 0-1 bar
- - Oil temperature range - 40-60C
- - Oil drain hose - ∅6
- - Tank thickness - 1.5 mm
- - Feed hose - 1300 mm/1620 mm
- - Suction cable - 1350 mm/1480 mm

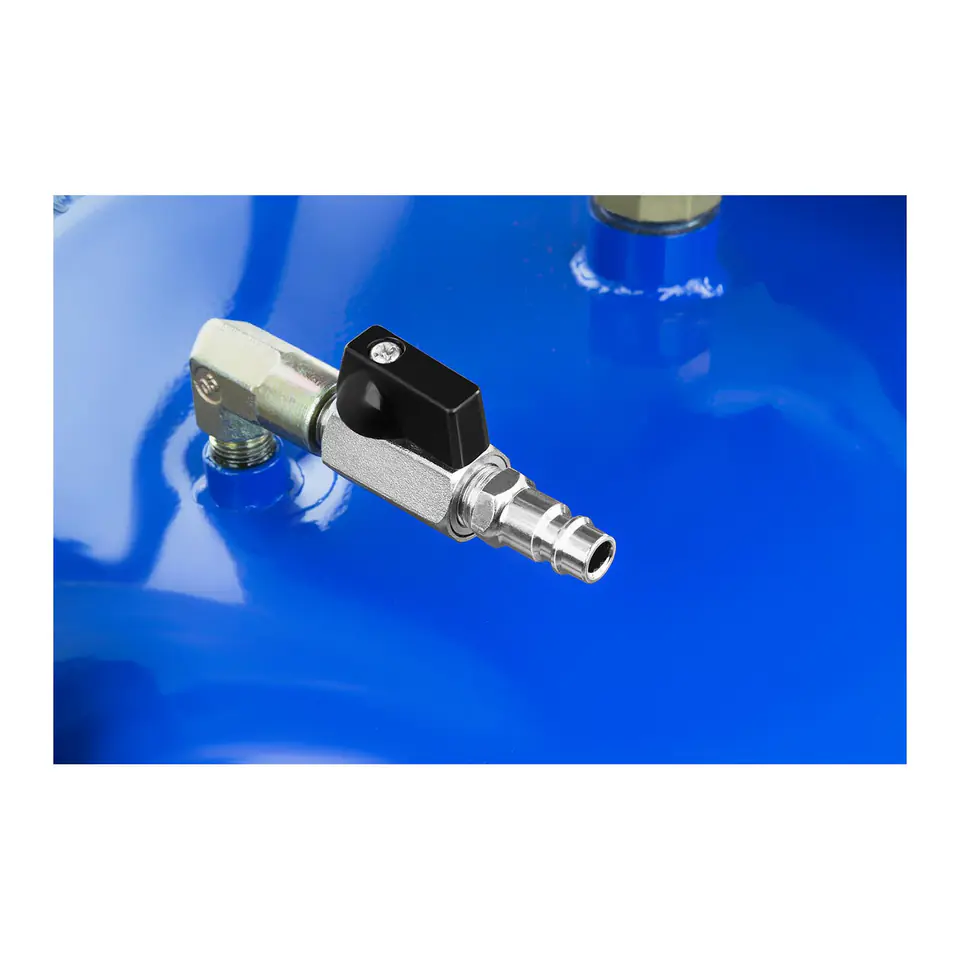

- - Shut-off valves - Yes
- - Pressure gauge - Yes
- - Wheels - 2x 20 mm/75 mm; 2x 30 mm/120 mm
- - Dimensions (LxWxH) - 54 x 51 x 150 cm
- - Weight - 20.88 kg
- - Shipping dimensions (LxWxH) - 90 x 52 x 44 cm
- - Shipping weight - 23.6 kg
- - Zlewarko-suction
- - Metal probes - 2 pcs.
- - Nylon probes - 4 pcs.
- - Tube holder - 1 pc.
- - Measuring tape - 1 pc.
- - Teflon tape - 1 pc.
- - Manual EN
