With reliability and high transmission quality, the NSW2020-6T-POE-IN 4-Port PoE Switch is ideal for CCTV applications IP4 ports support Power over Ethernet (PoE)
SWITCH POE NSW2020-6T-POE-IN 4-PORT UNIVIEW
This product is not available
- Availability:
- expected delivery
- Brand:
- Uniview
- Product code:
- NSW2020-6T-POE-IN / 5902887073984
Share this product:
Specification
| Baud: | 100 Mbps : 2 LAN Uplink, 10 / 100 Mbps : 4 LAN & PoE ports |
|---|---|
| Case: | Desktop, Metal |
| Certificates: | CE, FCC |
| Dimensions: | 108 x 100 x 26 mm |

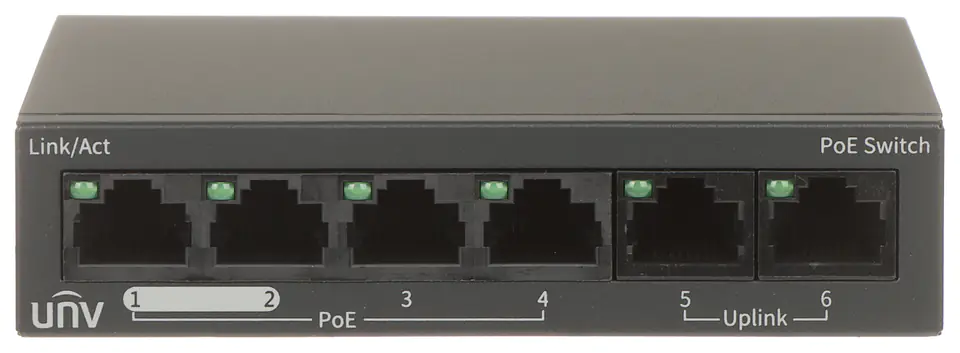

| Lan ports: | 4 x RJ45 10/100 Base-T ( 4 x PoE (802.3af/at) ), 2 x RJ45 100 Base-T - Uplink |
| Leds: | Link/Act, Power, PoE Max |
| Mac address table: | 1k |
| Maximum output power: | 30 W / PoE 802.3af/at port |
| Maximum total power: | 60 watts (Printing) |
| Operating modes: | Extend : 250 m, 10 Mbps Default: 100 m, 100 Mbps |
| Operating temperature: | 0 °C ... 40 °C |

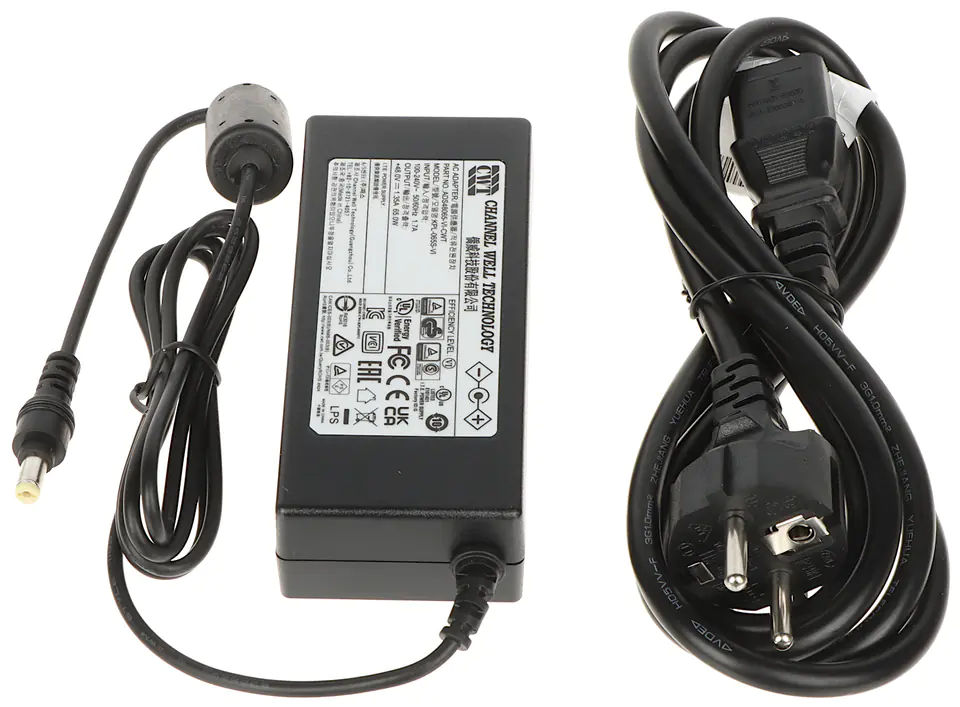

| Power: | 48 V DC / 1.35 A (power adapter included) |
| Producer / brand: | UNIVIEW |
| Scales: | 0.18 kg |

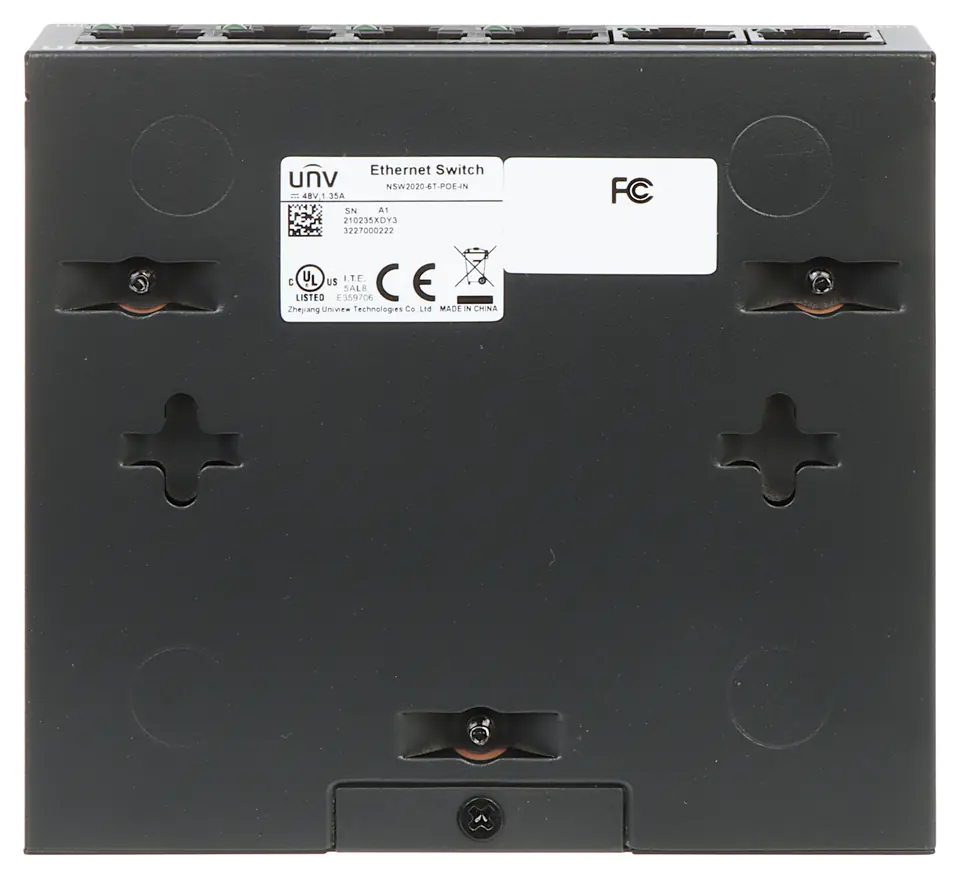

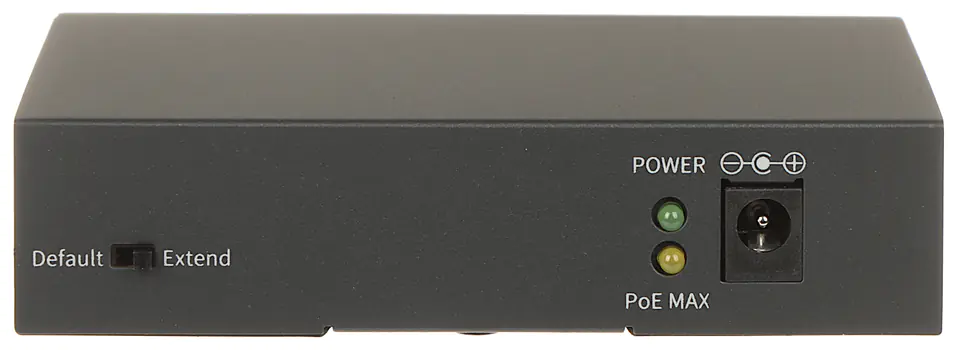

| Selected features: | EXTEND mode - ports 1, 2, 3, 4 support transmission up to 250 m High priority ports : 1, 2 Flow control Buffer optimization Metal housing Wall-mountable |
| Warranty: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
