Surface-mounted electrical switchgear, hermetic 4-row 72-module
SURFACE-MOUNTED HERMETIC SWITCHGEAR 72-MODULE LE-601948 RN65 LEGRAND
This product is not available
- Availability:
- expected delivery
- Brand:
- Legrand
- Product code:
- LE-601948 / 5902887027482
Share this product:
Specification
| Colour:: | light grey |
|---|---|
| Compliance with standards:: | EN 60439-3, IEC 60695-2-11, IEC 62262 |
| Dimensions:: | 448 x 822 x 161 mm |
| Distance between th 35 brackets:: | 150 mm |

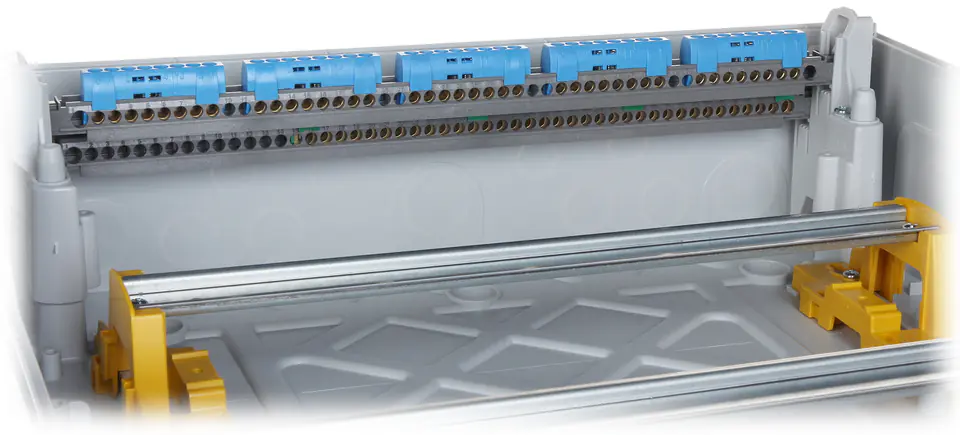

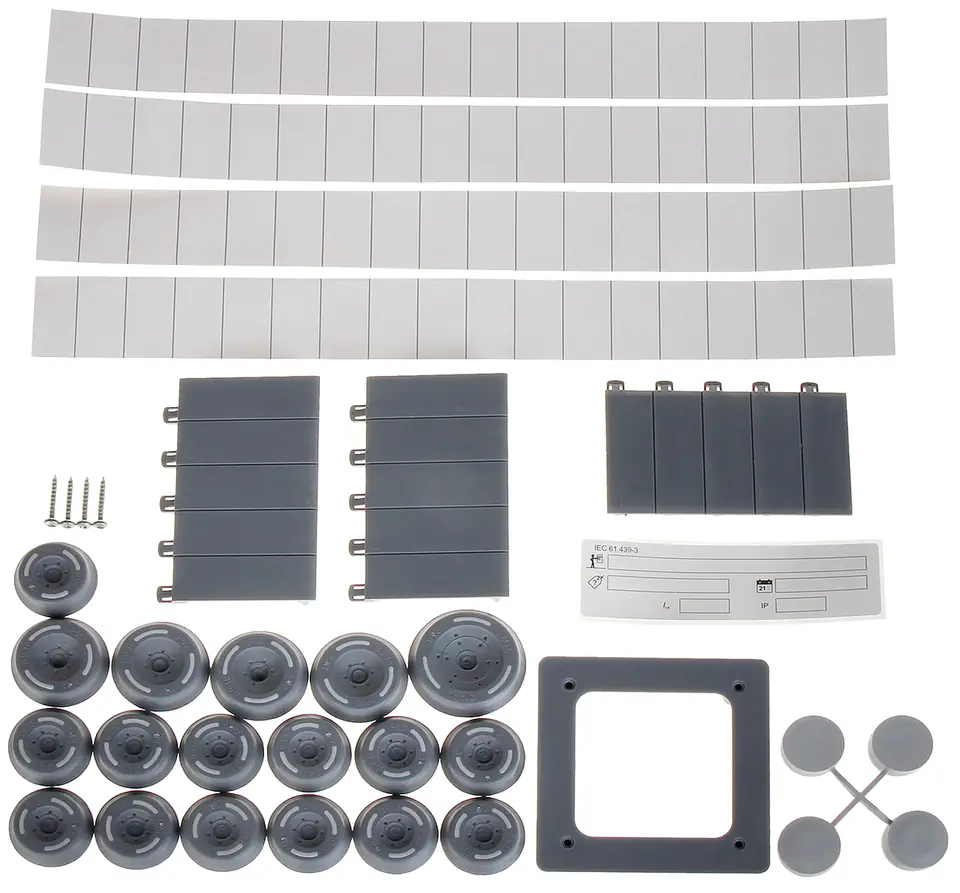

| Equipment:: | Junction strips1 x ( 34 x 1.5 ... 16 mm² + 1 x 6 ... 25 mm² )5 x ( 8 x 1.5 ... 16 mm² ) Modular end caps : 3 x 5 pcs. |
| Manufacturer / brand:: | LEGRAND |
| Material:: | Self-extinguishing material |
| Mechanical resistance class:: | IK09 |
| Method of fastening:: | Surface-mounted |
| Number of modules installed:: | 18 x 4 rows |
| Operating temperature:: | -25 °C ... 40 °C |
| Scales:: | 8.2 kg |
| Sealing:: | IP65 |

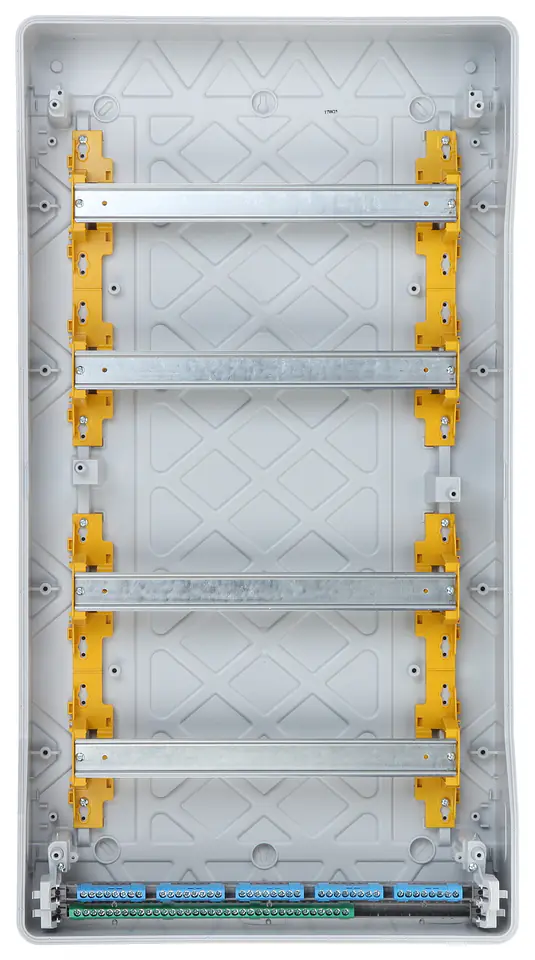

| Selected features:: | Weather-resistant housing Fully reversible doors and housing Removable mounting bases and covers Mounting bracket TH 35 with 2-position mounting for modular products Possibility of equipping with perforated mounting plates for mounting apparatus of a non-modular design Handles adapted for mounting the lock, the possibility of sealing the cover and the front cover Rated voltage: 400 V AC, 50 / 60 Hz Max. current : 125 A Short-circuit operating current : 10 kA Connection strips and modular plugs included |
| Warranty:: | 2 years |
