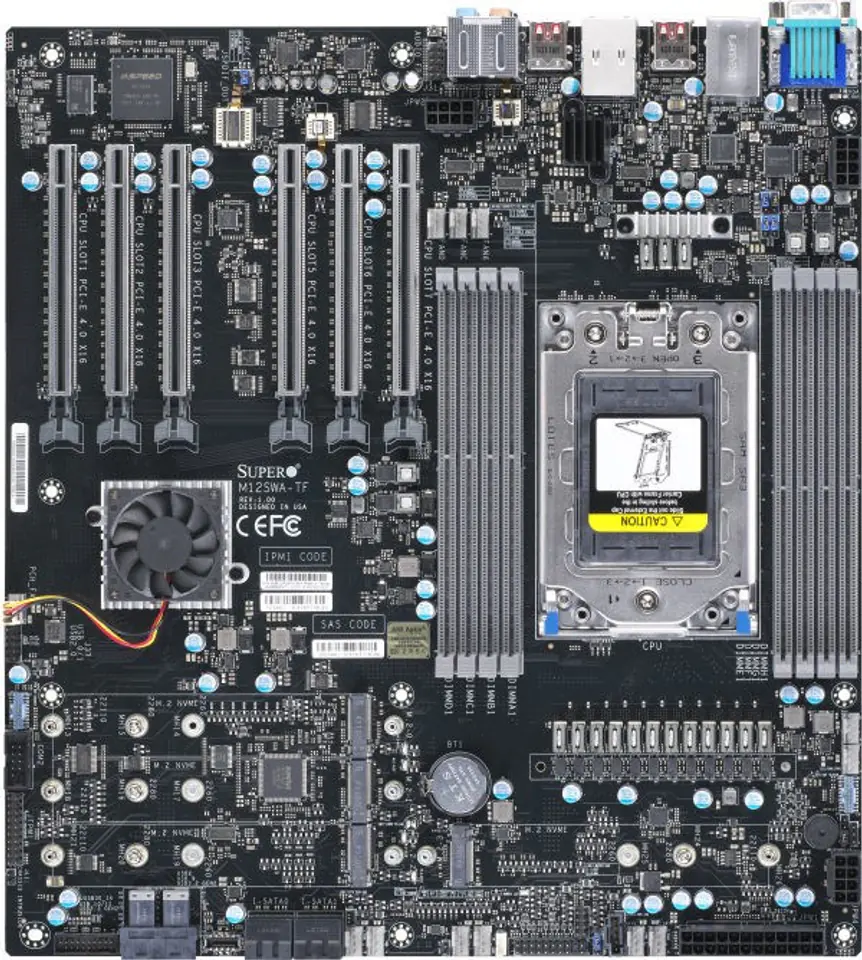

Supermicro MBD-M12SWA-TF Socket sWRX8 Extended ATX
This product is not available
- Availability:
- expected delivery
- Brand:
- Supermicro
- Product code:
- MBD-M12SWA-TF-O / 0672042441662
Share this product:
Specification
| Audio output channels: | 7.1 channels |
|---|---|
| Bios memory size: | 256 Mbit |
| Bios type: | AMI |
| Compatible processor series: | AMD Ryzen™ Threadripper™ |
| Component for: | Server |
| Ecc: | Yes |
| Ethernet interface type: | 10 Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 2 |
| Harmonized system (hs) code: | 84733020 |
| Ipmi lan (rj-45) port: | Yes |
| Lan controller: | Intel® I210-AT |
| Maximum internal memory: | 2 TB |
| Maximum rdimm memory: | 2 TB |
| Memory channels: | Octa-channel |
| Memory slots type: | DIMM |
| Memory voltage: | 1.2 V |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | Extended ATX |
| Number of com connectors: | 1 |
| Number of m.2 (m) slots: | 1 |
| Number of memory slots: | 8 |
| Number of sata iii connectors: | 4 |
| On-board graphics card model: | Aspeed AST2600 |
| Operating temperature (t-t): | 0 - 50 °C |
| Pc health monitoring: | Fan, LED, Temperature, CPU |
| Pci express x16 (gen 4.x) slots: | 6 |
| Processor manufacturer: | AMD |
| Processor socket: | Socket sWRX8 |
| Raid levels: | 0, 1, 5, 10 |
| Raid support: | Yes |
| Storage temperature (t-t): | -5 - 55 °C |
| Supported memory module capacities: | 2GB, 4GB, 64GB, 16GB, 128GB, 32GB |
| Supported memory types: | DDR4-SDRAM |
| Supported storage drive interfaces: | M.2, SATA III |
| Tpm connector: | Yes |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 3 |
| Usb 3.2 gen 2 (3.1 gen 2) connectors: | 1 |
| Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: | 4 |
| Usb 3.2 gen 2 (3.1 gen 2) type-c ports quantity: | 1 |
| Vga (d-sub) ports quantity: | 1 |
