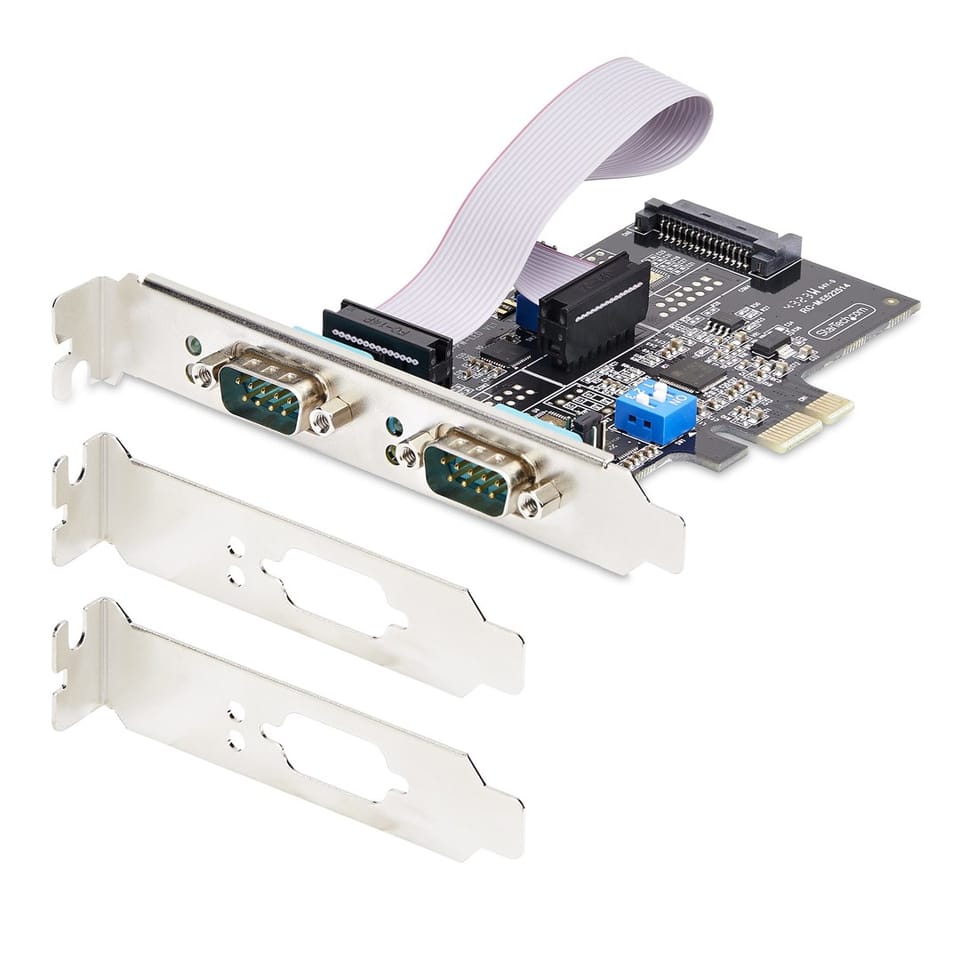

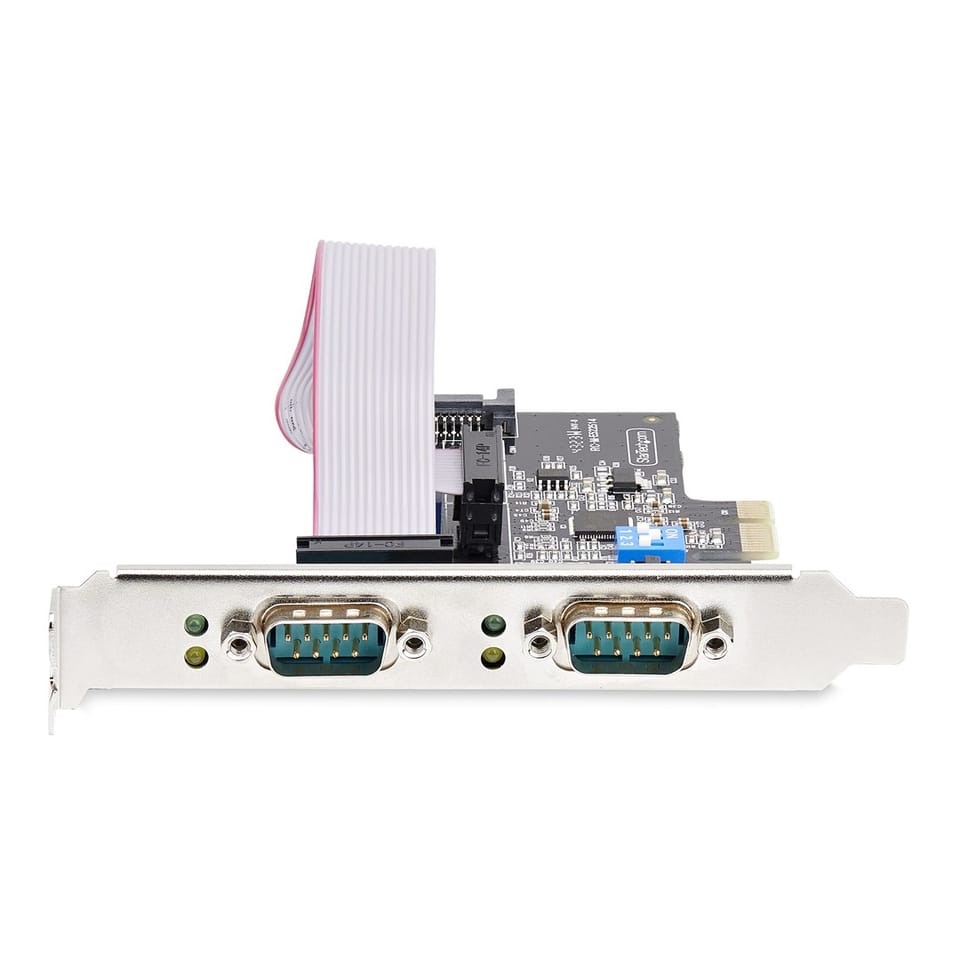

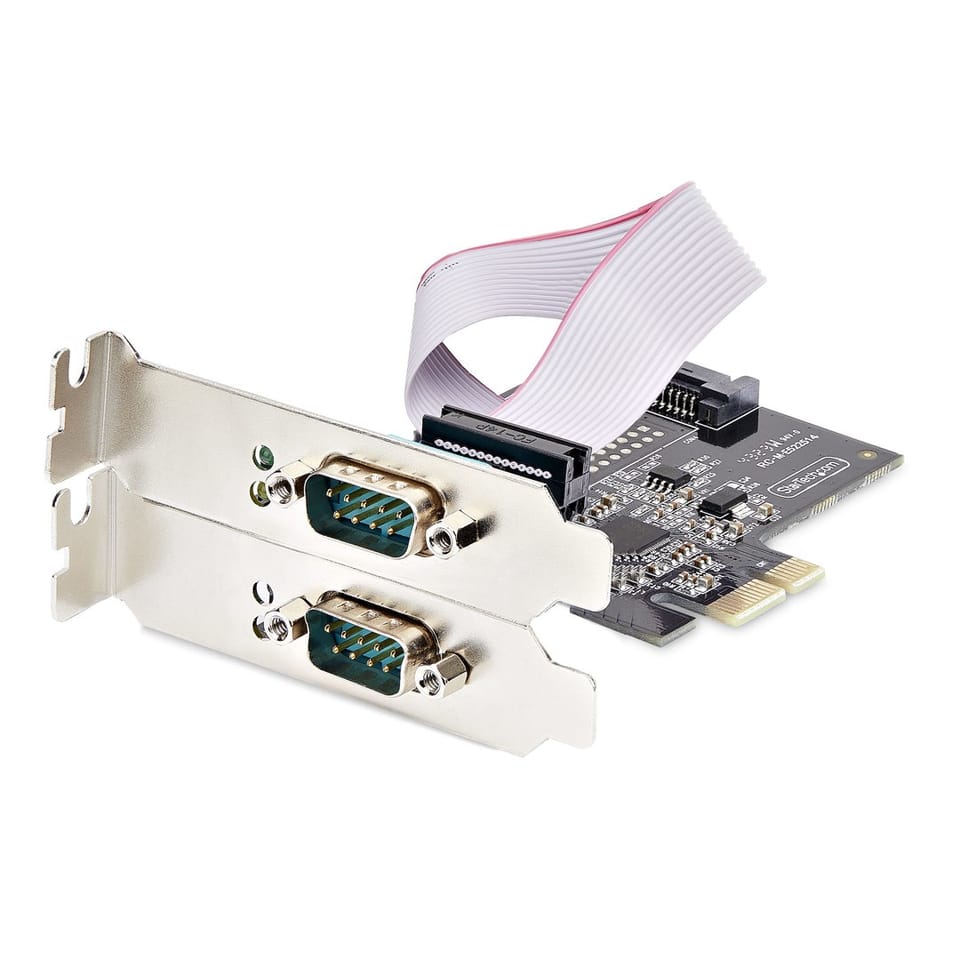

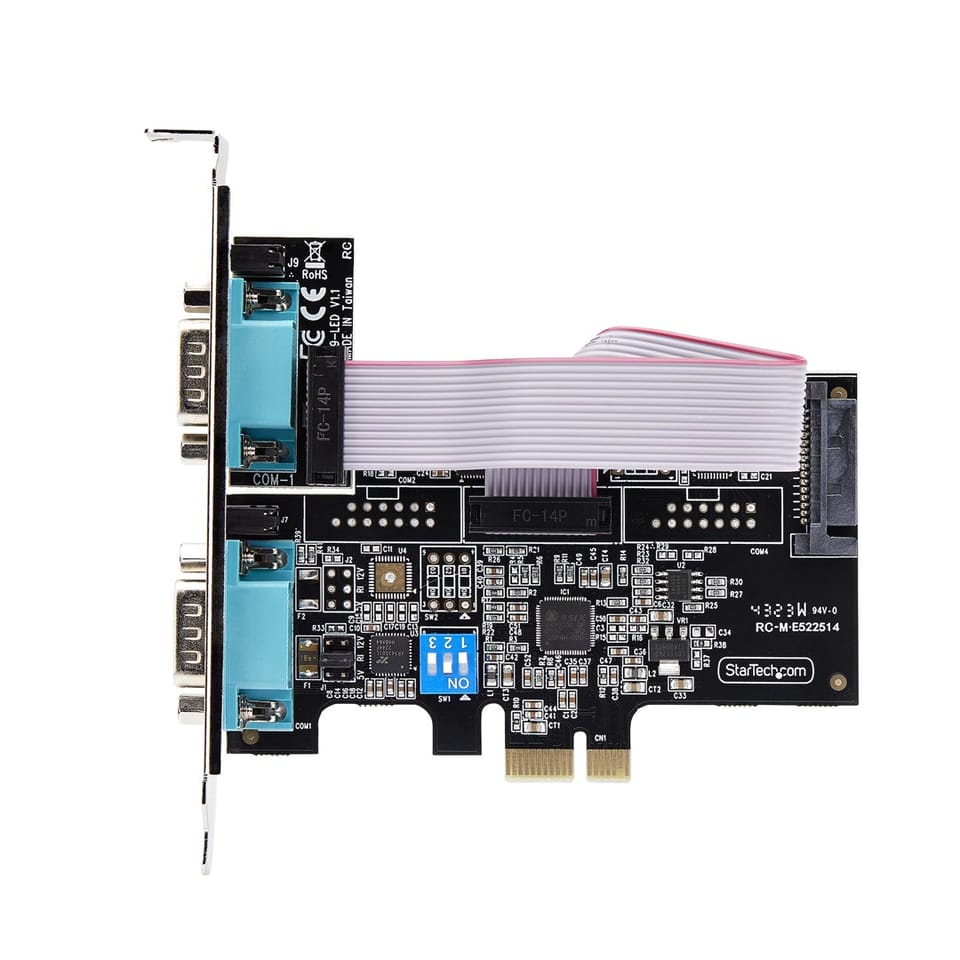

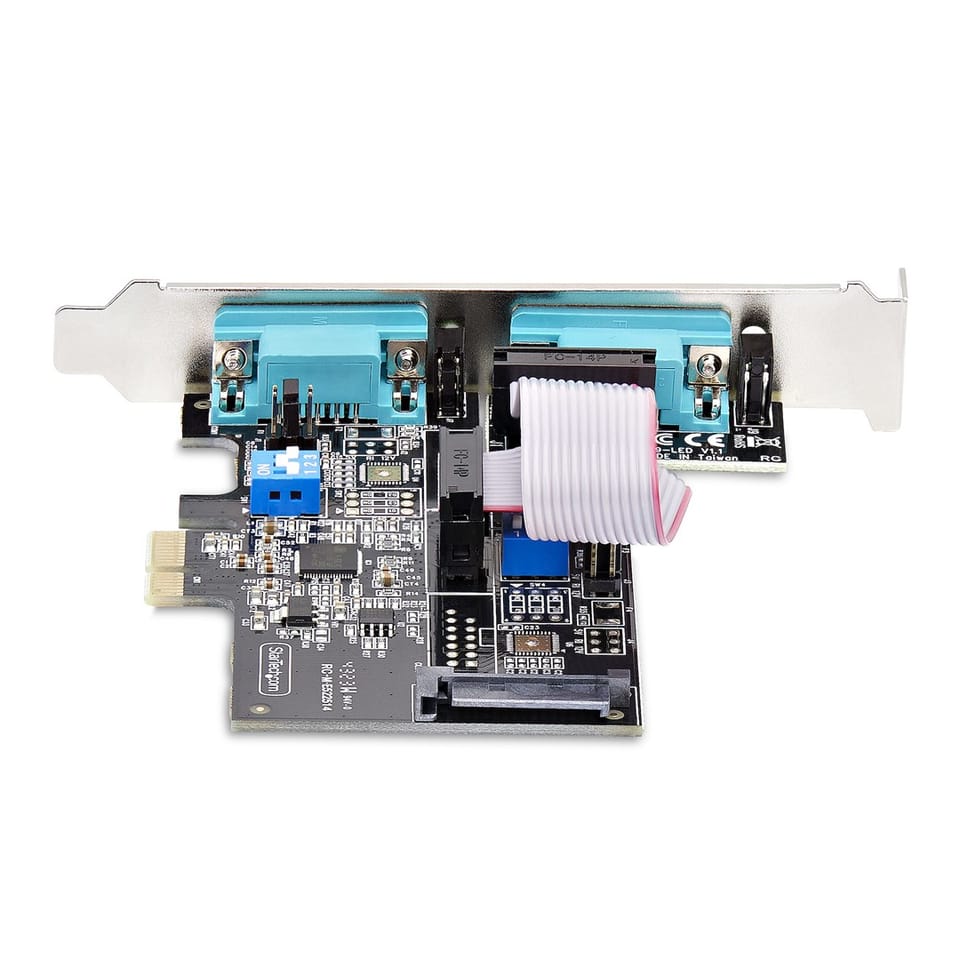

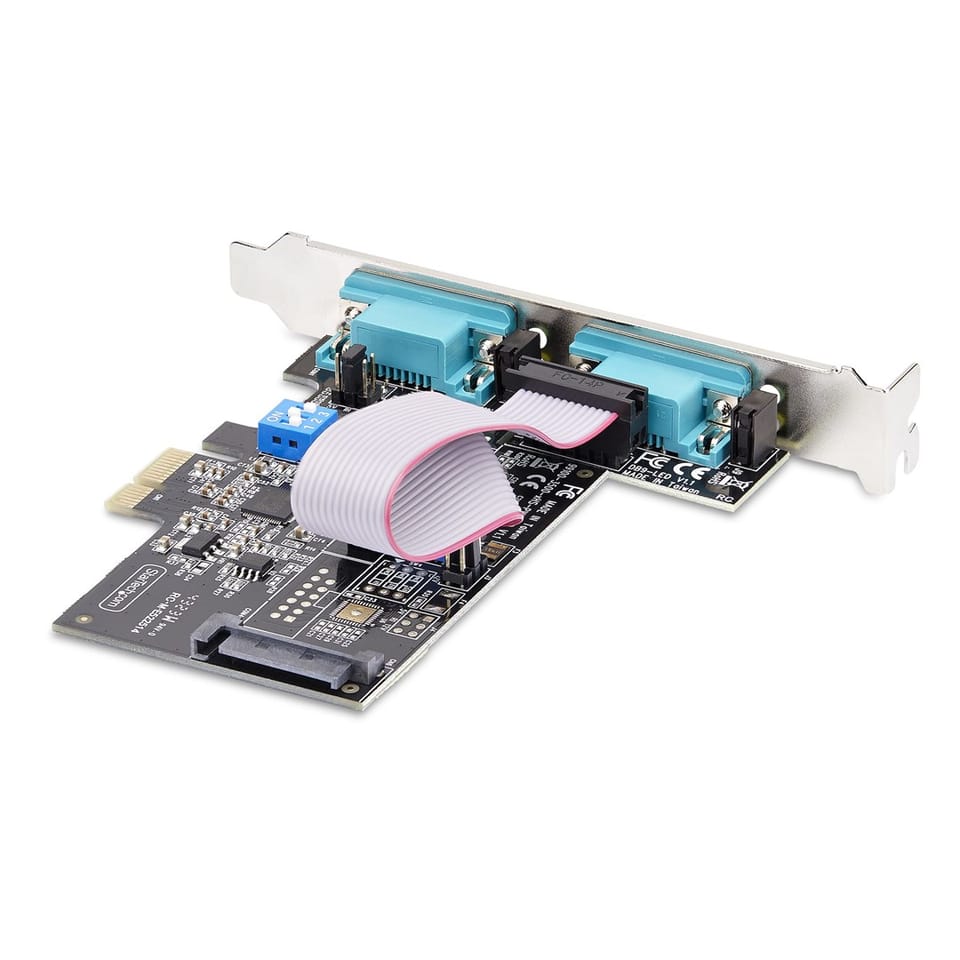

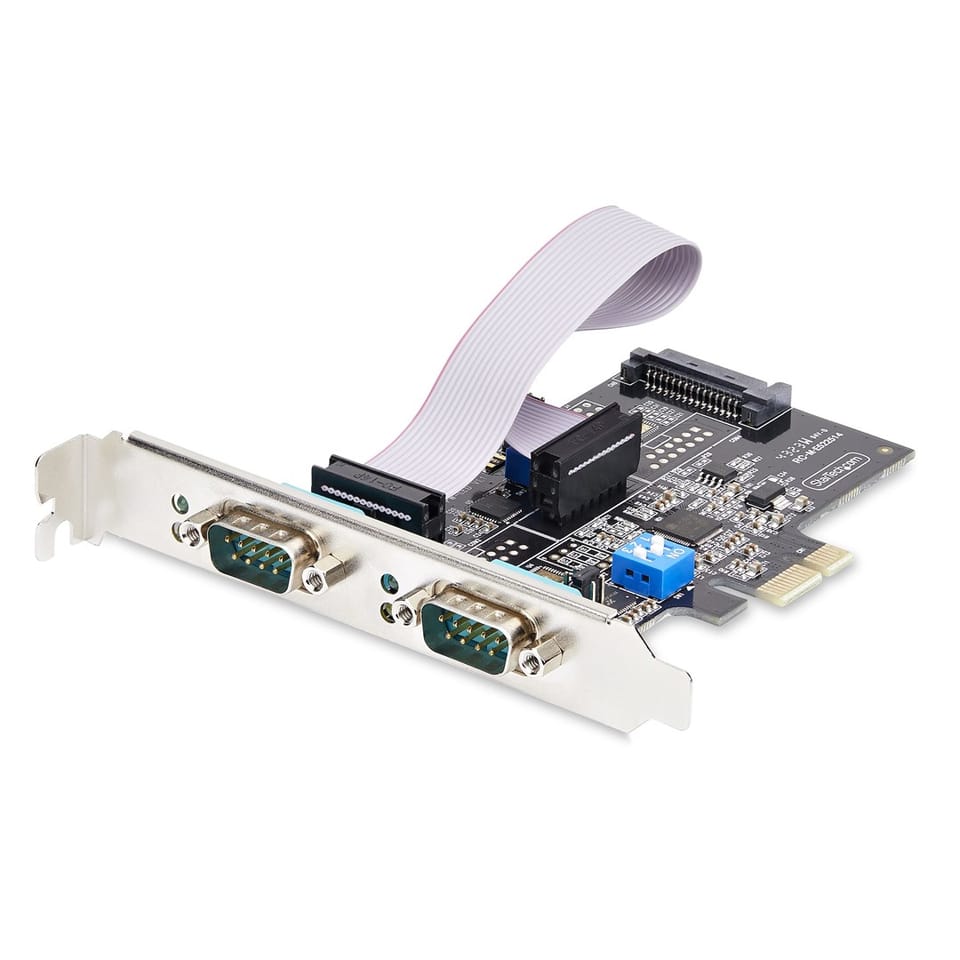

StarTech.com 2-Port Serial PCIe Card, Dual-Port PCI Express to RS232/RS422/RS485 (DB9) Serial Card, Low-Profile Brackets Incl., 16C1050 UART, Windows/Linux, TAA Compliant - Level-4 ESD Protection
This product is not available
- Availability:
- expected delivery
- Brand:
- Manhattan
- Product code:
- 2S232422485-PC-CARD / 0065030900270
Share this product:
Specification
| Baud rate: | 921.6 Kbit/s |
|---|---|
| Cables included: | Ribbon cable |
| Chipset: | ASIX - AX99100 |
| Compliance certificates: | RoHS, Trade Agreements Act (TAA) |
| Data bits: | 7, 9, 8, 6, 5 |
| Depth: | 105 mm |
| Electrostatic discharge (esd) protection: | 15 kV |
| Expansion card standard: | PCIe 2.0 |
| Fifo (first in, first out): | 256 B |
| Flow control support: | Yes |
| Height: | 16 mm |
| Host interface: | PCIe |
| Internal: | Yes |
| Linux operating systems supported: | Yes |
| Master (outer) case height: | 306 mm |
| Master (outer) case length: | 345 mm |
| Master (outer) case width: | 685 mm |
| Mounting brackets included: | Yes |
| Operating relative humidity (h-h): | 20 - 80% |
| Operating temperature (t-t): | 0 - 70 °C |
| Output interface: | Serial |
| Package depth: | 170 mm |
| Package height: | 30 mm |
| Package weight: | 147.6 g |
| Package width: | 142 mm |
| Parity bit: | Even, Mark, Odd, No, Space |
| Product colour: | Black |
| Products per master (outer) case: | 75 pc(s) |
| Quick installation guide: | Yes |
| Serial interface type: | RS-232/422/485 |
| Serial ports quantity: | 2 |
| Server operating systems supported: | Windows Server 2016, Windows Server 2022, Windows Server 2019 |
| Stop bits: | 2, 1, 1.5 |
| Storage temperature (t-t): | -20 - 80 °C |
| Sustainability compliance: | Yes |
| Weight: | 57 g |
| Width: | 102 mm |
| Windows operating systems supported: | Windows 8.1 Enterprise x64, Windows 8.1, Windows 8 x64, Windows 8 Pro x64, Windows 8.1 Pro, Windows 8.1 Enterprise, Windows 7 Professional, Windows 7, Windows 10 Education, Windows 10 Home x64, Windows 8, Windows 11 Home, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 11 x64, Windows 7 Home Basic, Windows 7 Ultimate, Windows 10 Enterprise, Windows 7 Home Basic x64, Windows 7 Professional x64, Windows 11 Enterprise, Windows 11 Pro, Windows 7 Home Premium x64, Windows 7 Enterprise x64, Windows 10 Pro x64, Windows 8 Enterprise, Windows 10 Education x64, Windows 11 Enterprise x64, Windows 7 Ultimate x64, Windows 7 x64, Windows 11, Windows 10 Pro, Windows 7 Home Premium, Windows 7 Starter, Windows 10 IoT Enterprise, Windows 10 Home, Windows 7 Starter x64, Windows 10 Enterprise x64, Windows 10 x64, Windows 10, Windows 10 IOT Core, Windows 8 Enterprise x64, Windows 8 Pro, Windows 7 Enterprise |
