SEMI-AUTOMATIC WELDING MACHINE TECNOMIG 203 MIG/TIG/MMA SYNERGIC VRD

Specifications:

Mains protection: 25 A time-lag (type C)
Rated supply voltage: 230V 50Hz (1ph)
Power: 5,9 kW
Idle voltage: 50 V
Operating current 100%: 155 A
Operating current 60%: 200 A
Aluminum wire diameter: 0.8 - 1.0mm
Brazing wire diameter: 0.8mm
Self-shielding wire diameter: 0.8 - 1.0mm
Steel wire diameter: 0.6 - 1.0mm
Stainless steel wire diameter: 0.6 - 1.0mm
Welding electrode diameter: 1.6 - 4.0 mm
Welding current adjustment range: 50 - 200 A (MIG) / 10 - 160 A (MMA) / 10 - 200 A (TIG)
Wire spool size: 5 kg
Protection class: IP21S
Weight of the device / set: 12 / 14 kg
Overall dimensions L x W x H: 440x170x290 mm
Package dimensions L x W x H: 505x340x335 mm



TECNOMIG 203 MIG/TIG/MMA SYNERGIC VRD is an inverter synergic semi-automatic welding machine designed for arc welding by MIG/MAG, TIG LIFT, MMA and FLUX methods. The device has been designed for a wide range of applications: from maintenance work to repairs of car bodies.

TECNOMIG 203 is used for brazing galvanized sheets, welding stainless steel, carbon and low-alloy steels and aluminum. Welding takes place in the shield of inert gas, active gas or mixture, and at reverse polarity without gas.

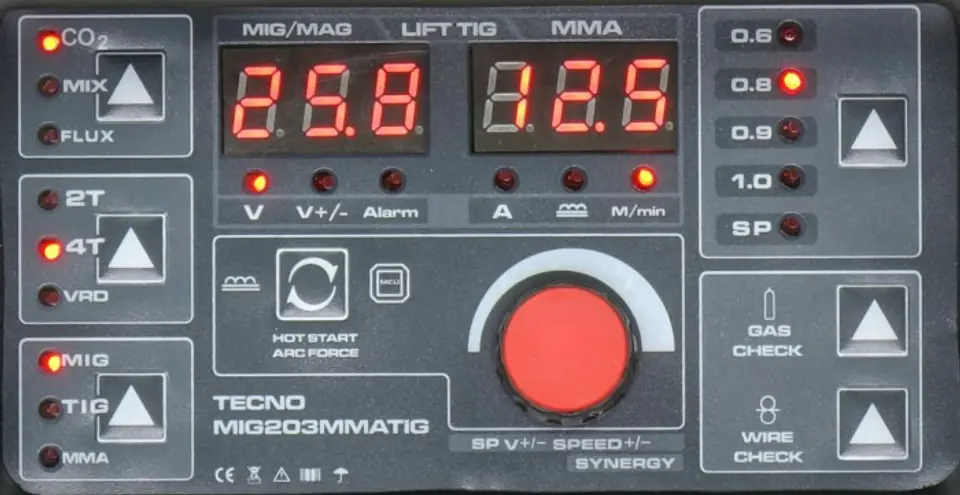

With the MIG/MAG method, we have the option of choosing the button function in the handle between working in 2T (without button lock) / 4T mode (button lock for long welds)

With the MMA method, we have the ability to enable the VRD (VOLTAGE REDUCTION Device) function - it reduces the idle idle voltage on the electrode to a safe value. Provides anti-shock safety when working in a humid environment.

Physical parameters
The device has a fan cooling system, which significantly increases its efficiency.

The device is equipped with overload protection, which increases its reliability.

Power parameters
Single-phase power supply.

The device is equipped with a power plug.

Equipment

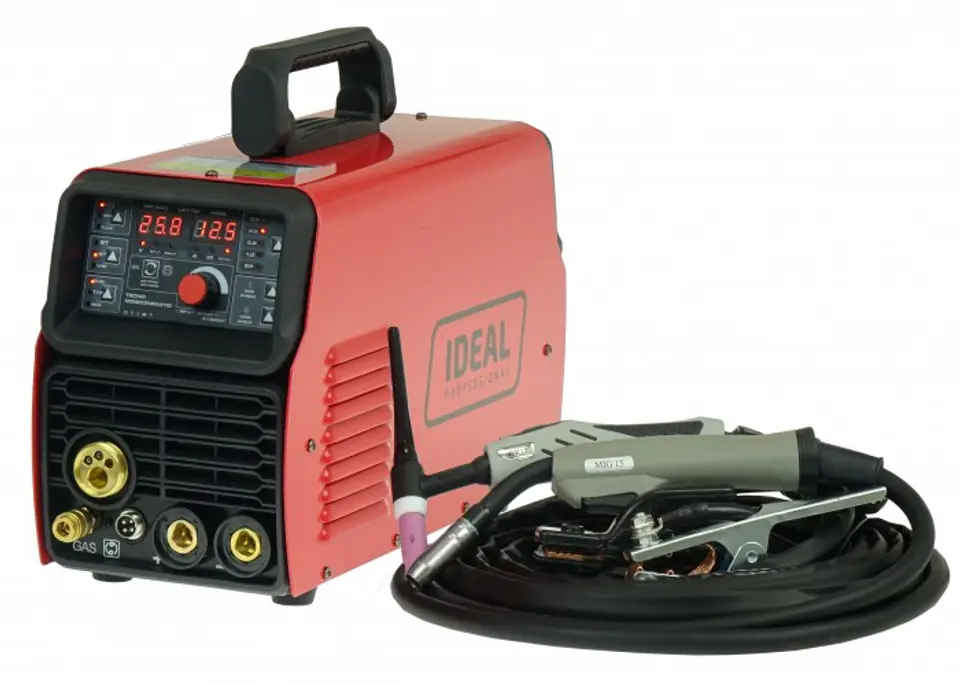

Delivery includes a unit with a 3 metre MIG 15 welding torch, a 4 metre TIG 17 torch, a 2 metre ground cable and a 3 metre electrode cable.


**

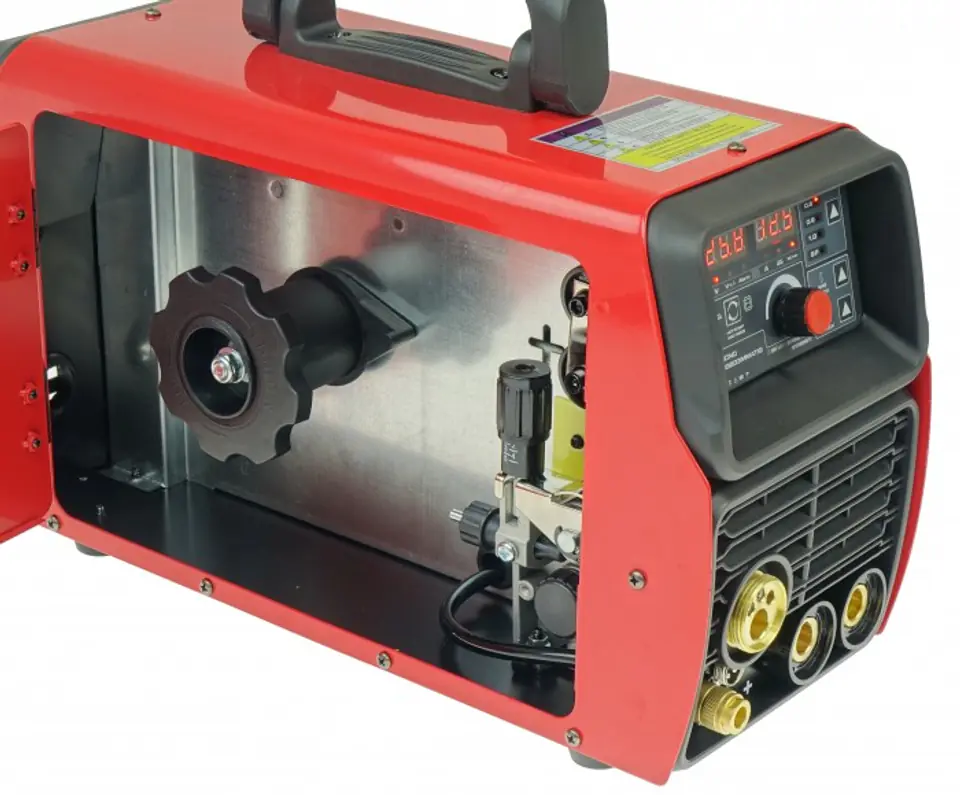

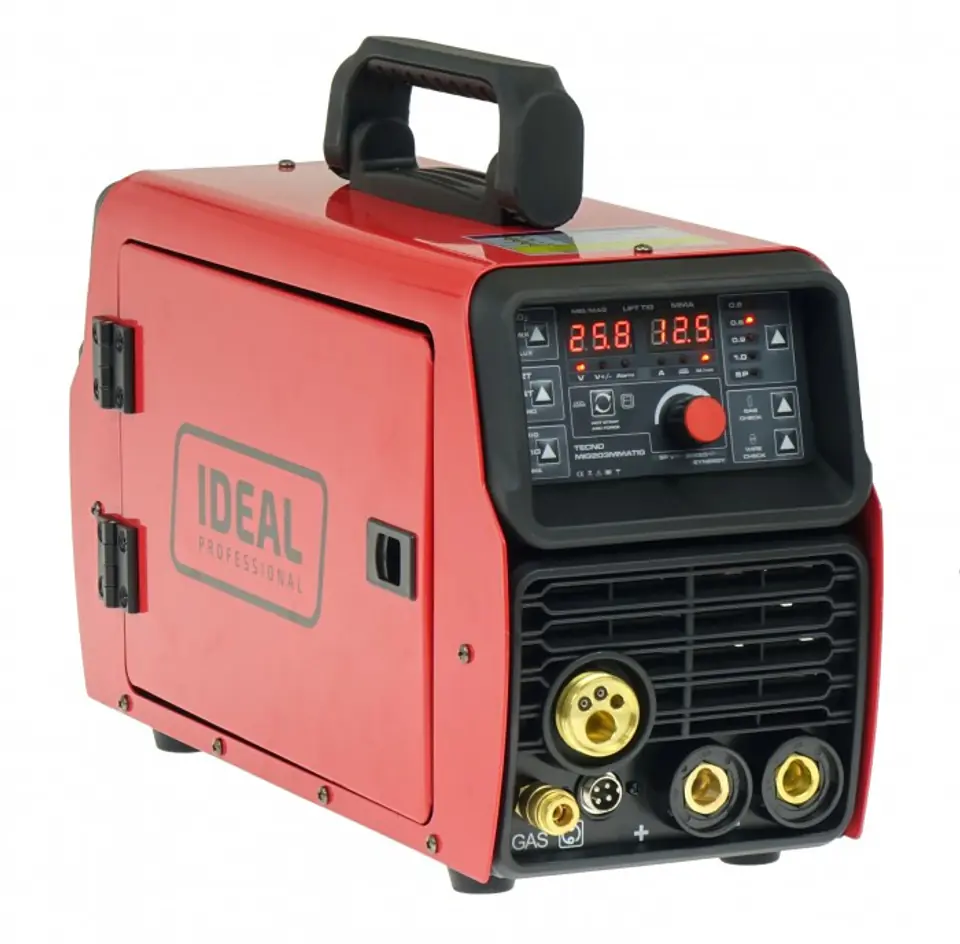

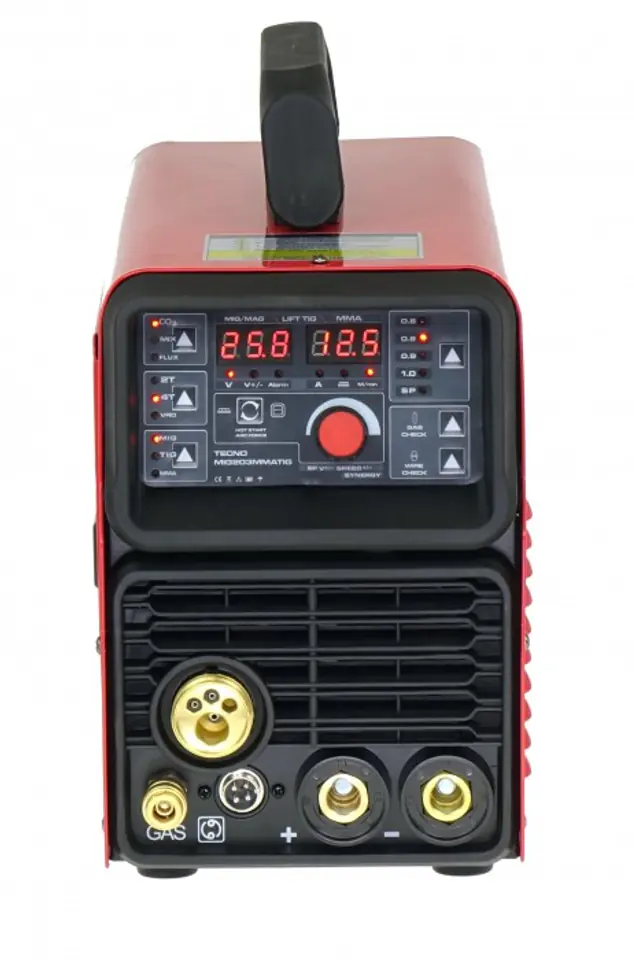

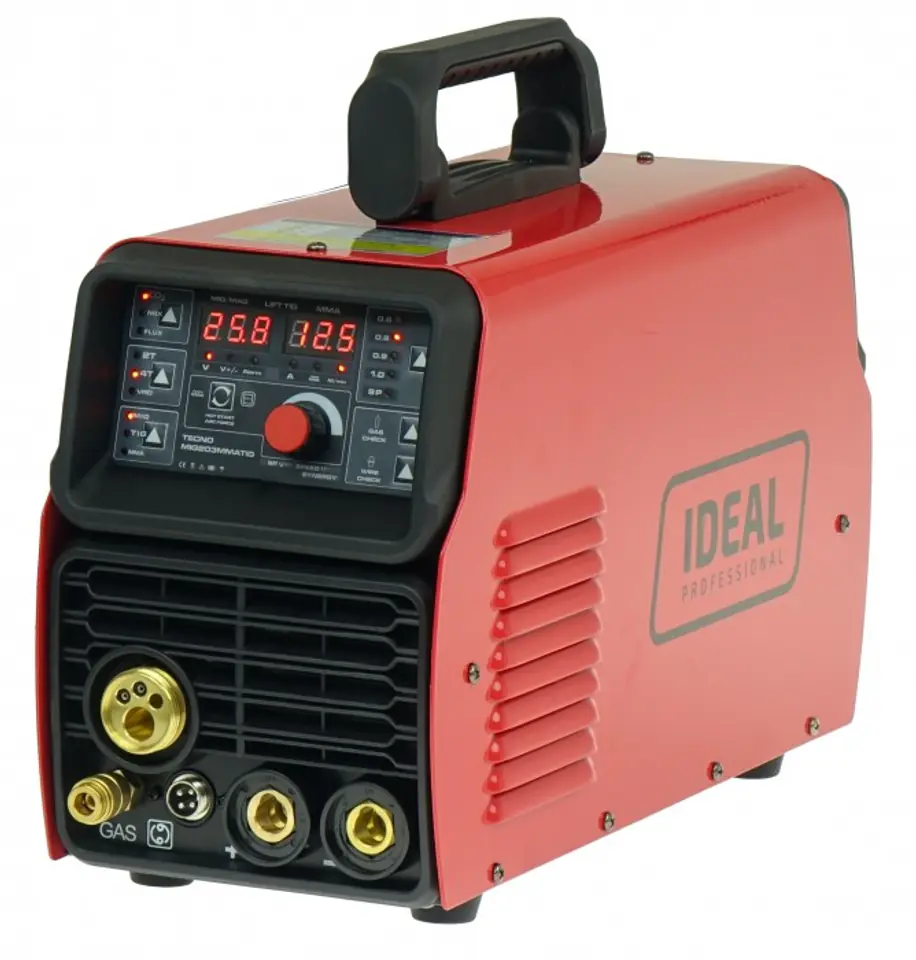

Illustrative photo
