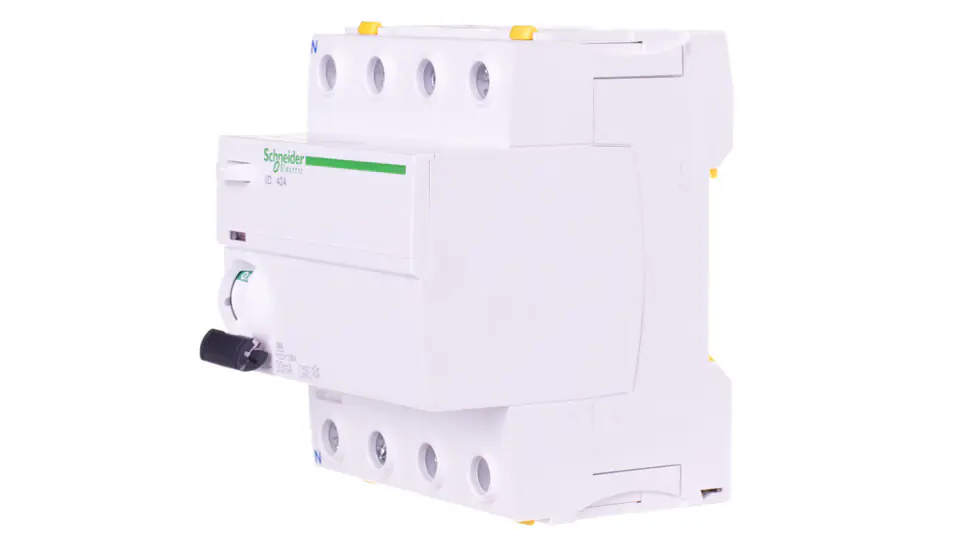

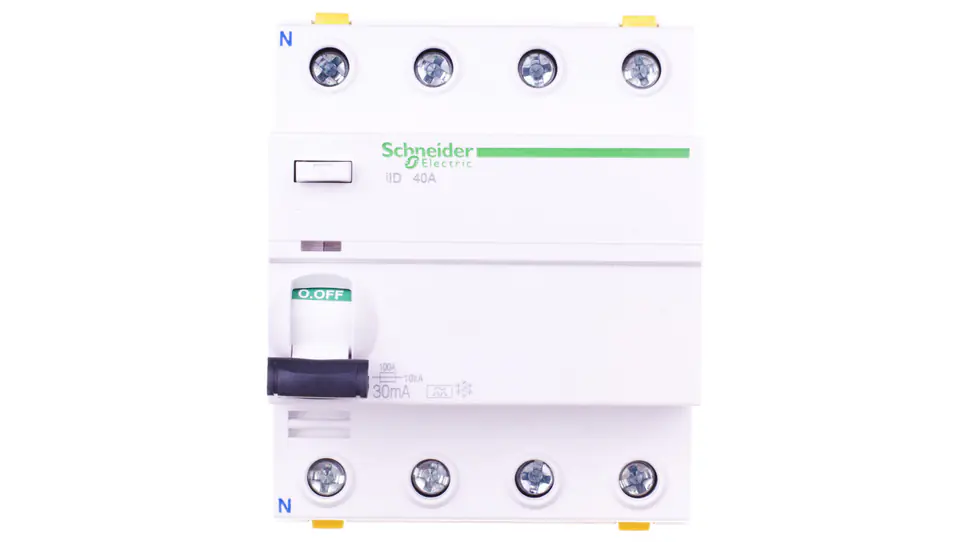

Residual current circuit breaker 4P 40A 0,03A type A iID A9Z21440
This product is not available
- Availability:
- expected delivery
- Brand:
- Schneider
- Product code:
- A9Z21440 / 3606480443206
Share this product:
Specification
| Built-in depth [mm]: | 70 |
|---|---|
| Current surge resistance [ka]: | 0.2500 |
| Degree of protection (ip): | IP20 |
| Enclosure dimension (according to din 43880): | 8 |
| Frequency [hz]: | 50 |
| Mounting method: | DIN rail |
| Number of poles: | 4 |
| Possibility of additional equipment: | Yes |
| Rated current [a]: | 40 |
| Rated differential current [a]: | 0.0300 |
| Rated short-circuit capacity [ka]: | 1.5000 |
| Rated voltage [v]: | 415 |
| Selective protection: | No |
| Sensitivity: | A |
| Short-delay triggering: | No |
| Width expressed by the number of modules: | 8 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
