Internal card and key ring reader
PROXIMITY READER WITH KEYPAD + RFID ASI1201E-D DAHUA
This product is not available
- Availability:
- expected delivery
- Brand:
- Dahua
- Product code:
- ASI1201E-D / 6939554999581
Share this product:
Specification
| Card reading range:: | Max. 6 cm |
|---|---|
| Card support:: | Unique EM 125kHz |
| Case:: | Plastic |
| Colour:: | Black |

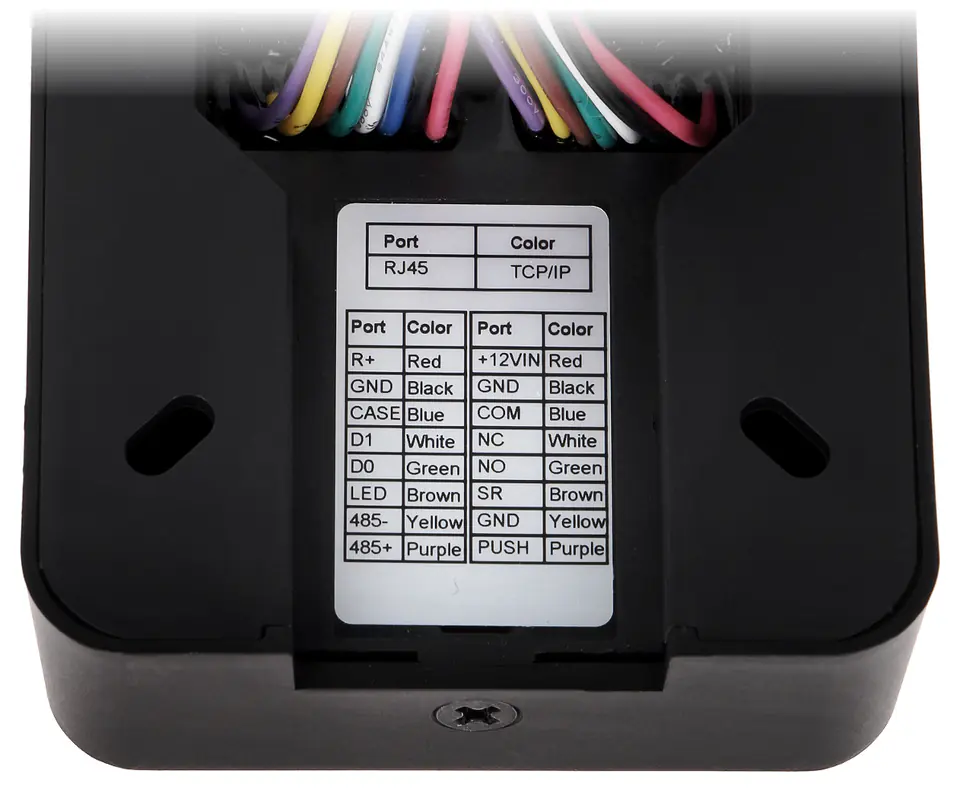

| Communication:: | Ethernet RS-485 Wiegand |
| Dimensions:: | 142 x 62 x 24 mm |
| Manufacturer / brand:: | DAHUA |
| Maximum current consumption:: | 200 mA |
| Operating temperature:: | -30 °C ... 60 °C |
| Permissible relative humidity:: | ≤ 95 % (non-condensing) |
| Power:: | 9 ... 15 VDC |
| Scales:: | 0.15 kg |
| Selected features:: | 30000 indexed users, Event memory : 150,000, Touch control buttons, Blue button backlight, 6 access groups |
| Warranty:: | 3 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
