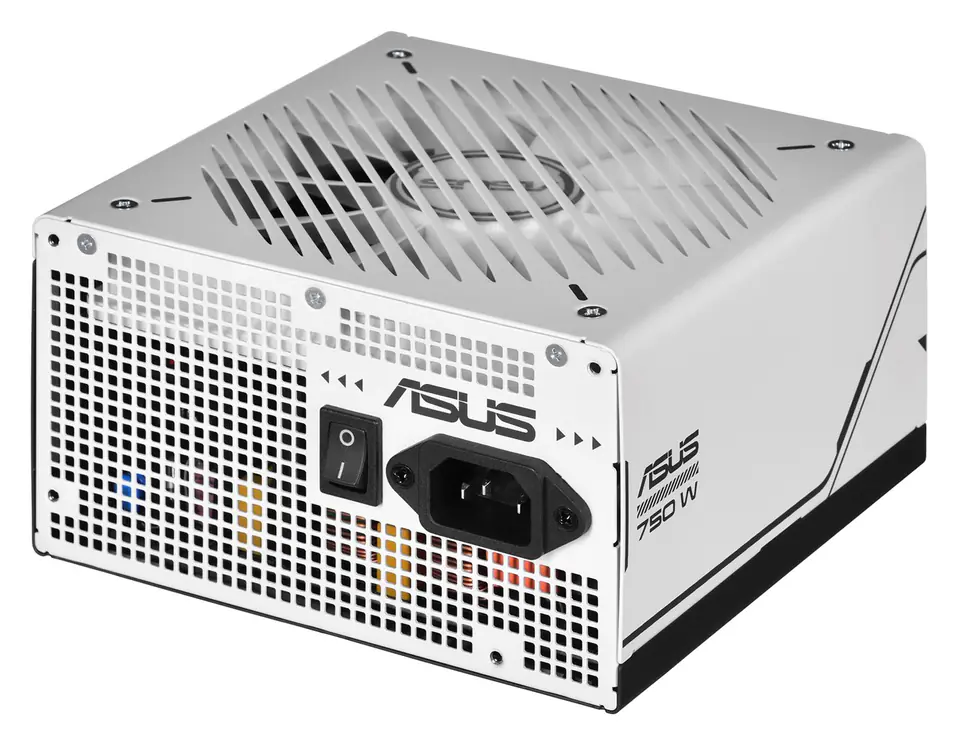

Power supply Asus Prime 750W Gold - bulk
This product is not available
- Availability:
- expected delivery
- Brand:
- Product code:
- 90YE00U1-B0NB00 / 4711387193150
Share this product:
Specification
| 80 plus certification: | 80 PLUS Gold |
|---|---|
| Ac input voltage: | 100 - 240 V |
| Atx version: | 3.0 |
| Bearing type: | Ball bearing |
| Cables included: | AC, CPU, PCIe, Peripheral (Molex), SATA |
| Combined power (-12v): | 3.6 W |
| Combined power (+12v): | 750 W |
| Combined power (+3.3v): | 110 W |
| Combined power (+5v): | 110 W |
| Combined power (+5vsb): | 12.5 W |
| Cooling type: | Active |
| Cpu power cable length: | 65 cm |
| Cpu power connector (4+4 pin): | Yes |
| Depth: | 150 mm |
| Efficiency: | 92% |
| Fan diameter: | 13.5 cm |
| Height: | 86 mm |
| Max output current (-12v): | 0.3 A |
| Max output current (+12v): | 62 A |
| Max output current (+3.3v): | 20 A |
| Max output current (+5v): | 20 A |
| Max output current (+5vsb): | 2.5 A |
| Motherboard power cable length: | 61 cm |
| Motherboard power connector: | 24-pin ATX |
| Number of fans: | 1 fan(s) |
| Number of sata power connectors: | 5 |
| Package type: | Box |
| Pci express power cable length: | 67.5 cm |
| Pci express power connectors (16-pin): | 1 |
| Pci express power connectors (8-pin): | 3 |
| Peripheral (molex) power cable length: | 150, 400 mm |
| Peripheral (molex) power connectors (4-pin): | 3 |
| Power protection features: | Over power, Short circuit, Over voltage, Under voltage, Over current |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | White |
| Purpose: | PC |
| Sata power cable length: | 120, 400 |
| Sustainability certificates: | RoHS |
| Total power: | 750 W |
| Weight: | 1.46 kg |
| Width: | 150 mm |
