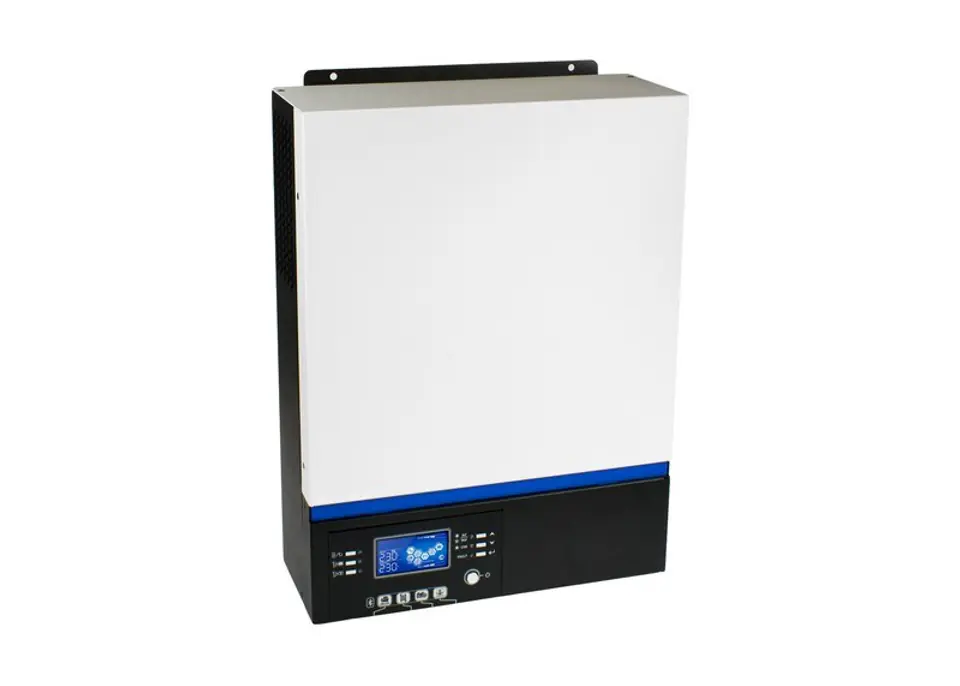

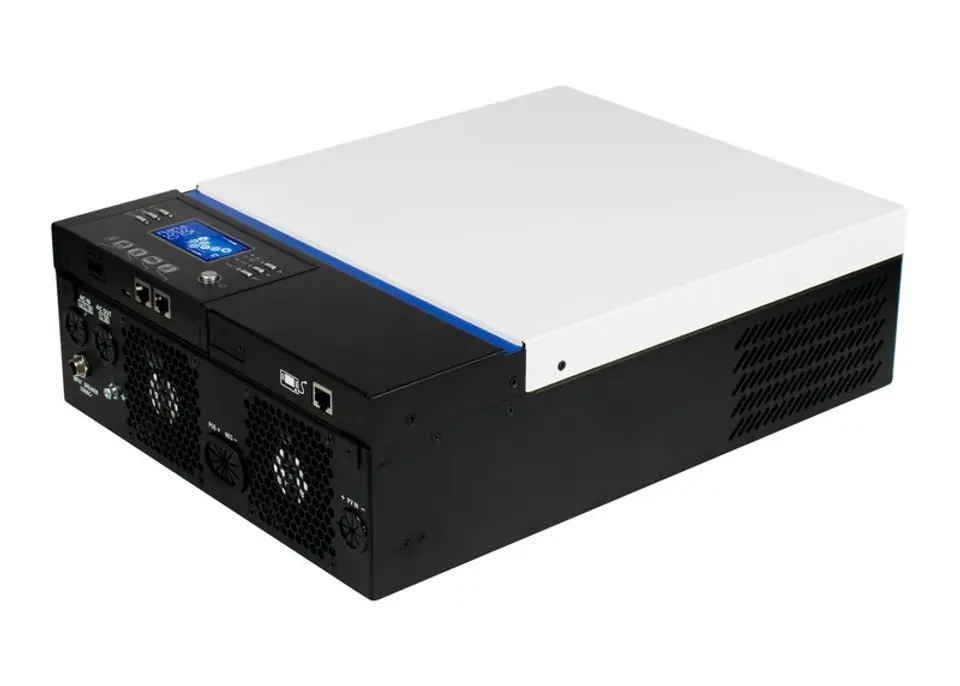

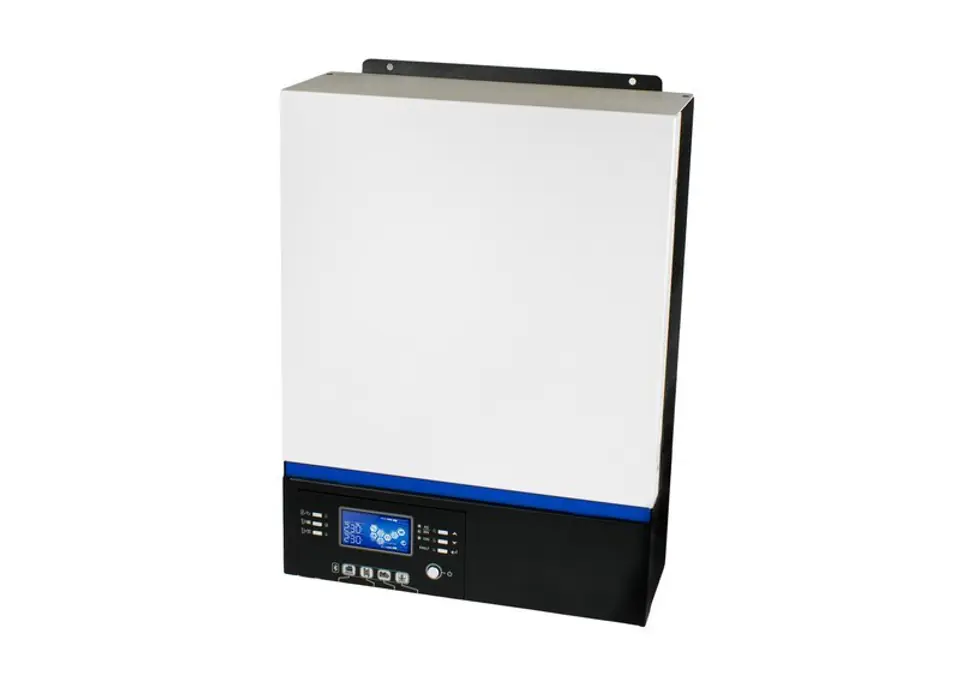

Off-Grid Hybrid Solar Inverter AZO Digital ESB 10kW-48
This product is not available
- Availability:
- expected delivery
- Brand:
- AZO DIGITAL
- Product code:
- AZO00D1198 / 5903332566457
Share this product:
Specification
| Ac input voltage: | 90 - 280 V |
|---|---|

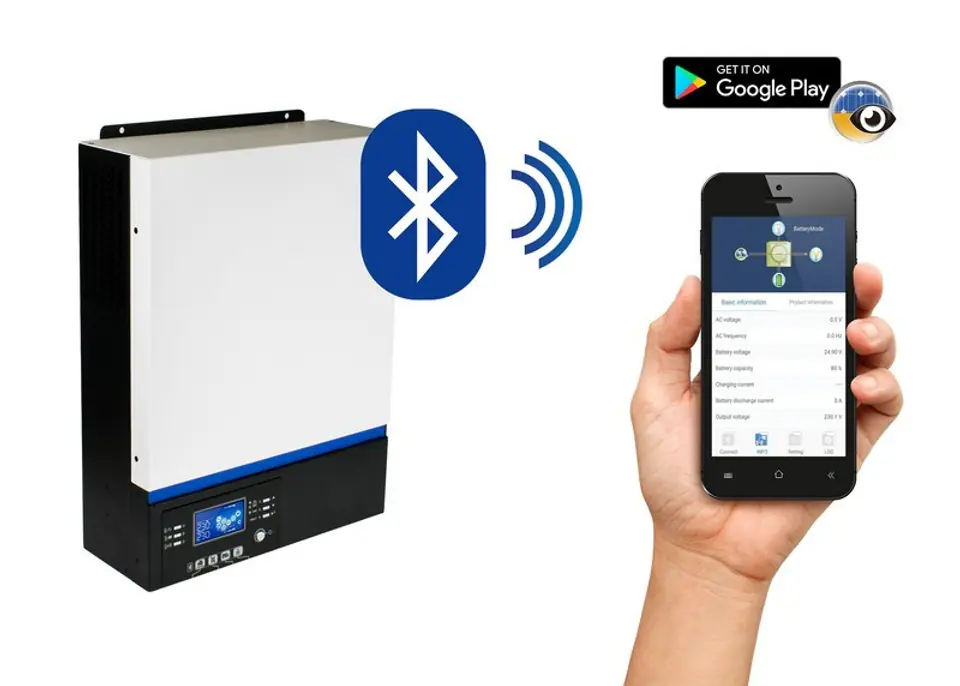

| Bluetooth: | Yes |
| Cables included: | AC |
| Charging voltage: | 54 V |
| Continuous power: | 5000 VA |

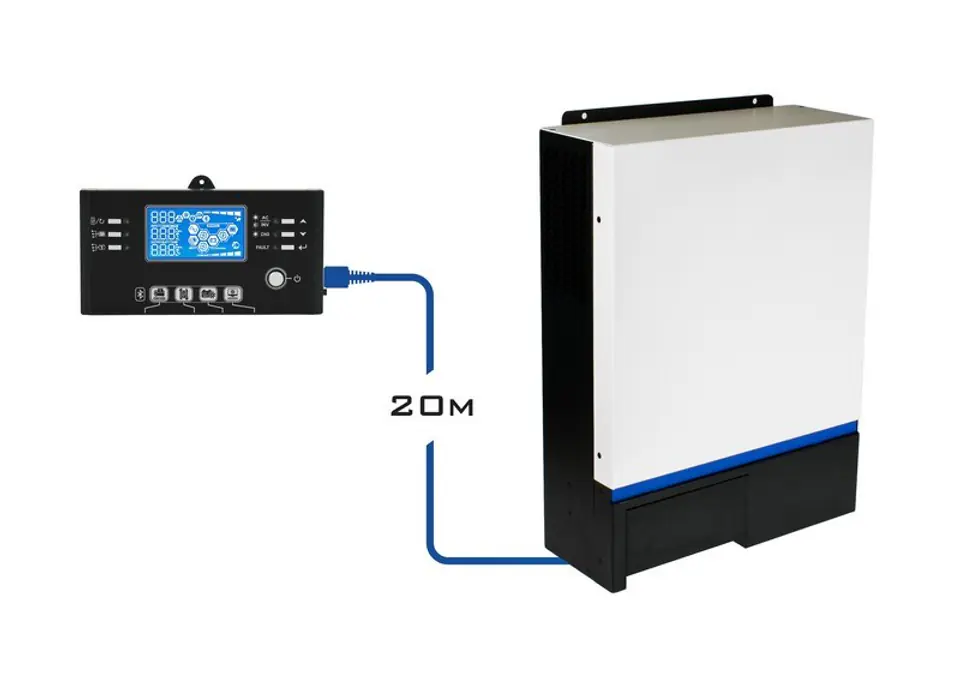

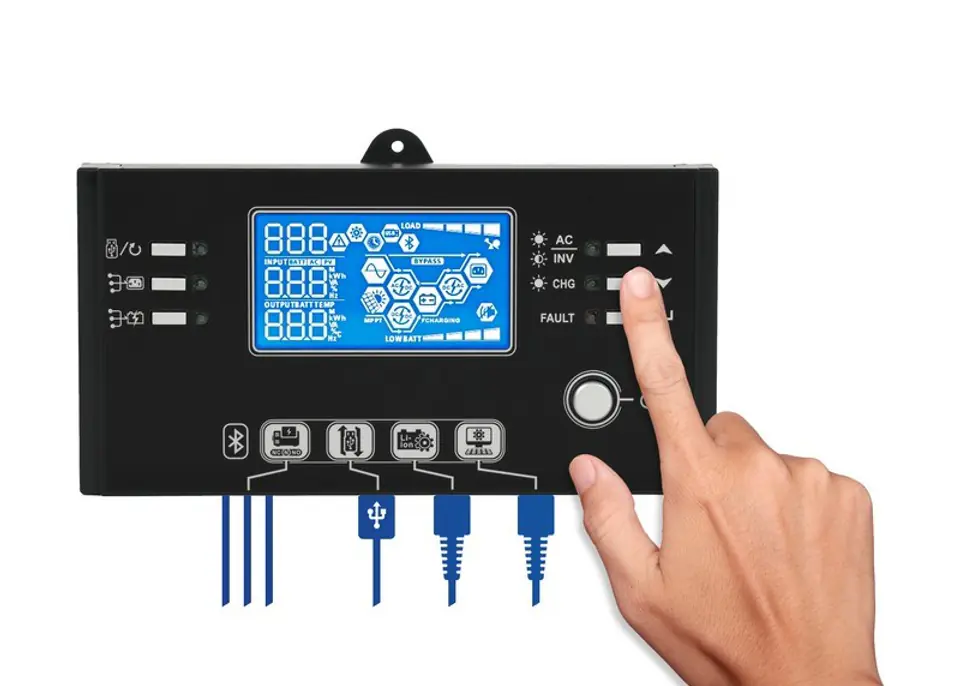

| Control display unit: | Yes |
| Cooling type: | Active |
| Dc battery voltage: | 48 V |
| Depth: | 115 mm |
| Dfu / user manual: | Y |

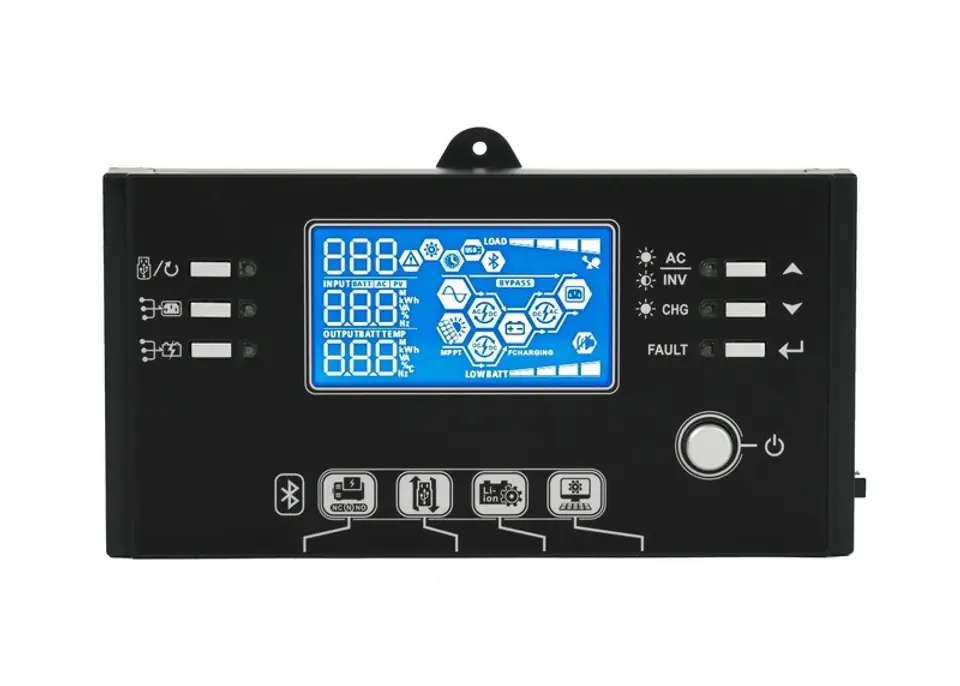

| Display included: | Yes |
| Door cooling fan: | Yes |
| Efficiency: | 93% |
| Height: | 400 mm |
| Input frequency: | 50/60 Hz |
| International protection (ip) code: | IP21 |
| Maximum charging current from solar panels (mppt): | 80 A |
| Mppt function: | Yes |
| Mppt voltage range: | 120 - 450 V |
| Nominal input voltage: | 230 V |
| Operating relative humidity (h-h): | 5 - 95% |
| Operating temperature (t-t): | -10 - 50 °C |
| Output power capacity: | 10000 VA |
| Output voltage (vac): | 230 VAC |
| Power current type: | AC/AC |
| Power protection features: | Overload |
| Product colour: | White |
| Recharge indicator: | Yes |
| Typical switching time: | 15 ms |
| Usb port: | Yes |
| Waveform: | Sine |
| Weight: | 10 kg |
| Width: | 300 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
