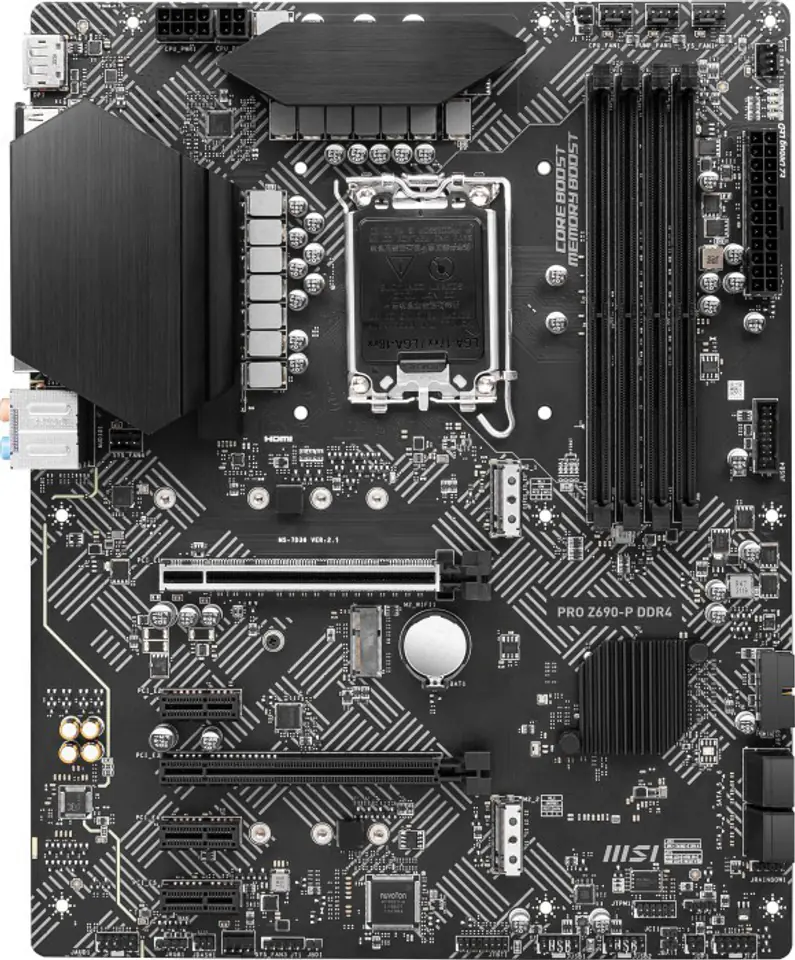

MSI PRO Z690-P DDR4 motherboard Intel Z690 LGA 1700 ATX Unpacked
This product is not available
- Availability:
- expected delivery
- Brand:
- Msi
- Product code:
- 7D36-002R / 4719072902940
Share this product:
Specification
| 12v power connector: | Y |
|---|---|
| Atx power connector (24-pin): | Y |
| Audio chip: | Realtek ALC897 |
| Audio output channels: | 7.1 channels |
| Bios type: | UEFI AMI |
| Cables included: | SATA |
| Chassis intrusion connector: | Y |
| Clear cmos jumper: | Y |
| Compatible processor series: | Intel® Pentium®, Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron® |
| Component for: | PC |
| Cpu fan connector: | Y |
| Depth: | 244 mm |
| Digital audio optical out: | 1 |
| Displayport version: | 1.4 |
| Displayports quantity: | 1 |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Ethernet lan: | Y |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Y |
| Hdmi ports quantity: | 1 |
| Hdmi version: | 1.4b |
| Height: | 65 mm |
| Lan controller: | Dragon RTL8125BG |
| Maximum internal memory: | 128 GB |
| Maximum number of smp processors: | 1 |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Motherboard chipset: | Intel Z690 |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | ATX |
| Non-ecc: | Y |
| Number of chassis fan connectors: | 4 |
| Number of m.2 (m) slots: | 2 |
| Number of memory slots: | 4 |
| Number of mounting holes: | 9 |
| Number of sata iii connectors: | 4 |
| Parallel processing technology support: | CrossFire |
| Pci express x1 (gen 3.x) slots: | 3 |
| Pci express x16 slots: | 2 |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1700 |
| Raid levels: | 10, 1, 0, 5 |
| Raid support: | Y |
| Rgb led pin header: | Y |
| S/pdif out port: | Y |
| Supported memory clock speeds: | 4400, 5000, 4600, 4000 |
| Supported memory types: | DDR4-SDRAM |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| Tpm connector: | Y |
| Unbuffered memory: | Y |
| Usb 2.0 connectors: | 2 |
| Usb 2.0 ports quantity: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 4 |
| Usb 3.2 gen 2x2 type-c ports quantity: | 1 |
| Weight: | 1 kg |
| Wi-fi: | N |
| Width: | 305 mm |
