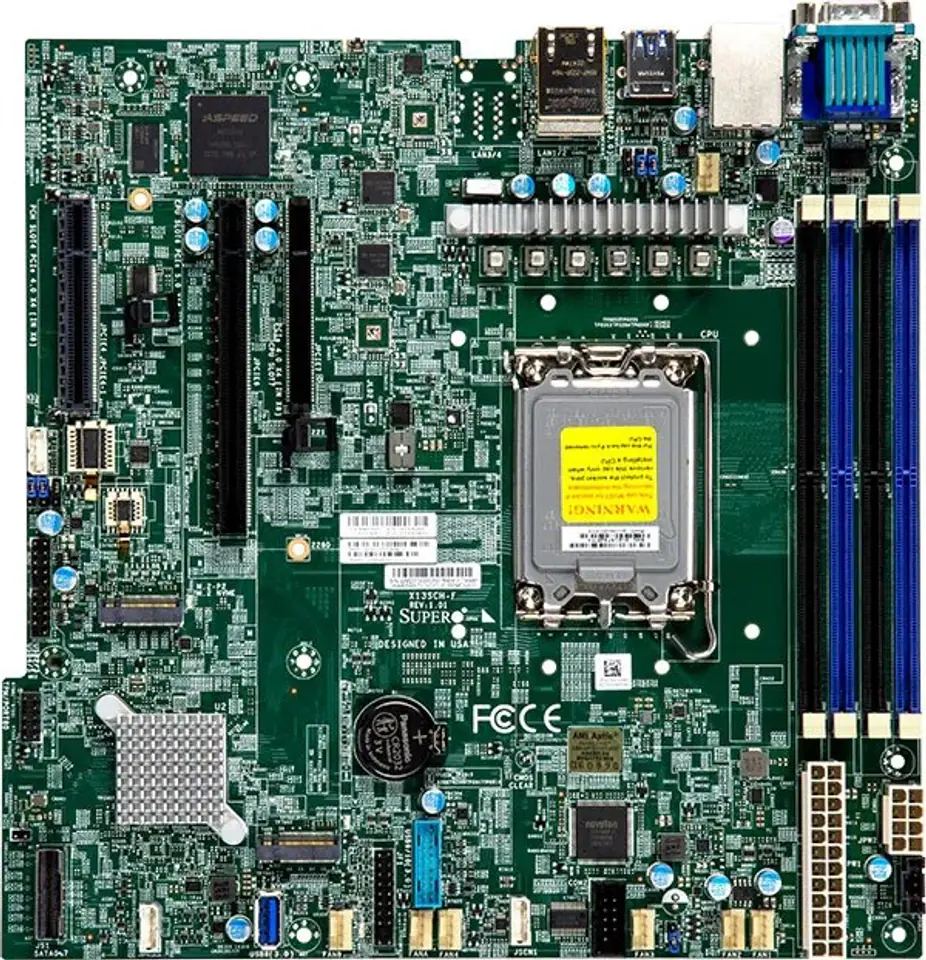

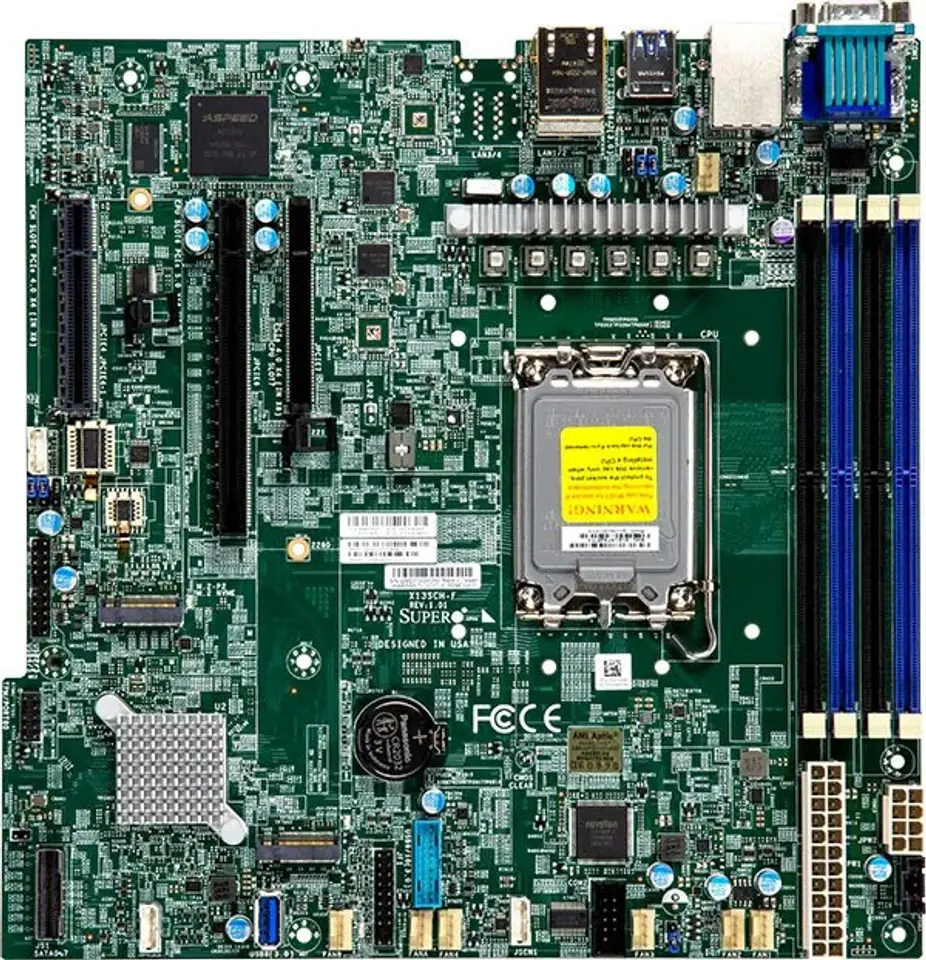

Motherboard SUPERMICRO X13SCH-F Intel Xeon E-2400 C266 LGA-1700 (Socket V0) micro ATX (MBD-X13SCH-F-O)
This product is not available
- Availability:
- expected delivery
- Brand:
- Supermicro
- Product code:
- MBD-X13SCH-F-O / 0672042899111
Share this product:
Specification
| Acpi version: | 6.4 |
|---|---|
| Bios memory size: | 32 Mbit |
| Bios type: | UEFI AMI |
| Com ports quantity: | 1 |
| Component for: | Server |
| Depth: | 244 mm |
| Disk on module (dom) power connector: | Y |
| Ecc: | Yes |
| Ethernet interface type: | Fast Ethernet, Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 2 |
| Intel xeon series: | E-2400 |
| Ipmi lan (rj-45) port: | Yes |
| Lithography: | 14 nm |
| M.2 card slot (storage): | 2280/22110 (M-key) |
| Maximum internal memory: | 128 GB |
| Maximum udimm memory: | 128 GB |
| Memory voltage: | 1.1 |
| Motherboard chipset: | Intel C266 |
| Motherboard form factor: | micro ATX |
| Number of dimm slots: | 4 |
| Number of processors supported: | 1 |
| Number of sata iii connectors: | 8 |
| On-board graphics card model: | Aspeed AST2600 BMC |
| Operating temperature (t-t): | 0 - 50 °C |
| Pci express x16 (gen 5.x) slots: | 1 |
| Pci express x4 (gen 4.x) slots: | 2 |
| Processor manufacturer: | Intel |
| Processor number of cores supported: | 8 |
| Processor socket: | LGA 1700 (Socket V0) |
| Processor thermal power (max): | 95 W |
| Raid levels: | 10, 0, 1, 5 |
| Raid support: | Yes |
| Recommended humidity operating range: | 8 - 90% |
| Storage relative humidity (h-h): | 5 - 95% |
| Storage temperature (t-t): | -40 - 70 °C |
| Supported dimm module capacities: | 32GB, 8GB, 16GB |
| Supported memory clock speeds: | 4000, 4400 MHz, 3600 |
| Supported memory types: | DDR5-SDRAM |
| Supported storage drive interfaces: | SATA III, M.2 |
| Sustainability certificates: | RoHS |
| System management bios (smbios) version: | 3.5 |
| Tpm connector: | Yes |
| Trusted platform module (tpm): | Yes |
| Trusted platform module (tpm) version: | 2.0 |
| Uefi version: | 2.8 |
| Usb 2.0 connectors: | 4 |
| Usb 2.0 ports quantity: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 1 |
| Vga (d-sub) ports quantity: | 1 |
| Wi-fi: | No |
| Width: | 244 mm |
