| Audio: | Built-in microphone, Network audio |
|---|
| Case: | Compact, Metal + Plastic |
|---|
| Colour: | white |
|---|
| Default administrator login / password: | admin / 123456 |
|---|
| Default ip address: | DHCP or 192.168.1.13 |
|---|

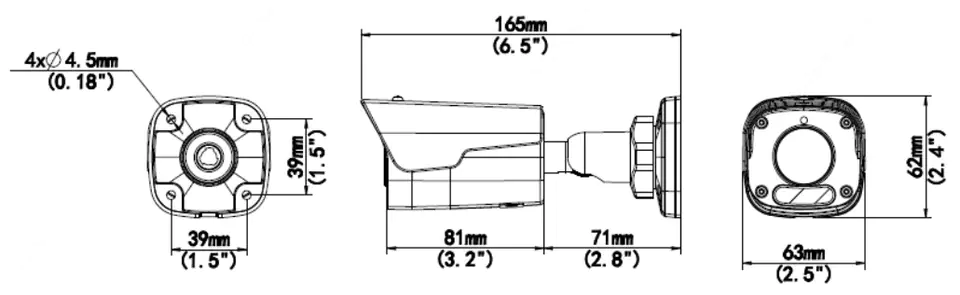

| Dimensions: | 167 x 63 x 62 mm |
|---|
| Image compression method: | Ultra 265 / H.265 / H.264 |
|---|
| Ir illuminator range: | 30 m |
|---|
| Main stream transmission speed: | 25 fps @ 1080p |
|---|
| Max. number of on-line users: | 32 |
|---|

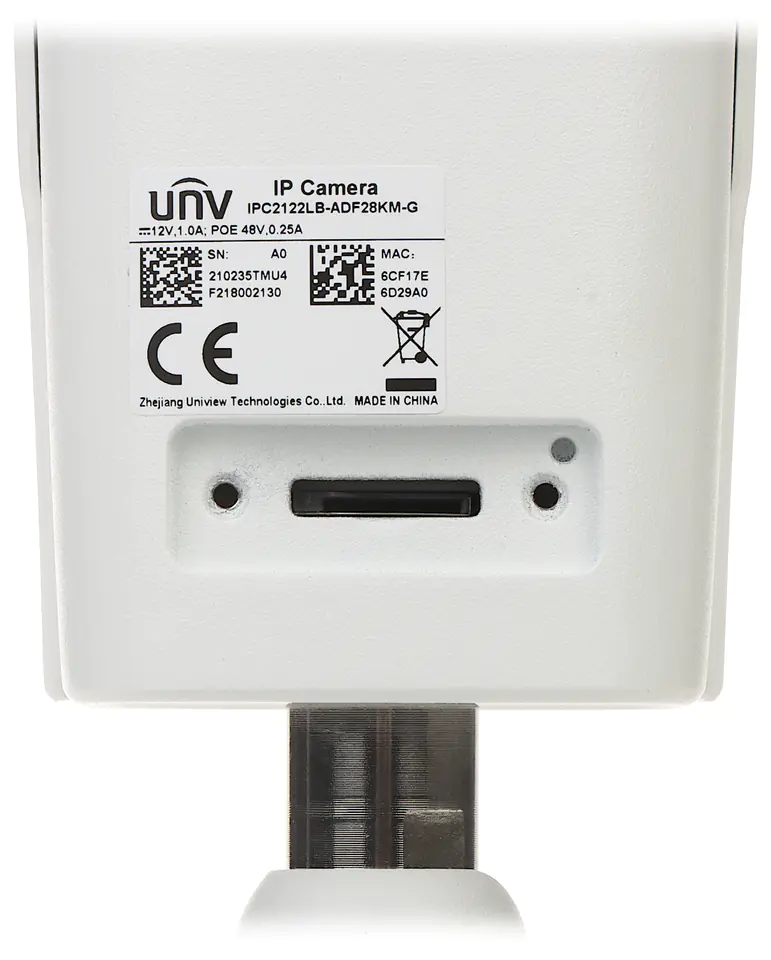

| Memory card slot: | Micro SD card support up to 128GB (local recording possible) |
|---|
| Mobile app access port: | 80 |
|---|
| Mobile phone access: | Cloud access (P2P) Android: Free EZView app iOS (iPhone): Free EZView app |
|---|
| Network interface: | 10/100 Base-T (RJ-45) |
|---|
| Network protocols: | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP |
|---|
| Objective: | 2.8 mm |
|---|
| Operating temperature: | -30 °C ... 60 °C |
|---|
| Pc app access ports: | Port: 80 or cloud access (P2P) - PC: Free EZStation app |
|---|
| Port onvif: | 80 |
|---|
| Power: | PoE (802.3af), 12 V DC / 580 mA |
|---|
| Power consumption: | ≤ 7 watts |
|---|
| Producer / brand: | UNIVIEW |
|---|
| Resolution: | 1920 x 1080 - 1080p,1280 x 720 - 720p |
|---|
| Rtsp url: | rtsp://192.168.1.13:554/unicast/c1/s0/live - Main stream ównyrtsp://192.168.1.13:554/unicast/c1/s1/live - Sub-stream |
|---|
| S/n ratio (s/n): | > 52 dB |
|---|
| Scales: | 0.4 kg |
|---|
| Scanning system: | Progressive |
|---|
| Sealing: | IP67 |
|---|
| Selected features: | WDR - 120 dB - Wide dynamic range of 2D-DNR, 3D-DNR - Digital image noise reduction F-DNR (Defog) - Reduction of noise related to precipitation ROI - improving the quality of selected parts of the image BLC/HLC - compensation of background light / strong light Ability to change resolution, quality and bandwidth Mirror - Mirror image Motion detection - max. 4 privacy zones - max. 4 Sharpness - Sharpening image outlines |
|---|
| Sensor size: | 2.0 MP |
|---|
| Standard: | TCP/IP |
|---|
| Supported languages: | Polish, Czech, English, Hungarian, Italian, French, German, Portuguese, Slovak, Spanish |
|---|
| Transducer: | 1/2.7" Progressive Scan CMOS |
|---|
| Viewing angle: | 113° (manufacturer data) 102° (our tests) |
|---|
| Warranty: | 3 years |
|---|
| Web access ports: | 80, 554 |
|---|
| Web server: | Built-in |
|---|
