| Access from a mobile phone:: | Port: 37777 or cloud access (P2P) Android: Free DMSS iOS app (iPhone): Free DMSS app |
|---|
| Adjustment shutter speed: | Auto/Manual |
|---|
| Audio formats supported: | G.711a, G.711Mu, G.726 |
|---|
| Audio:: | Built-in Microphone Sound Detection |
|---|
| Back light compensation (blc): | Y |
|---|
| Bit rate: | 3 - 8192 kbps |
|---|
| Bit rate control: | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
|---|
| Bluetooth: | N |
|---|
| Built-in hdd: | N |
|---|
| Built-in microphone: | Y |
|---|
| Camera shutter speed: | 1/3 - 1/100000 s |
|---|
| Case:: | Dome - Metal + Plastic |
|---|
| Closest focusing distance: | 1.4 m |
|---|
| Colour:: | white |
|---|
| Connectivity technology: | Wired |
|---|
| Dc output voltage: | 12 |
|---|
| Default administrator login / password:: | admin / -Administrator password should be set at first startup |
|---|
| Default ip address:: | 192.168.1.108 |
|---|
| Diameter: | 12.2 cm |
|---|

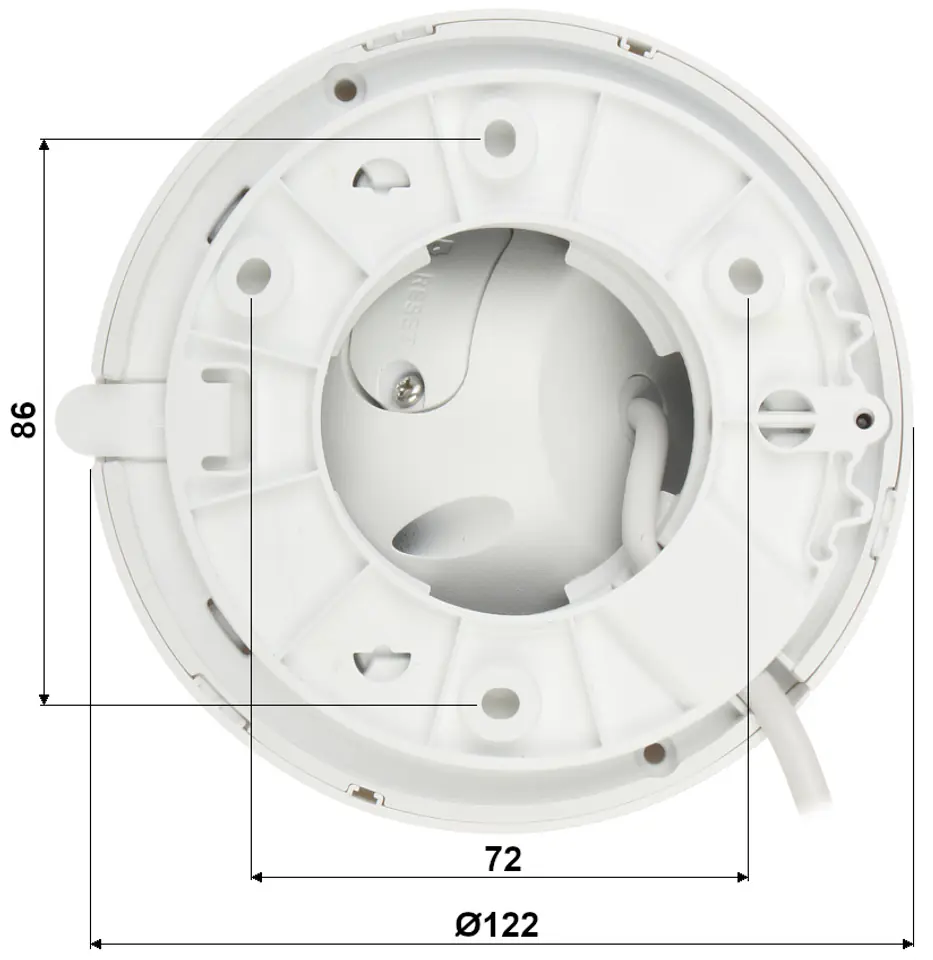

| Dimensions:: | Ø 122 x 99 mm |
|---|
| Ethernet interface type: | Fast Ethernet |
|---|
| Focal length range: | 2.8 mm |
|---|
| Form factor: | Tube/dome |
|---|
| Frame rate: | 30 fps |
|---|
| Gain control type: | Auto/Manual |
|---|
| Height: | 99.1 mm |
|---|
| Highlight compensation (hlc): | Y |
|---|
| Housing material: | Metal, Plastic |
|---|
| Image compression method:: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
|---|
| Internal memory: | 512 MB |
|---|
| International protection (ip) code: | IP67 |
|---|
| Ir illuminator range:: | 30 m |
|---|
| Led type: | IR |
|---|
| Lens viewing angle, diagonal: | 127° |
|---|
| Lens viewing angle, horizontal: | 108° |
|---|
| Lens viewing angle, vertical: | 58° |
|---|
| Main stream transmission speed:: | 20 fps @ 8.3 Mpx (25 fps with Ai functions disabled) |
|---|
| Manufacturer / brand:: | DAHUA |
|---|
| Matrix size:: | 8.3 Mpx |
|---|
| Max. number of on-line users:: | 20 |
|---|
| Maximum aperture number: | 1.4 |
|---|
| Maximum resolution: | 3840 x 2160 pixels |
|---|

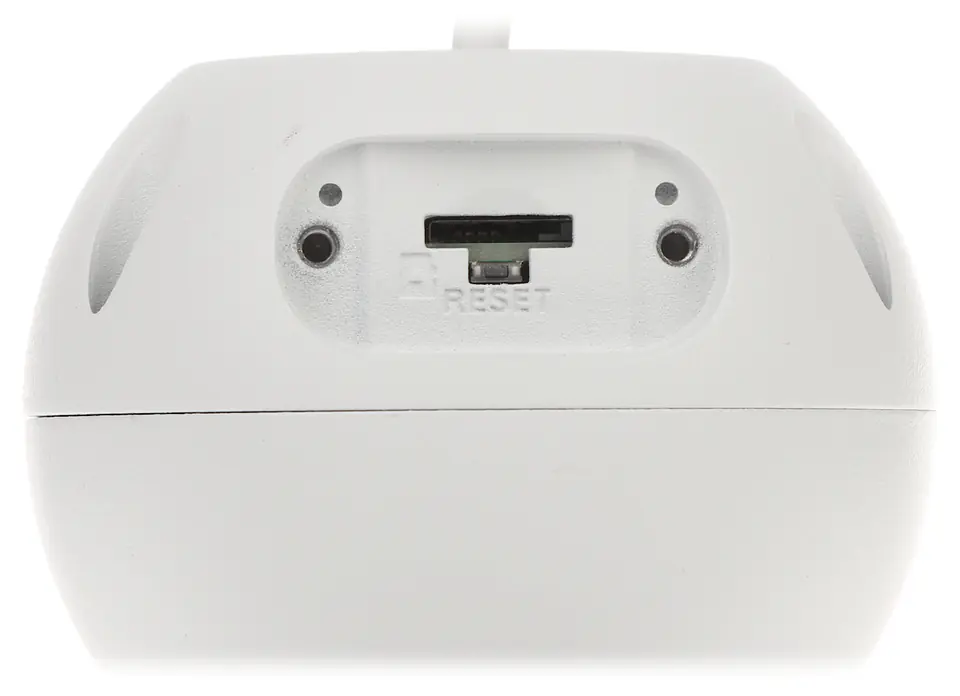

| Memory card slot:: | Supports Micro SD cards up to 256GB (local write possible) |
|---|
| Minimum illumination: | 0.007 lx |
|---|
| Mobile operating systems supported: | iOS, Android |
|---|
| Mounting type: | Ceiling/wall |
|---|
| Network interface:: | 10/100 Base-T (RJ-45) |
|---|
| Network protocols:: | IPv4/IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS SAMBA, PPPoE SNMP |
|---|
| Networking standards: | IEEE 802.3af |
|---|
| Night vision: | Y |
|---|
| Night vision distance: | 30 m |
|---|
| Noise reduction: | Y |
|---|
| Noise reduction technology: | 3D noise reduction |
|---|
| Number of cameras: | 1 |
|---|
| Number of illumination leds: | 2 |
|---|
| Number of lenses: | 1 |
|---|
| Number of sensors: | 1 |
|---|
| Number of users: | 20 user(s) |
|---|
| Objective:: | 2.8 mm |
|---|
| Onvif port:: | 80 |
|---|
| Onvif:: | 20.06 |
|---|
| Operating relative humidity (h-h): | 0 - 95% |
|---|
| Operating temperature :: | -40 °C ... 60 °C |
|---|
| Operating temperature (t-t): | -40 - 60 °C |
|---|
| Optical sensor size: | 25.4 / 2.8 mm (1 / 2.8") |
|---|
| Pan range: | 0 - 360° |
|---|
| Placement supported: | External / Internal |
|---|
| Port of access via mobile application:: | 37777 |
|---|
| Ports for access via the pc application:: | 37777 |
|---|
| Power consumption (max): | 6.9 W |
|---|
| Power consumption (power over ethernet (poe)): | 7.9 W |
|---|
| Power consumption:: | ≤ 6.9 W @ 12 V DC≤ 7.9 W @ PoE |
|---|
| Power source type: | DC, PoE |
|---|
| Power:: | PoE (802.3af), 12 V DC / 580 mA |
|---|
| Product colour: | White |
|---|
| Progressive scan: | Y |
|---|
| Quality of service (qos) support: | Y |
|---|
| Region of interest (roi) encoding: | Y |
|---|
| Resolution:: | 3840 x 2160 - 8.3 Mpx 4K UHD ,3072 x 2048 - 6 Mpx ,3072 x 1728 - 5 Mpx ,2592 x 1944 - 5 Mpx ,2688 x 1520 - 4 Mpx ,2048 x 1536 - 3 Mpx ,2304 x 1296 - 3 Mpx ,1920 x 1080 - 1080p ,1280 x 960 - 1.3 Mpx ,1280 x 720 - 720p |
|---|
| Rom capacity: | 128 MB |
|---|
| Rtsp url:: | rtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Stream mainrtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Secondary stream |
|---|
| Scales:: | 0.49 kg |
|---|
| Sealing:: | IP67 |
|---|
| Selected features:: | WDR - 120 dB - Wide Dynamic Range 3D-DNR - Digital Noise Reduction ROI - Improving the Quality of Selected SSA Image Fragments - Smart Scene Adaptive - Intelligent Scene Adaptation by Automatically Adjusting Exposure Parameters for Better BLC/HLC Image - Background Light / Strong Light Compensation Ability to Change Resolution, Quality and Bandwidth Motion Detection Privacy Zones - Max. 4 Mirror - Image Mirror Sound Detection IVS Analysis : Intrusion, Line Crossing - Classification of People and Vehicles |
|---|
| Sensor type: | CMOS |
|---|
| Standard:: | TCP/IP |
|---|
| Storage temperature (t-t): | -40 - 55 °C |
|---|
| Supported graphics resolutions: | 704 x 480, 2688 x 1520, 704 x 576, 1280 x 960, 352 x 240, 2304 x 1296, 640 × 480, 1280 x 720, 3072 x 2048, 352 x 288, 1920 × 1080, 2048 x 1536 (QXGA), 3072 x 1728, 3840 x 2160, 2592 x 1944 |
|---|
| Supported languages:: | Polish, Czech, English, French, Hungarian, Italian, Portuguese, Romanian, Russian, Spanish, Turkish, Ukrainian |
|---|
| Tilt angle range: | 0 - 78° |
|---|
| Total megapixels: | 8 MP |
|---|
| Transducer:: | 1/2.8" Progressive Scan CMOS |
|---|

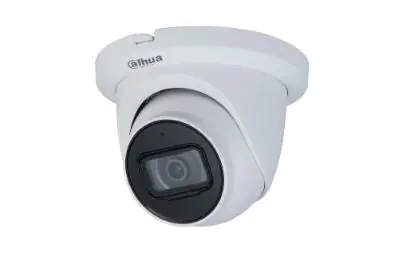

| Type: | IP security camera |
|---|
| Video compression formats: | H.265+, H.264B, M-JPEG, H.265, H.264+, H.264 |
|---|
| Video motion detection: | Y |
|---|
| Video streaming: | Y |
|---|
| Viewing angle:: | 108° (manufacturer data) 101° (our tests) |
|---|
| Warranty:: | 3 years |
|---|
| Web access ports:: | 80, 37777 |
|---|
| Web browser: | Y |
|---|
| Web server:: | Built-in |
|---|
| Web-based management: | Y |
|---|
| Weight: | 500 g |
|---|
| White balance: | Natural, Manual, Street lamp, Outdoor, Auto |
|---|
| Wi-fi: | N |
|---|
| Wide dynamic range (wdr): | 120 dB |
|---|
