| Access from a mobile phone:: | Port: 8000 or cloud access (P2P) Android: Free Hik-Connect iOS app: Free Hik-Connect app |
|---|---|
| Audio:: | Built-in Microphone, Built-in Speaker, Support Two-way Audio |
| Case:: | Compact, Metal + Plastic |
| Colour:: | white |
| Default administrator login / password:: | admin / -Administrator password should be set at first startup |
| Default ip address:: | 192.168.1.64 |

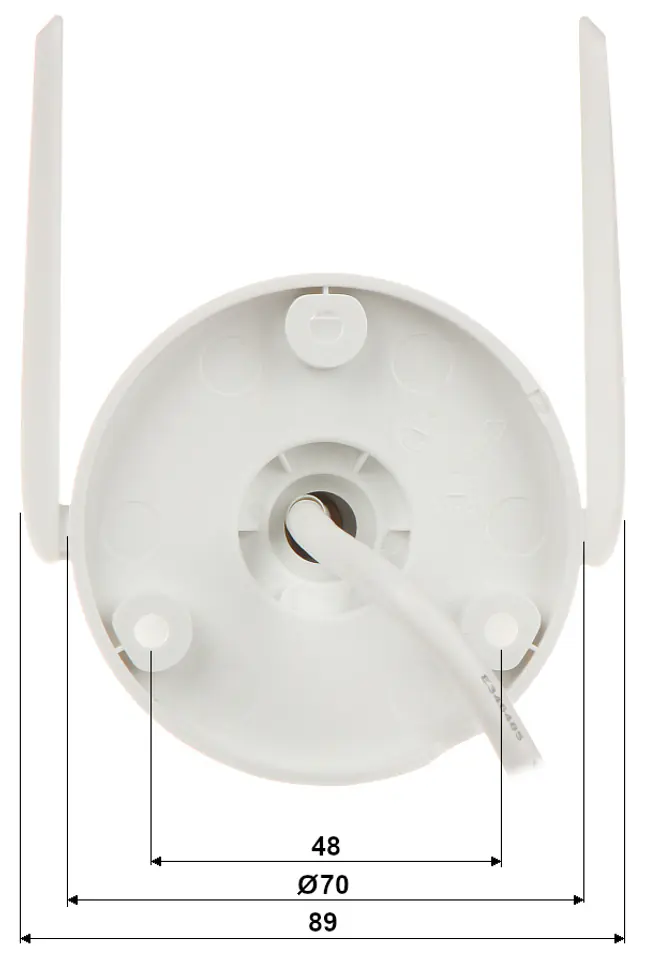

| Dimensions:: | 176 x 73 x 89 mm |
| Image compression method:: | H.265+ / H.265 / H.264+ / H.264 |
| Ir illuminator range:: | 30 m |
| Main stream transmission speed:: | 25 fps @ 1080p |
| Manufacturer / brand:: | Hikvision |
| Matrix size:: | 2.1 Mpx |
| Max. number of on-line users:: | 6 |

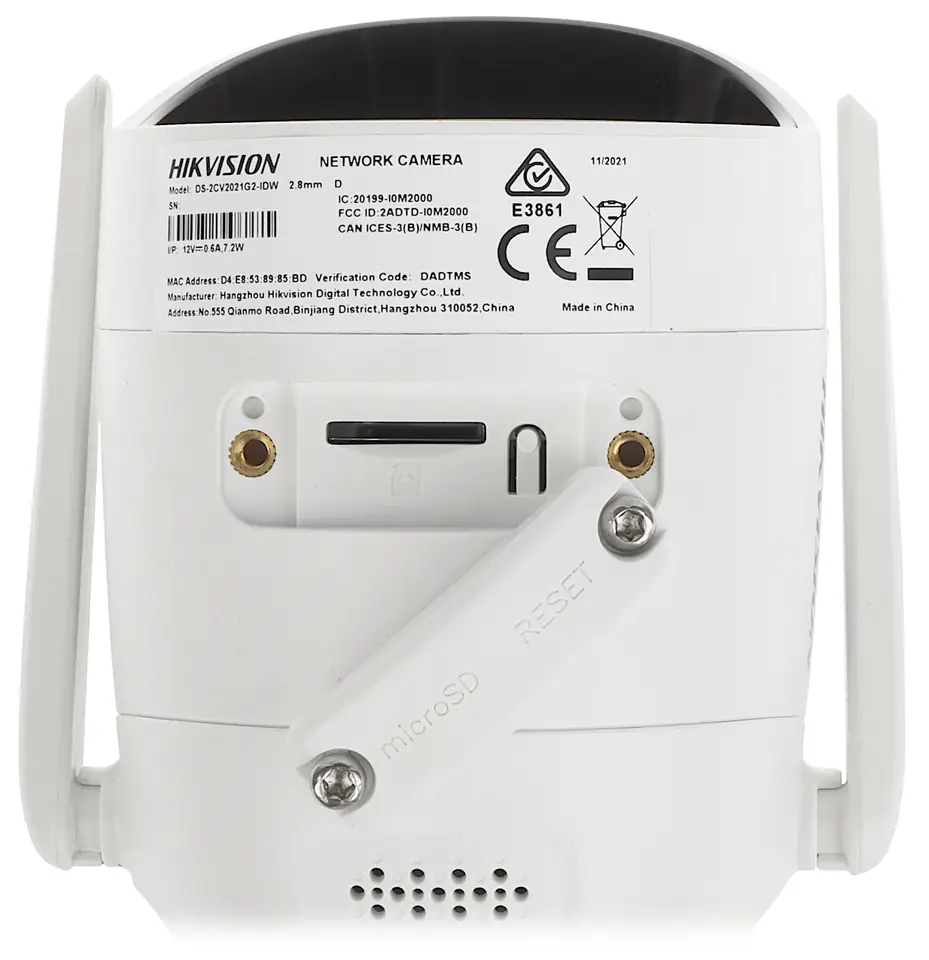

| Memory card slot:: | Supports Micro SD cards up to 256GB (local write possible) |
| Network interface:: | Wi-Fi : IEEE 802.11 b/g/n 10/100 Base-T (RJ-45) |
| Network protocols:: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, IEEE 802.1x, QoS, IPv6, Bonjour |
| Objective:: | 2.8 mm |
| Onvif port:: | 80 |
| Operating temperature :: | -30 °C ... 60 °C |
| Port of access via mobile application:: | 8000 |
| Ports for access via the pc application:: | Port: 8000 or Cloud Access (P2P) - iVMS-4200 Application |
| Power consumption:: | ≤ 6 W |
| Power:: | 12 VDC / 500 mA |
| Resolution:: | 1920 x 1080 - 1080p ,1280 x 720 - 720p |
| Rtsp url:: | Main stream : rtsp://user:password o@192.168.1.64:554/Streaming/Channels/101/ - with authorization Substream: rtsp://user:password o@192.168.1.64:554/Streaming/Channels/102/ - with authorization |
| Sap code:: | 311318568 |
| Scales:: | 0.34 kg |
| Scanning system:: | Progressive |
| Sealing:: | IP66 |
| Selected features:: | Built-in WDR Wi-Fi module - 120 dB - Wide dynamic range of 3D-DNR lighting - Digital noise reduction in the ROI image - Improving the quality of selected parts of the image Anti-Flicker - Technology to eliminate the eye-tiring effect of EXIR image flickering - technology of highly effective infrared DIODES that evenly illuminate the entire scene, both the central point and the corners of the ICR - BLC mechanical infrared filter - HLC back light (background) compensation - Strong compensation Light (spot) RESET button Ability to change resolution, quality and bandwidth Motion detection Mirror - Sharpness image mirroring - Sharpen image contours |
| Standard:: | TCP/IP |
| Supported languages:: | English |
| Transducer:: | 1/2.7" Progressive Scan CMOS |
| Viewing angle:: | 111° (manufacturer data) 109° (our tests) |
| Warranty:: | 3 years |
| Web access ports:: | 80 |
| Web server:: | Built-in |
IP camera with powerful H.264 image compression algorithm for clearer and smoother image transfer at up to 1080p resolution
The Wi-Fi module used allows for remote communication with the camera to the maximum. distance up to 120 m
Note: The connection to the Hik-Connect cloud is only via the camera's cable interface
