| Access from a mobile phone:: | Port: 8000 or cloud access (P2P) Android: Free app iVMS-4500 or Hik-Connect iOS (iPhone): Free app iVMS-4500 or Hik-Connect |
|---|---|
| Active tampering alarm: | Y |
| Alert notification type: | |
| Angle of rotation: | 360° |
| Anti-flicker: | Y |
| Back light compensation (blc): | Y |
| Behavior analysis: | Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection |
| Bit rate: | 32 Kbps - 8 Mbps |
| Bit rate control: | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bluetooth: | N |
| Built-in hdd: | N |
| Camera pan control: | Y |
| Camera shutter speed: | 1/3 - 1/100000 s |
| Camera tilt control: | Y |
| Card reader integrated: | Y |
| Case:: | Compact, Metal |
| Colour:: | white |
| Compatible memory cards: | MicroSDHC, MicroSDXC, MicroSD (TransFlash) |
| Compression:: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Connectivity technology: | Wired |
| Day/night mode: | Y |
| Dc output voltage: | 12 |
| Default administrator login / password:: | admin / - |
| Default ip address:: | 192.168.1.64 |
| Diameter: | 10.5 cm |

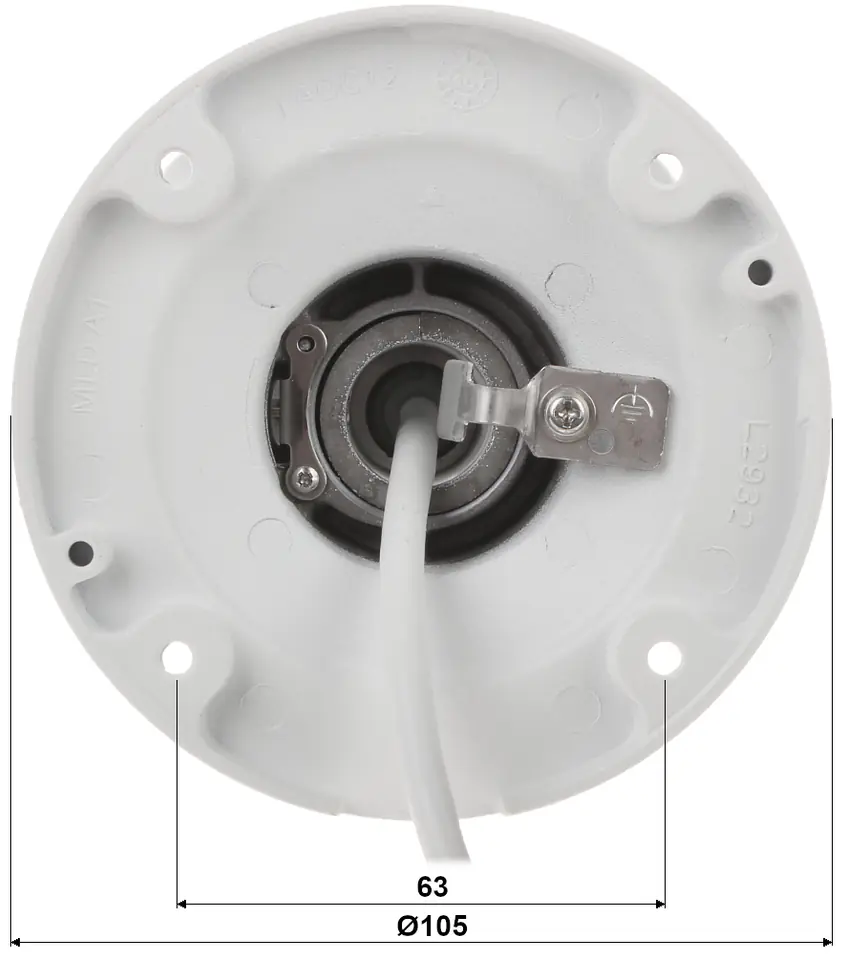

| Dimensions:: | Ø 105 x 290 mm |
| Ethernet interface type: | Fast Ethernet |
| Ethernet lan: | Y |
| Ethernet lan (rj-45) ports: | 1 |
| Fixed focal length: | 2.8 mm |
| Form factor: | Bullet |
| Frame rate: | 30 fps |
| Gain control type: | Auto |
| Harmonized system (hs) code: | 85258900 |
| Heartbeat: | Y |
| Highlight compensation (hlc): | Y |
| Https encryption: | Y |
| Identify distance (wide): | 6 m |
| Image quality adjustment: | Sharpness, Brightness, Saturation, Contrast |
| Infra-red wavelength: | 850 nm |
| Infrared (ir) cut-off filter: | Y |
| Intelligent video surveillance (ivs) system features: | Scene change, Face detection |
| International protection (ip) code: | IP67 |
| Ip address filtering: | Y |
| Ir illuminator range:: | 80 m |
| Languages support: | Multi |
| Led type: | IR |
| Length: | 28.9 cm |
| Lens viewing angle, diagonal: | 123° |
| Lens viewing angle, horizontal: | 103° |
| Lens viewing angle, vertical: | 55° |
| Main stream transmission speed:: | 25 fps @ 4 Mpx |
| Manufacturer / brand:: | Hikvision |
| Matrix size:: | 4 Mpx |
| Max. number of on-line users:: | 6 |
| Maximum aperture number: | 1.4 |
| Maximum memory card size: | 256 GB |
| Maximum resolution: | 2688 x 1520 pixels |

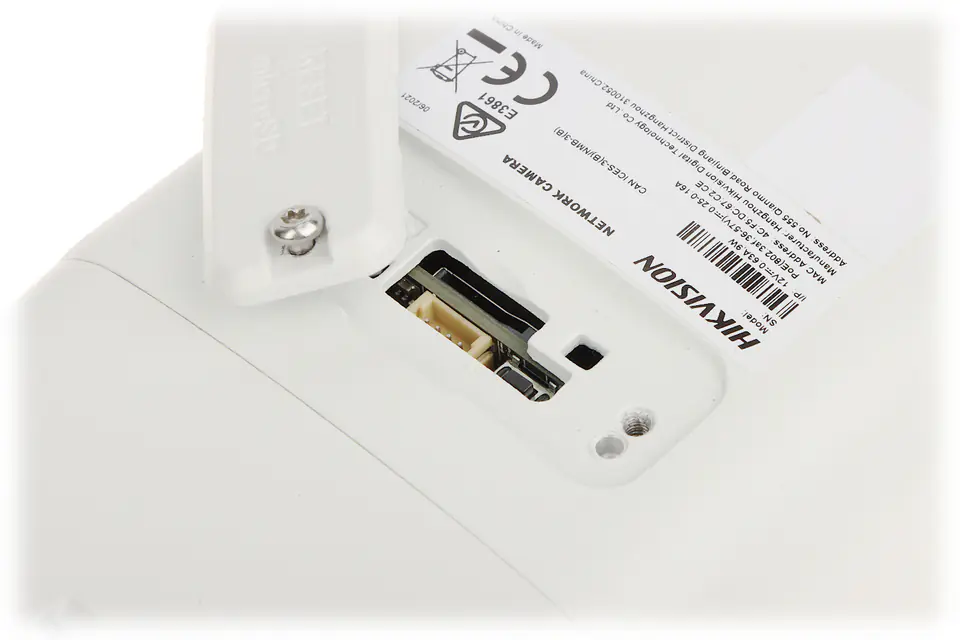

| Memory card slot:: | Supports Micro SD cards up to 256GB (local write possible) |
| Mirror: | Y |
| Mounting type: | Ceiling/wall |
| Network interface:: | 10/100 Base-T (RJ-45) |
| Network protocols:: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, IEEE 802.1x, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP |
| Networking standards: | IEEE 802.3af |
| Night vision: | Y |
| Night vision distance: | 80 m |
| Noise reduction: | Y |
| Noise reduction technology: | 3D noise reduction |
| Number of cameras: | 1 |
| Number of languages: | 33 |
| Number of lenses: | 1 |
| Number of sensors: | 1 |
| Number of users: | 32 user(s) |
| Objective:: | 2.8 mm |
| Onvif port:: | 80 |
| Operating relative humidity (h-h): | 0 - 95% |
| Operating temperature :: | -30 °C ... 60 °C |
| Operating temperature (t-t): | -30 - 60 °C |
| Optical sensor size: | 25.4 / 3 mm (1 / 3") |
| Package depth: | 156 mm |
| Package height: | 155 mm |
| Package width: | 386 mm |
| Pan range: | 0 - 360° |
| Password protection: | Y |
| Password reset via email: | Y |
| Placement supported: | Indoor & outdoor |
| Port of access via mobile application:: | 8000 |
| Ports for access via the pc application:: | Port: 8000 or Cloud Access (P2P) - iVMS-4200 Application |
| Power consumption (max): | 10.5 W |
| Power consumption (power over ethernet (poe)): | 12 W |
| Power consumption:: | ≤ 12 W @ PoE (802.3af)≤ 10.5 W @ 12 V DC |
| Power source type: | DC, PoE |
| Power:: | PoE (802.3af), 12 V DC / 880 mA |
| Product colour: | White |
| Progressive scan: | Y |
| Protection features: | Water resistant, Dust resistant |
| Quality of service (qos) support: | Y |
| Recognize distance (wide): | 12 m |
| Region of interest (roi) encoding: | Y |
| Reset button: | Y |
| Resolution:: | 2688 x 1520 - 4 Mpx ,1920 x 1080 - 1080p ,1280 x 720 - 720p |
| Rtsp url:: | Main stream : rtsp://user:password o@192.168.1.64:554/Streaming/Channels/101/ - with authorization Substream: rtsp://user:password o@192.168.1.64:554/Streaming/Channels/102/ - with authorization |
| Sap code:: | 311315142 |
| Scales:: | 1.08 kg |
| Scanning system:: | Progressive |
| Sealing:: | IP67 |
| Security algorithms: | TLS |
| Selected features:: | AcuSense Series Camera The "Darkfighter" series cameras are satisfied with very low illumination to obtain a clear WDR color image - 120 dB - Wide dynamic range of 3D-DNR lighting - Digital noise reduction in the BLC/HLC image - compensation of background light / strong ROI light - improving the quality of selected parts of the EXIR image - technology of highly effective infrared LEDs that evenly illuminate the entire scene, both the central point and the corners of THE ANR - recording the image to card in the absence of communication with the recorder (network failure) and subsequent synchronization Day/night mode ICR - AGC mechanical IR filter - Automatic adjustment of WB image gain - White balance Ability to change resolution, quality and throughput Sharpness - Sharpness of image contours Mirror - Mirror image mirroring Anti-Flicker - Technology to eliminate the eye-tiring effect of image flickering Configurable privacy zones Motion detection False filtering alarms based on the recognition of people and vehicles Intelligent Image Analysis: intrusion, line crossing, detection of entry into / exit from the area, scene change, face detection, advanced face capture functions |
| Sensor type: | CMOS |
| Signal-to-noise ratio (snr): | 52 dB |
| Standard:: | TCP/IP |
| Storage relative humidity (h-h): | 0 - 95% |
| Storage temperature (t-t): | -30 - 60 °C |
| Supported graphics resolutions: | 2688 x 1520, 640 x 360, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 640 x 480 (VGA) |
| Supported languages:: | Polish, Bulgarian, Croatian, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Hungarian, Italian, Latvian, Lithuanian, Norwegian, Portuguese, Romanian, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Turkish, Ukrainian |
| Tilt angle range: | 0 - 90° |
| Total megapixels: | 4 MP |
| Transducer:: | 1/3" Progressive Scan CMOS |
| Type: | IP security camera |
| Video compression formats: | M-JPEG, H.265, H.264+, H.264, H.265+ |
| Video motion detection: | Y |
| Video streaming: | Y |
| Viewing angle:: | 103° (manufacturer data) 100° (our tests) |
| Warranty:: | 3 years |
| Web access ports:: | 80 |
| Web browser: | Y |
| Web server:: | Built-in, NVR compliant |
| Weight: | 1.07 kg |
| Wi-fi: | N |
| Wide dynamic range (wdr): | Y |
IP camera with efficient H.265 / H.264 image compression algorithm for clearer and smoother image transmission at a maximum resolution of 4 MPx
The ability to power PoE, in accordance with the 802.3af standard, makes the device even more versatile and easier to install
Powered by Darkfighter - the camera has very good sensitivity, dedicated to low light conditions
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
