| Access from a mobile phone:: | Port: 8000 or cloud access (P2P) Android: Free app iVMS-4500 or Hik-Connect iOS (iPhone): Free app iVMS-4500 or Hik-Connect |
|---|
| Bitrate:: | 32 ... 16240 Kb/s |
|---|
| Case:: | Home, Aluminum + Plastic |
|---|
| Colour:: | white |
|---|
| Default administrator login / password:: | admin / -Administrator password should be set at first startup |
|---|
| Default ip address:: | 192.168.1.64 |
|---|

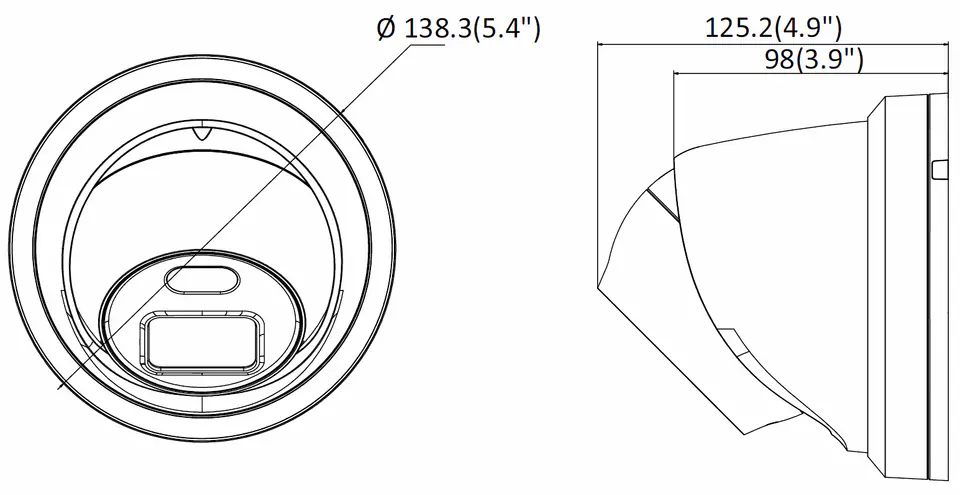

| Dimensions:: | Ø 139 x 125 mm |
|---|
| Image compression method:: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
|---|
| Main stream transmission speed:: | 25 fps @ 4 Mpx |
|---|
| Manufacturer / brand:: | Hikvision |
|---|
| Matrix size:: | 4 Mpx |
|---|
| Max. number of on-line users:: | 6 |
|---|

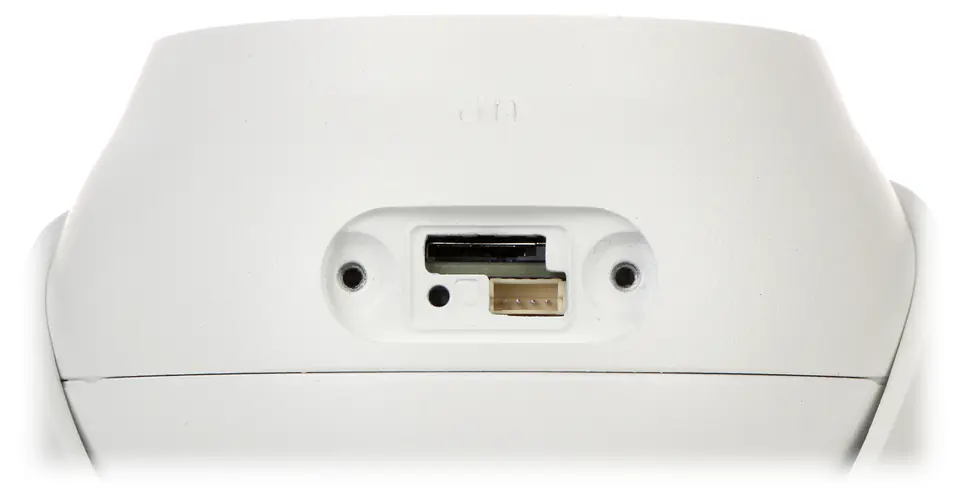

| Memory card slot:: | Supports Micro SD cards up to 128GB (local write possible) |
|---|
| Network interface:: | 10/100 Base-T (RJ-45) |
|---|
| Network protocols:: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, IEEE 802.1x, QoS, IPv6, UDP, Bonjour |
|---|
| Objective:: | 4.0 mm |
|---|
| Onvif port:: | 80 |
|---|
| Onvif:: | 16.12 |
|---|
| Operating temperature :: | -30 °C ... 60 °C |
|---|
| Port of access via mobile application:: | 8000 |
|---|
| Ports for access via the pc application:: | Port: 8000 or Cloud Access (P2P) - iVMS-4200 Application |
|---|
| Power consumption:: | ≤ 7.5 W @ PoE≤ 6 W @ 12 V DC |
|---|
| Power:: | PoE (802.3af), 12 V DC / 500 mA |
|---|
| Resolution:: | 2688 x 1520 - 4 Mpx ,2560 x 1440 - 3.7 Mpx ,2304 x 1296 - 3 Mpx ,1920 x 1080 - 1080p1280 x 720 - 720p |
|---|
| Rtsp url:: | Main stream ównyrtsp://192.168.1.64:554/Streaming/Channels/101/ - RTSP - without authorizationrtsp://user:password o@192.168.1.64:554/Streaming/Channels/101/ - with authorization Stream pomocniczyrtsp://192.168.1.64:554/Streaming/Channels/102/ - RTSP - without authorizationrtsp://user:password o@192.168.1.64:554/Streaming/Channels/102/ - with authorization |
|---|
| Sap code:: | 311308533 |
|---|
| Scales:: | 0.82 kg |
|---|
| Scanning system:: | Progressive |
|---|
| Sealing:: | IP67 |
|---|
| Selected features:: | WDR LED Illuminator Off - 120 dB - 3D-DNR Wide Dynamic Range - Digital Noise Reduction in ROI Image - Improving the Quality of Selected Parts of the Image Anti-Flicker - Technology to Eliminate Eye-Straining BLC Flickering Effect - Backlight (Background) HLC Compensation - Strong Light (Spot) Compensation Ability to Change Resolution, Quality and Bandwidth Mirror - Image Mirror Motion Detection Customizable Privacy Zones Sharpness - Sharpen image contours Intelligent Image Analysis: line crossing, intrusion, scene change, abandoned/missing object, face detection |
|---|
| Standard:: | TCP/IP |
|---|
| Supported languages:: | Polish, Bulgarian, Croatian, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Hungarian, Italian, Latvian, Lithuanian, Norwegian, Portuguese, Romanian, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Turkish |
|---|
| Transducer:: | 1/1.8" Progressive Scan CMOS |
|---|
| Viewing angle:: | 94 ° |
|---|
| Warranty:: | 3 years |
|---|
| Web access ports:: | 80 |
|---|
| Web server:: | Built-in |
|---|
| White light illuminator range (led):: | 30 m |
|---|
