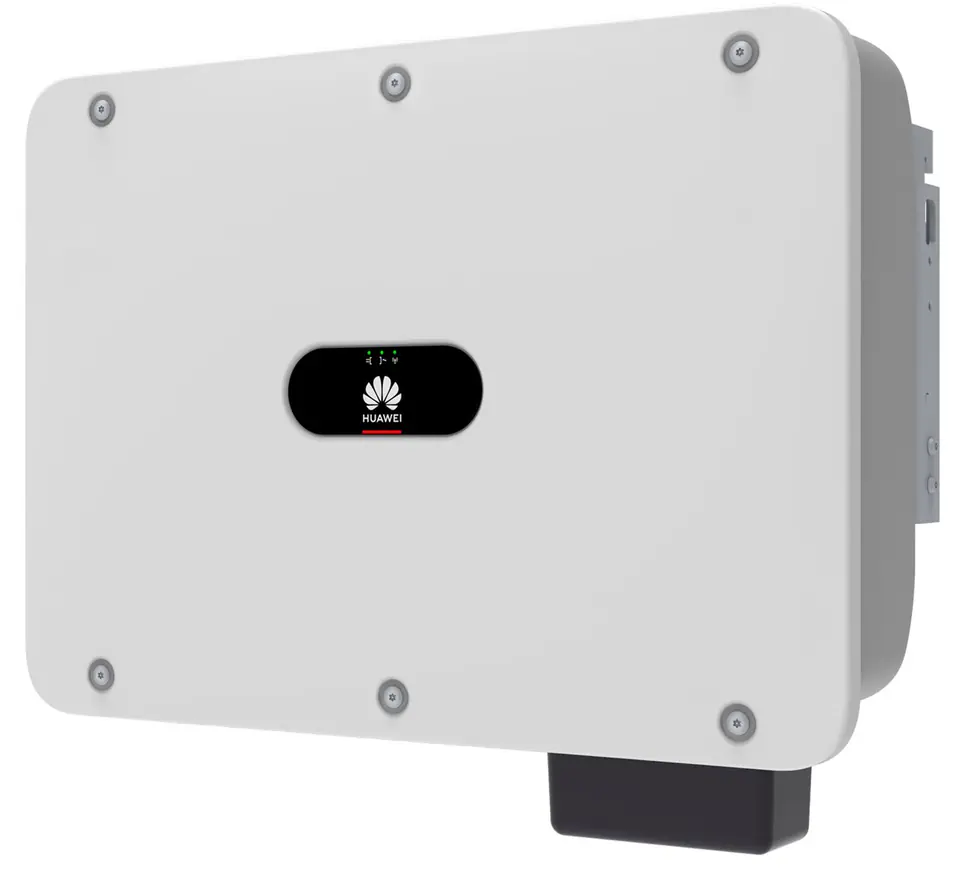

Inverter HUAWEI SUN2000-40KTL-M3
This product is not available
- Availability:
- expected delivery
- Brand:
- Product code:
- SUN2000-40KTL-M3 /
Share this product:
Specification
| 3-phase power supply: | Yes |
|---|---|
| Apparent power: | 44000 VA |
| Applications support: | Yes |
| Brand compatibility: | Huawei |
| Built-in transformer: | No |
| Cooling type: | Convection |
| Data exchange: | Yes |
| Degree of protection (ip): | IP66 |
| Depth: | 270 mm |
| Depth [mm]: | 270 |
| Display: | Lack |
| Efficiency: | 98.4% |
| Euro efficiency level [%]: | 98,4 |
| Frequency: | 50 / 60 Hz |
| Height: | 530 mm |
| Height [mm]: | 530 |
| Input voltage range: | 200 - 1000 V |
| International protection (ip) code: | IP66 |
| Island mode protection: | Y |
| Led indicators: | Yes |
| Maximum input current [a]: | 26 |
| Maximum input voltage: | 1100 V |
| Maximum input voltage [v]: | 1100 |
| Maximum operating current mppt: | 26 A |
| Maximum output current: | 63.8 A |
| Maximum short-circuit current mppt: | 40 A |
| Monitoring of isolation: | Y |
| Mpp voltage range [v] from: | 200 |
| Mpp voltage range [v] to: | 1000 |
| Network monitoring: | 3-phase |
| Nominal input voltage: | 600 V |
| Nominal output voltage: | 230 Vac / 400 Vac, 3W/N+PE |
| Number of dc plug connections: | 8 |
| Number of maximum power point tracking systems (mpp-tracker): | 4 |
| Number of mppt ports: | 4 |
| Operating relative humidity (h-h): | 0 - 100% |
| Operating temperature (t-t): | -25 - 60 °C |
| Output power: | 40000 W |
| Output voltage total harmonic distortion (thd): | 3% |
| Overcharge protection: | Y |
| Overcurrent protection: | Y |
| Overvoltage protection: | Y |
| Polarity reverse circuit protection: | Y |
| Power current type: | DC-to-AC |
| Power supply type: | Outdoor |
| Product colour: | White |
| Purpose: | Solar panel |
| Quantity per pack: | 1 pc(s) |
| Rated output power [w]: | 40 |
| Rs-485 port: | Yes |
| Short circuit protection: | Yes |
| Start-up voltage: | 200 V |
| Suitable for outdoor installation: | Yes |
| Suitable for outdoor use: | Yes |
| Weight: | 43 kg |
| Weight [kg]: | 43 |
| Width: | 640 mm |
| Width [mm]: | 640 |
| With data logger: | Yes |
| Wlan: | Yes |
