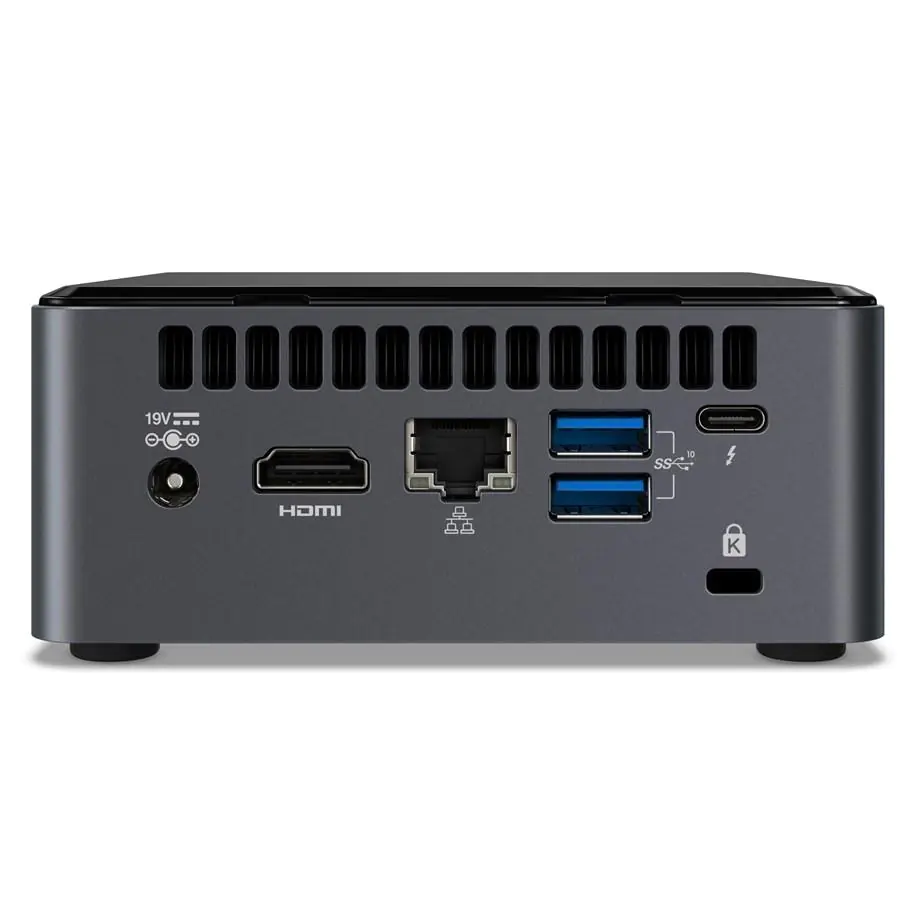

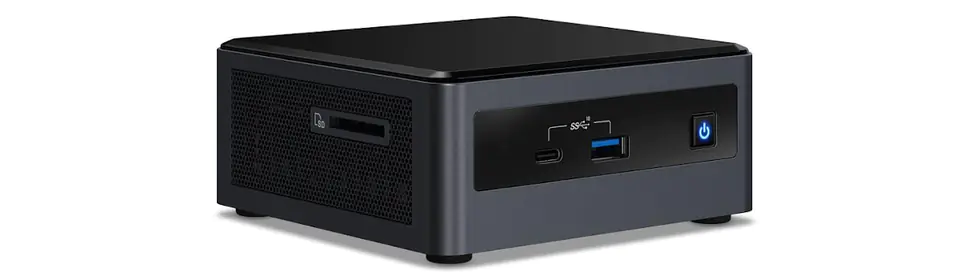

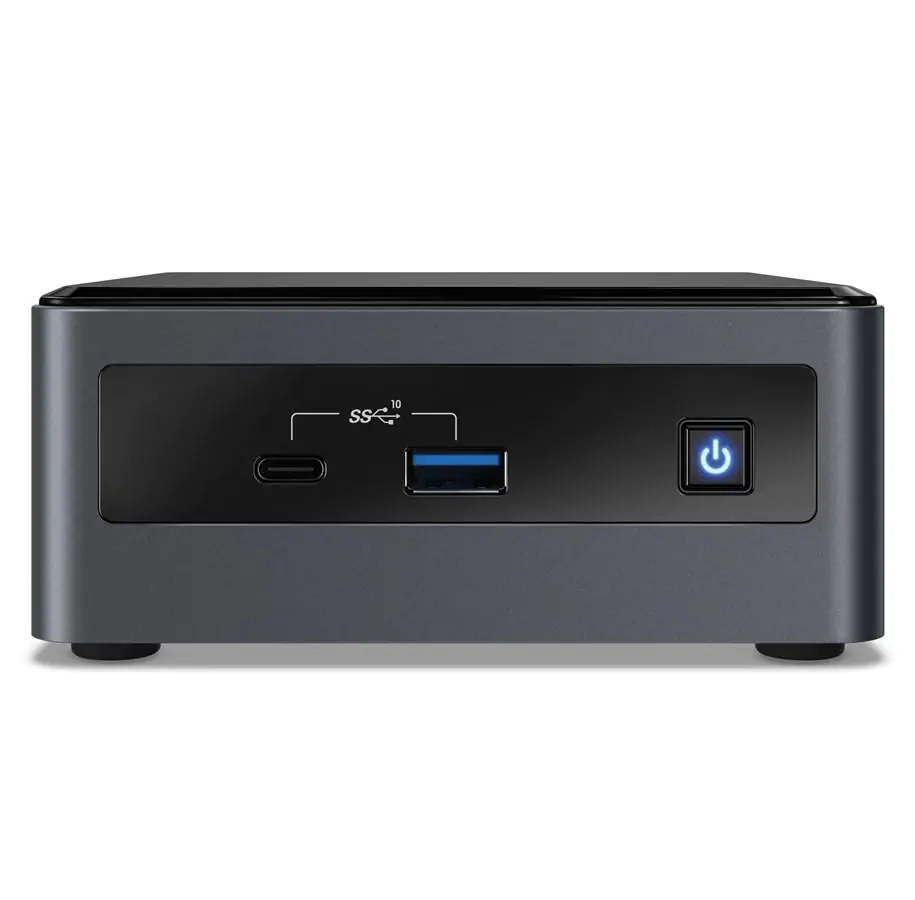

Intel NUC BXNUC10I3FNH1 PC/workstation barebone UCFF Black BGA 1528 i3-10110U 2.1 GHz
This product is not available
- Availability:
- expected delivery
- Brand:
- Intel
- Product code:
- BXNUC10I3FNHN2 / 5032037221207
Share this product:
Specification
| Ac adapter output voltage: | 19 V |
|---|---|
| Additional headers: | CEC, 2x USB2.0, FRONT_PANEL, RGB |
| Ark id: | 195506 |
| Audio output channels: | 7.1 channels |
| Bluetooth: | Y |
| Built-in processor: | Y |
| Card reader integrated: | Y |
| Chassis type: | UCFF |
| Combo headphone/mic port: | Y |
| Commodity classification automated tracking system (ccats): | G157815L2 |
| Compatible memory cards: | SDXC |
| Consumer infrared rx sensor: | Y |
| Cpu configuration (max): | 1 |
| Dc input voltage: | 19 V |
| Dc-in jack: | Y |
| Depth: | 112 mm |
| Displayport version: | 1.2 |
| Ecc: | N |
| Embedded options available: | N |
| Enhanced intel speedstep technology: | Y |
| Ethernet lan: | Y |
| Ethernet lan (rj-45) ports: | 1 |
| Execute disable bit: | Y |
| Export control classification number (eccn): | 5A992C |
| Graphics card family: | Intel |
| Graphics output: | HDMI 2.0b; USB-C (DP1.2) |
| Harmonized system (hs) code: | 8471500150 |
| Hdd size: | 2.5" |
| Hdmi ports quantity: | 1 |
| Hdmi version: | 2.0b |
| Height: | 51 mm |
| Idle states: | Y |
| Intel 64: | Y |
| Intel clear video technology: | Y |
| Intel flex memory access: | Y |
| Intel rapid storage technology: | Y |
| Intel stable image platform program (sipp): | N |
| Intel trusted execution technology: | N |
| Intel tsx-ni: | N |
| Intel virtualization technology (vt-x): | Y |
| Intel virtualization technology for directed i/o (vt-d): | Y |
| Intel vt-x with extended page tables (ept): | Y |
| Intel® aes new instructions (intel® aes-ni): | Y |
| Intel® clear video hd technology (intel® cvt hd): | Y |
| Intel® high definition audio (intel® hd audio): | Y |
| Intel® hyper threading technology (intel® ht technology): | Y |
| Intel® identity protection technology (intel® ipt): | Y |
| Intel® my wifi technology (intel® mwt): | Y |
| Intel® optane™ memory ready: | Y |
| Intel® os guard: | Y |
| Intel® platform trust technology (intel® ptt): | Y |
| Intel® quick sync video technology: | Y |
| Intel® secure key: | Y |
| Intel® turbo boost technology: | 2.0 |
| Intel® vpro™ platform eligibility: | N |
| Internal usb 2.0 ports quantity: | 2 |
| Lan controller: | Intel® I219-V |
| Launch date: | Q4'19 |
| M.2 card slot (storage): | 2242/2280 |
| Maximum internal memory: | 64 GB |
| Memory bandwidth (max): | 42.6 GB/s |
| Memory bandwidth supported by processor (max): | 42.6 GB/s |
| Memory channels: | Dual-channel |
| Memory slots type: | SO-DIMM |
| Memory voltage: | 1.2 V |
| Motherboard form factor: | UCFF |
| Number of dimm slots: | 2 |
| Number of displays supported: | 3 |
| Number of m.2 (m) slots: | 1 |
| Number of memory slots: | 2 |
| Number of sata connectors: | 2 |
| Number of sata iii connectors: | 2 |
| Number of storage drives supported: | 2 |
| On-board graphics card: | Y |
| On-board graphics card model: | Intel® UHD Graphics |
| On/off switch: | Y |
| Operating system installed: | N |
| Pci express configurations: | 1x4, 2x2, 4x1, 1x2+2x1 |
| Pci express slots version: | 3.0 |
| Power cord included: | Y |
| Power supply type: | External AC adapter |
| Processor ark id: | 196451 |
| Processor boost frequency: | 4.1 GHz |
| Processor cache: | 4 MB |
| Processor codename: | Comet Lake |
| Processor cores: | 2 |
| Processor family: | 10th gen Intel® Core™ i3 |
| Processor frequency: | 2.1 GHz |
| Processor included: | Intel® Core™ i3-10110U Processor (4M Cache, up to 4.10 GHz) |
| Processor lithography: | 14 nm |
| Processor manufacturer: | Intel |
| Processor model: | i3-10110U |
| Processor socket: | BGA 1528 |
| Processor threads: | 4 |
| Product colour: | Black |
| Product type: | Mini PC barebone |
| Raid levels: | 0, 1 |
| Removable memory card slot: | SDXC with UHS-II support |
| Ssd form factor: | M.2 |
| Status: | Launched |
| Storage drive sizes supported: | 2.5, M.2 |
| Supported memory clock speeds: | 2666 |
| Supported memory types: | DDR4-SDRAM |
| Supported raid configuration: | 2.5" HDD/SSD + M.2 SATA SSD (RAID-0 RAID-1) |
| Supported storage drive types: | HDD & SSD |
| Thermal design power (tdp): | 25 W |
| Thermal monitoring technologies: | Y |
| Thunderbolt 3 ports quantity: | 1 |
| Top wi-fi standard: | Wi-Fi 6 (802.11ax) |
| Trusted platform module (tpm): | N |
| Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: | 3 |
| Usb 3.2 gen 2 (3.1 gen 2) type-c ports quantity: | 2 |
| Usb ports quantity: | 7 |
| Usb version: | 2.0/3.2 Gen 2 (3.1 Gen 2) |
| Wi-fi: | Y |
| Wi-fi standards: | Wi-Fi 6 (802.11ax) |
| Width: | 117 mm |
| Windows operating systems supported: | Windows 10 |
| Wlan controller model: | Intel Wi-Fi 6 AX201 |
