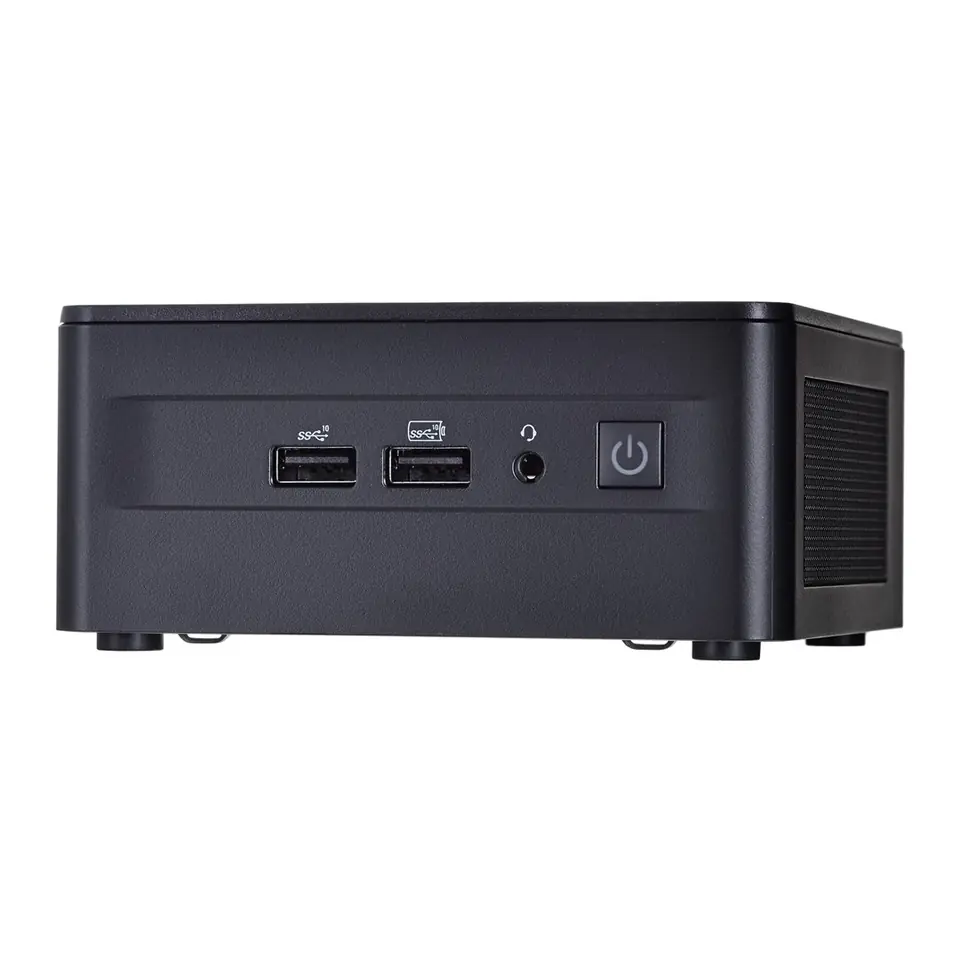

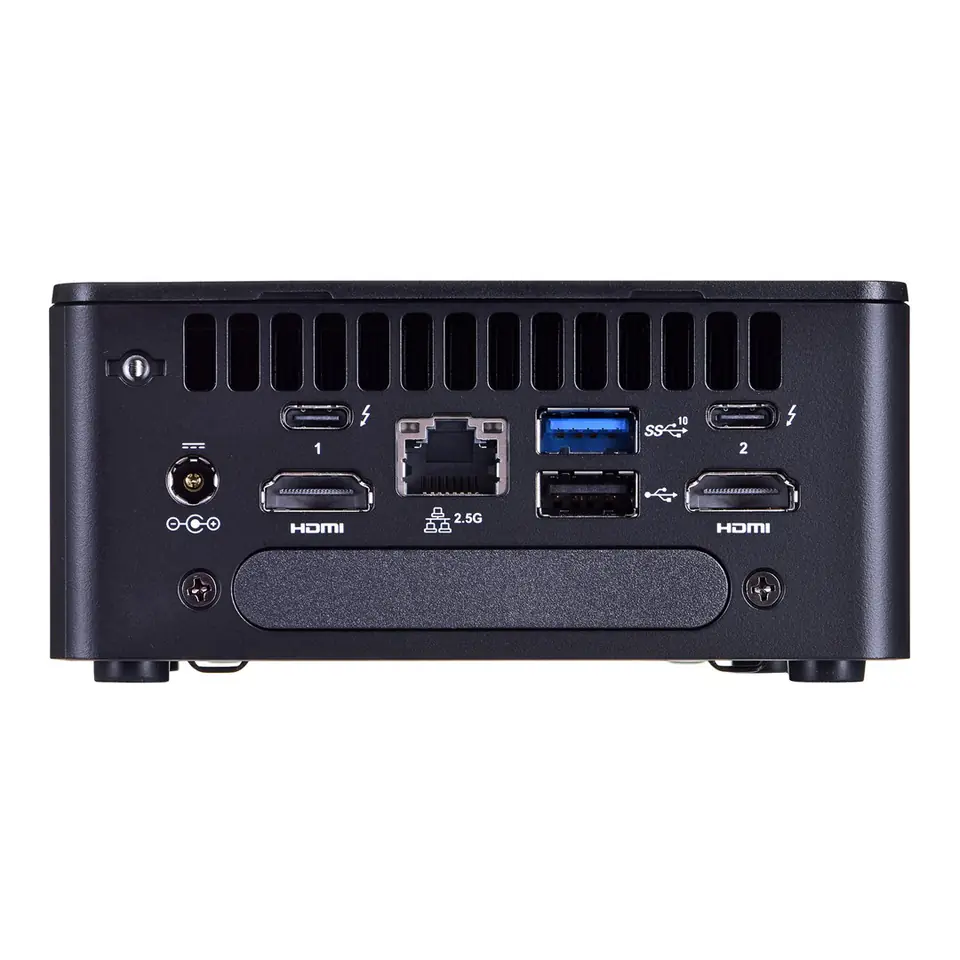

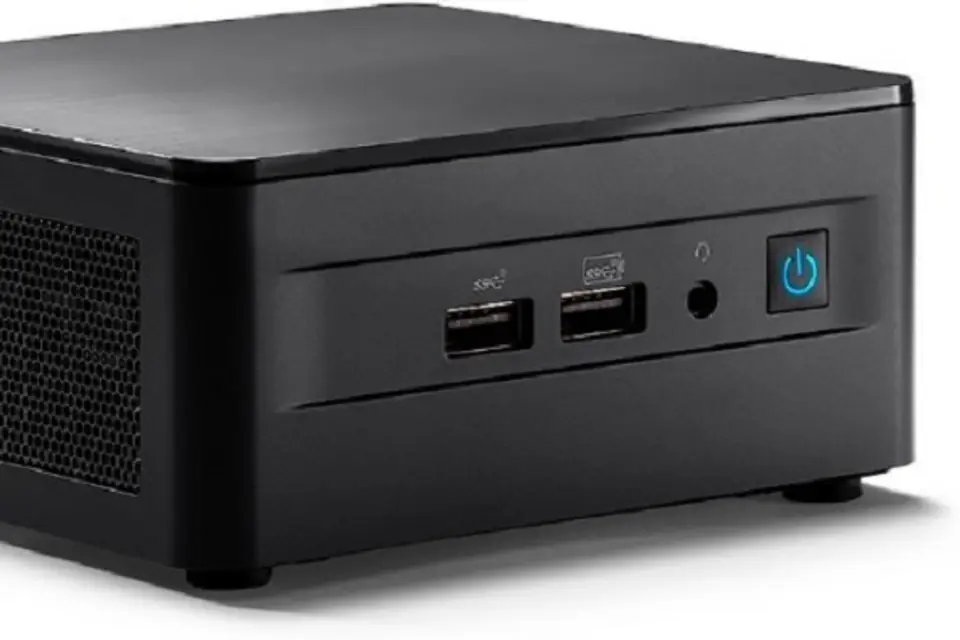

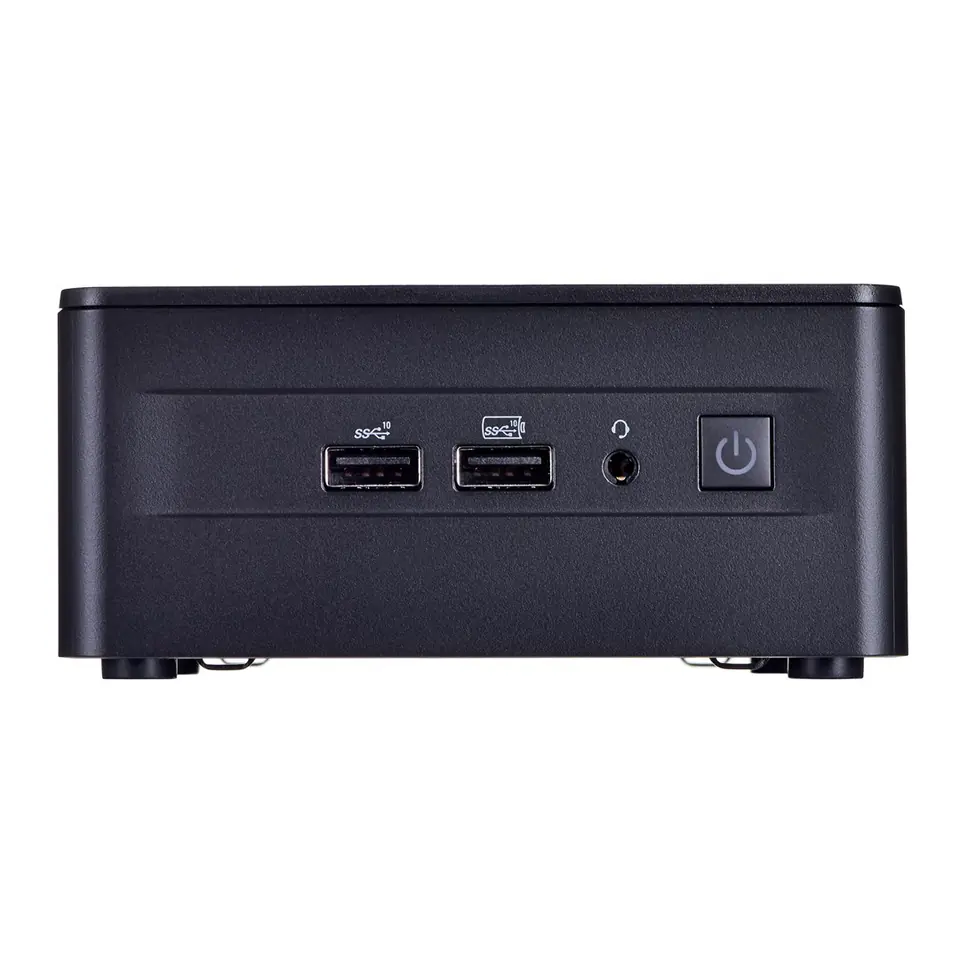

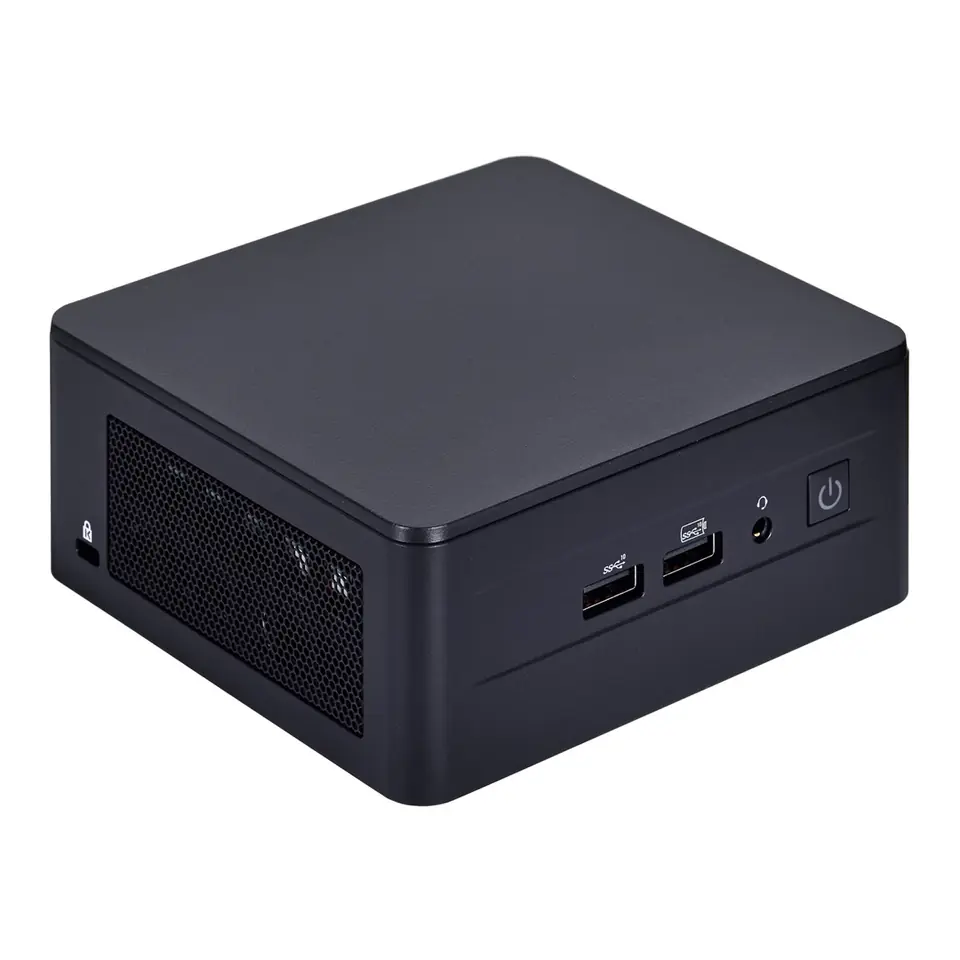

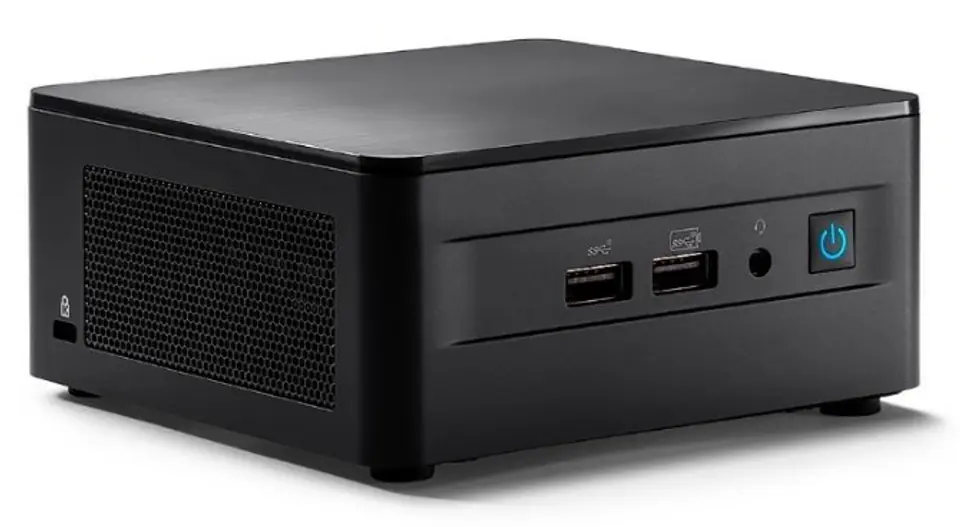

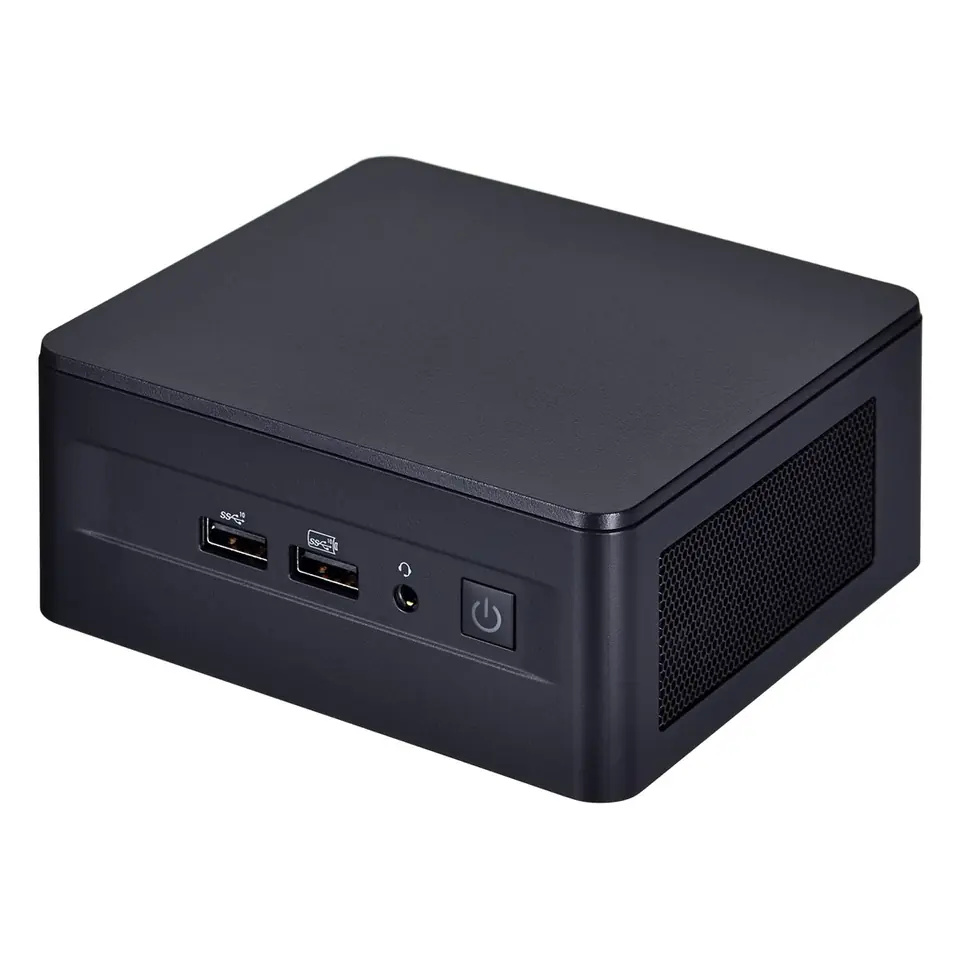

Intel NUC 12 Pro Kit NUC12WSHi3 UCFF Black i3-1220P
This product is not available
- Availability:
- expected delivery
- Brand:
- Intel
- Product code:
- RNUC12WSHI30000 / 5032037249140
Share this product:
Specification
| Additional headers: | Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector |
|---|---|
| Ark id: | 121617 |
| Audio output channels: | 7.1 channels |
| Bios type: | EEPROM |
| Bluetooth: | Yes |
| Built-in processor: | Yes |
| Built-in speaker(s): | No |
| Cable lock slot: | Yes |
| Cable lock slot type: | Kensington |
| Card reader integrated: | No |
| Chassis type: | UCFF |
| Combo headphone/mic port: | Yes |
| Commodity classification automated tracking system (ccats): | G157815L2 |
| Cooling type: | Active |
| Cpu configuration (max): | 1 |
| Dc input voltage: | 12 - 20 V |
| Dc-in jack: | Yes |
| Depth: | 112 mm |
| Ecc: | No |
| Embedded options available: | No |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Execute disable bit: | Yes |
| Export control classification number (eccn): | 5A992C |
| Graphics card family: | Intel |
| Harmonized system (hs) code: | 8471500150 |
| Hdd size: | 2.5" |
| Hdmi ports quantity: | 2 |
| Hdmi version: | 2.1 |
| Height: | 54 mm |
| Intel flex memory access: | Yes |
| Intel me firmware version: | 16 |
| Intel virtualization technology (vt-x): | Yes |
| Intel virtualization technology for directed i/o (vt-d): | Yes |
| Intel vt-x with extended page tables (ept): | Yes |
| Intel® aes new instructions (intel® aes-ni): | Yes |
| Intel® high definition audio (intel® hd audio): | Yes |
| Intel® optane™ memory ready: | No |
| Intel® platform trust technology (intel® ptt): | Yes |
| Lan controller: | Intel I225-V |
| Launch date: | Q3'22 |
| Led indicators: | Yes |
| Linux operating systems supported: | Yes |
| M.2 card slot (storage): | 2280 NVMe (M); 2242 SATA (B) |
| M.2 card slot (wireless): | 2230 (E-key) (E) |
| Maximum internal memory: | 64 GB |
| Memory channels: | Dual-channel |
| Memory slots type: | SO-DIMM |
| Memory voltage: | 1.2 V |
| Motherboard form factor: | UCFF |
| Number of dimm slots: | 2 |
| Number of displays supported: | 4 |
| Number of memory slots: | 2 |
| Number of processors supported: | 1 |
| Number of sata connectors: | 1 |
| Number of storage drives supported: | 3 |
| Nvme: | Yes |
| On-board graphics card: | No |
| On-board graphics card model: | Intel® UHD Graphics |
| On/off switch: | Yes |
| Operating temperature (t-t): | 0 - 40 °C |
| Pci express slots version: | 4.0 |
| Power supply: | 90 W |

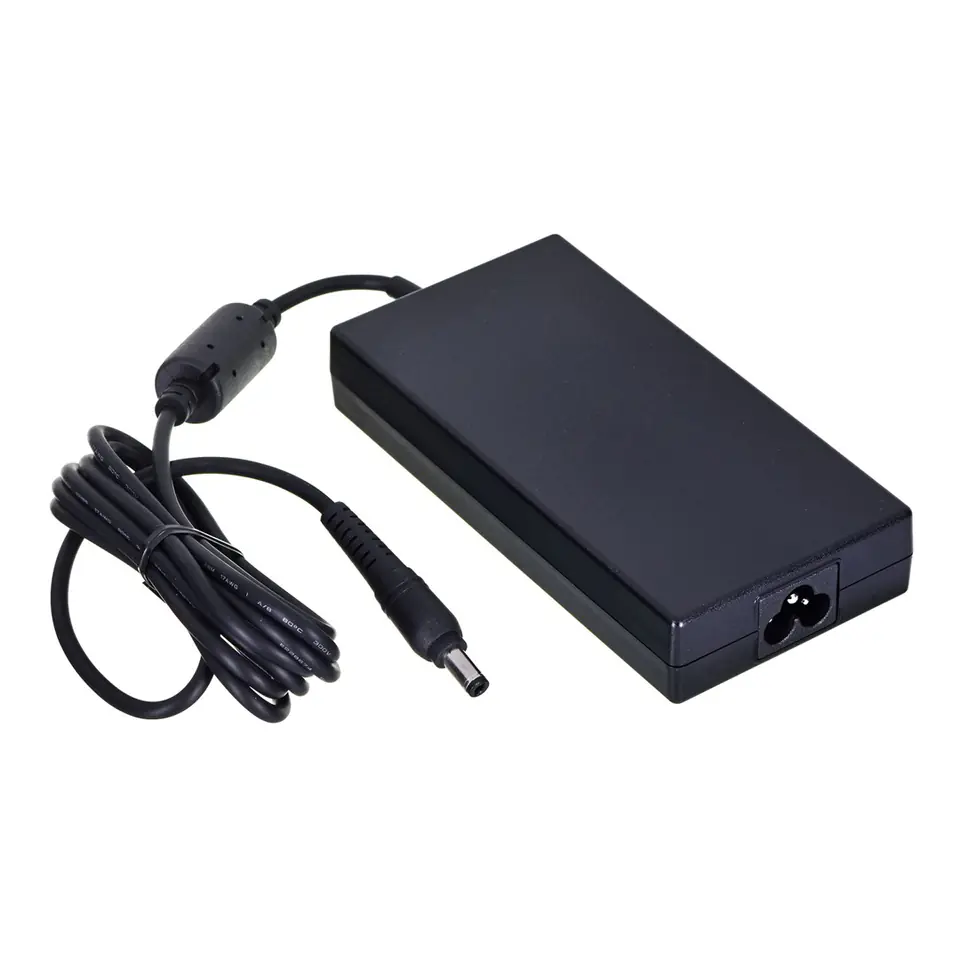

| Power supply type: | External AC adapter |
| Processor boost frequency: | 4.4 GHz |
| Processor cache: | 12 MB |
| Processor cores: | 10 |
| Processor family: | Intel® Core™ i3 |
| Processor generation: | 12th gen Intel® Core™ i3 |
| Processor manufacturer: | Intel |
| Processor model: | i3-1220P |
| Processor threads: | 12 |
| Product colour: | Black |
| Product type: | Mini PC barebone |
| Serial port via internal header: | No |
| Ssd form factor: | M.2 |
| Status: | Launched |
| Storage drive interface: | M.2, PCI Express, Serial ATA |
| Storage drive sizes supported: | M.2, 2.5 |
| Storage temperature (t-t): | -20 - 60 °C |
| Supported memory clock speeds: | 3200 MHz |
| Supported memory types: | DDR4-SDRAM |
| Supported storage drive types: | SSD |
| Sustainability certificates: | ENERGY STAR, ErP, China Energy Label (CEL), REACH, RoHS |
| Thermal design power (tdp): | 20 W |
| Thunderbolt 4 ports quantity: | 2 |
| Top wi-fi standard: | Wi-Fi 6E (802.11ax) |
| Usb 2.0 ports quantity: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 3 |
| Usb ports quantity: | 4 |
| Wi-fi: | Yes |
| Wi-fi standards: | Wi-Fi 6E (802.11ax) |
| Width: | 117 mm |
| Windows operating systems supported: | Windows 10 IoT Enterprise, Windows 10 x64, Windows 11 x64 |
| Wlan controller model: | Intel Wi-Fi 6E AX211 |
