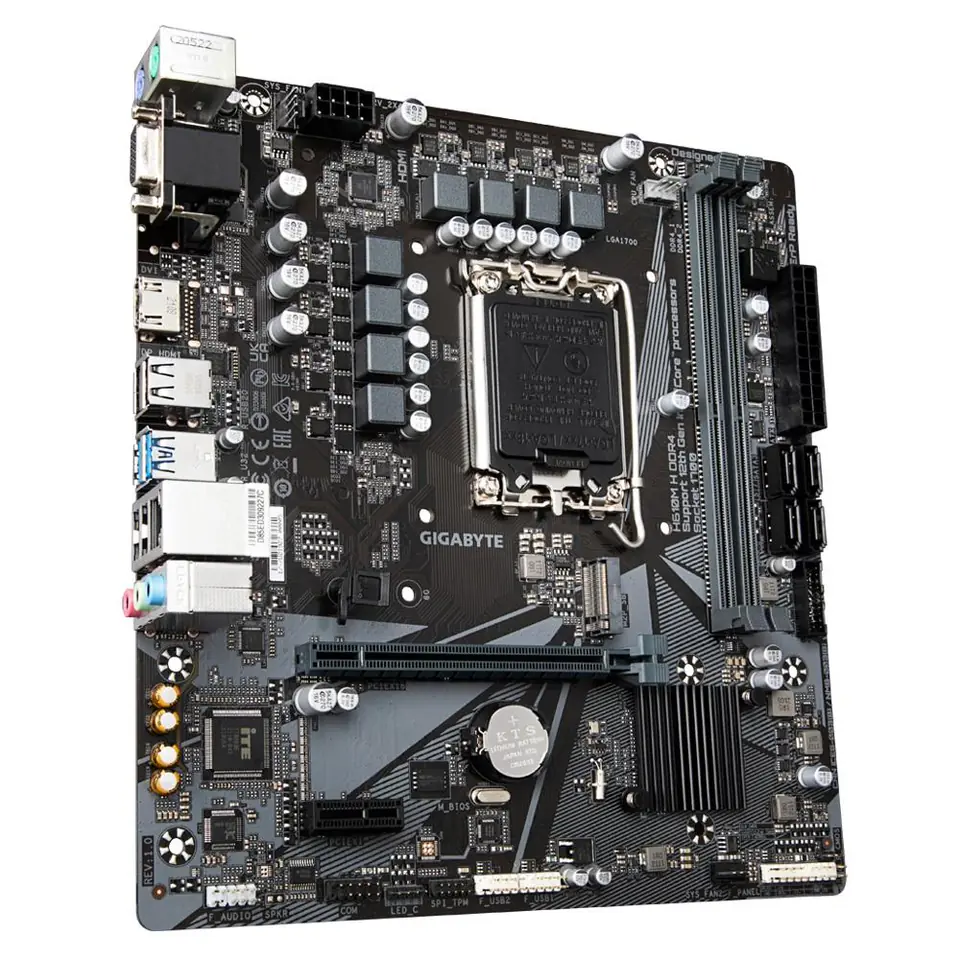

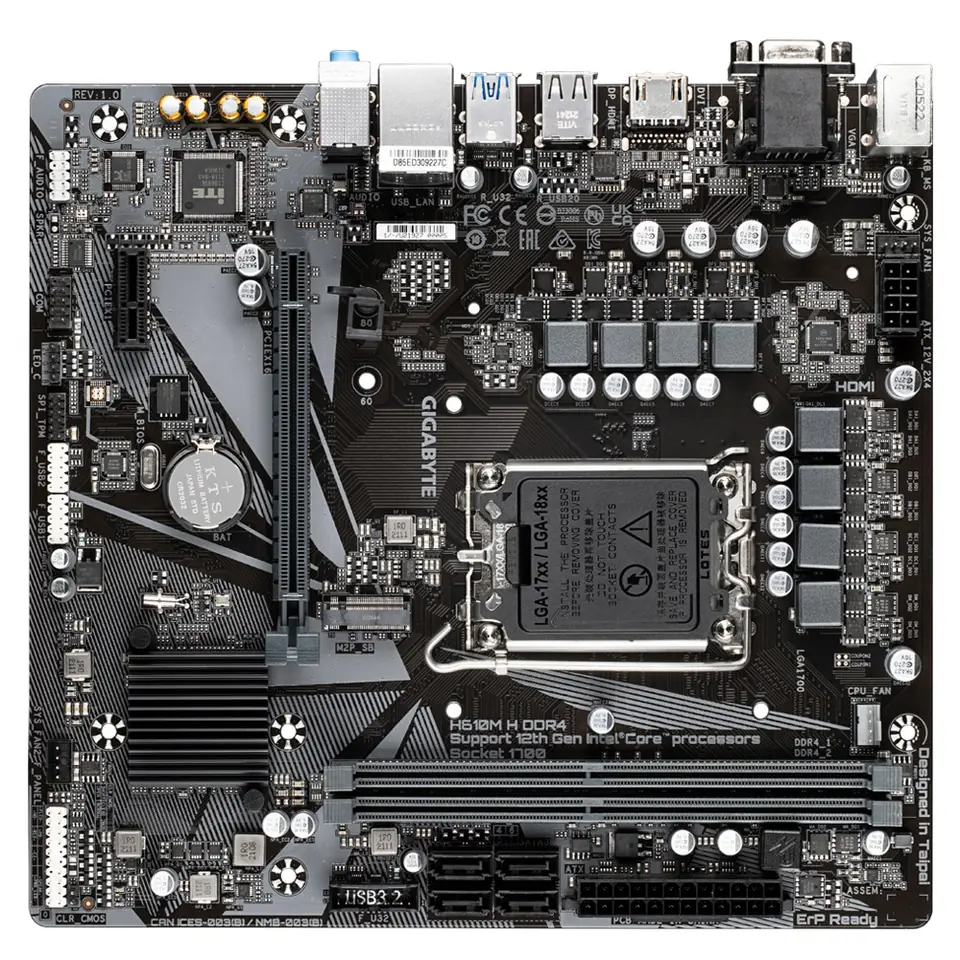

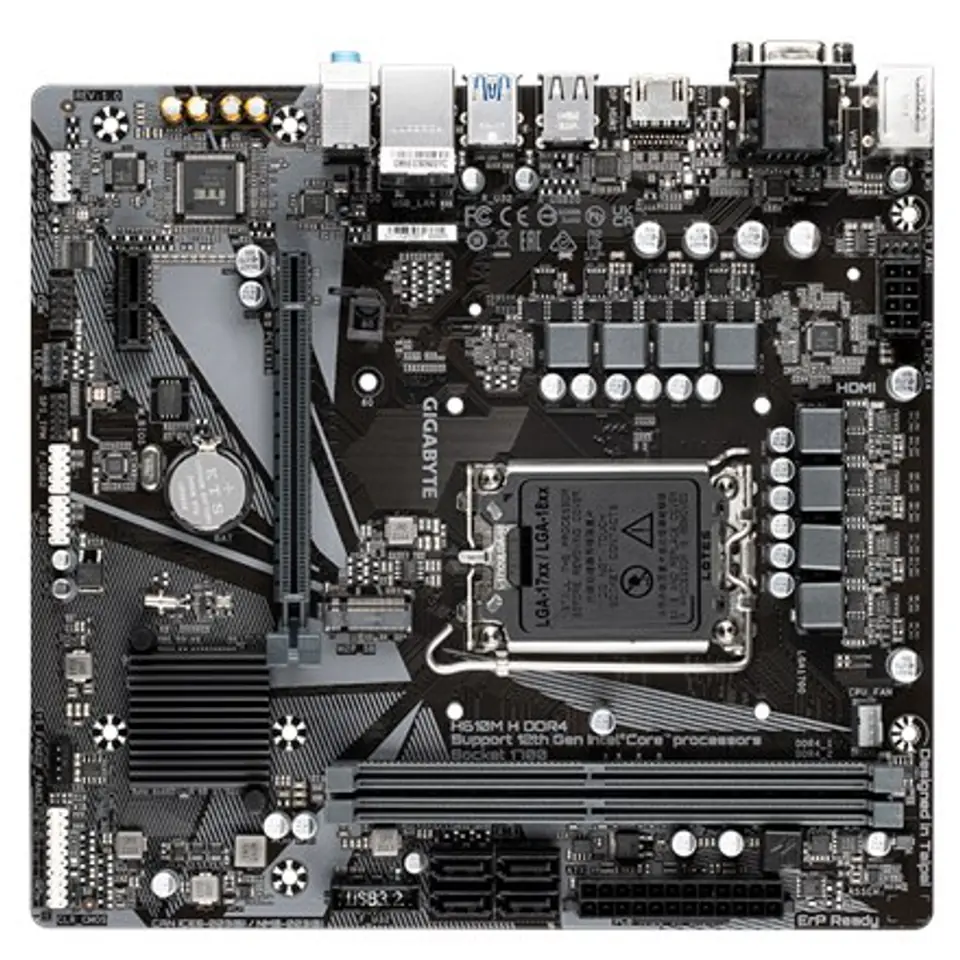

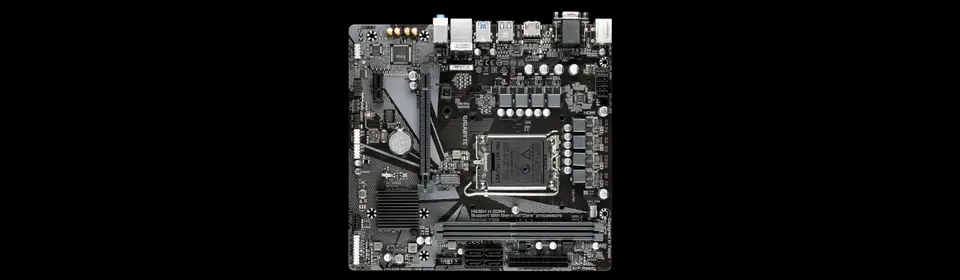

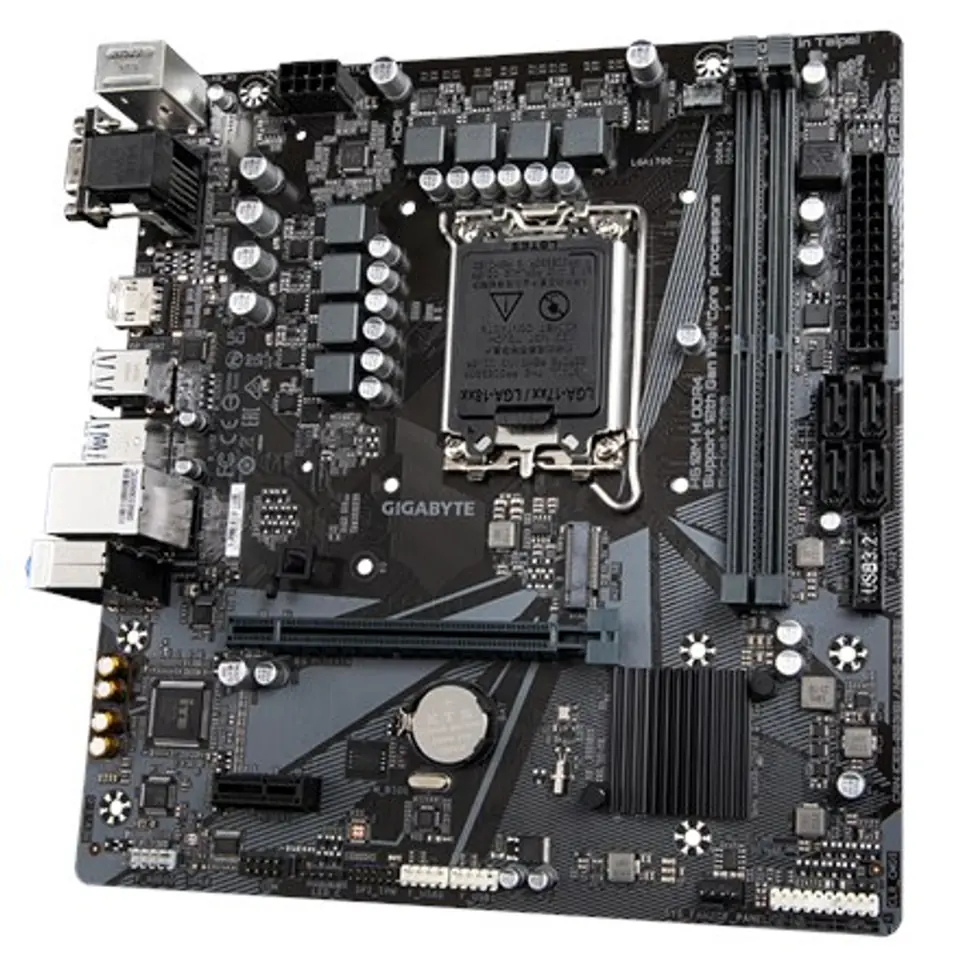

The GIGABYTE H610M H DDR4 motherboard is a MicroATX size board. It is based on Intel's H610 chipset. It is equipped with LGA1700 socket and supports Intel Core i9 / Core i7 / Intel Core i5 / Intel Core i3 / Intel Pentium G / Intel Celeron processors. It can handle a total of up to 64GB of RAM in 2 slots. It has an integrated 8-channel sound card and a gigabit network card. On its back panel we find: 4 USB 2.0 ports, 2 USB 3.0 ports

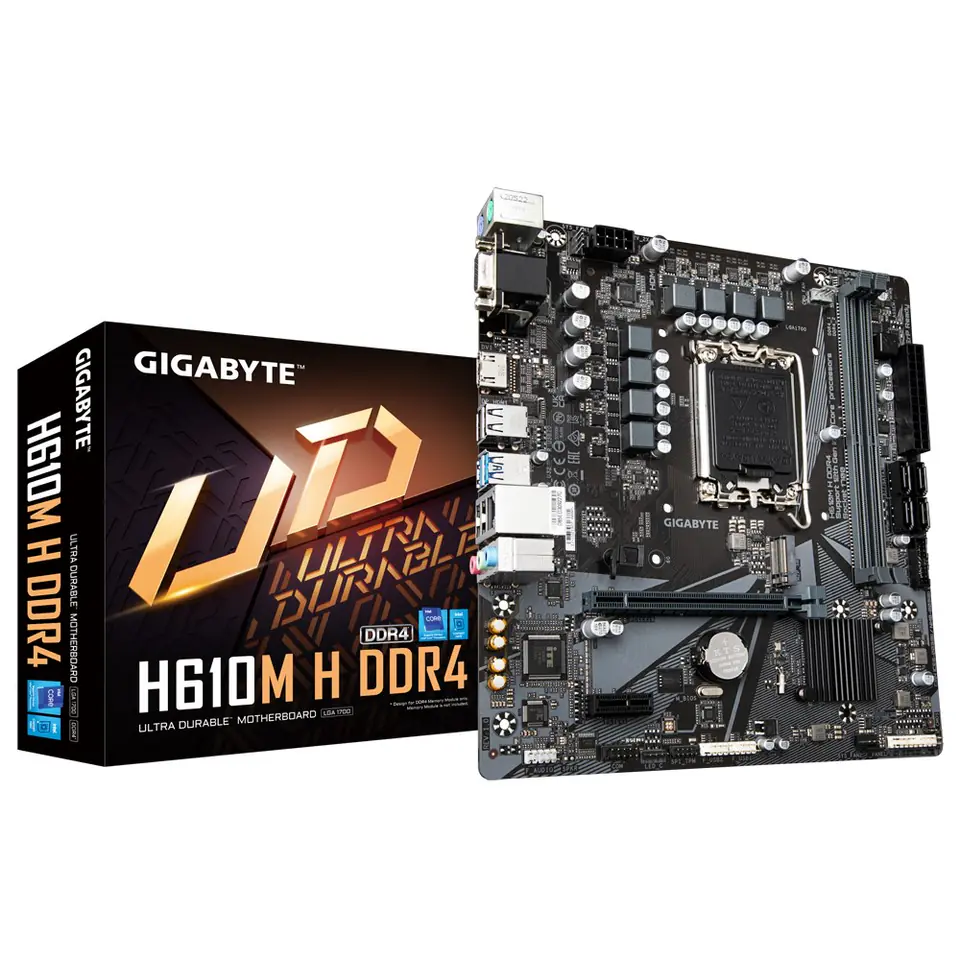

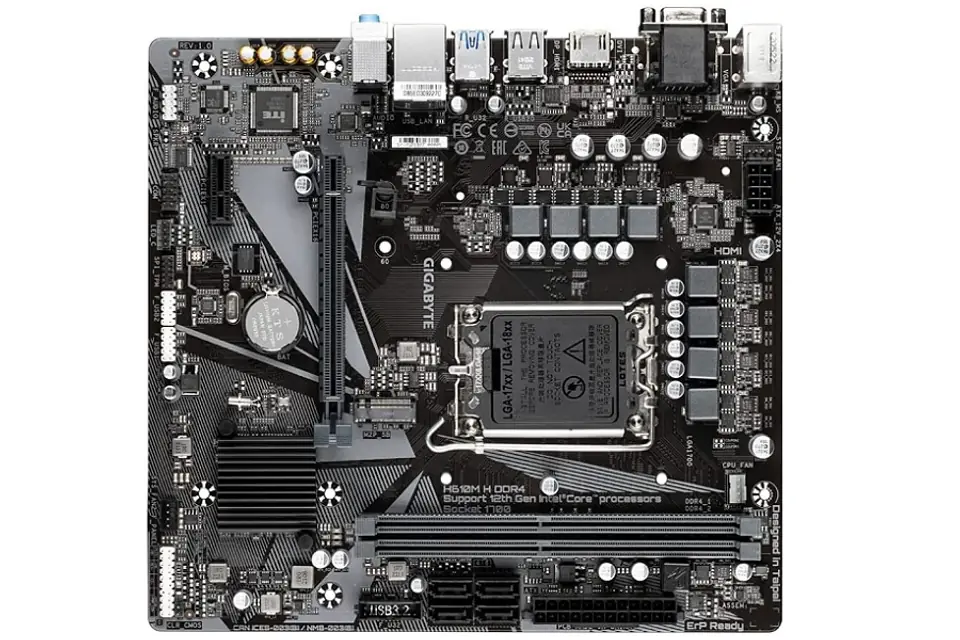

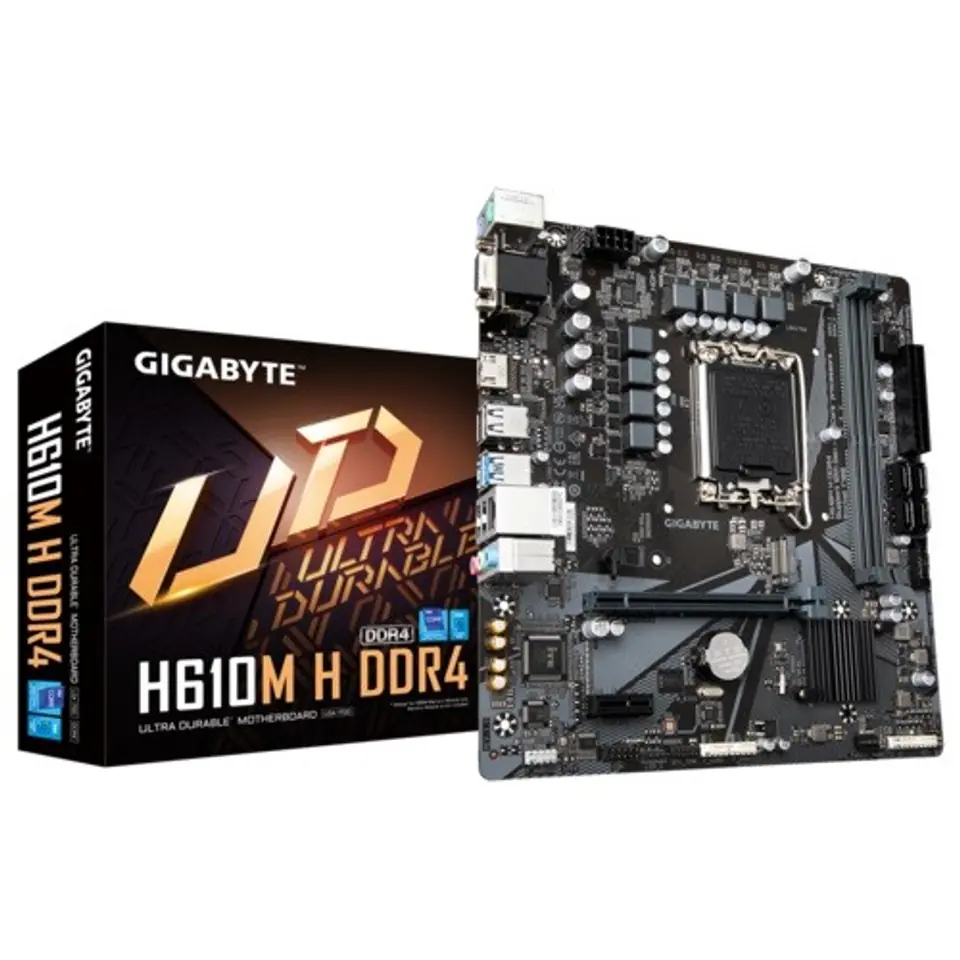

Gigabyte H610M H DDR4 Motherboard
This product is not available
- Availability:
- expected delivery
- Brand:
- Gigabyte
- Product code:
- H610M H DDR4 / 4719331830465
Share this product:
Specification
| 12v power connector: | Y |
|---|---|
| Atx power connector (24-pin): | Y |
| Audio output channels: | 7.1 channels |

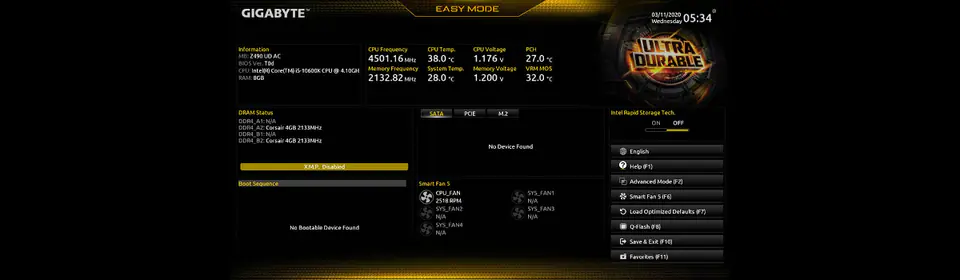

| Bios type: | UEFI AMI |
| Cables included: | SATA |
| Clear cmos jumper: | Y |
| Compatible processor series: | Intel Pentium G, Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3 |
| Cpu fan connector: | Y |
| Depth: | 215 mm |
| Desktop management interface (dmi) version: | 2.7 |
| Drivers included: | Y |
| Eps power connector (8-pin): | Y |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet lan: | Y |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Y |
| Front panel connector: | Y |
| Harmonized system (hs) code: | 84733020 |
| Hdcp: | Y |
| Hdmi ports quantity: | 1 |
| Hdmi version: | 2.0 |
| Headphone outputs: | 3 |
| Height: | 70 mm |

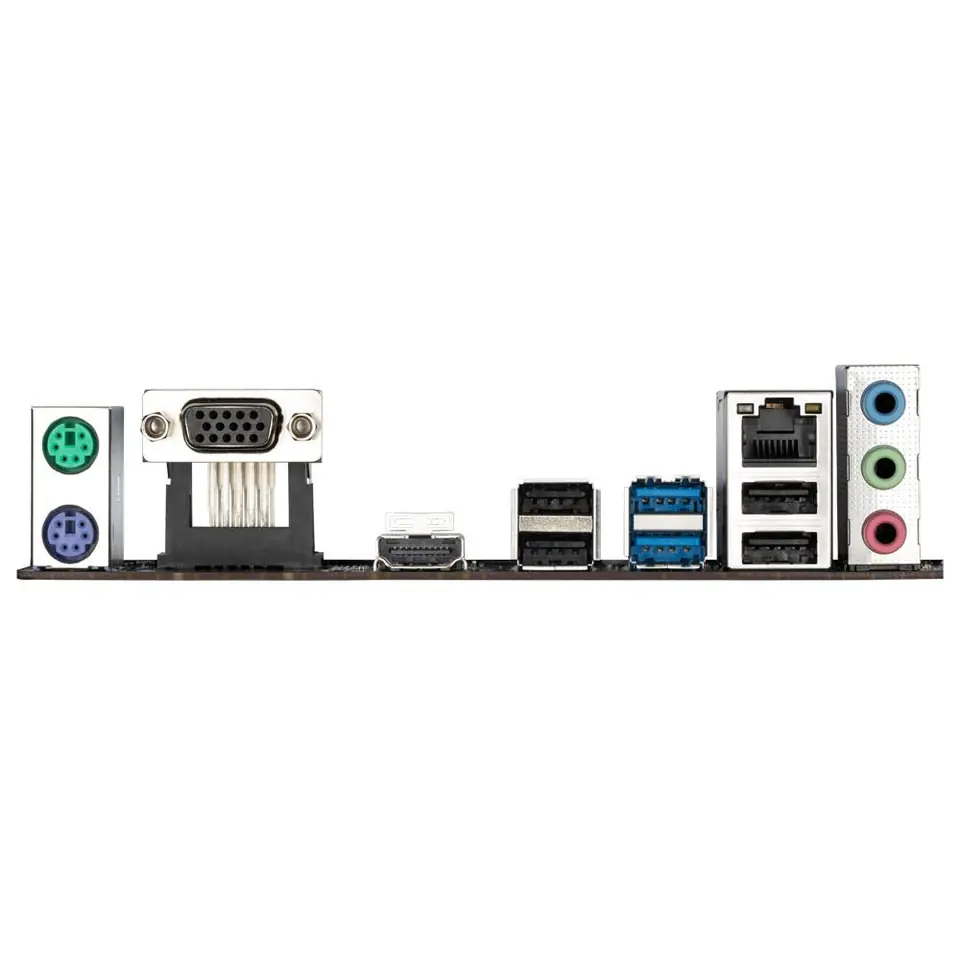

| I/o connectors on rear panel: | 1x HDMI | 1x D-Sub | 2x USB 3.2 Gen 1 | 4x USB 2.0 | 1x RJ-45 | 2x PS/2 | 3x Audio jack |
| Internal i/o connectors: | 4x SATA 6 Gb/s | 1x M.2 | 1x PCIe 4.0 (x16) | 1x PCIe 3.0 (x1) | 1x USB 3.2 | 2x USB 2.0 |
| Maximum internal memory: | 64 GB |
| Maximum resolution: | 4096 x 2160 pixels |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Microphone in: | Y |
| Motherboard chipset: | Intel H610 Express |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | micro ATX |
| Number of chassis fan connectors: | 2 |
| Number of m.2 (m) slots: | 1 |
| Number of memory banks: | 2x DIMM |
| Number of memory slots: | 2 |
| Number of sata iii connectors: | 4 |
| Number of storage drives supported: | 5 |
| Parallel processing technology support: | Not supported |
| Pc health monitoring: | Voltage, Fan, Temperature |
| Pci express x1 slots: | 1 |
| Pci express x16 slots: | 1 |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1700 |
| Ps/2 ports quantity: | 2 |
| Rgb led pin header: | Y |
| Serial port headers: | 1 |
| Sound card: | Related to Realtek® 7.1: |
| Supported memory clock speeds: | 2933, 3200 MHz, 2666, 3000, 2400, 2133 |
| Supported memory types: | DDR4-SDRAM |
| Supported processor sockets: | LGA 1700 |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| Tpm connector: | Y |
| Unbuffered memory: | Y |
| Usb 2.0 connectors: | 2 |
| Usb 2.0 ports quantity: | 4 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 2 |
| Usb connector type: | USB Type-A |
| Vga (d-sub) ports quantity: | 1 |
| Weight: | 790 g |
| Wi-fi: | N |
| Width: | 230 mm |
| Windows operating systems supported: | Windows 11 x64, Windows 10 x64 |
