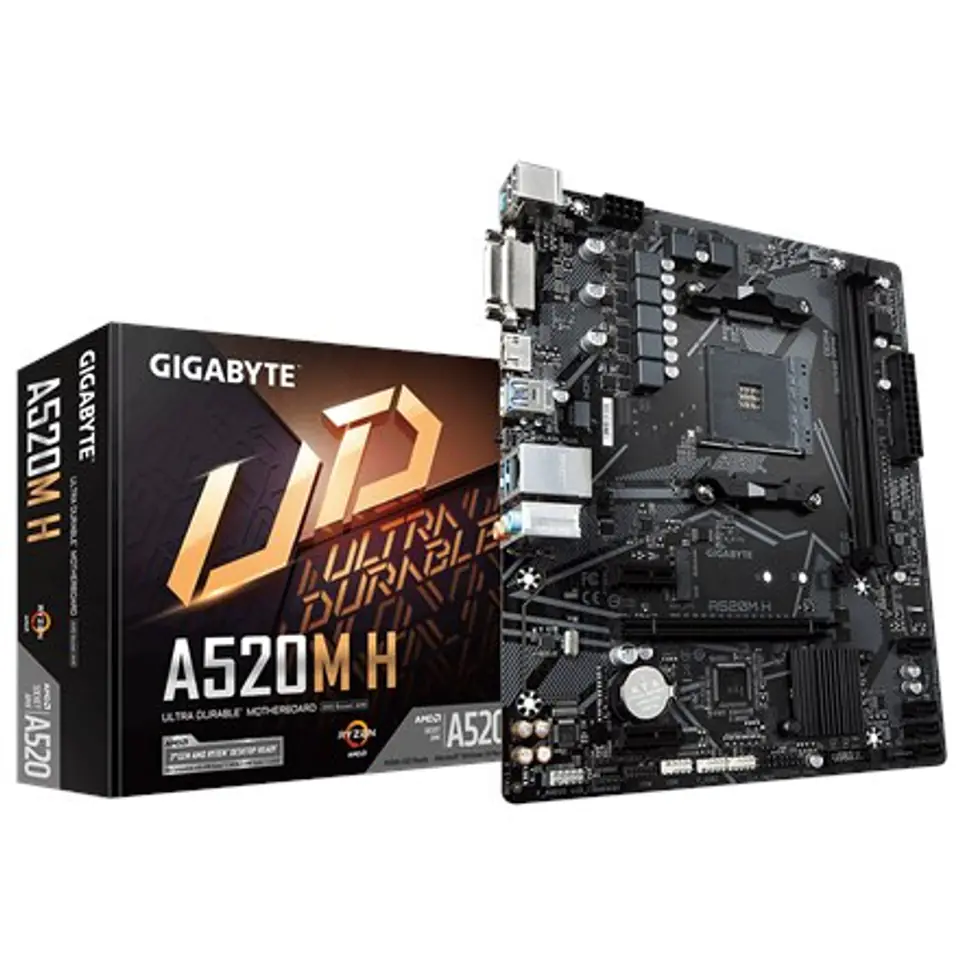

Gigabyte A520M H motherboard (REV. 1.0)
This product is not available
- Availability:
- expected delivery
- Brand:
- Gigabyte
- Product code:
- A520M H / 4719331809683
Share this product:
Specification
| 12v power connector: | Yes |
|---|---|
| Atx power connector (24-pin): | Yes |
| Audio chip: | Realtek ALC887 |
| Audio output channels: | 7.1 channels |
| Bios type: | UEFI AMI |
| Cables included: | SATA |
| Chassis intrusion connector: | Yes |
| Clear cmos button: | Yes |
| Clear cmos jumper: | Yes |
| Compatible processor series: | 3rd Generation AMD Ryzen™ 9, AMD Ryzen Threadripper Pro 3rd Gen, 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Gen AMD Ryzen™ Threadripper™, 3rd Generation AMD Ryzen™ 7 |
| Cooling type: | Active |
| Cpu fan connector: | Yes |
| Depth: | 244 mm |
| Desktop management interface (dmi) version: | 2.7 |
| Digital audio optical out: | 1 |
| Drivers included: | Yes |
| Dvi-d ports quantity: | 1 |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Front panel connector: | Yes |
| Hdcp: | Yes |
| Hdmi ports quantity: | 1 |
| Hdmi version: | 2.1 |
| Headphone outputs: | 1 |
| Maximum internal memory: | 64 GB |
| Maximum internal memory supported by processor: | 64 GB |
| Maximum resolution: | 4096 x 2160 pixels |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Microphone in: | Yes |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | micro ATX |
| Number of displays supported: | 2 |
| Number of hdds supported: | 5 |
| Number of m.2 (m) slots: | 1 |
| Number of memory slots: | 2 |
| Number of sata iii connectors: | 4 |
| Pc health monitoring: | CPU, LED, Power supply, Voltage, Temperature, Fan |
| Pci express x1 (gen 3.x) slots: | 2 |
| Pci express x16 (gen 3.x) slots: | 1 |
| Power fan connector: | Yes |
| Power source type: | ATX |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM4 |
| Ps/2 ports quantity: | 1 |
| Raid levels: | 0, 10, 1 |
| Rgb led pin header: | Yes |
| Serial port headers: | 1 |
| Serial ports quantity: | 1 |
| Supported memory clock speeds: | 2667, 4400, 5000, 2933, 3600, 4866 MHz, 2400, 3200 MHz, 4600, 3333, 4000, 2133 |
| Supported memory module capacities: | 16GB, 2GB, 4GB, 32GB, 8GB, 1GB |
| Supported memory types: | DDR4-SDRAM |
| Supported processor sockets: | Socket AM4 |
| Supported storage drive interfaces: | M.2, PCI Express 3.0, Serial ATA III |
| Supported storage drive types: | HDD & SSD |
| Total number of sata connectors: | 4 |
| Tpm connector: | Yes |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 2 |
| Usb 2.0 ports quantity: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 4 |
| Usb connector type: | USB Type-A |
| Wi-fi: | No |
| Width: | 205 mm |
| Windows operating systems supported: | Windows 10 x64 |
