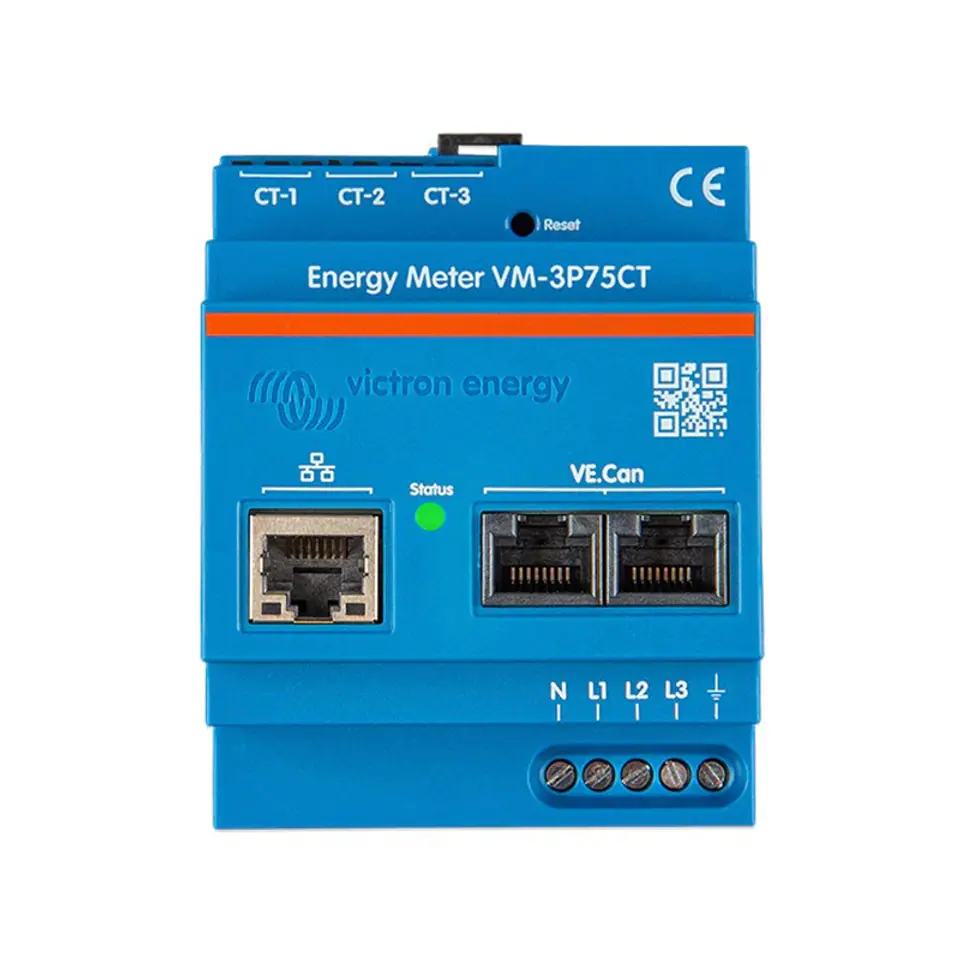

Electricity meter VICTRON ENERGY Energy Meter VM-3P75CT (REL200300100)
This product is not available
- Availability:
- expected delivery
- Brand:
- Victron Energy
- Product code:
- REL200300100 / 8719076059462
Share this product:
Specification
| Awg wire size: | 24/16 |
|---|---|
| Built-in display: | No |
| Cord length: | 0.64 m |
| Depth: | 59 mm |
| Ethernet lan (rj-45) ports: | 1 |
| Frequency: | 50 / 60 Hz |
| Height: | 90 mm |
| Hour counter: | Yes |
| Input voltage range l-l: | 150 - 460 VAC |
| Input voltage range l-n: | 85 - 265 VAC |
| Interface: | RJ-45 |
| International protection (ip) code: | IP20 |
| Material: | Polycarbonate (PC) |
| Measuring category: | CAT II |
| Mounting: | DIN-rail |
| Number of phases: | 1 / 3 |
| Number of ve.can ports: | 2 |
| Operating temperature (t-t): | -25 - 55 °C |
| Pollution degree: | 2 |
| Power and energy measurement: | Yes |
| Power consumption (typical): | 1.45 W |
| Product colour: | Blue |
| Rated current: | 75 A |
| Storage relative humidity (h-h): | 0 - 90% |
| Storage temperature (t-t): | -25 - 70 °C |
| Terminal size: | 0.25 - 1.5 mm² |
| Type of measurement: | Direct |
| Weight: | 370 g |
| Width: | 71 mm |
