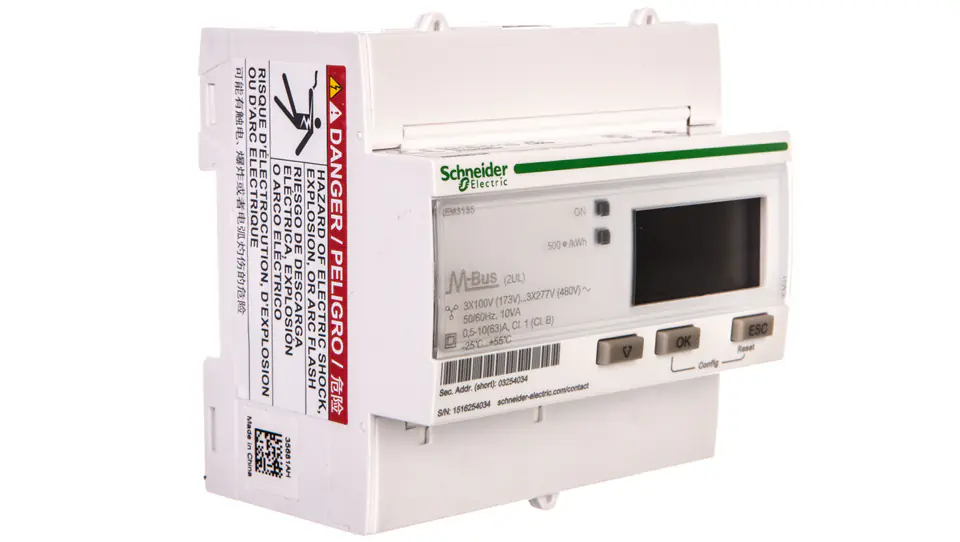

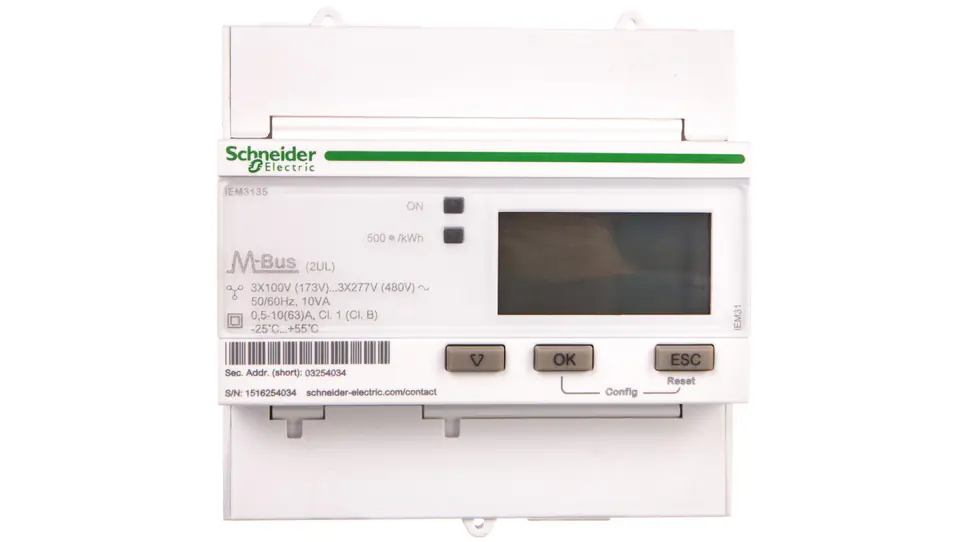

Electricity meter 1/3-phase 63A 100-277/173-480V class 1/B M-Bus MID tariff digital modular iEM3135 A9MEM3135
This product is not available
- Availability:
- expected delivery
- Brand:
- Schneider
- Product code:
- A9MEM3135 / 3606480616471
Share this product:
Specification
| Accuracy class: | 1 |
|---|---|
| Calibrated: | Yes |
| Ean: | 3606480616471 |
| How to connect the meter: | Direct connection |
| Model: | Four-wire counter with pulse generator |
| Modular version: | Yes |
| Mounting method: | Built-in |
| Number of meter tariffs: | Dual tariff |
| Rated current in cooperation with current converter: | Lack |
| Rated operating frequency [hz] from: | 50 |
| Rated operating frequency [hz] up to: | 60 |
| Rated voltage [v]: | 480 |
| Type of energy measured: | Active energy measurement |
| With electronic pulse generator: | Yes |
| With pulse output: | Yes |
