| Case:: | Plastic, DIN rail mounting, TS-35 |
|---|---|
| Connector type:: | screw terminals |
| Current:: | 16 A |
| Device type:: | Circuit breaker, Three-phase |
| Dimensions:: | 54 x 83 x 75 mm |
| Manufacturer / brand:: | LEGRAND |
| Number of poles:: | 3 |
| Rated short-circuit switching capacity:: | 6000 A |
| Scales:: | 0.376 kg |
| Triggering characteristics:: | Type C |
| Voltage:: | 230 V AC / 50 Hz 400 V AC / 50 Hz |
| Warranty:: | 2 years |
| Width in modules 17.5 mm:: | 3 |

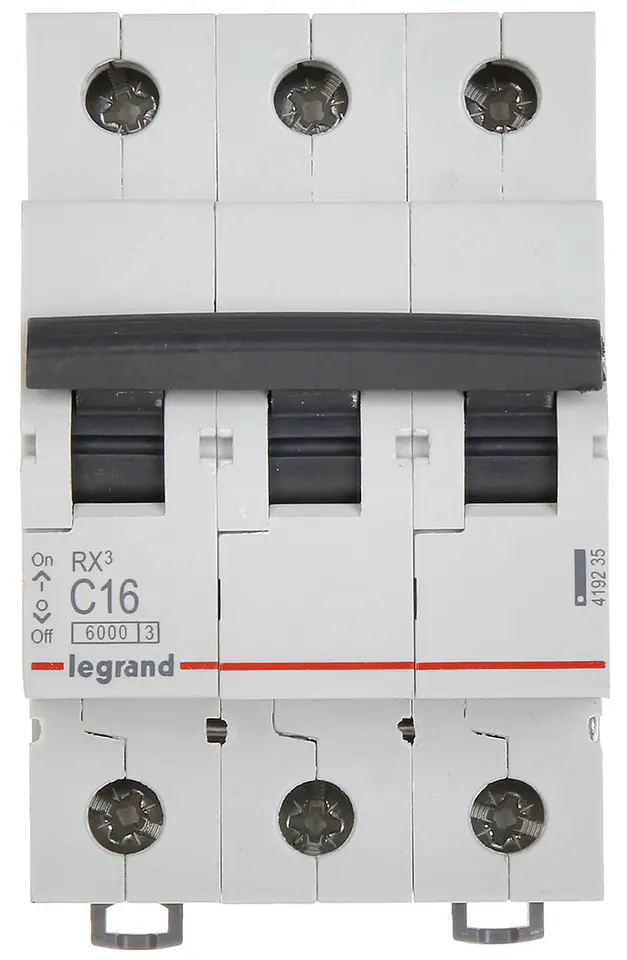

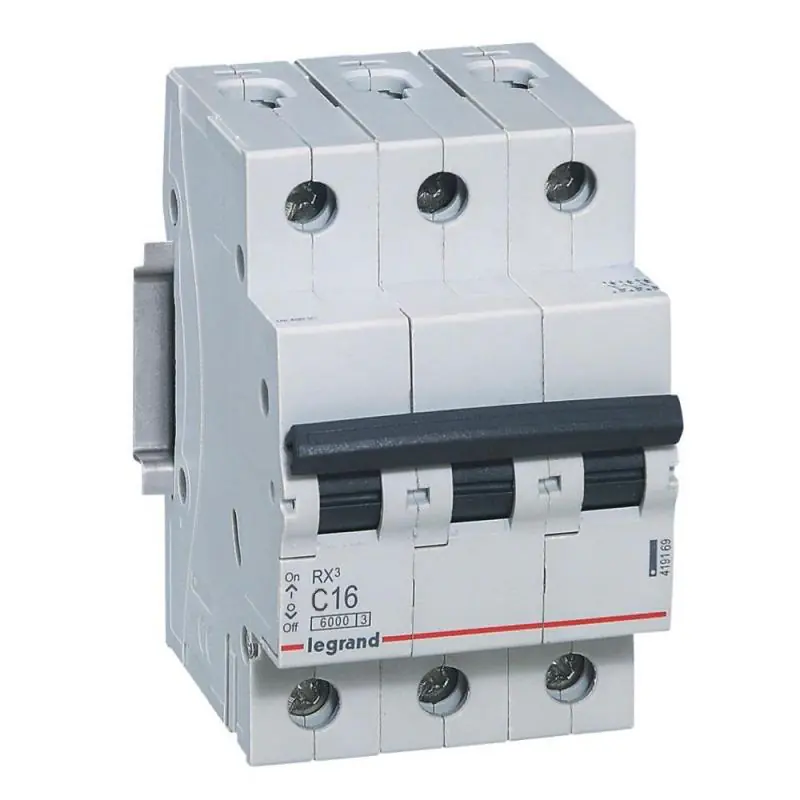

Circuit breaker with type C characteristics and rated current 16AThe LE-419235 switch is designed for mounting on the TS-35 DIN rail

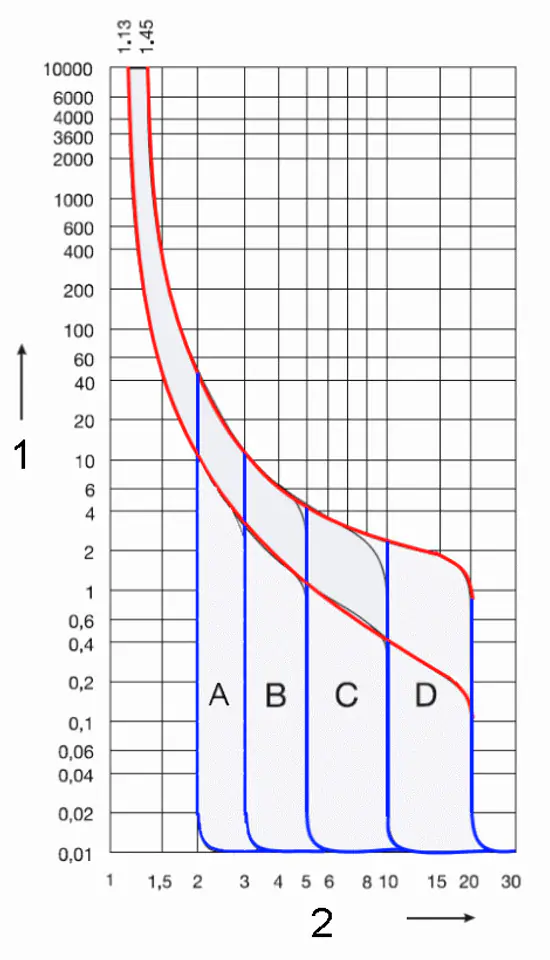

Circuit breakers with characteristic C are designed to protect against the effects of short circuits and overloads of installations in which devices with large starting currents (motors, transformers) are used.
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
