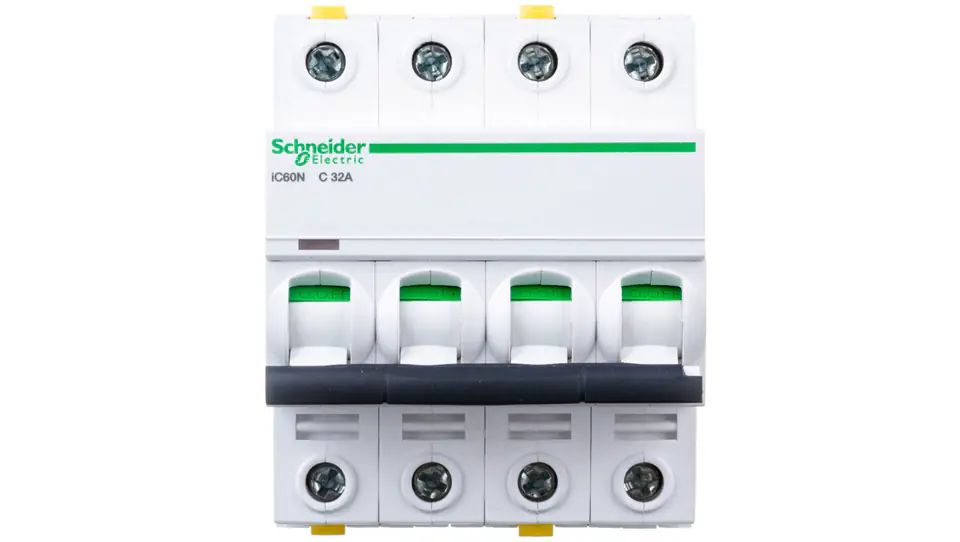

Circuit breaker 4P C 32A 6kA AC iC60N-C32-4 A9F04432
This product is not available
- Availability:
- expected delivery
- Brand:
- Schneider
- Product code:
- A9F04432 / 3606480440847
Share this product:
Specification
| Built-in depth [mm]: | 69.5000 |
|---|---|
| Degree of contamination: | 3 |
| Degree of protection (ip): | IP20 |
| Energy limitation class: | 3 |
| Frequency [hz]: | 50 |
| Number of poles: | 4 |
| Overvoltage category: | 4 |
| Possibility of additional equipment: | Yes |
| Rated current [a]: | 32 |
| Rated short-circuit switching capacity according to en 60898 [ka]: | 6 |
| Rated short-circuit switching capacity according to iec 60947-2 [ka]: | 6 |
| Rated voltage [v]: | 400 |
| Simultaneous disconnected n pole: | No |
| Trigger characteristics: | C |
| Voltage type: | AC |
| Width expressed by the number of modules: | 4 |
