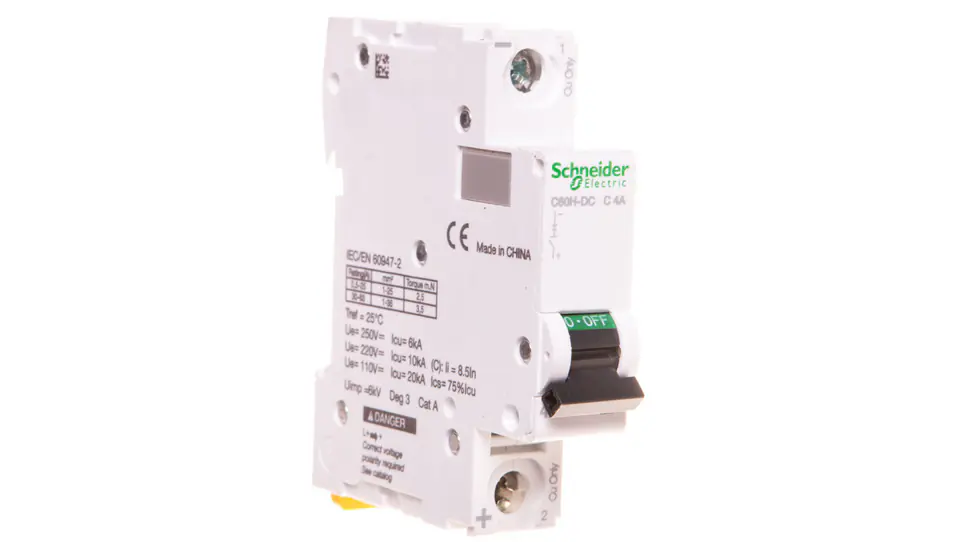

Circuit breaker 1P C 4A 10kA DC C60H-DC-C4 A9N61504
This product is not available
- Availability:
- expected delivery
- Brand:
- Schneider
- Product code:
- A9N61504 / 3606480424069
Share this product:
Specification
| Degree of protection (ip): | IP20 |
|---|---|
| Number of poles: | 1 |
| Possibility of additional equipment: | Yes |
| Rated current [a]: | 4 |
| Rated short-circuit switching capacity according to en 60898 [ka]: | 10 |
| Rated short-circuit switching capacity according to iec 60947-2 [ka]: | 10 |
| Rated voltage [v]: | 250 |
| Simultaneous disconnected n pole: | No |
| Trigger characteristics: | C |
| Voltage type: | DC |
| Width expressed by the number of modules: | 2 |
