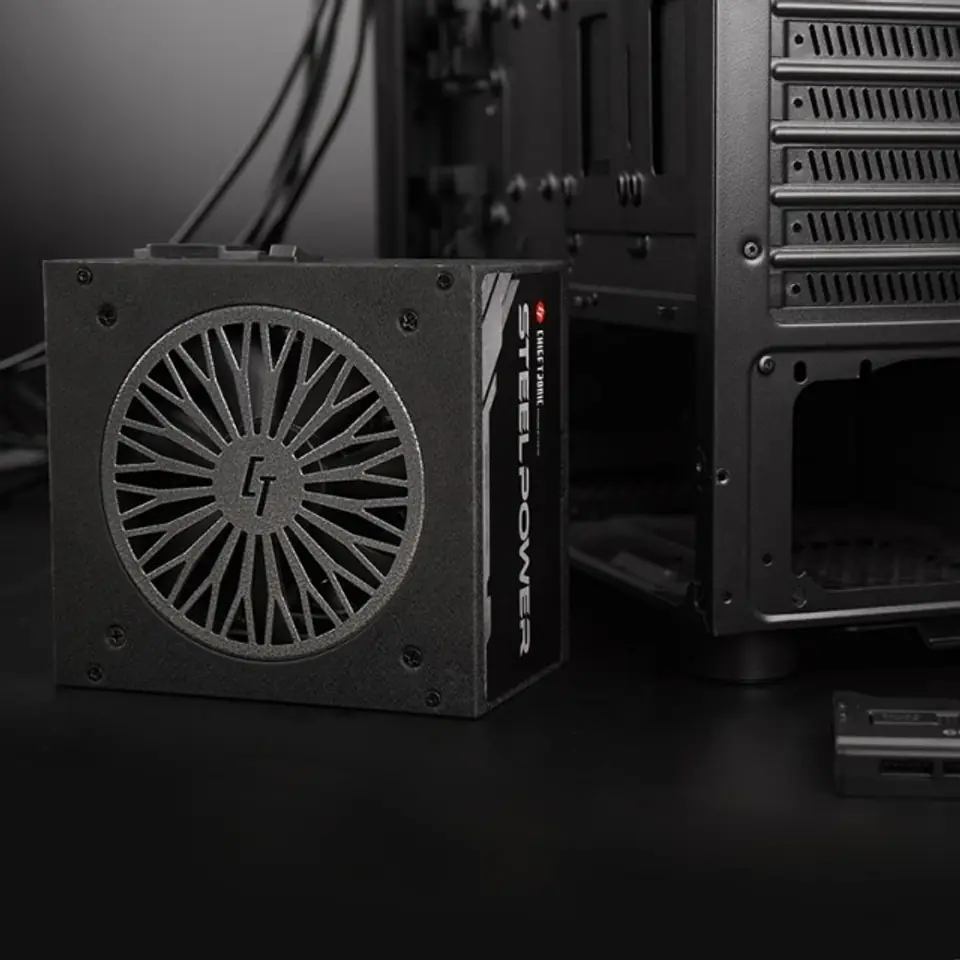

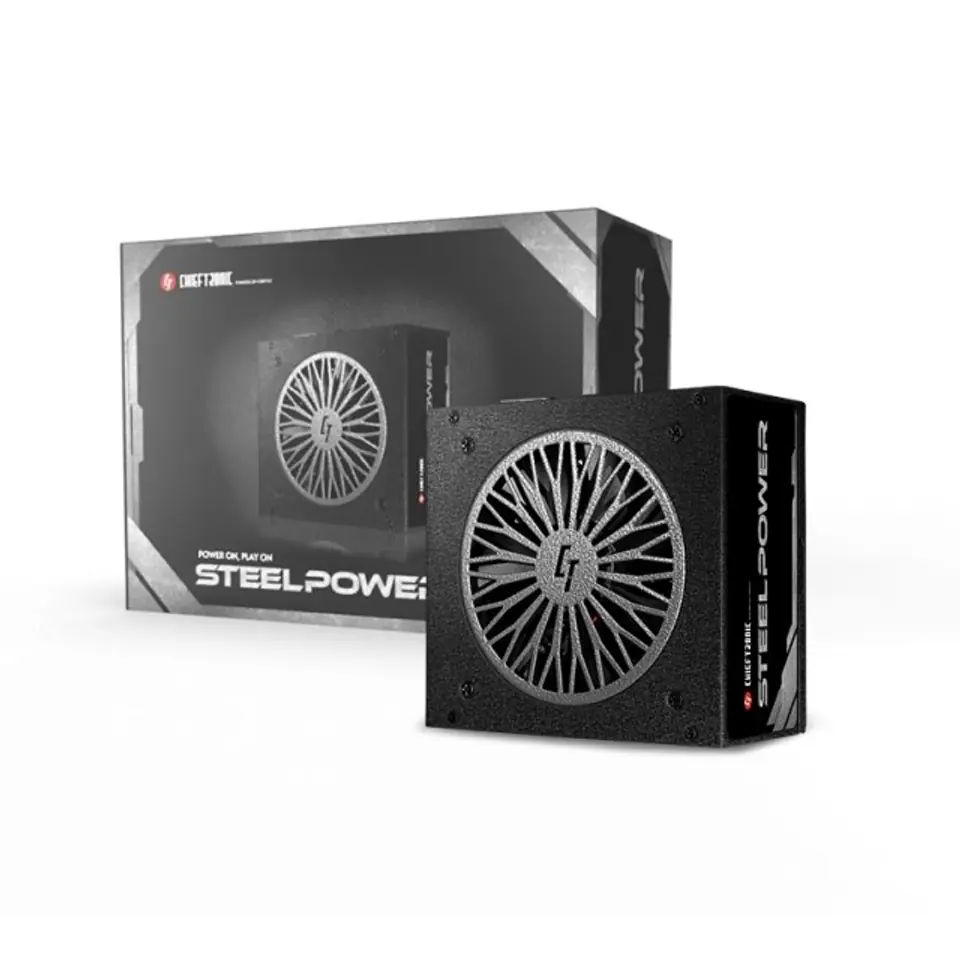

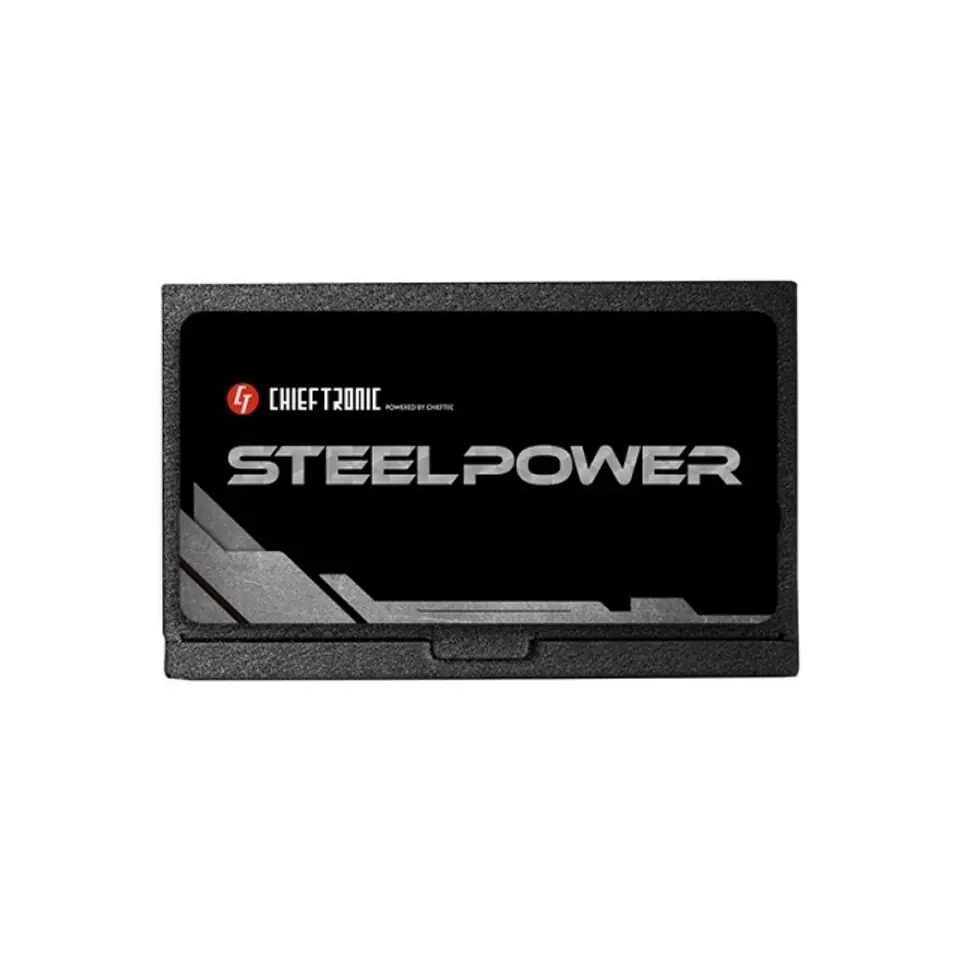

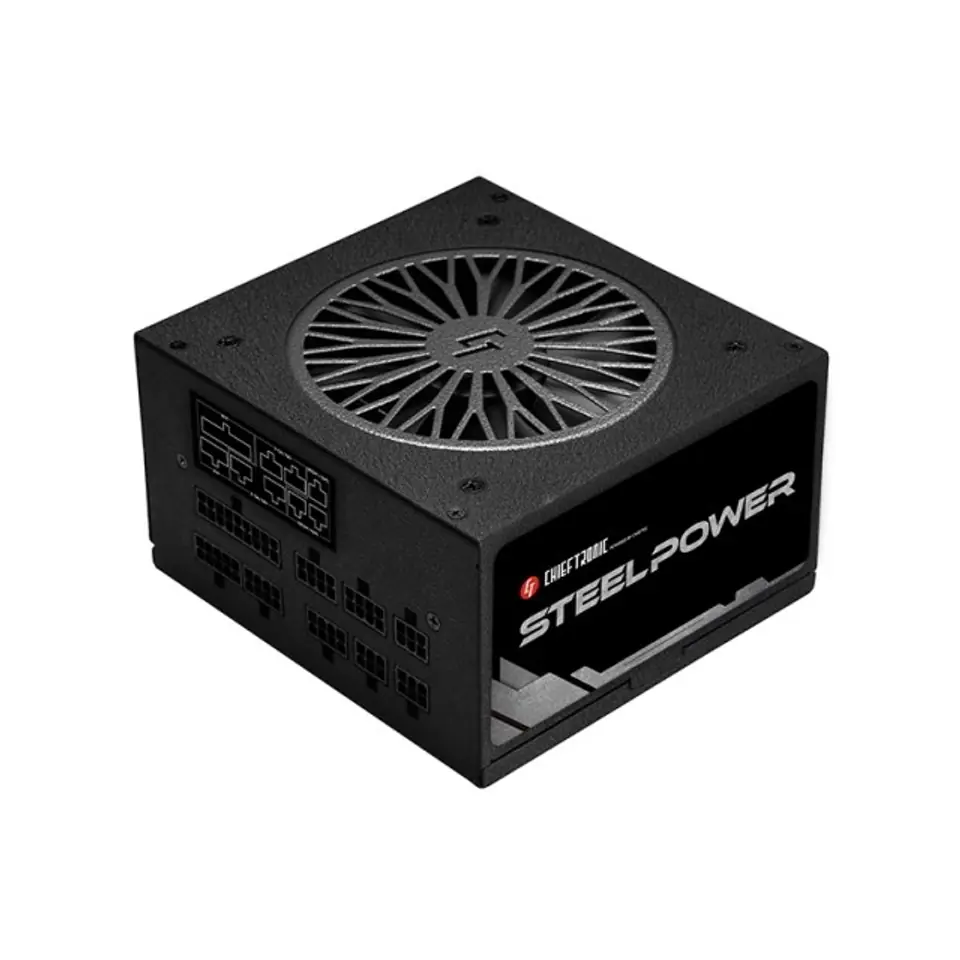

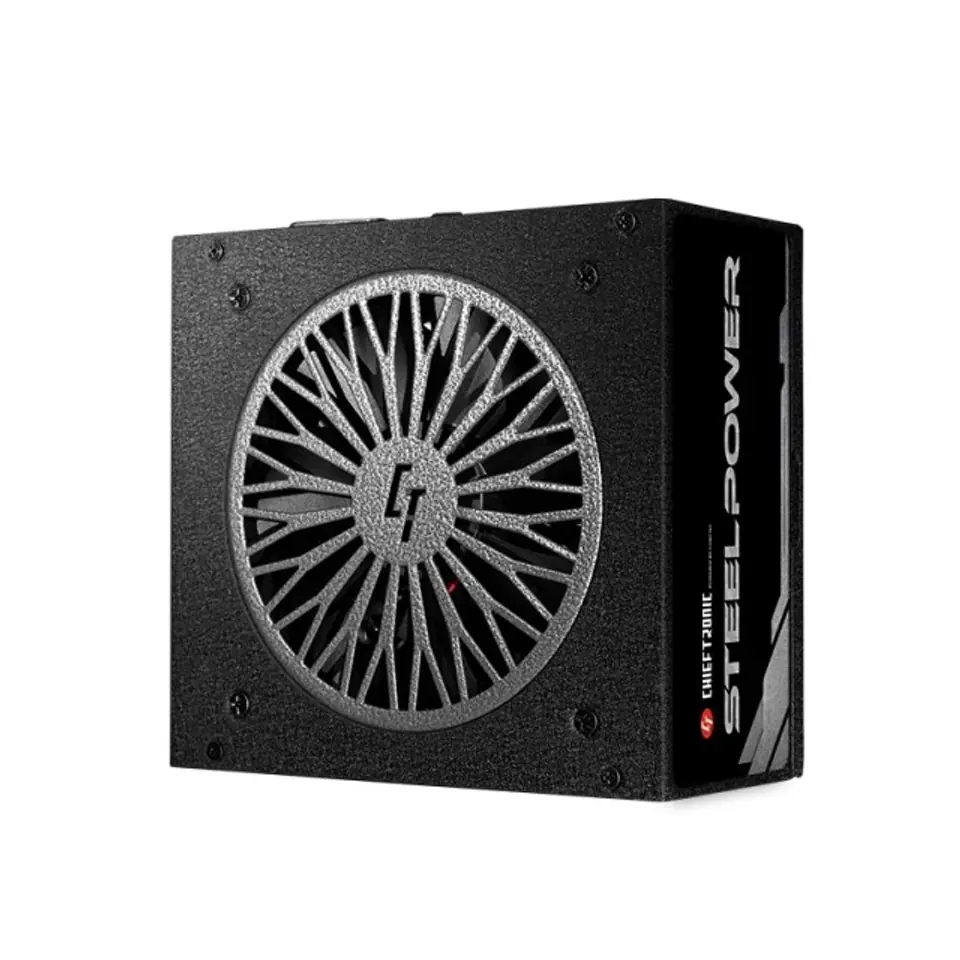

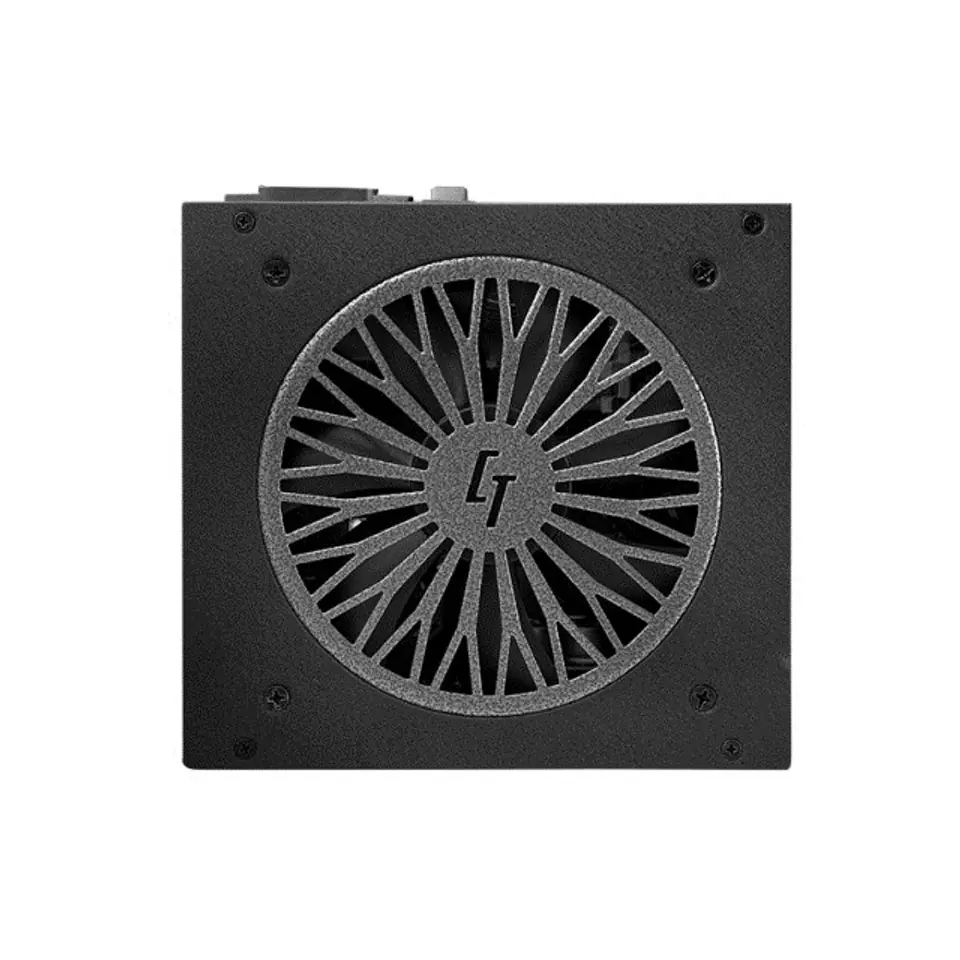

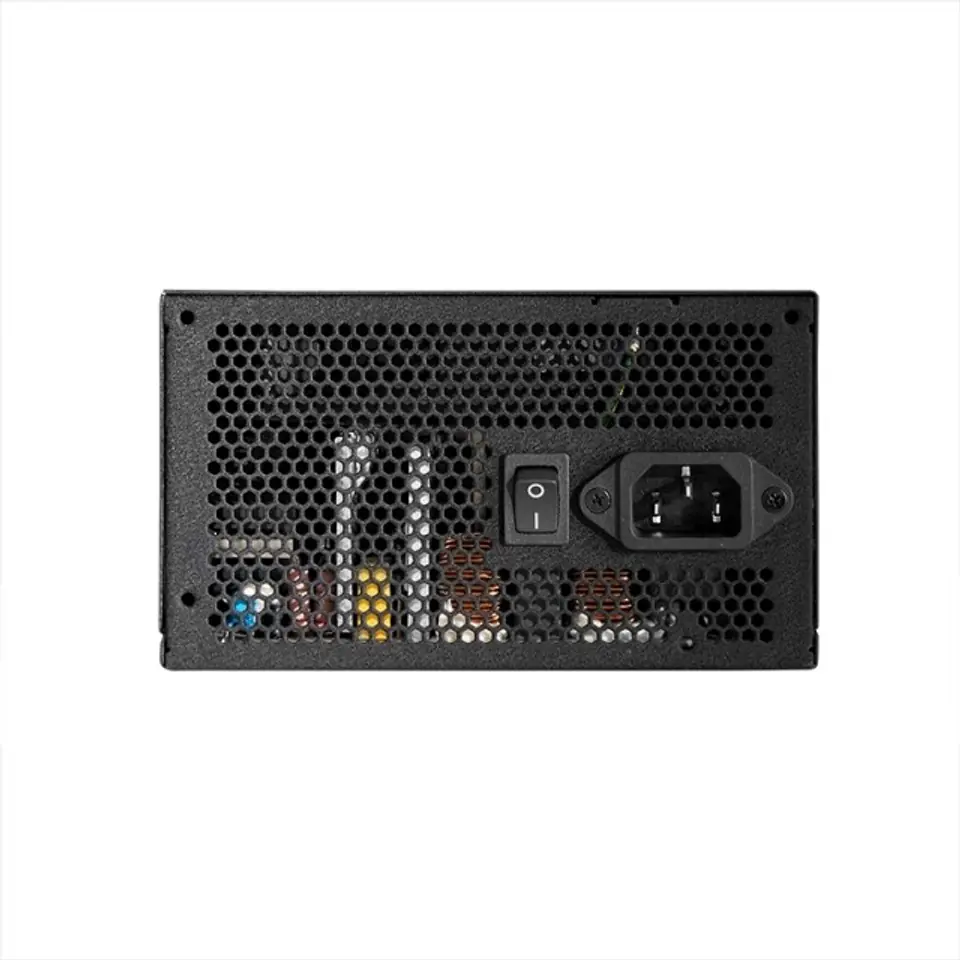

Chieftec BDK-650FC power supply unit 650 W 20+4 pin ATX ATX Black
This product is not available
- Availability:
- expected delivery
- Brand:
- Chieftec
- Product code:
- BDK-650FC / 0753263077424
Share this product:
Specification
| 80 plus certification: | 80 PLUS Bronze |
|---|---|
| Ac input frequency: | 47 - 63 Hz |
| Ac input voltage: | 100 - 240 V |
| Atx version: | 2.3 |
| Bearing technology: | FDB |

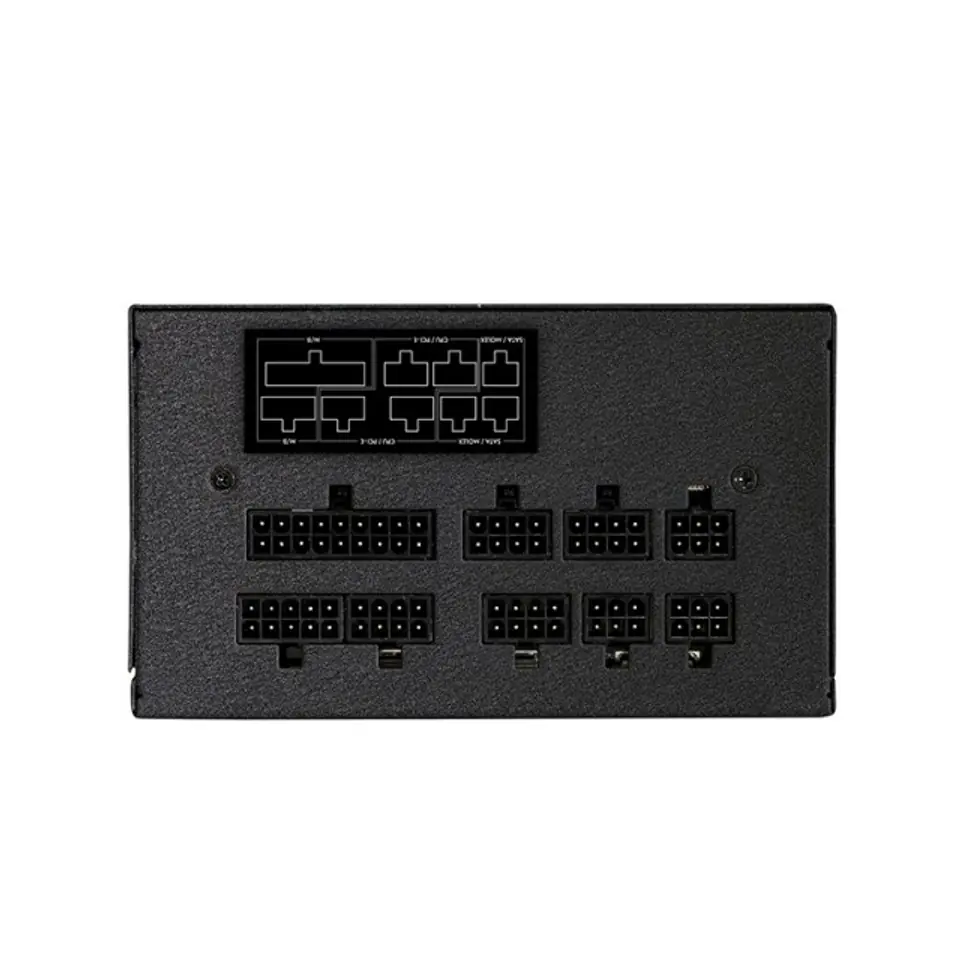

| Cabling type: | Fully-Modular |
| Combined power (-12v): | 3.6 W |
| Combined power (+12v): | 648 W |
| Combined power (+3.3v): | 110 W |
| Combined power (+5v): | 110 W |
| Combined power (+5vsb): | 12.5 W |
| Cooling type: | Active |
| Depth: | 140 mm |
| Eps power connector (4+4 pin): | Yes |
| Fan diameter: | 12 cm |
| Floppy drive power connector: | 1 |
| Harmonized system (hs) code: | 84733020 |
| Height: | 86 mm |
| Input current: | 10 A |
| Max output current (-12v): | 0.3 A |
| Max output current (+12v): | 54 A |
| Max output current (+3.3v): | 20 A |
| Max output current (+5v): | 20 A |
| Max output current (+5vsb): | 2.5 A |
| Motherboard power cable length: | 65 cm |
| Motherboard power connector: | 20+4 pin ATX |
| Number of fans: | 1 fan(s) |
| Number of sata power connectors: | 6 |
| Package weight: | 2.2 kg |
| Pci express power connectors (6+2 pin): | 4 |
| Peripheral (molex) power cable length: | 500 |
| Peripheral (molex) power connectors (4-pin): | 3 |
| Power factor: | 0.9 |
| Power factor correction (pfc) type: | Active |
| Power protection features: | Short circuit, Over voltage, Overload, Overheating, Under voltage, Over current |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Black |
| Purpose: | PC/Server |
| Sata power cable length: | 150, 500 |
| Sustainability certificates: | CE, RoHS, ErP |
| Sustainability compliance: | Yes |
| Total power: | 650 W |
| Weight: | 1.65 kg |
| Width: | 150 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
