The cable coming out of the antenna is 5 meters long and terminated with an SMA plug

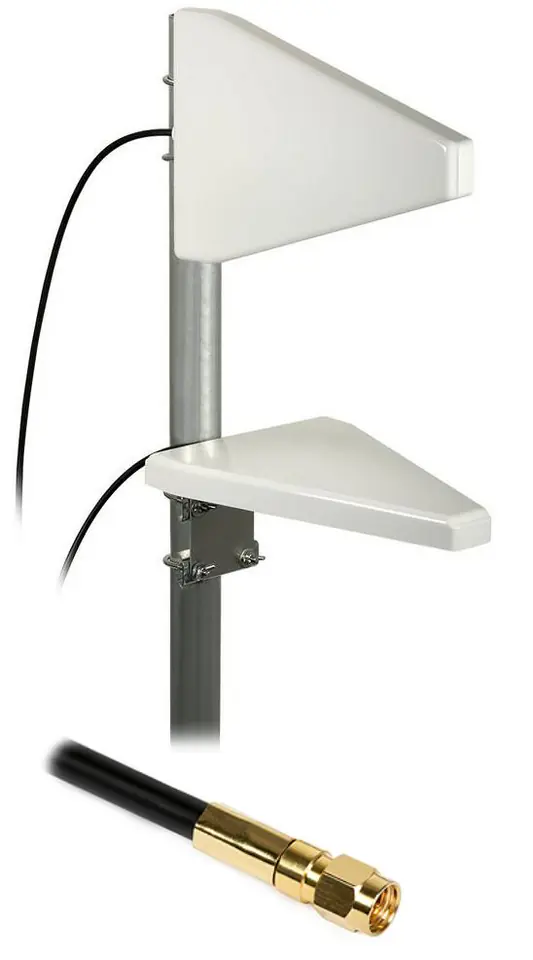

The set consists of two identical antennas (set), one antenna should be mounted vertically and the other horizontally.
The ATK-LOG ALP LTE MIMO logarithmic antenna is designed for use in GSM/DCS/UMTS/HSDPA/LTE telephony systems operating in the 800-3000 MHz band.
It perfectly solves the common problem of lack of signal at the place of installation of a modem with a GSM/UMTS/LTE card.
In such a situation, it is usually enough to connect an antenna to the modem to obtain a sufficient signal.
In addition, the antenna has an integrated cable with a length of 5 meters, terminated with SMA plug.
The antenna is designed for cooperation with LTE modems (equipped with two antenna connectors), telephones and modems: GSM, DCS, 3G.
MIMO (Multiple Input, Multiple Output) – a solution increasing the bandwidth of a wireless network consisting in multi-antenna transmission both on the transmitting and receiving side.
Technical parameters:
Band: 800-3000 MHz,
Gain: up to 9 dBi,
Cable 2x 5 m,
SMA plug,

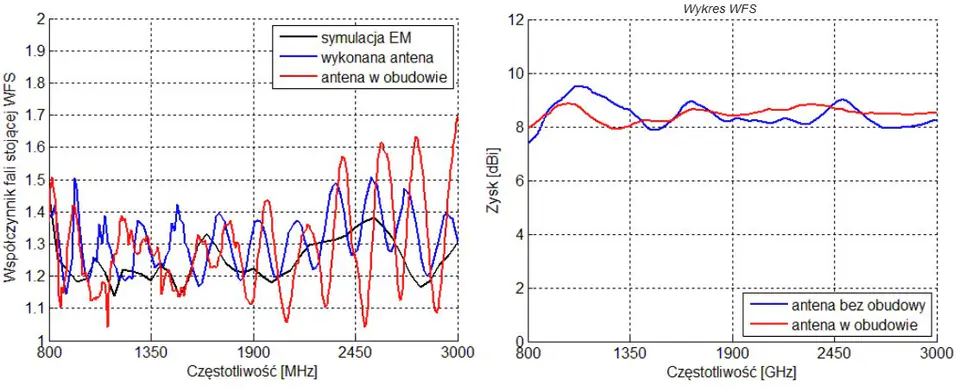

VSWR: max 1,7,
MIMO technique,
Compact for direct current,
| Name | ATK-LOG antenna ALP LTE MIMO 800-3000 MHz |
| Code | A7054_10 |
| Band [MHz] | 800-3000 |
| Gain [dBi] | 9 |
| Cable [m] | 5 |
| Joint | SMA plug |
| Polarity | V |

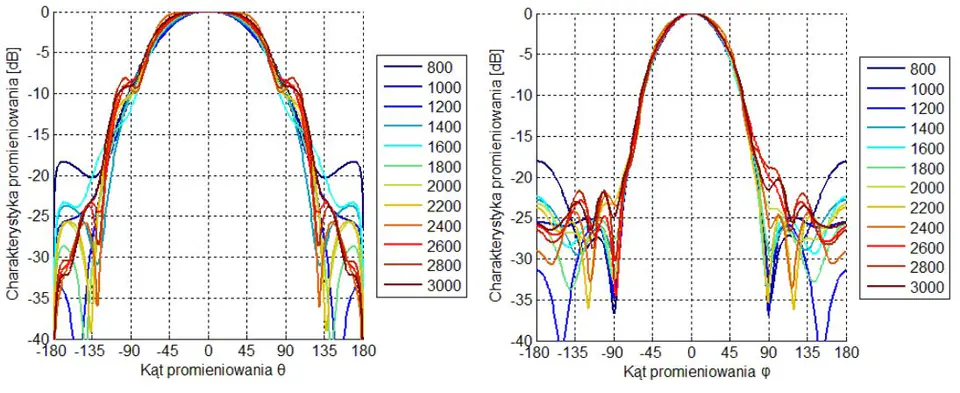

| Beam width H [°] | 76 |
| Beam width V [°] | 66 |
| VSWR | <1.7 |
| Impedance [Ω] | 50 |
| Compact for direct current (DC) | Yes |
| Packaging | paperboard |
| Weight [kg] | 1.80 m |
| Length [m] | 0,26 |
