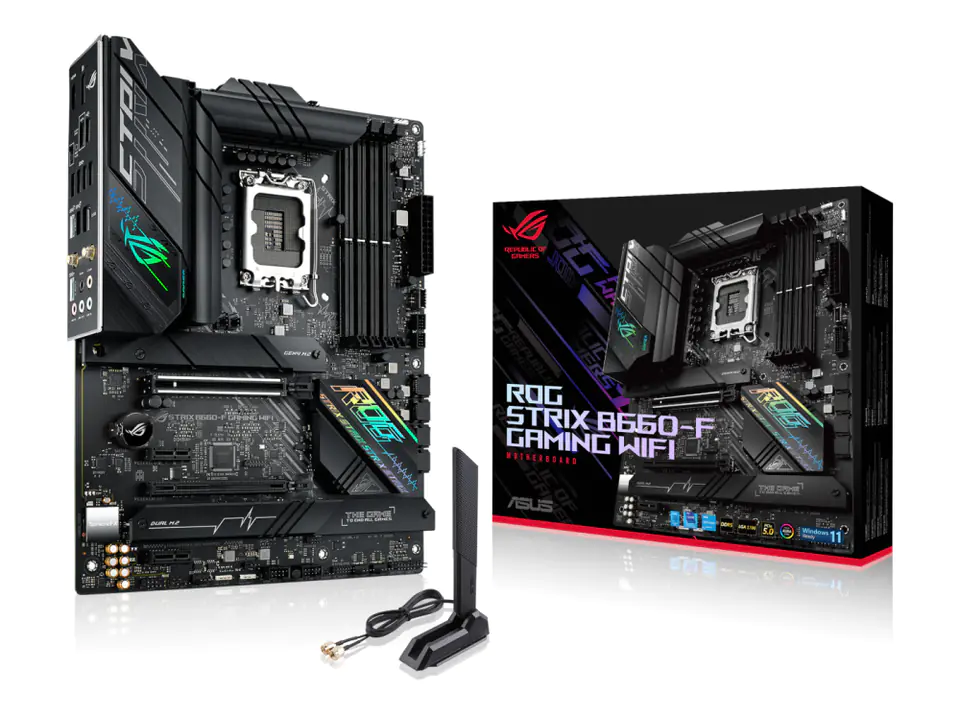

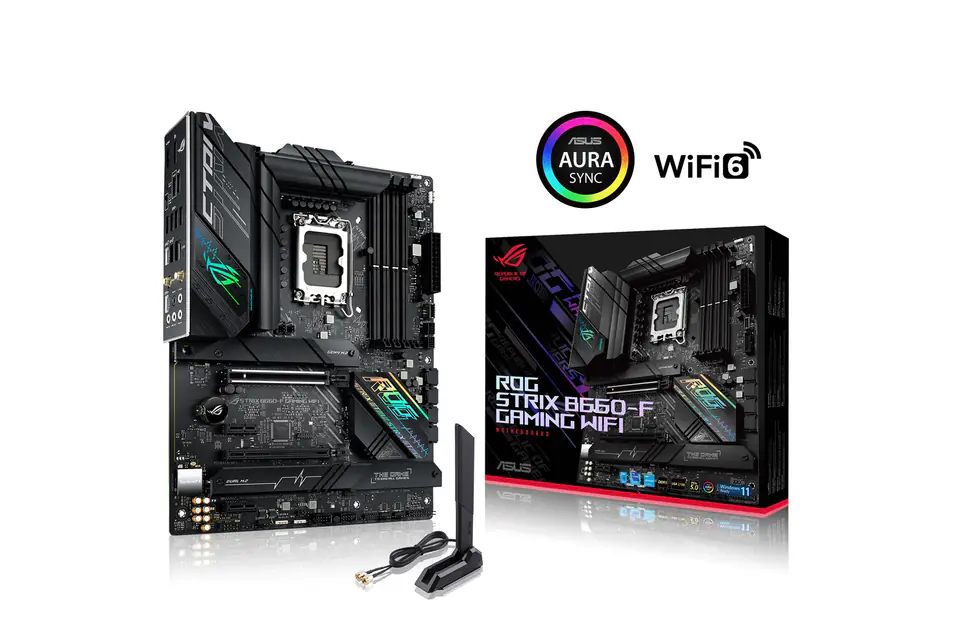

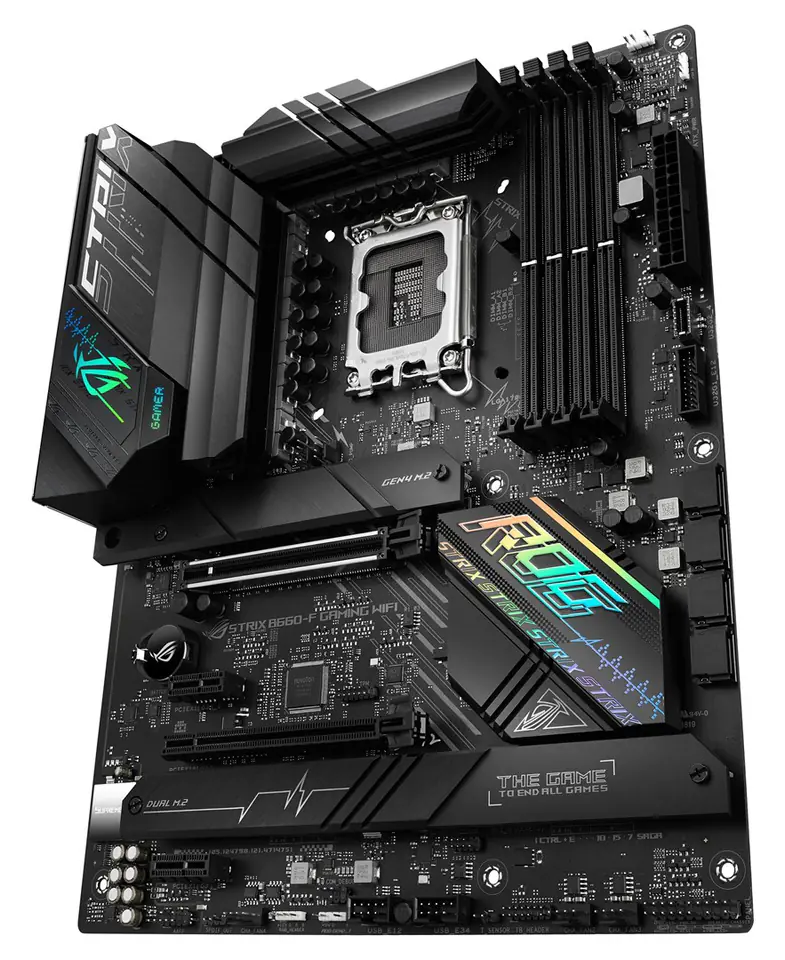

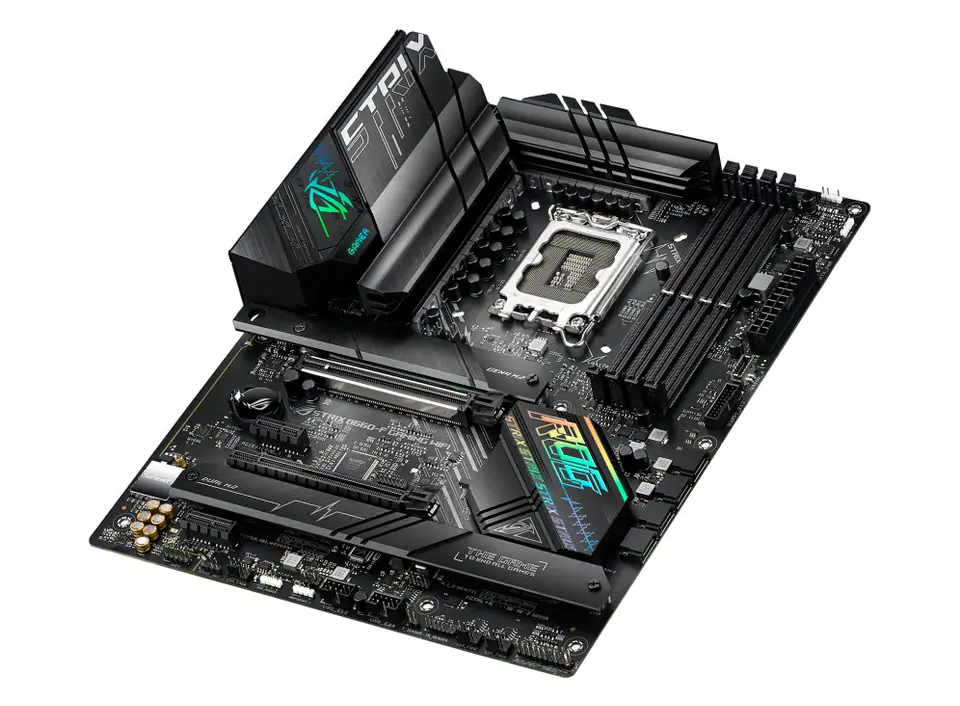

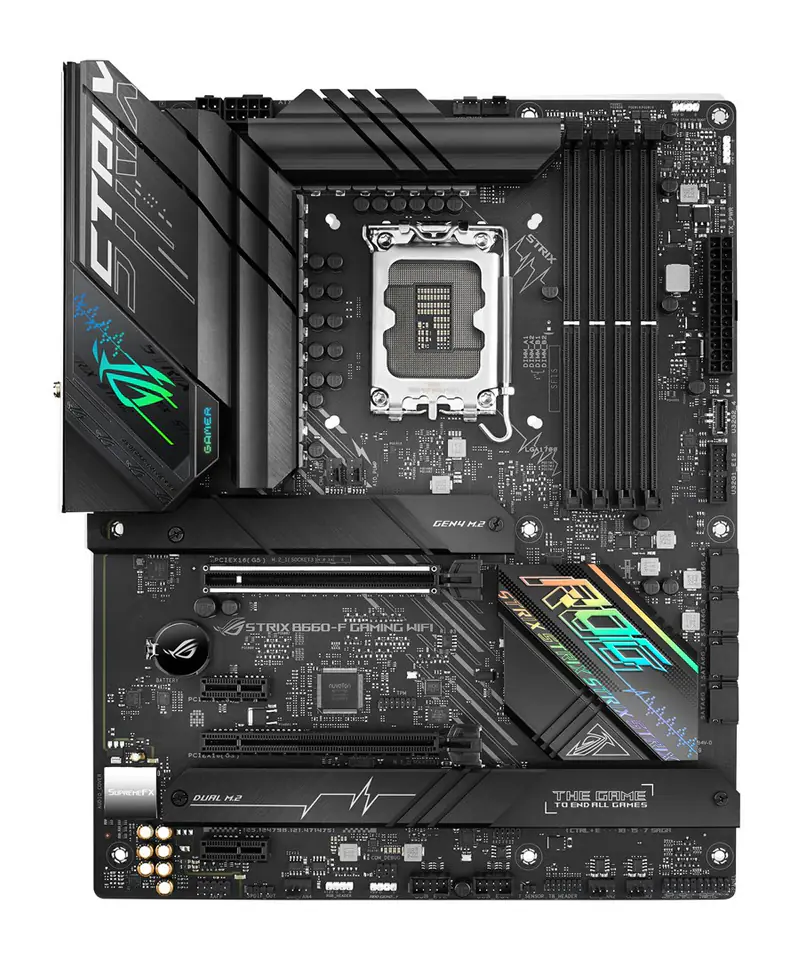

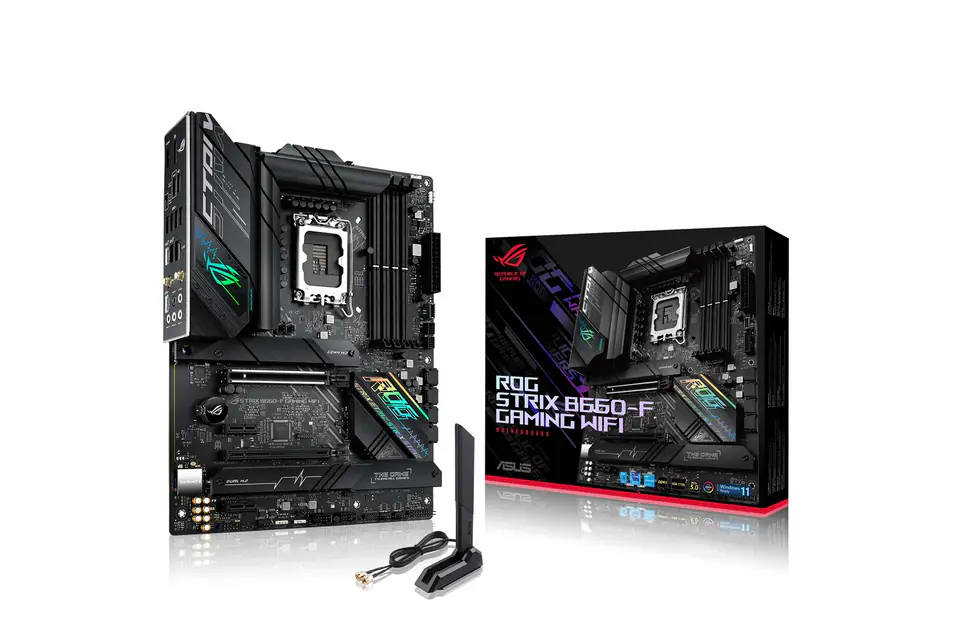

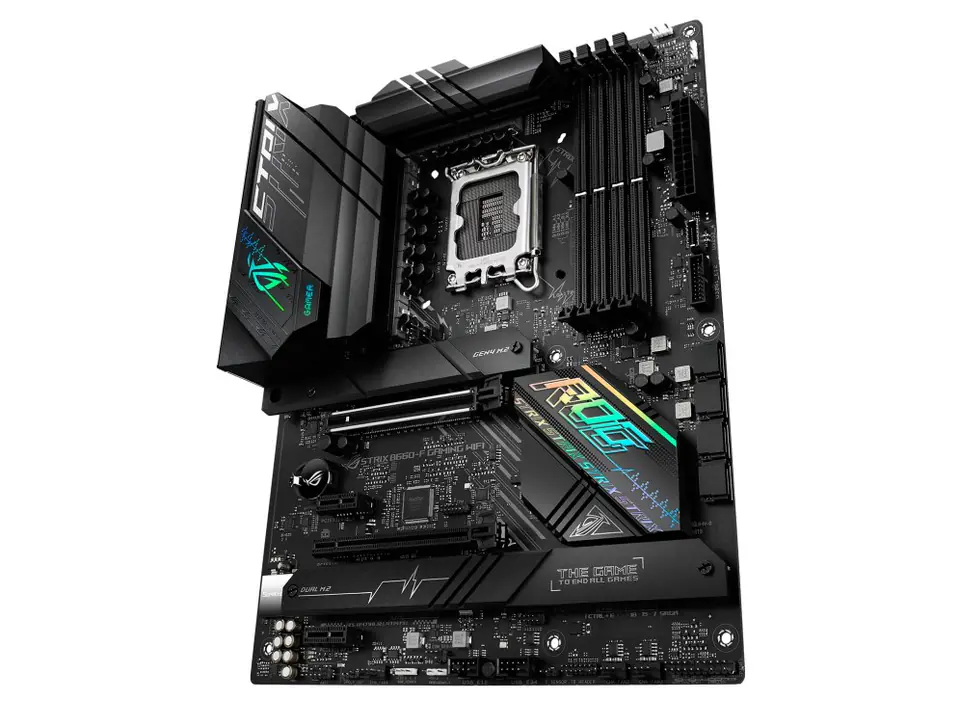

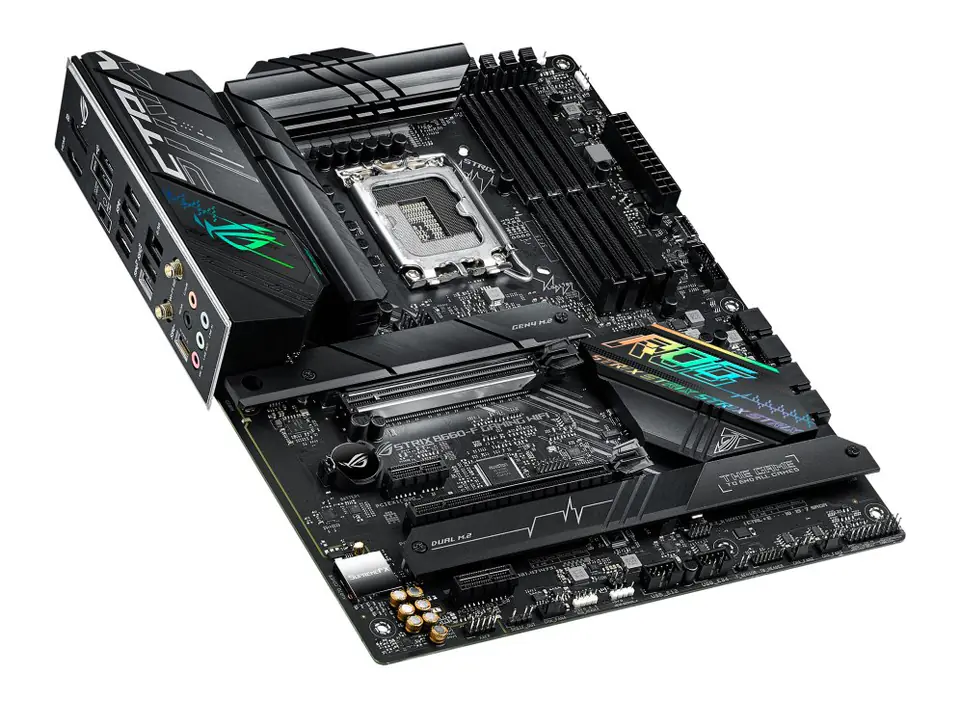

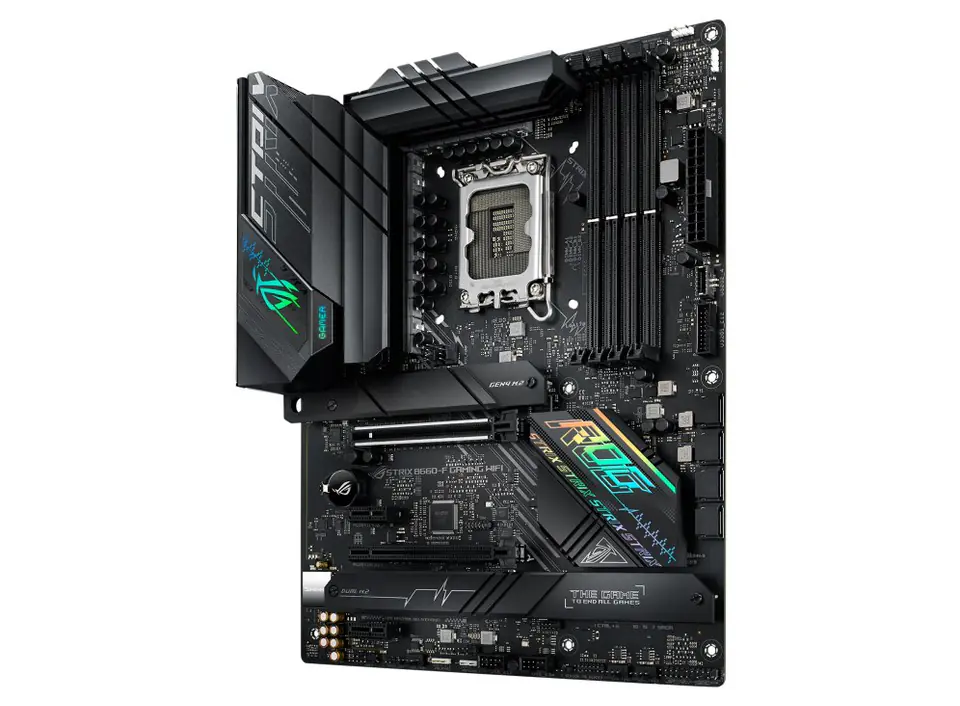

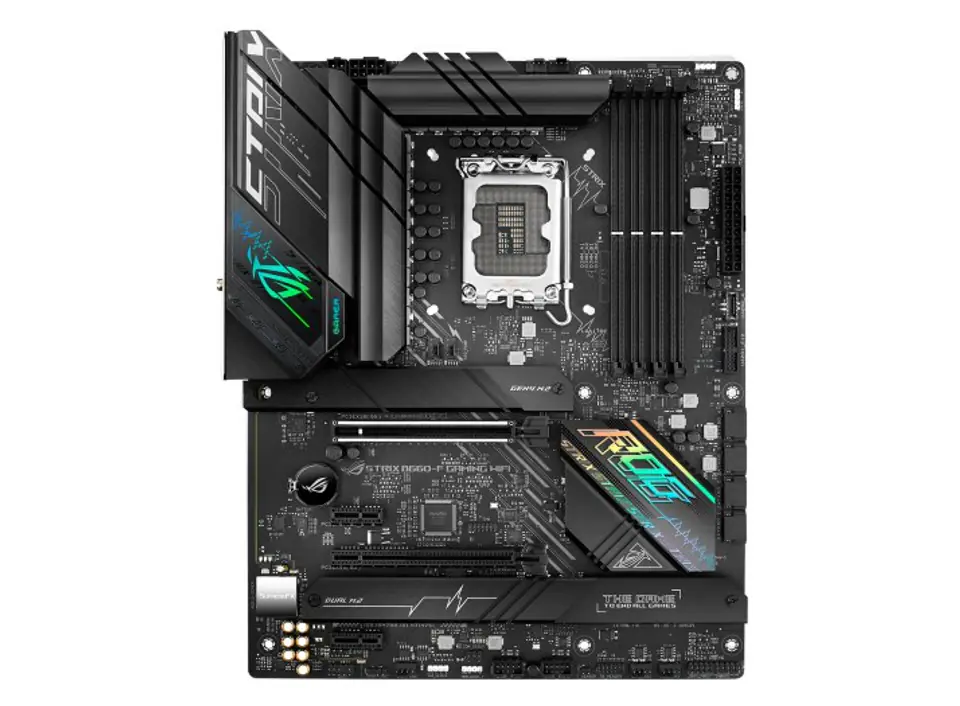

ASUS ROG STRIX B660-F GAMING WIFI Motherboard
This product is not available
- Availability:
- expected delivery
- Brand:
- Product code:
- 90MB18R0-M0EAY0 / 4711081552185
Share this product:
Specification
| 12v power connector: | Y |
|---|---|
| Atx power connector (24-pin): | Y |
| Atx power jack (24-pin): | Yes |
| Audio chip: | Realtek ALC4080 |
| Audio chipset: | Realtek ALC4080 |
| Audio output channels: | 7.1 channels |

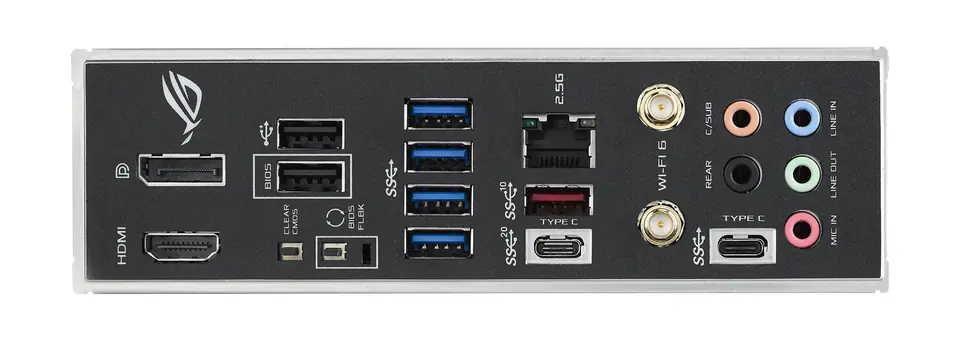

| Back panel connectors: | 1x DisplayPort, 1x RJ-45, 5x Audio, 1x HDMI, 2x USB 2.0, 7x USB 3.2, 1x ASUS Wi-Fi module |
| Basic wi-fi standard: | Wi-Fi 6 (802.11ax) |
| Bios: | AMI UEFI |
| Bios rom (mb): | 256 |
| Bios type: | UEFI AMI |
| Bios type: | UEFI AMI |
| Bluetooth: | Y |
| Bluetooth version: | 5.2 |
| Built-in raid controller: | RAID 0, RAID 1, RAID 10, RAID 5 |
| Cables: | SATA |
| Cables included: | SATA |
| Chassis intrusion connector: | Y |
| Chipset board family: | Intel |
| Chipset type: | Intel B660 |
| Clear cmos button: | Y |
| Compatibility: | The current list of supported processors and memory can be found on the manufacturer's website (CPU/Memory Support list) |
| Compatible processor series: | Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i5, Intel® Celeron® |
| Cpu fan connector: | Y |
| Cpu socket: | LGA 1700 |
| Depth: | 244 mm |
| Depth (mm): | 244 |
| Displayport quantity: | 1 |
| Displayport version: | 1.4 |
| Displayport version: | 1.4 |
| Displayports quantity: | 1 |
| Drive connectors: | 4x SATA III, 2x M.2 Slot |
| Eps power connector (8-pin): | Y |
| Eps power supply connector (8-pin): | Yes |
| Equipment: | Software, Documentation |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Ethernet lan: | Y |
| Ethernet lan (rj-45) ports: | 1 |
| Ethernet lan ports (rj-45) quantity: | 1 |
| Expansion slots: | 1x PCI Express 3.0 x16, 2x PCI Express 3.0 x1 |
| External audio connectors: | 5x Audio |
| Front panel audio connector: | Y |
| Front panel connector: | Y |
| Front-panel audio connector: | Yes |
| Graphics chipset: | CPU dependent |
| Graphics memory: | Shared with RAM |
| Harmonized system (hs) code: | 84733020 |
| Hdmi ports quantity: | 1 |
| Hdmi version: | 2.1 |
| Height: | 68 mm |
| Integrated graphics: | Yes |
| Integrated network adapter: | Yes |
| Internal connectors: | 2x USB 2.0, 2x CPU Fan, 4x Case Fan, ATX 24P, 1x S/PDIF, 1x Front Panel Audio connector(s), 1x 8-pin 12V power supply, 2x USB 3.2, 1x 4-pin 12V power supply, 1x SPI TPM Header |
| Lan controller: | Intel I225-V |
| Lan controller: | Intel I225-V |
| Led rgb: | Yes |
| Line: | ROG |
| Maximum internal memory: | 128 GB |
| Maximum memory (gb): | 128 |
| Maximum memory capacity: | 128 GB |
| Maximum number of processors: | 1 |
| Memory bus frequencies (mhz): | 6000 |
| Memory channel support: | Dual |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Memory slots type: | DIMM |
| Modem: | No |
| Motherboard chipset: | Intel B660 |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | ATX |
| Motherboard layout: | Intel B660 |
| Multi-channel memory support: | Dual-Chanel |
| Network adapter chipset: | Intel 2.5GbE LAN |
| Number of chassis fan connectors: | 4 |
| Number of hdds supported: | 4 |
| Number of hdmi ports: | 1 |
| Number of m.2 (m) slots: | 3 |
| Number of m.2 slots (m): | 3 |
| Number of memory slots: | 4 |
| Number of sata iii connectors: | 4 |
| Number of storage drives supported: | 7 |
| Number of supported memory disk sizes: | 7 |
| Other parameters: | High Definition Audio, Bluetooth 5.2 |
| Pci express x1 (gen 3.x) slots: | 2 |
| Pci express x16 (gen 3.x) slots: | 1 |
| Pci express x16 (gen 5.x) slots: | 1 |
| Plate standard: | ATX |
| Plate type: | ATX |
| Power source type: | ATX |
| Power type: | ATX |
| Processor: | Intel Core i7, Intel Pentium Gold, Intel Core i5, Intel Celeron®, Intel Core i3, Intel®®®®®® Core™™™™ i9® |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1700 |
| Product depth: | 244 mm |
| Product height: | 68 mm |
| Product weight: | 1.42 kg |
| Product width: | 305 mm |
| Raid levels: | 0, 5, 10, 1 |
| Raid service: | Yes |
| Raid support: | Y |
| Rgb led pin header: | Y |
| S/pdif out connector: | Y |
| S/pdif slot: | Yes |
| Socket type: | LGA1700 |
| Sound technologies: | HD Audio |
| Supported channels: | 7.1 |
| Supported cpu sockets: | LGA 1700 |
| Supported drive types: | HDD & SSD |
| Supported hard drive interfaces: | M.2, PCI Express 3.0, PCI Express 4.0, SATA III |
| Supported memory: | DDR4 |
| Supported memory clock speeds: | 4800, 5200, 5600, 6000, 5800, 5400, 5000 |
| Supported memory types: | DDR5-SDRAM |
| Supported processor sockets: | LGA 1700 |
| Supported processors: | Intel Core, Pentium Gold, Celeron 12th generation |
| Supported storage drive interfaces: | M.2, PCI Express 3.0, PCI Express 4.0, SATA III |
| Supported storage drive types: | HDD & SSD |
| Supported usb type: | USB Type-A, USB Type-C |
| Supported windows operating systems: | Windows 11 x64, Windows 10 x64 |
| Technologies: | USB |
| Thunderbolt headers: | 1 |
| Thunderbolt tips: | 1 |
| Top wi-fi standard: | Wi-Fi 6 (802.11ax) |
| Tpm connector: | Y |
| Type of packaging: | BOX |
| Unbuffered memory: | Y |
| Usb 2.0 connectors: | 2 |
| Usb 2.0 ports quantity: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) ports: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 4 |
| Usb 3.2 gen 1 (3.1 gen 1) type-c ports quantity: | 1 |
| Usb 3.2 gen 2 (3.1 gen 2): | 1 |
| Usb 3.2 gen 2 (3.1 gen 2) connectors: | 1 |
| Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: | 1 |
| Usb 3.2 gen 2x2 type-c ports quantity: | 1 |
| Usb connector type: | USB Type-C, USB Type-A |
| Warehouse: | Global |
| Warranty: | 3 years |
| Weight: | 1.42 kg |
| Wi-fi: | Y |
| Wi-fi standards: | Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11b, 802.11a, Wi-Fi 6 (802.11ax) |
| Width: | 305 mm |
| Width (mm): | 305 |
| Wifi-ap antenna jack: | 2 |
| Wifi-ap antenna jack plug: | 2 |
| Windows operating systems supported: | Windows 11 x64, Windows 10 x64 |
| Wired lan: | Yes |
| Wireless support: | Yes |
