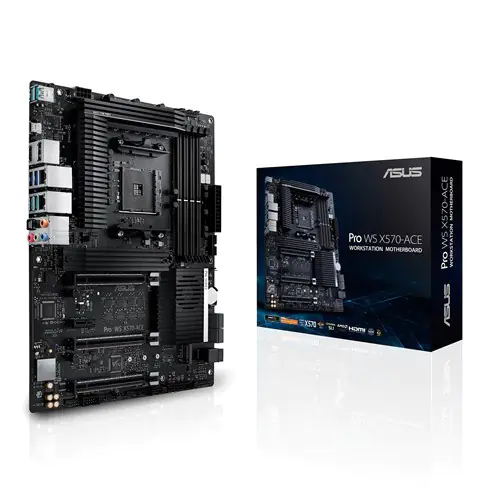

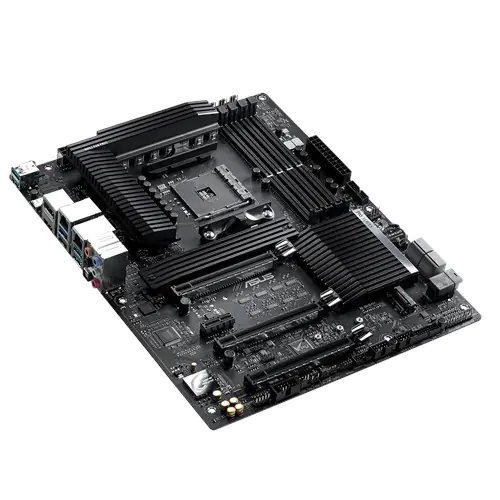

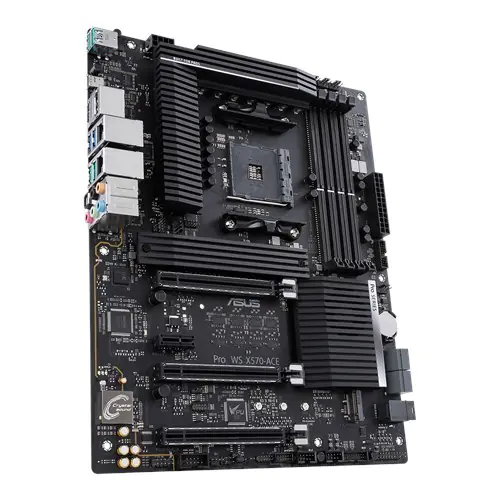

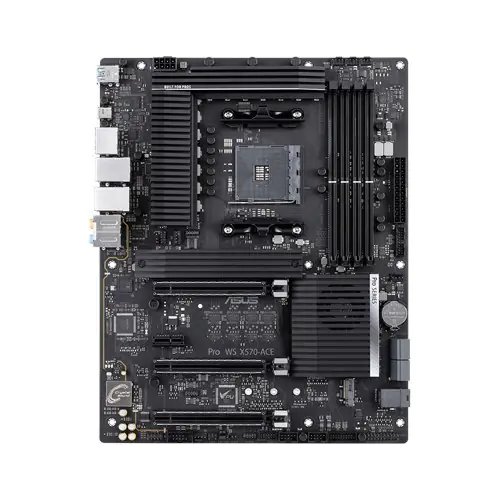

ASUS Pro WS X570-ACE AMD X570 Socket AM4 ATX
This product is not available
- Availability:
- expected delivery
- Brand:
- Product code:
- 90MB11M0-M0EAY0 / 4718017322713
Share this product:
Specification
| Acpi version: | 6.0 |
|---|---|
| Analog audio output: | 1 |
| Atx power connector (24-pin): | Y |
| Audio chip: | Realtek ALC S1200A |
| Audio output channels: | 8.0 channels |
| Bios memory size: | 256 Mbit |
| Bios type: | UEFI AMI |
| Compatible processor series: | 3rd Generation AMD Ryzen™ 3, 2nd Generation AMD Ryzen™ 5, 2nd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9, 3rd Generation AMD Ryzen™ 7, 2nd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5 |
| Component for: | PC |
| Cooling type: | Active |
| Cpu fan connector: | Y |
| Depth: | 244 mm |
| Displayport version: | 1.2 |
| Displayports quantity: | 1 |
| Ecc: | Y |
| Eps power connector (8-pin): | Y |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet lan: | Y |
| Ethernet lan (rj-45) ports: | 2 |
| Front panel audio connector: | Y |
| Front panel connector: | Y |
| Harmonized system (hs) code: | 84733020 |
| Hdmi ports quantity: | 1 |
| Hdmi version: | 1.4b |
| Headphone outputs: | 1 |
| Height: | 77 mm |
| Lan controller: | Intel® I211-AT, Realtek RTL8117 |
| Maximum internal memory: | 128 GB |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Microphone in: | Y |
| Motherboard chipset: | AMD X570 |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | ATX |
| Non-ecc: | Y |
| Number of chassis fan connectors: | 3 |
| Number of displays supported: | 2 |
| Number of hdds supported: | 6 |
| Number of m.2 (m) slots: | 1 |
| Number of memory slots: | 4 |
| Number of mounting holes: | 9 |
| Number of sata iii connectors: | 4 |
| Number of ultra m.2 (m) slots: | 1 |
| On-board graphics card: | Y |
| Parallel processing technology support: | 2-Way SLI, 3-Way CrossFireX |
| Pci express x1 slots: | 1 |
| Pci express x16 slots: | 2 |
| Pci express x8 slots: | 1 |
| Peripheral (molex) power connectors (4-pin): | 1 |
| Power source type: | ATX |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM4 |
| Raid levels: | 10, 1, 0 |
| S/pdif in port: | Y |
| S/pdif out connector: | Y |
| S/pdif out port: | Y |
| Supported memory types: | DDR4-SDRAM |
| Supported storage drive interfaces: | M.2, PCI Express 3.0, SATA III |
| Supported storage drive types: | HDD & SSD |
| System management bios (smbios) version: | 3.2 |
| Unbuffered memory: | Y |
| Usb 2.0 connectors: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 2 |
| Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: | 4 |
| Usb 3.2 gen 2 (3.1 gen 2) type-c ports quantity: | 1 |
| Weight: | 1 kg |
| Wi-fi: | N |
| Width: | 305 mm |
| Windows operating systems supported: | Windows 10 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
