| 12v power connector: | Y |
|---|
| Atx power connector (24-pin): | Y |
|---|
| Audio chip: | Realtek ALC887 |
|---|
| Audio chipset: | Realtek ALC-887 |
|---|
| Audio connector: | Y |
|---|
| Audio output channels: | 7.1 channels |
|---|
| Bios: | AMI UEFI |
|---|
| Bios memory size: | 192 Mbit |
|---|
| Bios rom (mb): | 128, 64 |
|---|
| Bios type: | UEFI AMI |
|---|
| Built-in raid controller: | RAID 0, RAID 1, RAID 10, RAID 5 |
|---|
| Cables included: | SATA |
|---|
| Chassis intrusion connector: | Y |
|---|
| Chipset: | Intel Q470 |
|---|
| Chipset type: | Intel Q470 |
|---|
| Clear cmos jumper: | Y |
|---|
| Compatibility: | The current list of supported processors and memory can be found on the manufacturer's website (CPU/Memory Support list) |
|---|
| Compatible processor series: | Intel® Core™ i3, Intel® Pentium®, Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i5, Intel® Celeron® |
|---|
| Component for: | PC |
|---|
| Cpu fan connector: | Y |
|---|
| Depth: | 244 mm |
|---|
| Depth (mm): | 244 |
|---|
| Disc format: | mATX |
|---|
| Displayport version: | 1.4 |
|---|
| Displayports quantity: | 2 |
|---|
| Drive connectors: | 6x SATA III, 2x M.2 Slot |
|---|
| Ecc: | Y |
|---|
| Equipment: | Software |
|---|
| Ethernet interface type: | Gigabit Ethernet |
|---|
| Ethernet lan: | Yes |
|---|
| Ethernet lan (rj-45) ports: | 1 |
|---|
| Expansion slots: | 1x PCI, 1x PCI Express 3.0 x16 (x16), 1x PCI Express 3.0 x1 |
|---|
| External audio connectors: | 3x Audio |
|---|
| Front panel audio connector: | Y |
|---|
| Graphics chipset: | Processor dependent |
|---|
| Graphics memory: | Shared with RAM |
|---|
| Hdmi ports quantity: | 1 |
|---|
| Hdmi version: | 1.4b |
|---|
| Integrated graphics: | Yes |
|---|
| Integrated network card: | Yes |
|---|
| Internal connectors: | 1x USB 2.0, 2x Chassis Fan, Chasiss Intrusion, EATX 24P, System Panel, CPU Fan, Clear CMOS, EATX 12 8P, 2x COM port, 2x USB 3.2 |
|---|
| Internal i/o connectors: | 6x SATA 6Gb/s | 2x M.2 | 1x PCIe 3.0 (x16) | 1x PCIe 3.0 (x1) | 1x PCI | 1x USB Type-C | 1x USB 3.2 Gen 1 | 1x USB 2.0 |
|---|
| Lan controller: | Intel I219LM |
|---|
| Line: | Pro |
|---|
| Manufacturer's warranty: | 36 months |
|---|
| Maximum internal memory: | 128 GB |
|---|
| Maximum memory capacity: | 128 GB |
|---|
| Maximum memory size (gb): | 128 |
|---|
| Maximum number of processors: | 1 |
|---|
| Maximum number of smp processors: | 1 |
|---|
| Maximum resolution: | 4096 x 2304 pixels |
|---|
| Memory bus frequencies (mhz): | 2133, 2400, 2666, 2800, 2933 |
|---|
| Memory channels: | Dual-channel |
|---|
| Memory slots type: | DIMM |
|---|
| Modem: | No |
|---|
| Motherboard chipset: | Intel Q470 |
|---|
| Motherboard chipset family: | Intel |
|---|
| Motherboard form factor: | micro ATX |
|---|
| Multi-channel memory support: | Dual-Chanel |
|---|
| Network adapter: | Intel® Gigabit LAN (I219-LM) |
|---|
| Network adapter chipset: | Intel I219LM |
|---|
| Non-ecc: | Y |
|---|
| Number of chassis fan connectors: | 2 |
|---|
| Number of com connectors: | 2 |
|---|
| Number of m.2 (m) slots: | 2 |
|---|
| Number of memory banks: | 4x DIMM |
|---|
| Number of memory slots: | 4 |
|---|
| Number of sata iii connectors: | 6 |
|---|
| Other parameters: | High Definition Audio Support |
|---|
| Packaging type: | BOX |
|---|
| Parallel processing technology support: | Not supported |
|---|
| Pci express x1 (gen 3.x) slots: | 1 |
|---|
| Pci express x16 (gen 3.x) slots: | 1 |
|---|
| Pci slots: | 1 |
|---|
| Plate standard: | mATX |
|---|
| Processor manufacturer: | Intel |
|---|
| Processor socket: | LGA 1200 |
|---|
| Ps/2 ports quantity: | 2 |
|---|
| Raid levels: | 0, 10, 5, 1 |
|---|

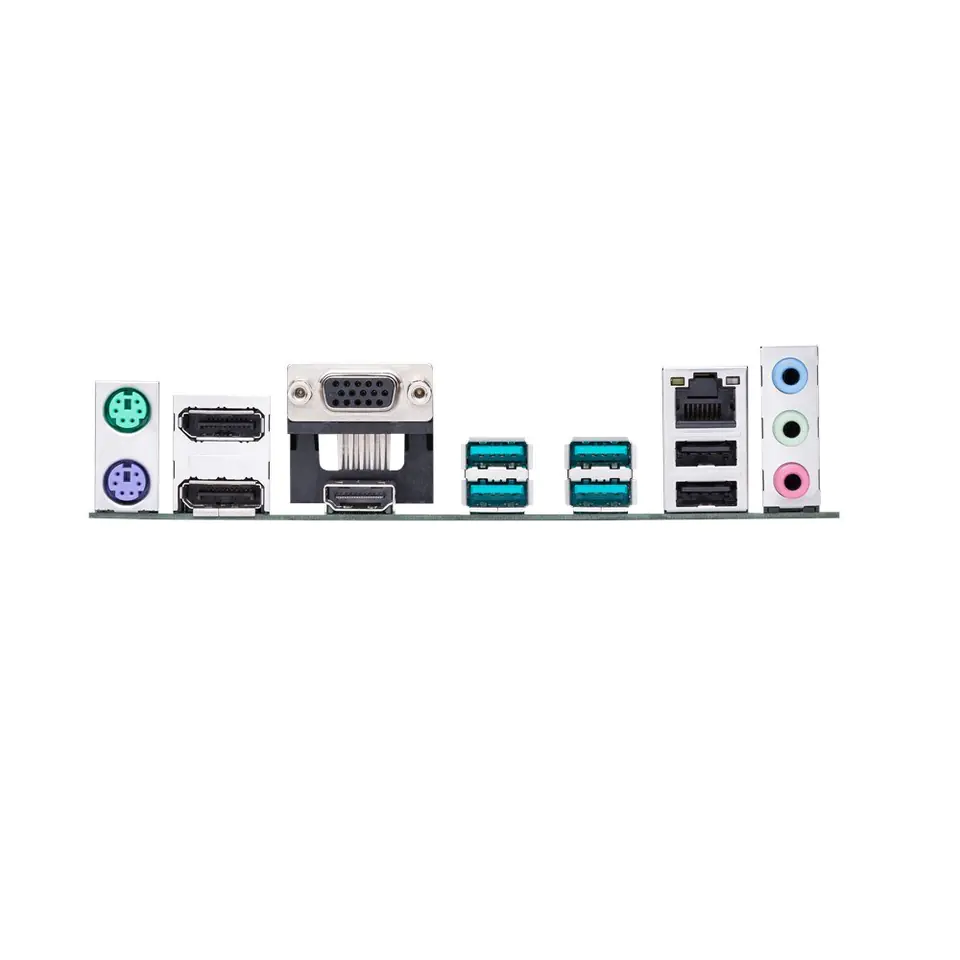

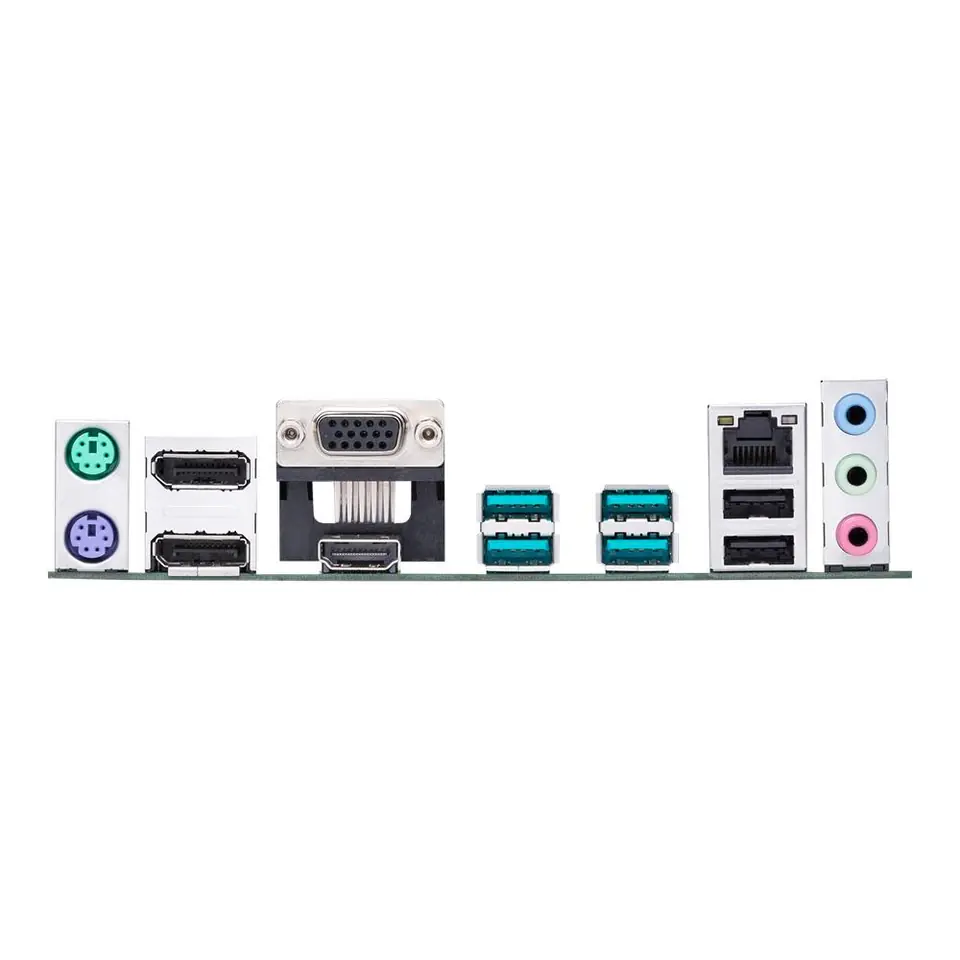

| Rear panel connectors: | 1x RJ-45, 1x HDMI, 1x VGA, 2x PS/2, 2x USB 2.0, 3x Audio, 2x DisplayPort, 4x USB 3.2 |
|---|
| Rear panel i/o connectors: | 1x HDMI | 1x D-Sub | 2x DisplayPort | 4x USB 3.2 Gen 2 | 2x USB 2.0 | 2x PS/2 | 1x RJ-45 | 3x Audio jack |
|---|
| Socket: | 1200 |
|---|
| Socket type: | Socket 1200 |
|---|
| Sound card: | Realtek ALC887 |
|---|
| Sound technologies: | HD Audio |
|---|
| Support for combining tabs: | No |
|---|
| Supported channels: | 7.1 |
|---|
| Supported memory: | DDR4 2933/2800/2666/2400/2133 MHz |
|---|
| Supported memory clock speeds: | 2400, 2800, 2933, 2666 MHz, 2133 |
|---|
| Supported memory types: | DDR4-SDRAM |
|---|
| Supported processors: | 10th Generation Intel Core/Pentium Gold/Celeron processors |
|---|
| Supported storage drive interfaces: | SATA III |
|---|
| Supported storage drive types: | HDD & SSD |
|---|
| Technologies: | SATA |
|---|
| Unbuffered memory: | Y |
|---|
| Usb 2.0 connectors: | 1 |
|---|
| Usb 2.0 ports quantity: | 2 |
|---|
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 2 |
|---|
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 4 |
|---|
| Vga (d-sub) ports quantity: | 1 |
|---|
| Wake-on-lan ready: | Y |
|---|
| Warranty: | 3 years |
|---|
| Wi-fi: | No |
|---|
| Width: | 244 mm |
|---|
| Width (mm): | 244 |
|---|
| Windows operating systems supported: | Windows 10 x64 |
|---|
| Wireless support: | No |
|---|
