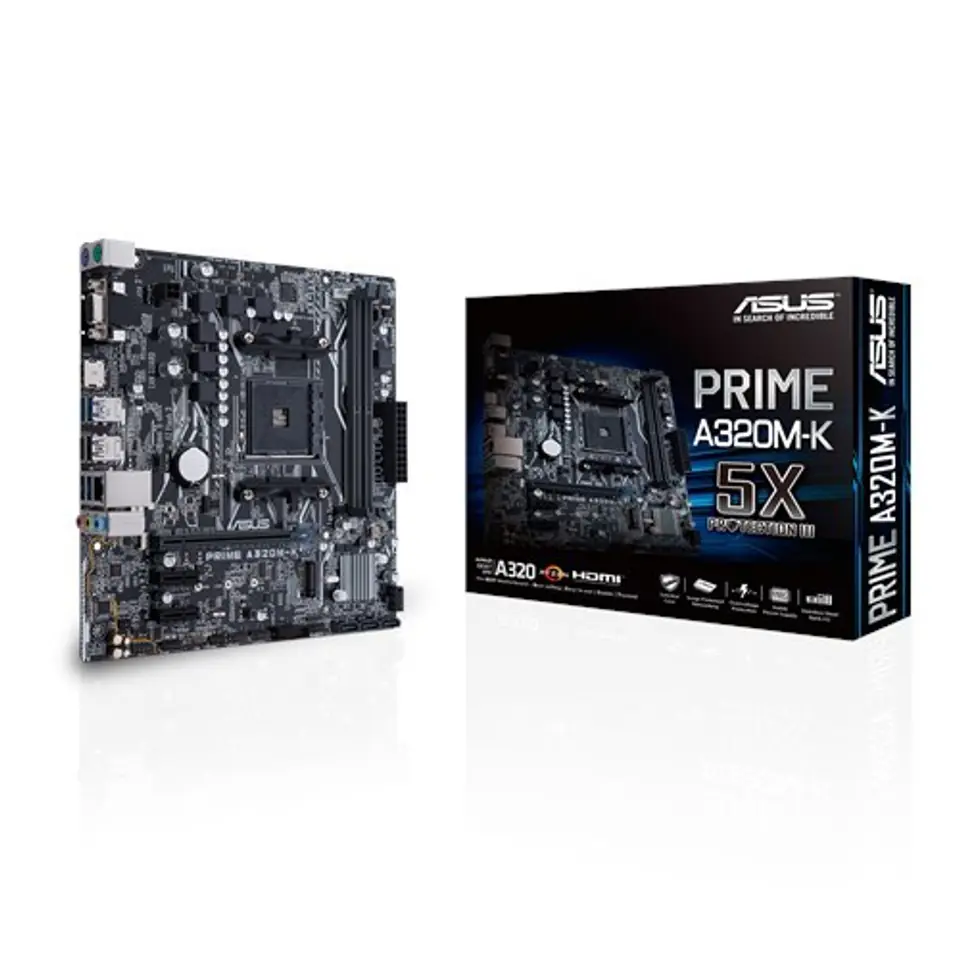

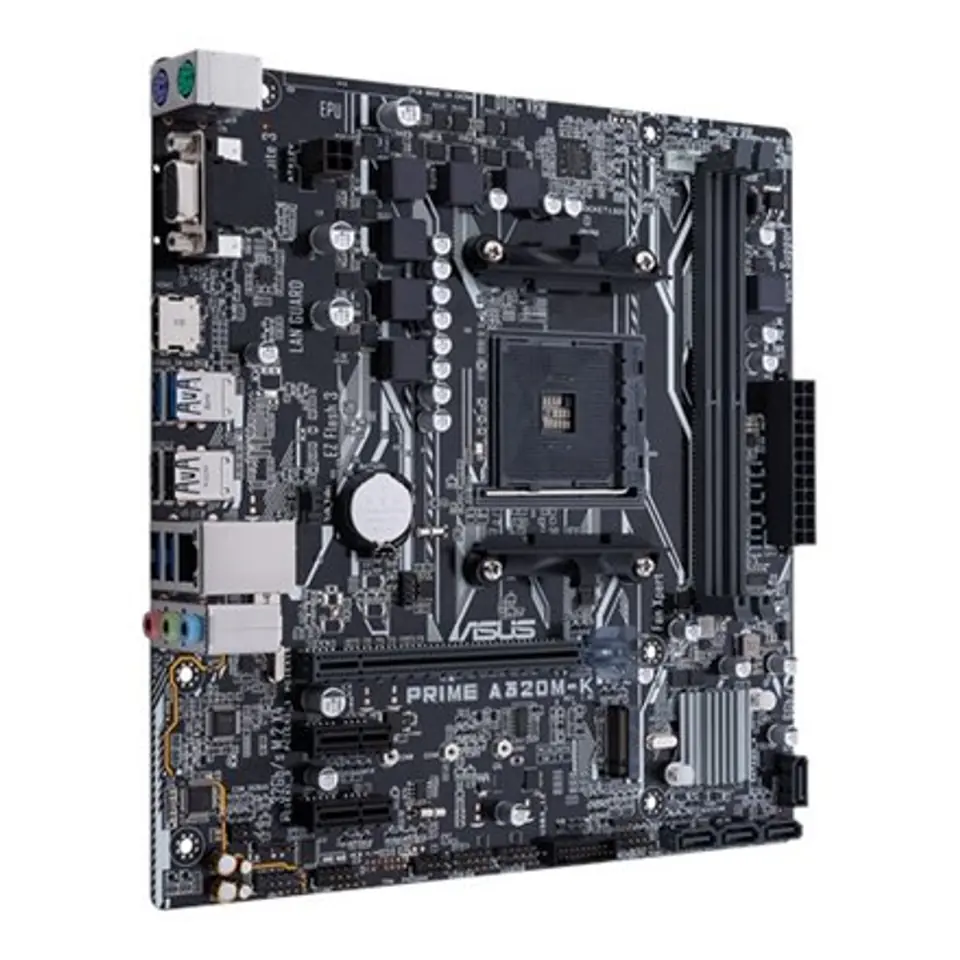

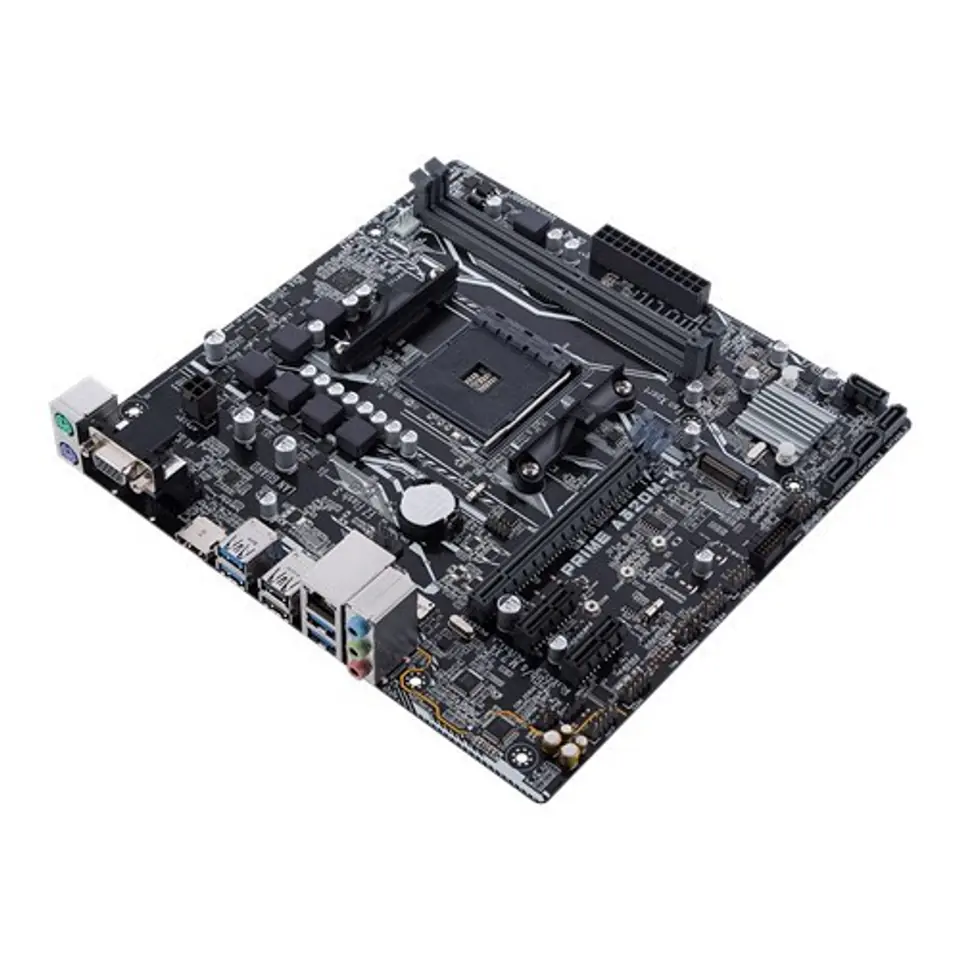

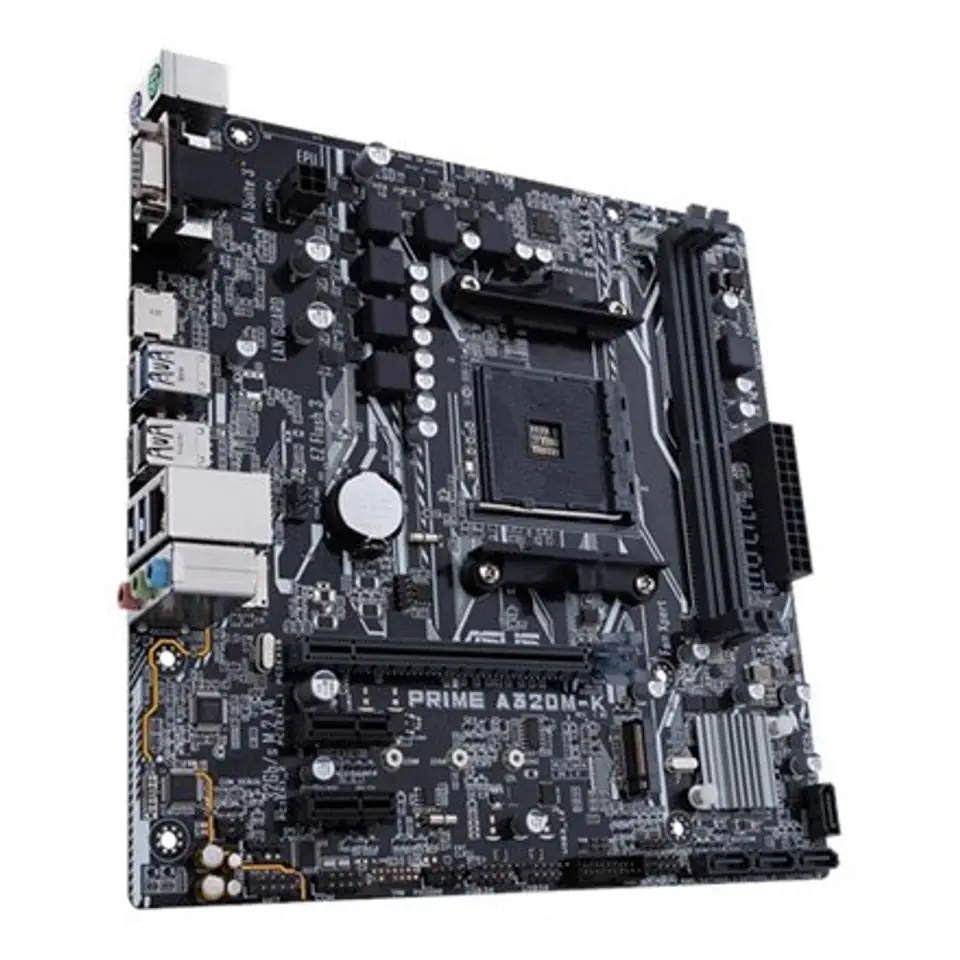

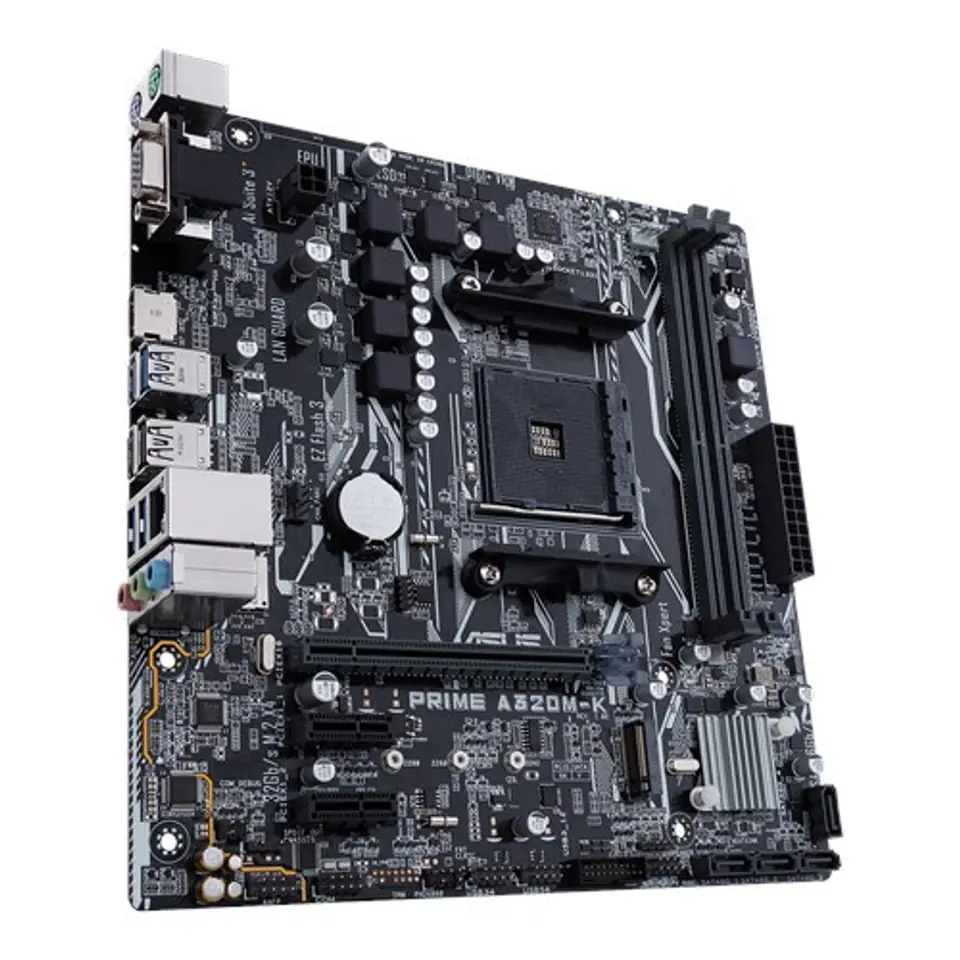

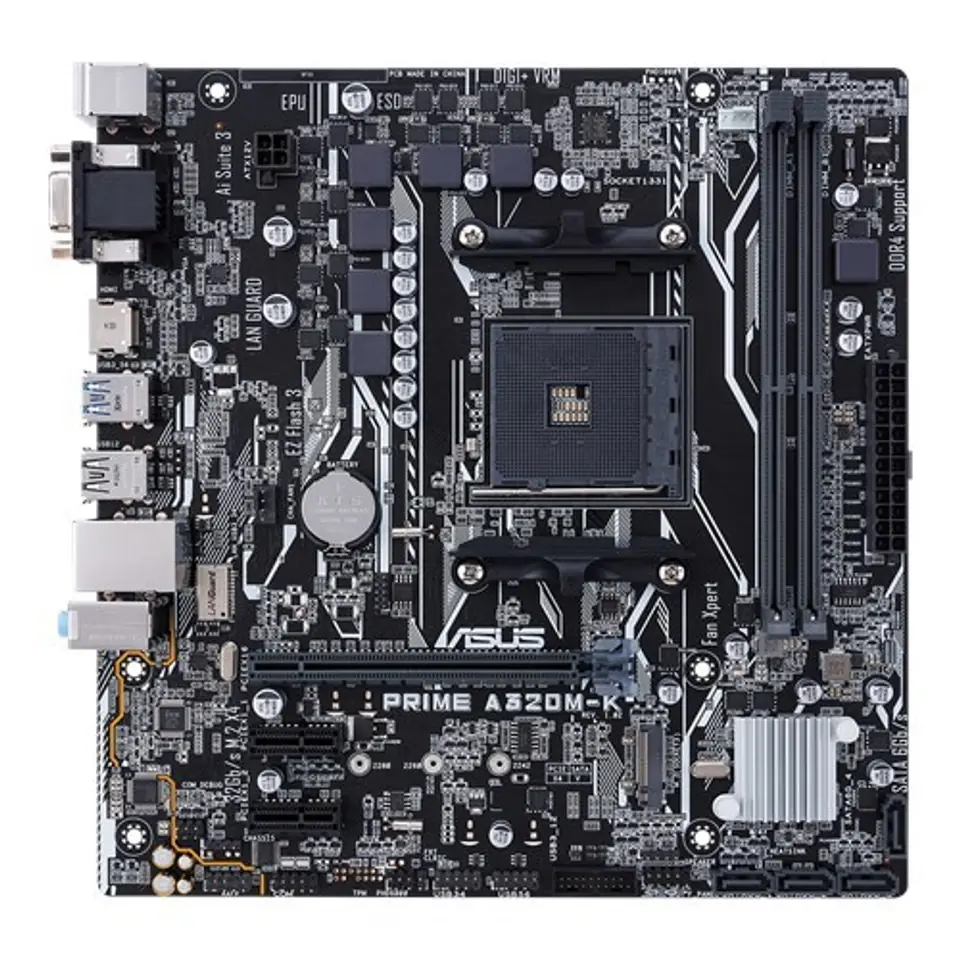

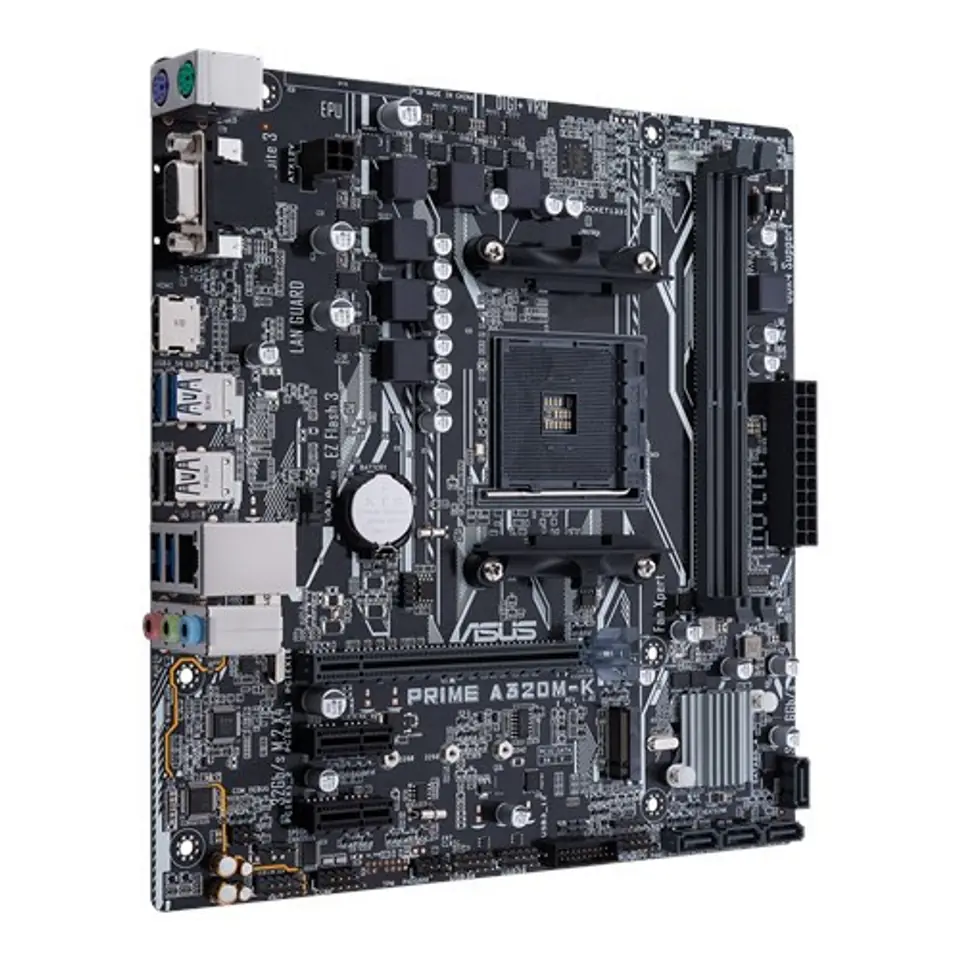

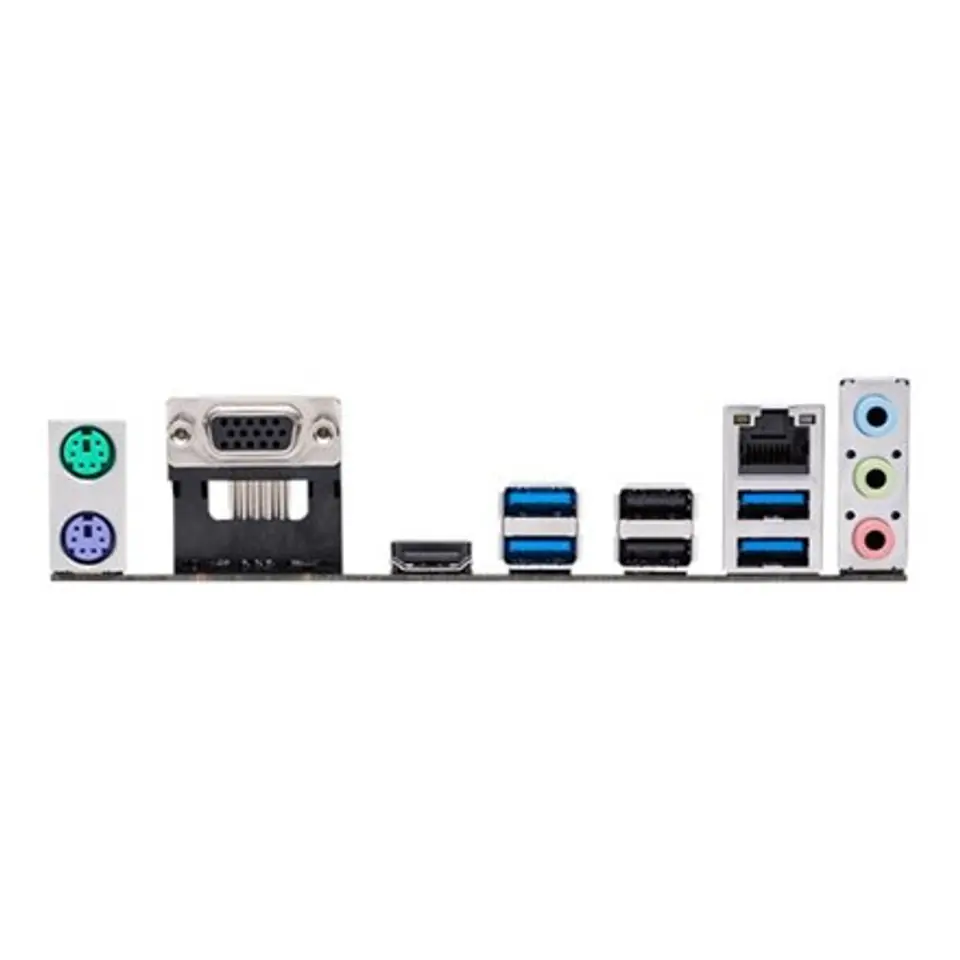

ASUS MB PRIME A320M-K Socket AM4 micro ATX AMD A320
This product is not available
- Availability:
- expected delivery
- Brand:
- Product code:
- 90MB0TV0-M0EAY0 / 4712900672060
Share this product:
Specification
| Atx power connector (24-pin): | Yes |
|---|---|
| Audio connector: | Y |
| Audio output channels: | 7.1 channels |
| Bios type: | UEFI AMI |
| Clear cmos jumper: | Y |
| Com ports quantity: | 1 |
| Compatible processor series: | 3rd Generation AMD Ryzen™ 3, 2nd Generation AMD Ryzen™ 5, AMD Ryzen™ 5, 2nd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9, 2nd Generation AMD Ryzen™ 3, AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 7, AMD A, AMD Athlon, AMD Athlon™ X4, AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5 |
| Cpu fan connector: | Y |
| Depth: | 221 mm |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Y |
| Graphics card family: | AMD |
| Hdmi ports quantity: | 1 |
| Hdmi version: | 1.4b |
| Lan controller: | Realtek RTL8111H |
| Maximum graphics card memory: | 2048 MB |
| Maximum internal memory: | 32 GB |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Motherboard chipset: | AMD A320 |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | micro ATX |
| Number of chassis fan connectors: | 1 |
| Number of eatx power connectors: | 1 |
| Number of memory slots: | 2 |
| Number of sata connectors: | 4 |
| Pci express x1 (gen 2.x) slots: | 2 |
| Pci express x16 slots: | 1 |
| Peripheral (molex) power connectors (4-pin): | 1 |
| Power source type: | ATX |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM4 |
| Ps/2 ports quantity: | 2 |
| S/pdif out connector: | Y |
| S/pdif out port: | Yes |
| Supported memory clock speeds: | 2933, 3200 MHz, 2666 MHz, 2400, 2133 |
| Supported memory types: | DDR4-SDRAM |
| Supported storage drive interfaces: | M.2, PCI Express 3.0, Serial ATA |
| Usb 2.0 connectors: | 2 |
| Usb 2.0 ports quantity: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 4 |
| Vga (d-sub) ports quantity: | 1 |
| Width: | 226 mm |
| Windows operating systems supported: | Windows 10 Pro x64, Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64 |
