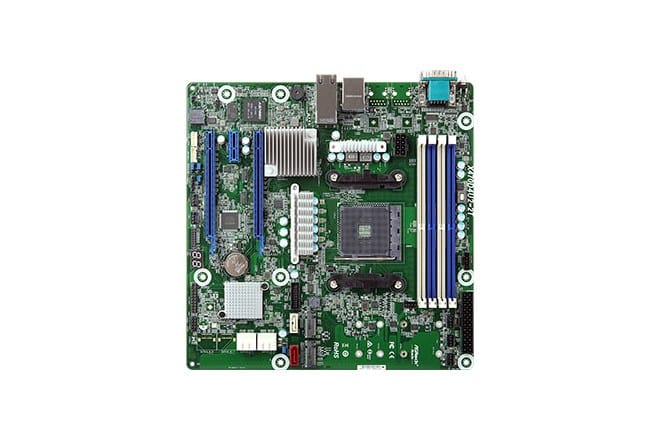

ASRock X470D4U2/1N1 1x AM4 AMD Ryzen X470 6xSATA, 2xM.2, 2xGbE, IPMI) - motherboar
This product is not available
- Availability:
- expected delivery
- Brand:
- ASRock
- Product code:
- X470D4U2/1N1 / 4710483934087
Share this product:
Specification
| Bios type: | UEFI AMI |
|---|---|
| Clear cmos button: | Yes |
| Component for: | PC |
| Ethernet interface type: | 10 Gigabit |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 3 |
| Lan controller: | Realtek RTL8211E |
| Memory slots type: | DIMM |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | micro ATX |
| Number of memory slots: | 4 |
| Number of sata iii connectors: | 6 |
| Number of usb sockets 3.2: | 2 |
| Pci express x16 (gen 4.x) slots: | 2 |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM4 |
| Raid levels: | 10, 1, 0 |
| Raid support: | Yes |
| Serial port headers: | 1 |
| Smbus connector (4-pin): | 1 |
| Supported memory types: | DDR4 ECC/non-ECC UDIMM |
| Supported storage drive interfaces: | Ultra M.2 |
| Tpm connector: | Yes |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 1 |
| Vga (d-sub) input ports: | 1 |
| Windows operating systems supported: | Windows 10 x64 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
