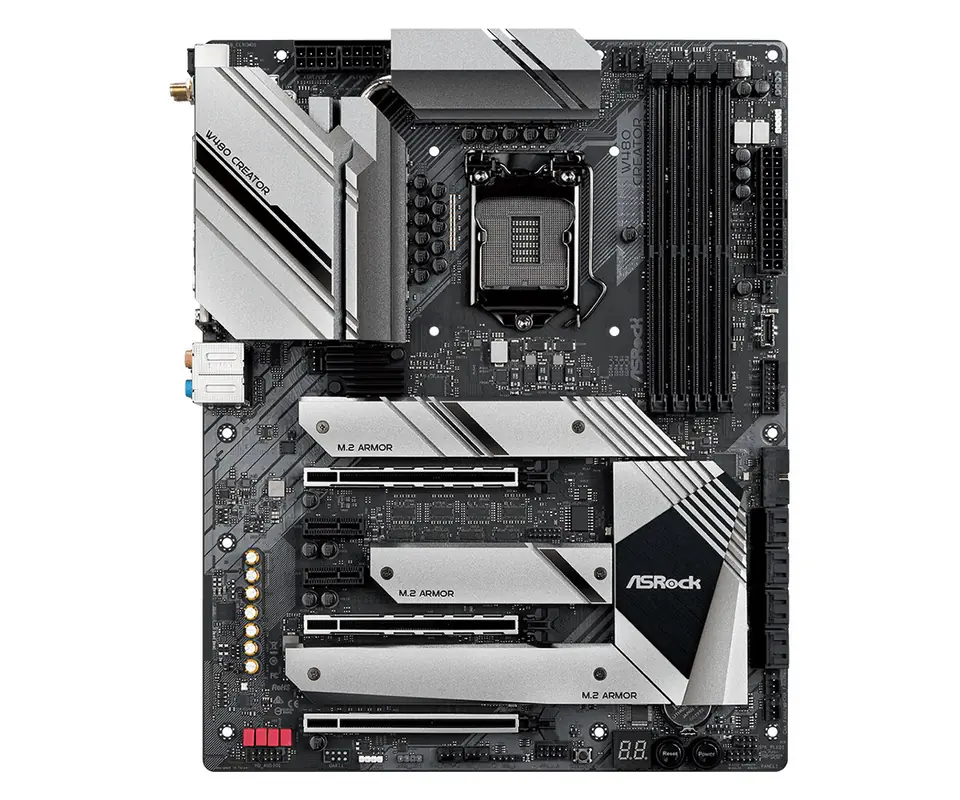

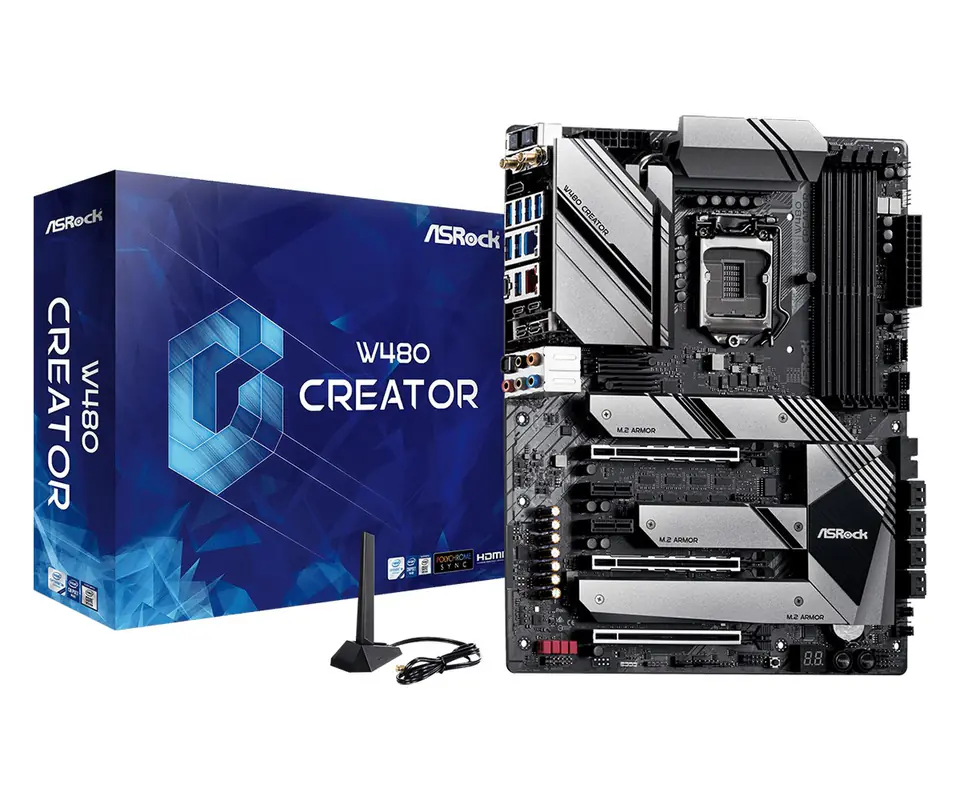

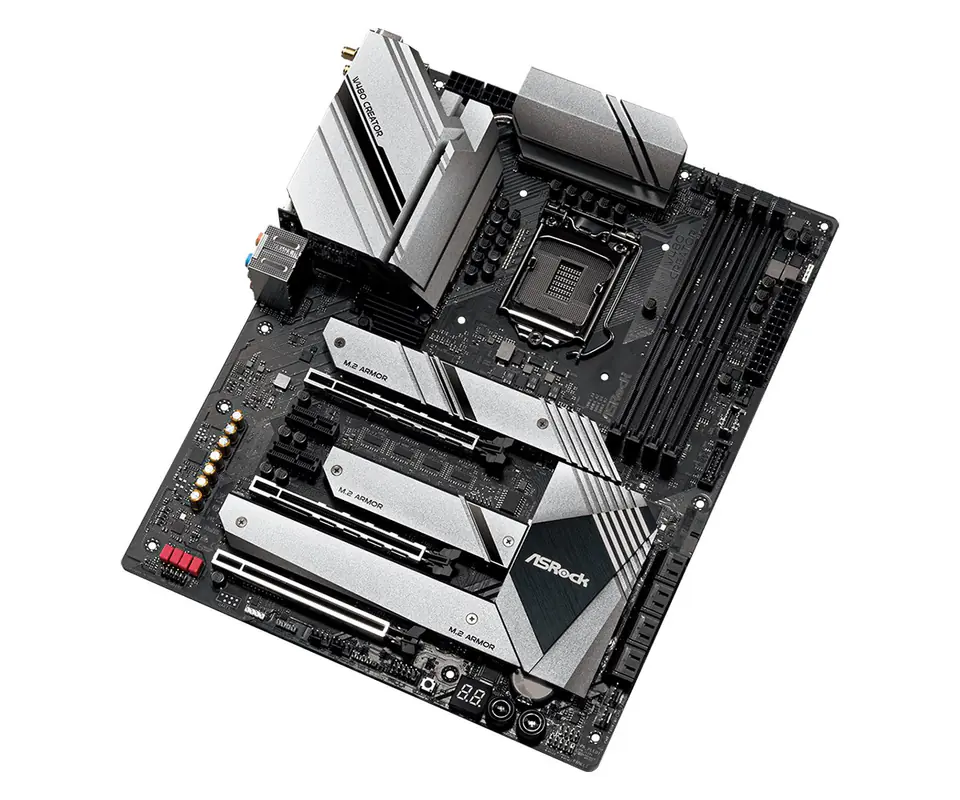

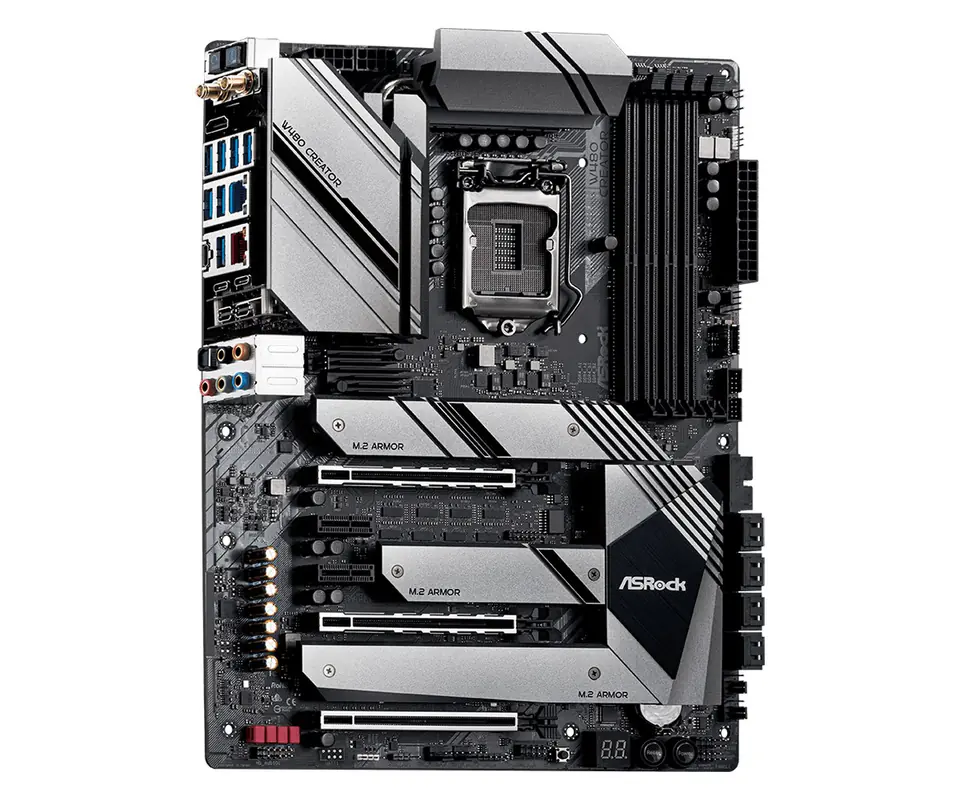

Asrock W480 CREATOR motherboard Intel W480 LGA 1200 (Socket H5) ATX
This product is not available
- Availability:
- expected delivery
- Brand:
- ASRock
- Product code:
- W480 CREATOR / 4710483931543
Share this product:
Specification
| 12v power connector: | Yes |
|---|---|
| Atx power connector (24-pin): | Yes |
| Audio chip: | Realtek ALC1220 |
| Audio connector: | Yes |
| Audio output channels: | 7.1 channels |
| Bios type: | UEFI AMI |
| Bluetooth: | Yes |
| Bluetooth version: | 5.1 |
| Cables included: | SATA |
| Clear cmos button: | Yes |
| Compatible processor series: | Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®, Intel Pentium G, Intel® Core™ i7, Intel® Core™ i9, Intel Xeon W |
| Cpu fan connector: | Yes |
| Depth: | 244 mm |
| Directx version: | 12.0 |
| Drivers included: | Yes |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Ethernet lan: | Yes |
| Front panel audio connector: | Yes |
| Harmonized system (hs) code: | 84733020 |
| Hdcp: | Yes |
| Lan controller: | Aquantia AQC107, Intel I225-LM |
| Maximum internal memory: | 128 GB |
| Maximum resolution: | 4096 x 2160 pixels |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Motherboard chipset: | Intel W480 |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | ATX |
| Number of chassis fan connectors: | 6 |
| Number of m.2 (m) slots: | 1 |
| Number of memory slots: | 4 |
| Number of sata iii connectors: | 8 |
| Opengl version: | 4.5 |
| Parallel processing technology support: | 3-Way CrossFireX, Quad-GPU CrossFireX, CrossFireX |
| Pci express x1 (gen 2.x) slots: | 2 |
| Pci express x16 (gen 3.x) slots: | 3 |
| Processor cores: | 10 |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1200 (Socket H5) |
| Raid levels: | 0, 10, 5, 1 |
| Rgb led pin header: | Yes |
| Supported memory clock speeds: | 4500, 4333, 4600, 2133, 4133, 4000, 3733, 4400 MHz, 3200 MHz, 2666, 4266, 3800, 2400, 2800, 2933, 3600, 3866 |
| Supported memory module capacities: | 4GB, 8GB, 16GB, 32GB |
| Supported memory types: | DDR-SDRAM |
| Supported processor sockets: | LGA 1200 (Socket H5) |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| Total number of sata connectors: | 8 |
| Tpm connector: | Yes |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 2 |
| Wake-on-lan ready: | Yes |
| Wi-fi: | Yes |
| Wi-fi standards: | 802.11b, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n), 802.11g |
| Width: | 305 mm |
| Wifi-ap antenna jack: | 2 |
| Windows operating systems supported: | Windows 10 x64 |
