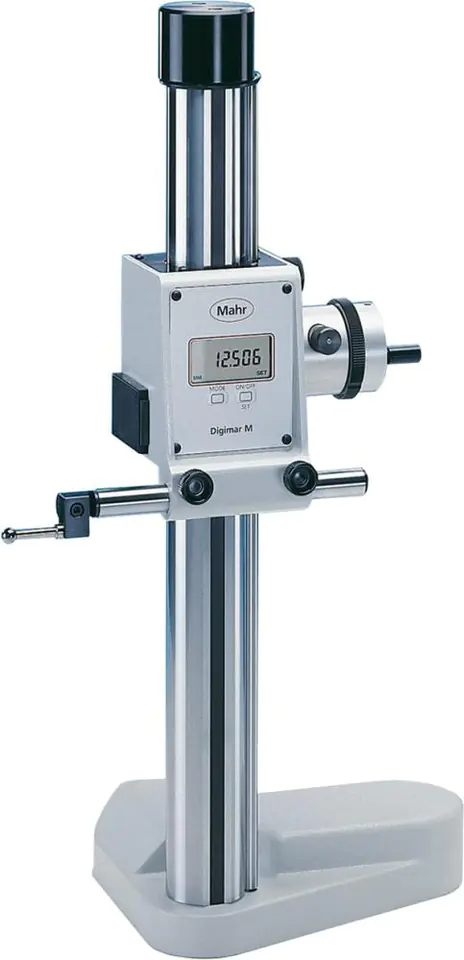

Altimeter and scribing device Digimar 814 N
Design: large and legible digital display, measuring and indicating instrument integrated in the measuring head, with digital setting of the set value (preset), zeroing the indicator in each measurement position, entering tolerance limits for 1 feature, incremental inductive measuring system, measuring head on the ball guide, wear-free measuring system, simple operation using a side hand crank on the measuring head, constant measuring pressure, Up or down operation (selectable), for routed work with the possibility of clamping in any position, with precise adjustment, does not require mains power thanks to battery power, for universal use thanks to the wide range of accessories. With radio data output, RS232, USB and Digimatic. Delivery including operating element and display, bracket, measuring arm, 8 mm ball sensor, battery, cover and calibration certificate.
Functions: on and off automatically, mm/inch switching, reset possible in any position, preset function, change of counting direction, enter tolerances, MAX-MIN for rotational and flatness control.
Application: for measuring height and spacing between holes, surfaces and edges, for marking and routing workpieces.
