Full carbide twist drill 5 x D, small

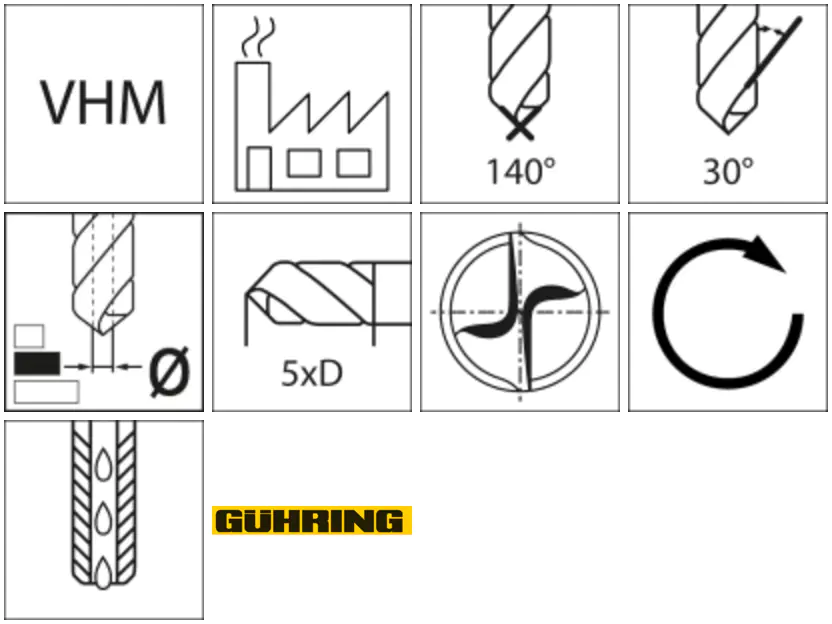

Made of construction: right-handed, with special grinding. Lateral approach angle normal, no convergence. With internal cooling. Very good self-centering properties, short chips even when cutting long-chip materials.
Application: universal twist drill for hole alignment with tight diameter tolerances and good surface quality. For drilling max. 5 x D holes with high cutting speeds. Designed in particular for short and long-term materials such as structural steels and carburizing, cast steels, heat conditioning steels, carbon steels, bronzes, castings, high-alloy AlSi alloys and alloy steels with a strength of up to 1400 N/mm².
Miniature drill bit WN solid aluminium TiALN,internal cooling 7xD0,70mm GÜHRING
€81.22
Shipping from warehouse: B6
Estimated shipping: Thu, Jun 11 - Mon, Jun 15
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- GÜHRING
- Product code:
- 9064010007000 / 4049844068117
Share this product:
Specification
| Aluminium < 8% krzemu: | 135 |
|---|---|
| Always < 1000 n/mm²: | 100 |
| Always < 1000 n/mm² f: | 0.02 mm/rev. |
| Always < 1400 n/mm²: | 70 |
| Always < 700 n/mm²: | 95 |
| Cast iron gg/gts: | 140 |
| Ggg cast iron: | 130 |
| Grip ø = h 6: | 3 mm |
| Inox austenite.: | 60 |
| No: | 9064010007000 |
| Ø m7/h7: | 0.7* mm |
| Overall length: | 47 mm |
| Shell: | TiAlN |
| Spiral length: | 4.7 mm |
| Titanium > 850 n/mm²: | 35 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
