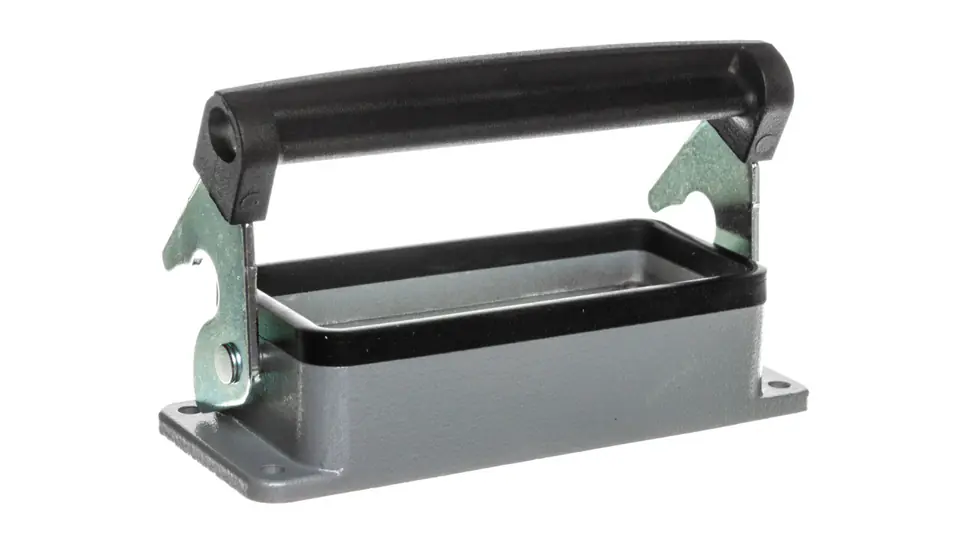

IP65 EPIC H-B 16 AG-LB desktop socket housing 10072900
This product is not available
- Availability:
- expected delivery
- Brand:
- LAPP KABEL
- Product code:
- 10072900 / 4044773056051
Share this product:
Specification
| Corrosion resistance: | No |
|---|---|
| Degree of protection (ip), mounted: | IP65 |
| Designed in accordance with the emc electromagnetic compatibility directive: | No |
| Height [mm]: | 27,8 |
| Housing material: | Aluminium |
| Housing shell: | Powder coating |
| Housing type: | Socket housing |
| Length [mm]: | 113 |
| Operating temperature range [°c] from: | -40 |
| Operating temperature range [°c] to: | 100 |
| Shape: | Rectangular |
| Type of locking: | Longitudinal yoke |
| Uv resistance: | No |
| Width [mm]: | 43 |
| With cable gland: | No |
| With lock: | No |
| With tilting cover: | No |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
