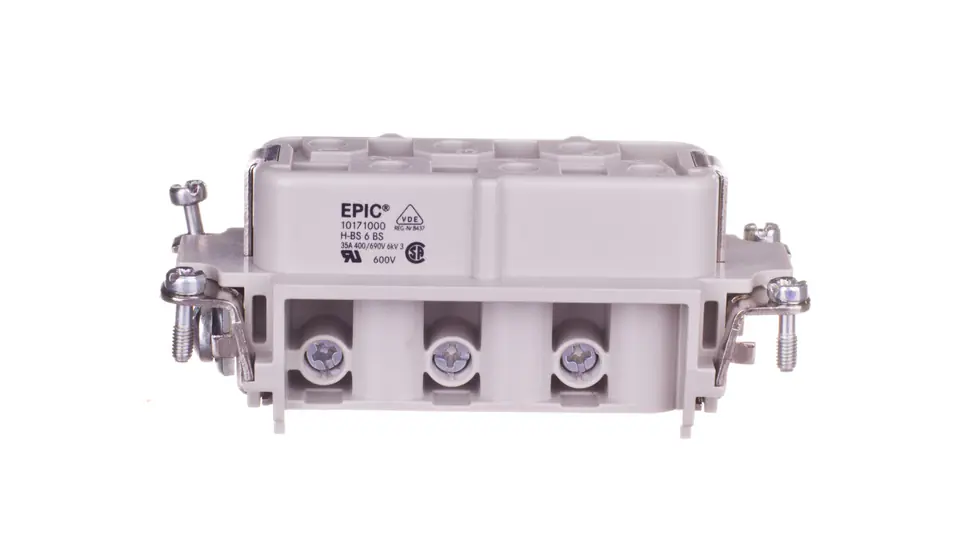

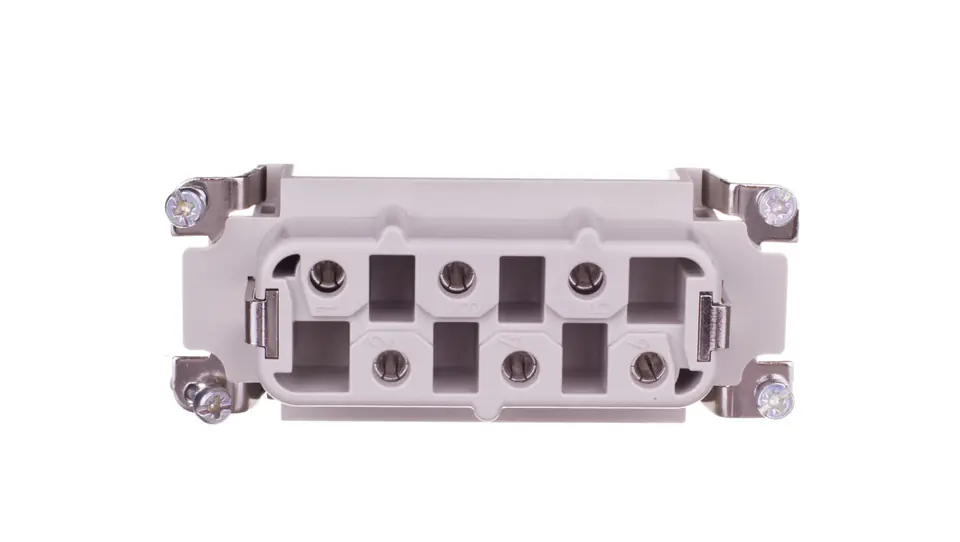

Connector insert 6P+PE female 35A 500V EPIC H-BS 6 BS 1-6 10171000
This product is not available
- Availability:
- expected delivery
- Brand:
- LAPP KABEL
- Product code:
- 10171000 / 4044773054873
Share this product:
Specification
| Ambient temperature [°c] from: | -40 |
|---|---|
| Ambient temperature [°c] to: | 100 |
| Contact coating material: | Silver |
| Cross-section of the connected cable with sleeve terminal [mm2] to: | 6 |
| Cross-section of the connected cable without sleeve terminal [mm2] to: | 6 |
| Cross-section of the connected multicore cable [mm2] to: | 6 |
| Cross-section of the connected single-wire cable [mm2] to: | 6 |
| Housing material: | Plastic |
| Number of contact paths: | 7 |
| Number of contacts: | 6 |
| Plug/connector angle: | 180° (horizontal) |
| Rated current in [a]: | 35 |
| Rated voltage [v]: | 600 |
| Type of contact: | Pin/Stick |
| Type of electrical connection: | Screw connection |
